- Startmotor
-
HC-Cargo Startmotor
- Startmotor
-
HC-Cargo Startmotor
Artikelnr: F032112553

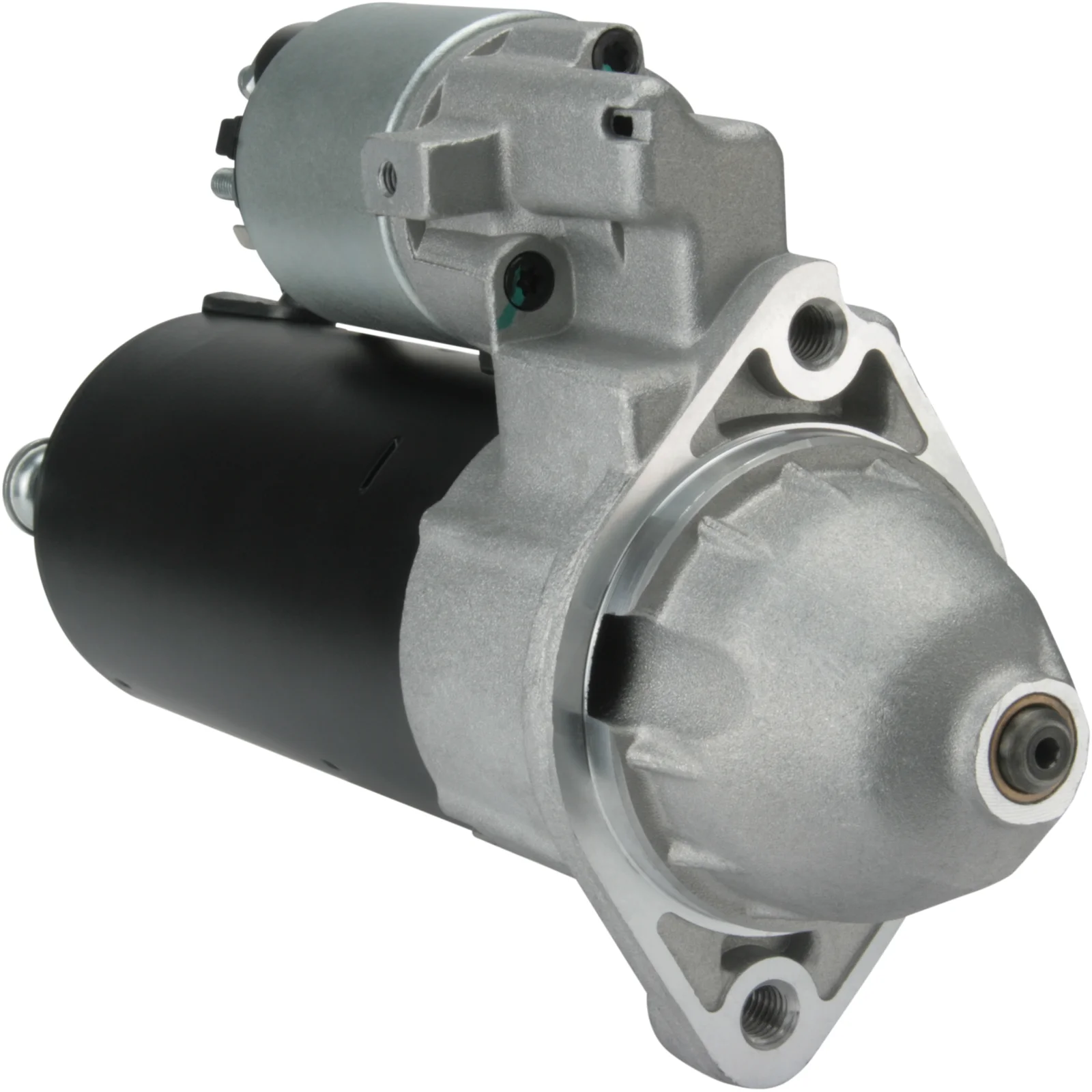

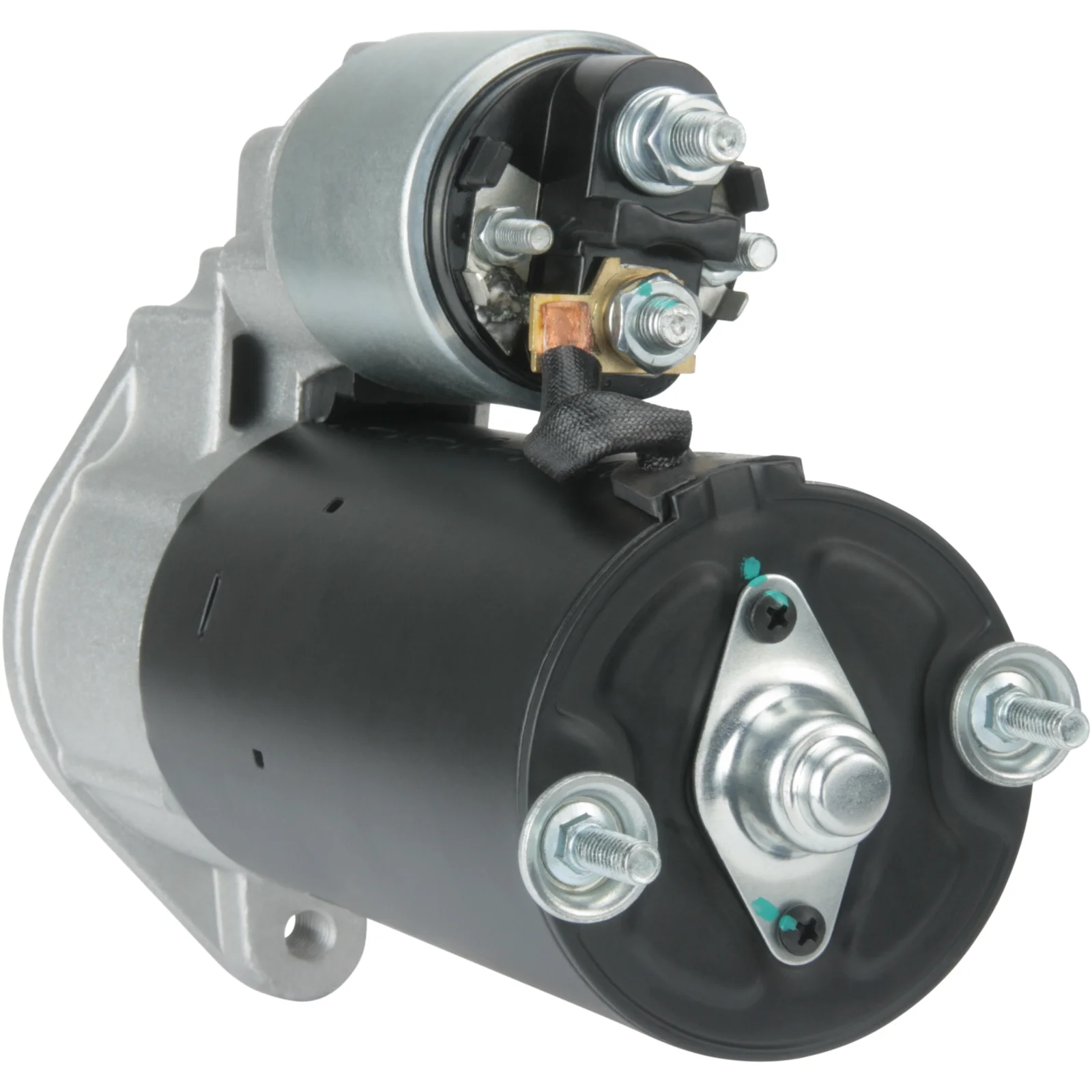

HC-Cargo Startmotor
Voltage: 12, kW: 1.7, No./teeth: 9, Rotation: CW
Beskrivning
Voltage: 12
kW: 1.7
Mount. flange: 76.20
Drive dist.: 21.50
Dist./back: 196.00
Dist./front: 60.00
No./teeth: 9
B+: M8
Thread length mm: 14.00
Position/50: 15
Terminal 50: M6
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 269.00
Terminal 30h: M5
Position/30h: 40
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (2)
kW: 1.7
Mount. flange: 76.20
Drive dist.: 21.50
Dist./back: 196.00
Dist./front: 60.00
No./teeth: 9
B+: M8
Thread length mm: 14.00
Position/50: 15
Terminal 50: M6
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 269.00
Terminal 30h: M5
Position/30h: 40
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (2)
Filer
Specifikation
| B+ | M8 |
|---|---|
| No./teeth | 9 |
| Mount. flange | 76.20 |
| Oil sealed | No |
| No./mount. holes | 2 (2) |
| Position/30h | 40 |
| Position/50 | 15 |
| Prod. info | BN |
| Rotation | CW |
| Dist./back | 196.00 |
| Dist./front | 60.00 |
| Drive dist. | 21.50 |
| Drive type | Steel |
| Gear type | GR |
| kW | 1.7 |
| Terminal 50 | M6 |
| Voltage | 12 |
| Total length | 269.00 mm |
| Waterproof | No |
| Dist. | 105.00 mm |
| Thread length | 14.00 mm |
| Terminal 30H | M5 mm |
-
OEM
A002T26391, A002T26391G, A002T27091, A002T27091A, A002T27091B, A002T27091C, A002T27091D, A002T27091E, A002T27091F, A002T27091G, A2T26391, A2T26391G, A2T27091, A2T27091A, A2T27091B, A2T27091C, A2T27091D, A2T27091E, A2T27091F, A2T27091G, aze2210, AZE2210, cs792, CS792, CST10411, drs6920, DRS6920, F032112553, F042002073, F042S02073, IS9439, LRT00228, MS15, RGO 112553, S0394, S0723S, STR-2219, STR2219, 2-1539-BO, 8EA012528-131, 8ea731782-001, 8EA731782001, 11.139.447, 15-16.920, 25-2254, 315.118.092, 1986S01136, 3669, 4127, 5705JQ, 5705Q5, 10792, 17497, 17497N, 17497R, 103372, 220332, 220332A, 458473, 555724, 557024, 570525, 570580, 0001110072, 1729981, 1736921, 8016920, 11016920, 11017170, 42016920, 91517981, 91517982, 91517983, 95611523, 95619191, 0986016920, 0986016923, 0986016924, 0986016927, 9151095080, 9151798080, 9151798180, 9151798380, 12411428622, 12411468622, 12411729981, 12411729982, 12411736921, 12411736922, 943253133010, 944280169200 -
Konkurrentreferens
CST10411, drs6920, F042002073, F042S02073, IS9439, LRT00228, MS15, S0394, S0723S, STR-2219, STR2219, 2-1539-BO, 8EA012528-131, 8ea731782-001, 15-16.920, 25-2254, 315.118.092, 3669, 4127, 10792, 17497, 17497N, 17497R, 103372, 220332, 220332A, 458473, 8016920, 11016920, 11017170, 42016920, 0986016920, 0986016923, 0986016924, 0986016927, 943253133010, 944280169200 -
Bilmärken
ALPINA, BMW -
Normaliserat artikelnummer
a002t26391, a002t26391g, a002t27091, a002t27091a, a002t27091b, a002t27091c, a002t27091d, a002t27091e, a002t27091f, a002t27091g, a2t26391, a2t26391g, a2t27091, a2t27091a, a2t27091b, a2t27091c, a2t27091d, a2t27091e, a2t27091f, a2t27091g, aze2210, cs792, cst10411, drs6920, f032112553, f042002073, f042s02073, is9439, lrt00228, ms15, rgo112553, s0394, s0723s, str2219, 8ea012528131, 8ea731782001, 1986s01136, 3669, 4127, 5705jq, 5705q5, 10792, 17497, 17497n, 17497r, 21539bo, 103372, 220332, 220332a, 252254, 458473, 555724, 557024, 570525, 570580, 0001110072, 1516920, 1729981, 1736921, 8016920, 11016920, 11017170, 11139447, 42016920, 91517981, 91517982, 91517983, 95611523, 95619191, 315118092, 0986016920, 0986016923, 0986016924, 0986016927, 9151095080, 9151798080, 9151798180, 9151798380, 12411428622, 12411468622, 12411729981, 12411729982, 12411736921, 12411736922, 943253133010, 944280169200 -
Passar modeller
ALPINA ROADSTER V8 (E52) 4.8 V8 Engine volume: 4.8 Engine type: M62 B48 (488S2) Year: 06.02-10.03 BMW 5 (E34) 530 i Engine volume: 3.0 Engine type: M30 B30 (306KA) Year: 01.88-04.90 BMW 5 (E34) 530 i V8 Engine volume: 3.0 Engine type: M60 B30 (308S1) Year: 09.92-12.95 BMW 5 (E34) 540 i V8 Engine volume: 4.0 Engine type: M60 B40 (408S1) Year: 09.92-12.95 BMW 5 (E39) 535 i Engine volume: 3.5 Engine type: M62 B35 (358S1) Year: 06.96-08.98 BMW 5 (E39) 535 i Engine volume: 3.5 Engine type: M62 B35 (358S2) Year: 09.98-06.03 BMW 5 (E39) 540 i Engine volume: 4.4 Engine type: M62 B44 (448S1), M62 B44 (448S2) Year: 03.96-06.03 BMW 5 (E39) M5 Engine volume: 4.9 Engine type: S62 B50 (508S1) Year: 10.98-06.03 BMW 5 Touring (E34) 530 i Engine volume: 3.0 Engine type: M60 B30 (308S1) Year: 09.92-07.96 BMW 5 Touring (E34) 540 i Engine volume: 4.0 Engine type: M60 B40 (408S1) Year: 09.93-07.96 BMW 5 Touring (E39) 540 i Engine volume: 4.4 Engine type: M62 B44 (448S1), M62 B44 (448S2) Year: 04.97-12.03 BMW 7 (E32) 730 i, iL Engine volume: 3.0 Engine type: M30 B30 (306EA) Year: 03.85-01.89 BMW 7 (E32) 730 i, iL Engine volume: 3.0 Engine type: M30 B30 (306KA) Year: 03.87-03.94 BMW 7 (E32) 730 i, iL V8 Engine volume: 3.0 Engine type: M60 B30 (308S1) Year: 04.92-09.94 BMW 7 (E32) 740 i, iL V8 Engine volume: 4.0 Engine type: M60 B40 (408S1) Year: 05.92-03.94 BMW 7 (E38) 730 i, iL Engine volume: 3.0 Engine type: M60 B30 (308S1) Year: 03.94-02.96 BMW 7 (E38) 730 i, iL Engine volume: 3.0 Engine type: M60 B30 (308S1) Year: 10.94-11.01 BMW 7 (E38) 735 i, iL Engine volume: 3.5 Engine type: M62 B35 (358S1) Year: 03.96-08.98 BMW 7 (E38) 735 i, iL Engine volume: 3.5 Engine type: M62 B35 (358S2) Year: 09.98-07.01 BMW 7 (E38) 740 i, iL Engine volume: 4.0 Engine type: M60 B40 (408S1) Year: 03.94-02.96 BMW 7 (E38) 740 i, iL Engine volume: 4.4 Engine type: M62 B44 (448S1), M62 B44 (448S2) Year: 02.96-07.01 BMW 8 (E31) 840 Ci Engine volume: 4.4 Engine type: M62 B44 (448S1) Year: 03.96-06.99 BMW 8 (E31) 840 i Engine volume: 4.0 Engine type: M60 B40 (408S1) Year: 03.93-02.96 BMW X5 (E53) 4.4 i Engine volume: 4.4 Engine type: M62 B44 (448S2) Year: 01.00-09.03 BMW X5 (E53) 4.6 is Engine volume: 4.6 Engine type: M62 B46 (468S1) Year: 10.01-09.03 BMW Z8 Roadster (E52) 4.9 Engine volume: 4.9 Engine type: S62 B50 (508S1) Year: 01.00-12.03 1 / 6
-
Beskrivning
Voltage: 12
kW: 1.7
Mount. flange: 76.20
Drive dist.: 21.50
Dist./back: 196.00
Dist./front: 60.00
No./teeth: 9
B+: M8
Thread length mm: 14.00
Position/50: 15
Terminal 50: M6
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 269.00
Terminal 30h: M5
Position/30h: 40
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (2)Filer
-
Specifikation
B+ M8 No./teeth 9 Mount. flange 76.20 Oil sealed No No./mount. holes 2 (2) Position/30h 40 Position/50 15 Prod. info BN Rotation CW Dist./back 196.00 Dist./front 60.00 Drive dist. 21.50 Drive type Steel Gear type GR kW 1.7 Terminal 50 M6 Voltage 12 Total length 269.00 mm Waterproof No Dist. 105.00 mm Thread length 14.00 mm Terminal 30H M5 mm -
Fordonsmatchning
-
OEM
A002T26391, A002T26391G, A002T27091, A002T27091A, A002T27091B, A002T27091C, A002T27091D, A002T27091E, A002T27091F, A002T27091G, A2T26391, A2T26391G, A2T27091, A2T27091A, A2T27091B, A2T27091C, A2T27091D, A2T27091E, A2T27091F, A2T27091G, aze2210, AZE2210, cs792, CS792, CST10411, drs6920, DRS6920, F032112553, F042002073, F042S02073, IS9439, LRT00228, MS15, RGO 112553, S0394, S0723S, STR-2219, STR2219, 2-1539-BO, 8EA012528-131, 8ea731782-001, 8EA731782001, 11.139.447, 15-16.920, 25-2254, 315.118.092, 1986S01136, 3669, 4127, 5705JQ, 5705Q5, 10792, 17497, 17497N, 17497R, 103372, 220332, 220332A, 458473, 555724, 557024, 570525, 570580, 0001110072, 1729981, 1736921, 8016920, 11016920, 11017170, 42016920, 91517981, 91517982, 91517983, 95611523, 95619191, 0986016920, 0986016923, 0986016924, 0986016927, 9151095080, 9151798080, 9151798180, 9151798380, 12411428622, 12411468622, 12411729981, 12411729982, 12411736921, 12411736922, 943253133010, 944280169200 -
Konkurrentreferens
CST10411, drs6920, F042002073, F042S02073, IS9439, LRT00228, MS15, S0394, S0723S, STR-2219, STR2219, 2-1539-BO, 8EA012528-131, 8ea731782-001, 15-16.920, 25-2254, 315.118.092, 3669, 4127, 10792, 17497, 17497N, 17497R, 103372, 220332, 220332A, 458473, 8016920, 11016920, 11017170, 42016920, 0986016920, 0986016923, 0986016924, 0986016927, 943253133010, 944280169200 -
Bilmärken
ALPINA, BMW -
Normaliserat artikelnummer
a002t26391, a002t26391g, a002t27091, a002t27091a, a002t27091b, a002t27091c, a002t27091d, a002t27091e, a002t27091f, a002t27091g, a2t26391, a2t26391g, a2t27091, a2t27091a, a2t27091b, a2t27091c, a2t27091d, a2t27091e, a2t27091f, a2t27091g, aze2210, cs792, cst10411, drs6920, f032112553, f042002073, f042s02073, is9439, lrt00228, ms15, rgo112553, s0394, s0723s, str2219, 8ea012528131, 8ea731782001, 1986s01136, 3669, 4127, 5705jq, 5705q5, 10792, 17497, 17497n, 17497r, 21539bo, 103372, 220332, 220332a, 252254, 458473, 555724, 557024, 570525, 570580, 0001110072, 1516920, 1729981, 1736921, 8016920, 11016920, 11017170, 11139447, 42016920, 91517981, 91517982, 91517983, 95611523, 95619191, 315118092, 0986016920, 0986016923, 0986016924, 0986016927, 9151095080, 9151798080, 9151798180, 9151798380, 12411428622, 12411468622, 12411729981, 12411729982, 12411736921, 12411736922, 943253133010, 944280169200 -
Passar modeller
ALPINA ROADSTER V8 (E52) 4.8 V8 Engine volume: 4.8 Engine type: M62 B48 (488S2) Year: 06.02-10.03 BMW 5 (E34) 530 i Engine volume: 3.0 Engine type: M30 B30 (306KA) Year: 01.88-04.90 BMW 5 (E34) 530 i V8 Engine volume: 3.0 Engine type: M60 B30 (308S1) Year: 09.92-12.95 BMW 5 (E34) 540 i V8 Engine volume: 4.0 Engine type: M60 B40 (408S1) Year: 09.92-12.95 BMW 5 (E39) 535 i Engine volume: 3.5 Engine type: M62 B35 (358S1) Year: 06.96-08.98 BMW 5 (E39) 535 i Engine volume: 3.5 Engine type: M62 B35 (358S2) Year: 09.98-06.03 BMW 5 (E39) 540 i Engine volume: 4.4 Engine type: M62 B44 (448S1), M62 B44 (448S2) Year: 03.96-06.03 BMW 5 (E39) M5 Engine volume: 4.9 Engine type: S62 B50 (508S1) Year: 10.98-06.03 BMW 5 Touring (E34) 530 i Engine volume: 3.0 Engine type: M60 B30 (308S1) Year: 09.92-07.96 BMW 5 Touring (E34) 540 i Engine volume: 4.0 Engine type: M60 B40 (408S1) Year: 09.93-07.96 BMW 5 Touring (E39) 540 i Engine volume: 4.4 Engine type: M62 B44 (448S1), M62 B44 (448S2) Year: 04.97-12.03 BMW 7 (E32) 730 i, iL Engine volume: 3.0 Engine type: M30 B30 (306EA) Year: 03.85-01.89 BMW 7 (E32) 730 i, iL Engine volume: 3.0 Engine type: M30 B30 (306KA) Year: 03.87-03.94 BMW 7 (E32) 730 i, iL V8 Engine volume: 3.0 Engine type: M60 B30 (308S1) Year: 04.92-09.94 BMW 7 (E32) 740 i, iL V8 Engine volume: 4.0 Engine type: M60 B40 (408S1) Year: 05.92-03.94 BMW 7 (E38) 730 i, iL Engine volume: 3.0 Engine type: M60 B30 (308S1) Year: 03.94-02.96 BMW 7 (E38) 730 i, iL Engine volume: 3.0 Engine type: M60 B30 (308S1) Year: 10.94-11.01 BMW 7 (E38) 735 i, iL Engine volume: 3.5 Engine type: M62 B35 (358S1) Year: 03.96-08.98 BMW 7 (E38) 735 i, iL Engine volume: 3.5 Engine type: M62 B35 (358S2) Year: 09.98-07.01 BMW 7 (E38) 740 i, iL Engine volume: 4.0 Engine type: M60 B40 (408S1) Year: 03.94-02.96 BMW 7 (E38) 740 i, iL Engine volume: 4.4 Engine type: M62 B44 (448S1), M62 B44 (448S2) Year: 02.96-07.01 BMW 8 (E31) 840 Ci Engine volume: 4.4 Engine type: M62 B44 (448S1) Year: 03.96-06.99 BMW 8 (E31) 840 i Engine volume: 4.0 Engine type: M60 B40 (408S1) Year: 03.93-02.96 BMW X5 (E53) 4.4 i Engine volume: 4.4 Engine type: M62 B44 (448S2) Year: 01.00-09.03 BMW X5 (E53) 4.6 is Engine volume: 4.6 Engine type: M62 B46 (468S1) Year: 10.01-09.03 BMW Z8 Roadster (E52) 4.9 Engine volume: 4.9 Engine type: S62 B50 (508S1) Year: 01.00-12.03 1 / 6
-
