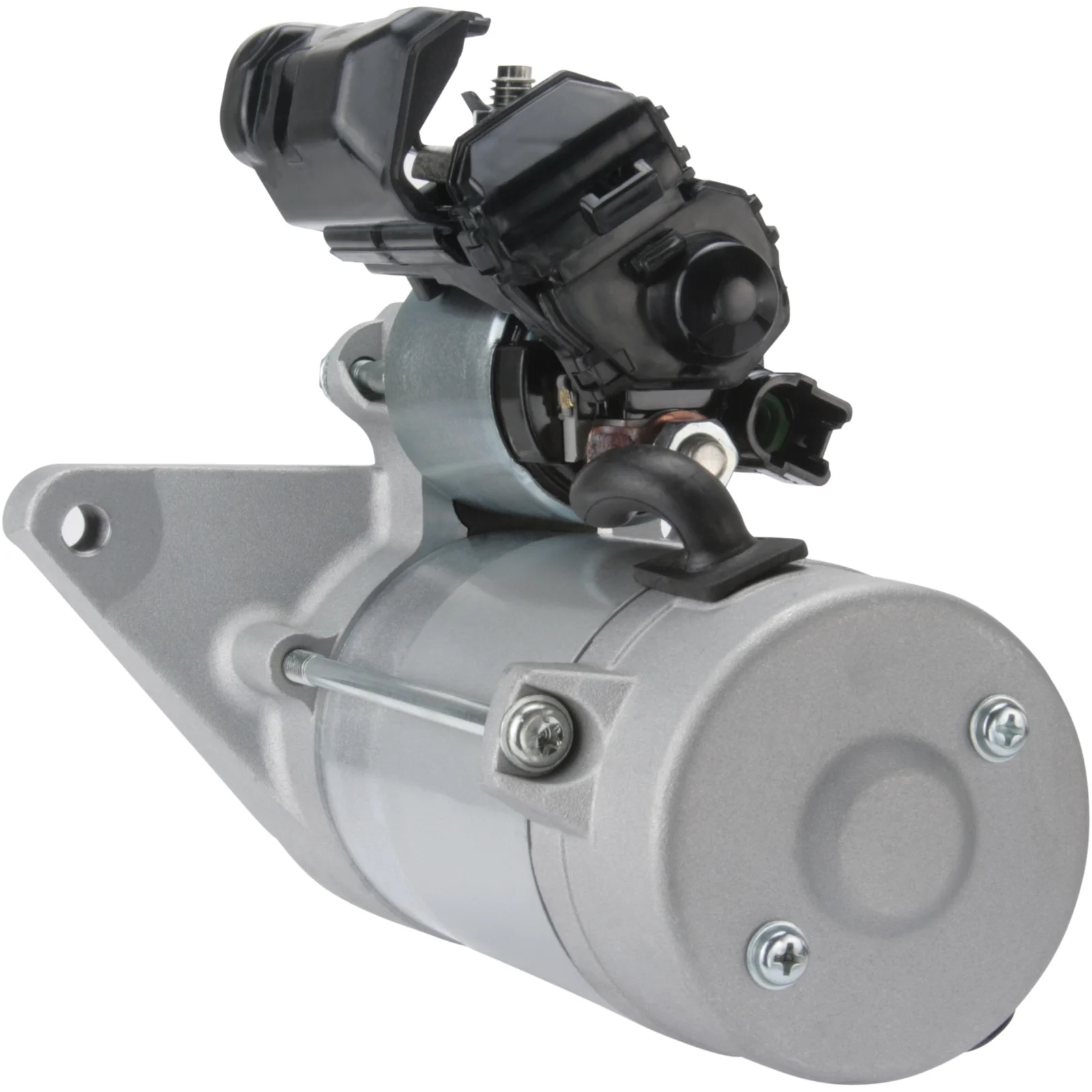

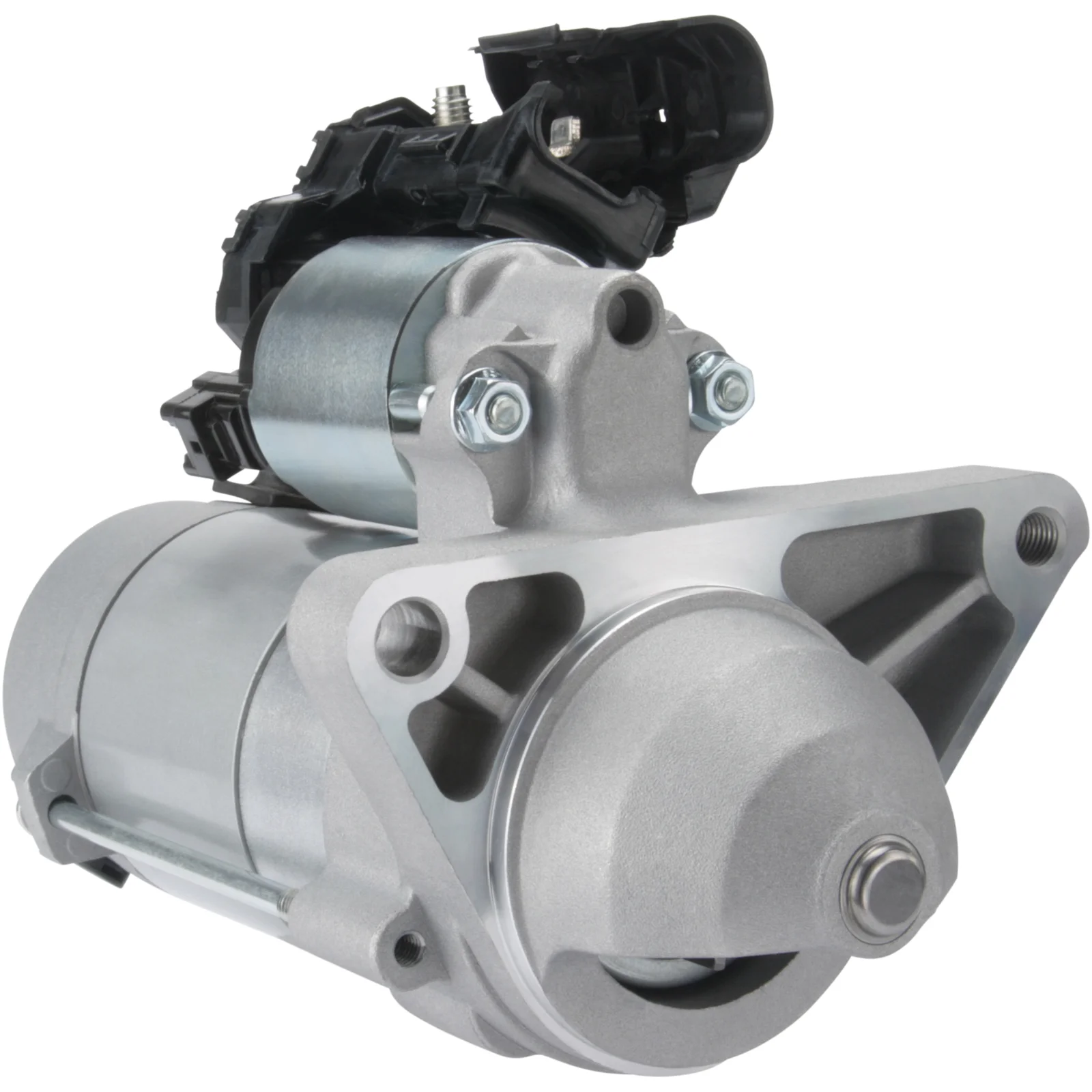

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032115644

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.0, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.0
Mount. flange: 74.00
Drive dist.: 13.00
Mount. hole 2 mm: 11.00
Dist./back: 182.50
Dist./front: 48.00
No./teeth: 10
B+: M8
Position/50: 20
Terminal 50: Plug
Gear type: GR
Dist. mm: 121.50
Rotation: CW
Total length mm: 229.00
Prod. info: BN
No./mount. holes: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 74.00
No./mount. holes 2 (1)
Position/50 20
Prod. info BN
Rotation CW
Dist./back 182.50
Dist./front 48.00
Drive dist. 13.00
Gear type GR
kW 2.0
Terminal 50 Plug
Voltage 12
Total length 229.00 mm
Dist. 121.50 mm
Mount. hole 2 11.00 mm

  • OEM
    cs1549, F032115644, RGO 115644, 1986S00592, 28100-0n050, 28100-33100, 28100-33120, 28100-33121, 428000-6070, 428000-6071, 428000-6090, 428000-6200

  • Konkurrentreferens
    CST40319, DRS0657, DSN946, LRS02511, S6040, S6040(DENSO), S6316S, 25-4183, 190.902.102, 335.233.102, 31239N, 220928, 220928A, 438373, 458942, 11040842, 0986027050

  • Normaliserat artikelnummer
    cs1549, cst40319, drs0657, dsn946, f032115644, lrs02511, rgo115644, s6040, s6040denso, s6316s, 1986s00592, 31239n, 220928, 220928a, 254183, 281000n050, 438373, 458942, 11040842, 190902102, 335233102, 0986027050, 2810033100, 2810033120, 2810033121, 4280006070, 4280006071, 4280006090, 4280006200

  • Passar modeller
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NDE150 Body: Hatchback From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _E15_ Body: Box From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Urban Cruiser Model series: Urban Cruiser Model type: 4x4 Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP110/115 Body: Hatchback From date: 01-01-2009 To date: 01-04-2014 Fuel: Diesel Approved: Yes
    Toyota Model: Urban Cruiser Model series: Urban Cruiser Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP110/115 Body: Hatchback From date: 01-01-2009 To date: 01-04-2014 Fuel: Diesel Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP90 Body: Hatchback From date: 01-08-2005 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _P13_ Body: Hatchback From date: 01-09-2011 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 2.0
    Mount. flange: 74.00
    Drive dist.: 13.00
    Mount. hole 2 mm: 11.00
    Dist./back: 182.50
    Dist./front: 48.00
    No./teeth: 10
    B+: M8
    Position/50: 20
    Terminal 50: Plug
    Gear type: GR
    Dist. mm: 121.50
    Rotation: CW
    Total length mm: 229.00
    Prod. info: BN
    No./mount. holes: 2 (1)

    Filer

  • Specifikation
    B+ M8
    No./teeth 10
    Mount. flange 74.00
    No./mount. holes 2 (1)
    Position/50 20
    Prod. info BN
    Rotation CW
    Dist./back 182.50
    Dist./front 48.00
    Drive dist. 13.00
    Gear type GR
    kW 2.0
    Terminal 50 Plug
    Voltage 12
    Total length 229.00 mm
    Dist. 121.50 mm
    Mount. hole 2 11.00 mm
  • Fordonsmatchning

    • OEM
      cs1549, F032115644, RGO 115644, 1986S00592, 28100-0n050, 28100-33100, 28100-33120, 28100-33121, 428000-6070, 428000-6071, 428000-6090, 428000-6200

    • Konkurrentreferens
      CST40319, DRS0657, DSN946, LRS02511, S6040, S6040(DENSO), S6316S, 25-4183, 190.902.102, 335.233.102, 31239N, 220928, 220928A, 438373, 458942, 11040842, 0986027050

    • Normaliserat artikelnummer
      cs1549, cst40319, drs0657, dsn946, f032115644, lrs02511, rgo115644, s6040, s6040denso, s6316s, 1986s00592, 31239n, 220928, 220928a, 254183, 281000n050, 438373, 458942, 11040842, 190902102, 335233102, 0986027050, 2810033100, 2810033120, 2810033121, 4280006070, 4280006071, 4280006090, 4280006200

    • Passar modeller
      Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NDE150 Body: Hatchback From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _E15_ Body: Box From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
      Toyota Model: Urban Cruiser Model series: Urban Cruiser Model type: 4x4 Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP110/115 Body: Hatchback From date: 01-01-2009 To date: 01-04-2014 Fuel: Diesel Approved: Yes
      Toyota Model: Urban Cruiser Model series: Urban Cruiser Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP110/115 Body: Hatchback From date: 01-01-2009 To date: 01-04-2014 Fuel: Diesel Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP90 Body: Hatchback From date: 01-08-2005 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _P13_ Body: Hatchback From date: 01-09-2011 Fuel: Diesel Approved: Yes
      1 / 2
