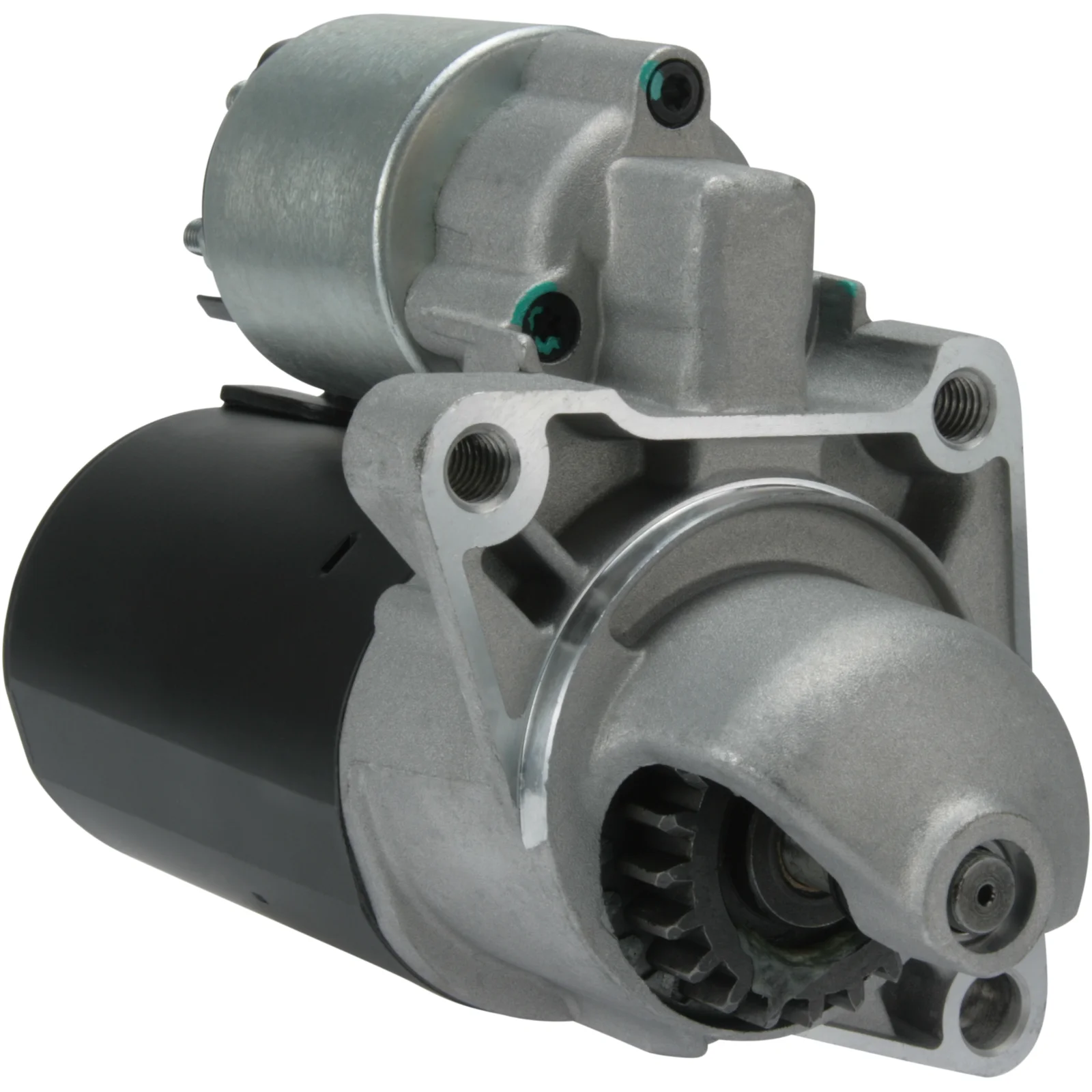

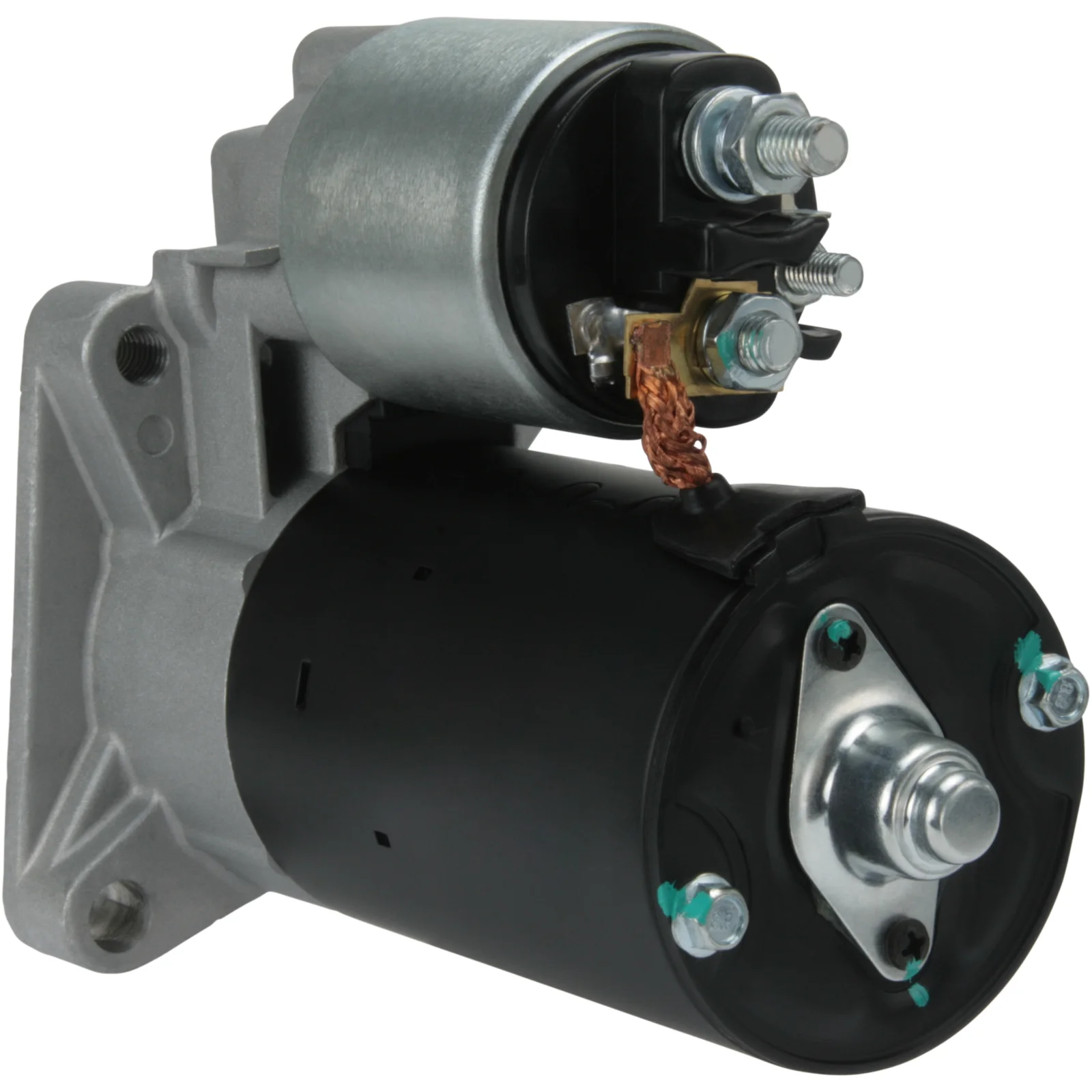

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032111680

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.1, No./teeth: 21, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.1
Mount. flange: 72.00
Drive dist.: 15.00
Mount. hole 3 mm: M10
Mount. hole 2 mm: 11.00
Dist./back: 149.00
Dist./front: 49.00
No./teeth: 21
B+: M8
Position/50: 15
Terminal 50: M6
Gear type: GR
Dist. 2: 116.50
Dist. 3: 74.50
Dist. mm: 84.00
Rotation: CW
Total length mm: 212.00
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (2)

Filer

Specifikation

B+ M8
No./teeth 21
Mount. flange 72.00
Oil sealed No
No./mount. holes 3 (2)
Position/50 15
Clutch type Dry
Prod. info BN
Dist. 2 116.50
Dist. 3 74.50
Rotation CW
Dist./back 149.00
Dist./front 49.00
Drive dist. 15.00
Drive type Steel
Gear type GR
kW 1.1
Terminal 50 M6
Voltage 12
Total length 212.00 mm
Waterproof No
Dist. 84.00 mm
Mount. hole 3 M10 mm
Mount. hole 2 11.00 mm

  • OEM
    cs986, F032111680, R91AX11000KB1, RGO 111680, 97kb11000ab, 97kb11000ac, 1986S00961, 1019852, 1030151, 1033781, 1057811, 0001107059, 0001107082, 1416226, 1416236, 7275964

  • Konkurrentreferens
    BSO7205, CST14106, drs7530, DRS7530N, F042002016, F042S02016, FRS182, lrt00165, QS2414, S0157, STR-2018, STR2018, STR50033, 8EA012140-221, 8EA012527-151, 8ea737235-001, 25-2220, 319.047.212, 3848, 4438, 10986, 31165N, 31165R, 103640, 201118, 220034, 220034A, 220365, 220365A, 438614, 455894, 726040, 726840, 8017530, 11017530, 20510165, 0986017530, 0986017533, 943253111010

  • Normaliserat artikelnummer
    bso7205, cs986, cst14106, drs7530, drs7530n, f032111680, f042002016, f042s02016, frs182, lrt00165, qs2414, r91ax11000kb1, rgo111680, s0157, str2018, str50033, 8ea012140221, 8ea012527151, 8ea737235001, 97kb11000ab, 97kb11000ac, 1986s00961, 3848, 4438, 10986, 31165n, 31165r, 103640, 201118, 220034, 220034a, 220365, 220365a, 252220, 438614, 455894, 726040, 726840, 1019852, 1030151, 1033781, 1057811, 0001107059, 0001107082, 1416226, 1416236, 7275964, 8017530, 11017530, 20510165, 319047212, 0986017530, 0986017533, 943253111010

  • Passar modeller
    Ford Model: Fiesta Model series: Fiesta Size of motor: 1.3 Brand of engine: J4C Type description: J5,J3 Body: Van From date: 01-02-1996 To date: 01-08-2003 Fuel: Gasoline Approved: Yes Manufacture type: courier
    Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: J4C Type description: JAS,JBS Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: J4J Type description: JAS,JBS Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: J4L Type description: JAS,JBS Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: J4Q Type description: JAS,JBS Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: J4R Type description: JAS,JBS Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: J4T Type description: JAS,JBS Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: JBC Type description: JAS,JBS Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: JJA Type description: GAL,ANL Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: JJC Type description: GAL,ANL Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: JJE Type description: JAS,JBS Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: JJJ Type description: JAS,JBS Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: JJK Type description: JAS,JBS Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: JJM Type description: JAS,JBS Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Size of motor: 1.0 Brand of engine: ZH10JRY Body: Hatchback Fuel: Petrol Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.0 Brand of engine: C4B Type description: RB Body: Hatchback From date: 01-07-1997 To date: 01-09-1999 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.0 Brand of engine: C4C Type description: RBT Body: Hatchback From date: 01-09-1999 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: BAA Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: J4D Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: J4K Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: J4M Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: J4N Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: J4P Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: J4S Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: JJB Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-10-2002 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: JJD Type description: RBT Body: Hatchback From date: 01-06-1998 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: JJF Type description: RBT Body: Hatchback From date: 01-06-1998 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: JJG Type description: RBT Body: Hatchback From date: 01-06-1998 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: JJH Type description: RBT Body: Hatchback From date: 01-06-1998 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: JJL Type description: RBT Body: Hatchback From date: 01-06-1998 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
    1 / 6
  • Beskrivning
    Voltage: 12
    kW: 1.1
    Mount. flange: 72.00
    Drive dist.: 15.00
    Mount. hole 3 mm: M10
    Mount. hole 2 mm: 11.00
    Dist./back: 149.00
    Dist./front: 49.00
    No./teeth: 21
    B+: M8
    Position/50: 15
    Terminal 50: M6
    Gear type: GR
    Dist. 2: 116.50
    Dist. 3: 74.50
    Dist. mm: 84.00
    Rotation: CW
    Total length mm: 212.00
    Clutch type: Dry
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 21
    Mount. flange 72.00
    Oil sealed No
    No./mount. holes 3 (2)
    Position/50 15
    Clutch type Dry
    Prod. info BN
    Dist. 2 116.50
    Dist. 3 74.50
    Rotation CW
    Dist./back 149.00
    Dist./front 49.00
    Drive dist. 15.00
    Drive type Steel
    Gear type GR
    kW 1.1
    Terminal 50 M6
    Voltage 12
    Total length 212.00 mm
    Waterproof No
    Dist. 84.00 mm
    Mount. hole 3 M10 mm
    Mount. hole 2 11.00 mm
  • Fordonsmatchning

    • OEM
      cs986, F032111680, R91AX11000KB1, RGO 111680, 97kb11000ab, 97kb11000ac, 1986S00961, 1019852, 1030151, 1033781, 1057811, 0001107059, 0001107082, 1416226, 1416236, 7275964

    • Konkurrentreferens
      BSO7205, CST14106, drs7530, DRS7530N, F042002016, F042S02016, FRS182, lrt00165, QS2414, S0157, STR-2018, STR2018, STR50033, 8EA012140-221, 8EA012527-151, 8ea737235-001, 25-2220, 319.047.212, 3848, 4438, 10986, 31165N, 31165R, 103640, 201118, 220034, 220034A, 220365, 220365A, 438614, 455894, 726040, 726840, 8017530, 11017530, 20510165, 0986017530, 0986017533, 943253111010

    • Normaliserat artikelnummer
      bso7205, cs986, cst14106, drs7530, drs7530n, f032111680, f042002016, f042s02016, frs182, lrt00165, qs2414, r91ax11000kb1, rgo111680, s0157, str2018, str50033, 8ea012140221, 8ea012527151, 8ea737235001, 97kb11000ab, 97kb11000ac, 1986s00961, 3848, 4438, 10986, 31165n, 31165r, 103640, 201118, 220034, 220034a, 220365, 220365a, 252220, 438614, 455894, 726040, 726840, 1019852, 1030151, 1033781, 1057811, 0001107059, 0001107082, 1416226, 1416236, 7275964, 8017530, 11017530, 20510165, 319047212, 0986017530, 0986017533, 943253111010

    • Passar modeller
      Ford Model: Fiesta Model series: Fiesta Size of motor: 1.3 Brand of engine: J4C Type description: J5,J3 Body: Van From date: 01-02-1996 To date: 01-08-2003 Fuel: Gasoline Approved: Yes Manufacture type: courier
      Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: J4C Type description: JAS,JBS Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: J4J Type description: JAS,JBS Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: J4L Type description: JAS,JBS Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: J4Q Type description: JAS,JBS Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: J4R Type description: JAS,JBS Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: J4T Type description: JAS,JBS Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: JBC Type description: JAS,JBS Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: JJA Type description: GAL,ANL Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: JJC Type description: GAL,ANL Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: JJE Type description: JAS,JBS Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: JJJ Type description: JAS,JBS Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: JJK Type description: JAS,JBS Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: i Size of motor: 1.3 Brand of engine: JJM Type description: JAS,JBS Body: Hatchback From date: 01-08-1995 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Size of motor: 1.0 Brand of engine: ZH10JRY Body: Hatchback Fuel: Petrol Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.0 Brand of engine: C4B Type description: RB Body: Hatchback From date: 01-07-1997 To date: 01-09-1999 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.0 Brand of engine: C4C Type description: RBT Body: Hatchback From date: 01-09-1999 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: BAA Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: J4D Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: J4K Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: J4M Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: J4N Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: J4P Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: J4S Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: JJB Type description: RBT Body: Hatchback From date: 01-09-1996 To date: 01-10-2002 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: JJD Type description: RBT Body: Hatchback From date: 01-06-1998 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: JJF Type description: RBT Body: Hatchback From date: 01-06-1998 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: JJG Type description: RBT Body: Hatchback From date: 01-06-1998 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: JJH Type description: RBT Body: Hatchback From date: 01-06-1998 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Ka Model series: Ka Type of engine: i Size of motor: 1.3 Brand of engine: JJL Type description: RBT Body: Hatchback From date: 01-06-1998 To date: 01-11-2008 Fuel: Gasoline Approved: Yes
      1 / 6
