HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032115390

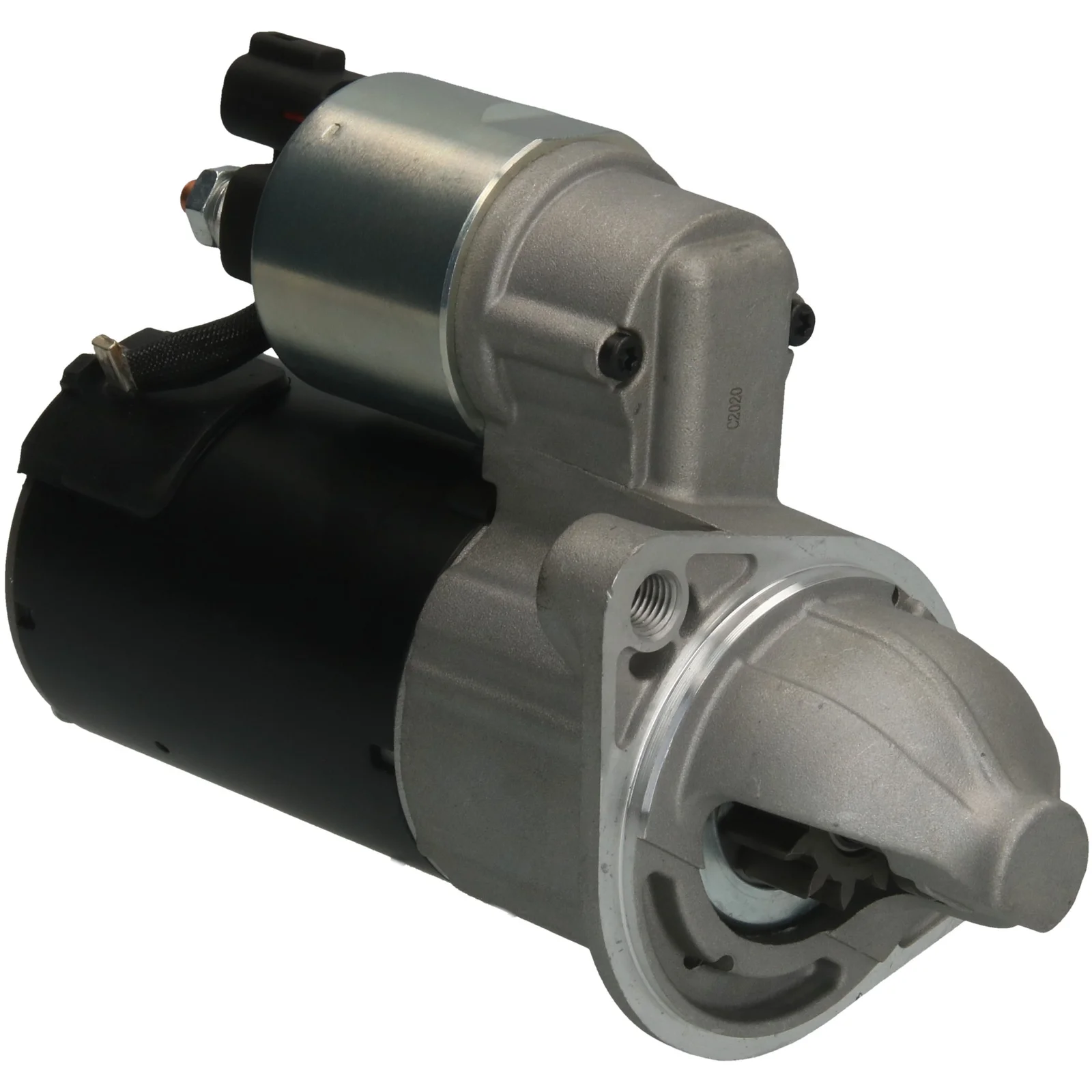

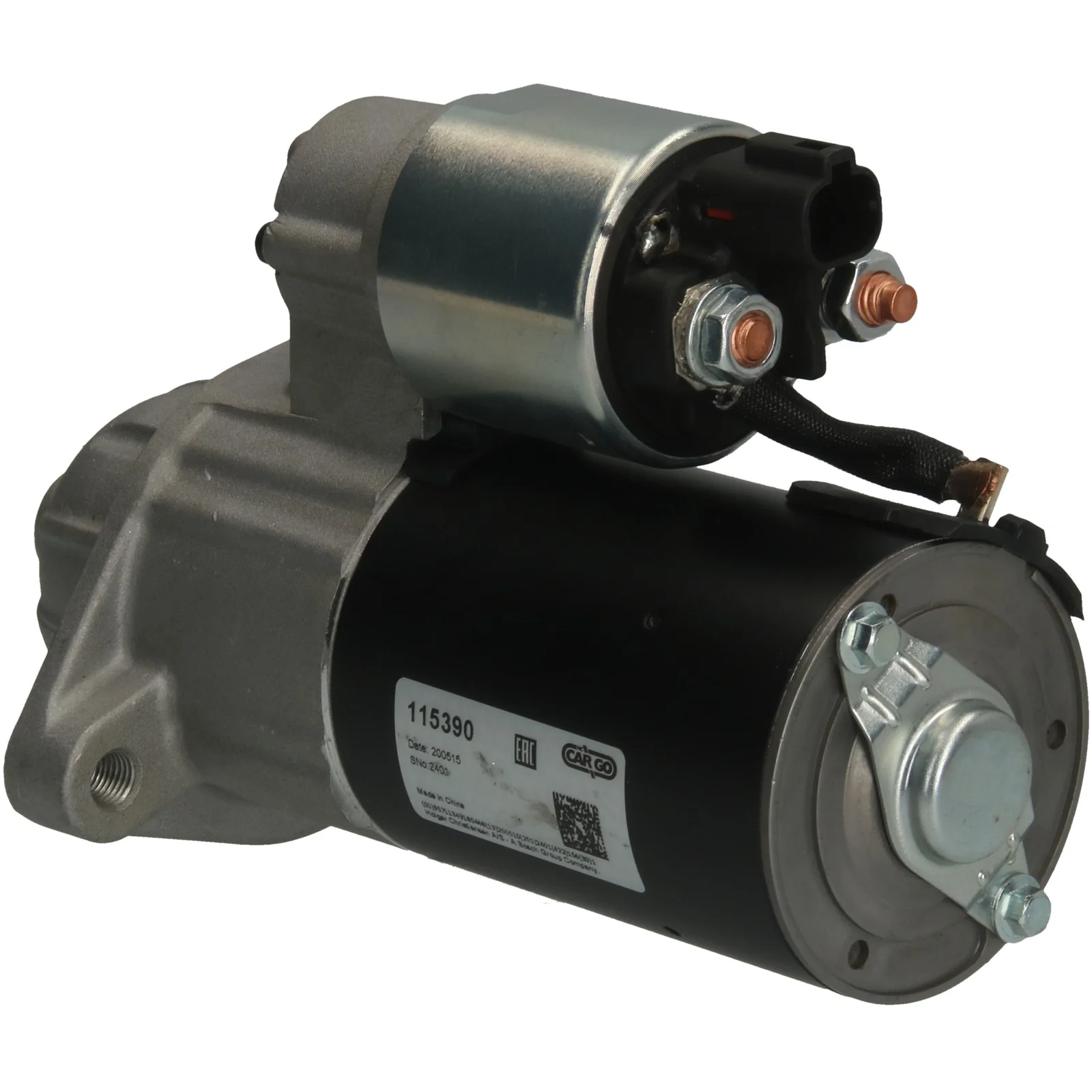

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.2, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.2
Mount. flange: 75.00
Drive dist.: 14.00
Dist./back: 159.00
Dist./front: 49.50
No./teeth: 11
B+: M8
Position/B+: 15
Position/50: 60
Terminal 50: Plug
Gear type: GR
Dist. mm: 99.00
Rotation: CW
Total length mm: 208.50
Starter type: Start/Stop
No./mount. holes: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 11
Mount. flange 75.00
No./mount. holes 2 (2)
Position/50 60
Position/B+ 15
Rotation CW
Dist./back 159.00
Dist./front 49.50
Drive dist. 14.00
Gear type GR
Starter type Start/Stop
kW 1.2
Terminal 50 Plug
Voltage 12
Total length 208.50 mm
Dist. 99.00 mm

  • OEM
    cs1541, F032115390, RGO 115390, 1986S01127, 36100-03300, 1197908, 1197909

  • Konkurrentreferens
    DRS0814, S3211S, 8EA011611-781, 25-4447, 150.591.112, 326.072.112, 30507N, 220699, 220699A, 460237, 608328, 608397, 11040875, 0986025970

  • Normaliserat artikelnummer
    cs1541, drs0814, f032115390, rgo115390, s3211s, 8ea011611781, 1986s01127, 30507n, 220699, 220699a, 254447, 460237, 608328, 608397, 1197908, 1197909, 11040875, 150591112, 326072112, 0986025970, 3610003300

  • Passar modeller
    Hyundai Model: i10 Model series: i10 Size of motor: 1.0 Brand of engine: G3LA Body: Hatchback From date: 01-01-2011 To date: 01-12-2017 Fuel: Gasoline Approved: Yes
    Hyundai Model: i10 Model series: i10 Size of motor: 1.0 Brand of engine: G3LA Type description: BA Body: Hatchback From date: 01-08-2013 Fuel: Gasoline Approved: Yes
    Hyundai Model: i20 Model series: i20 Elite Type of engine: LPG Size of motor: 1.2 Brand of engine: G4LA Type description: GB, IB Body: Hatchback From date: 01-01-2019 Fuel: Petrol/Electro Approved: Yes
    Hyundai Model: I20 Model series: I20 Size of motor: 1.2 Brand of engine: G4LA Type description: GB Body: Hatchback From date: 01-11-2014 Fuel: Electric/Gasoline Approved: Yes
    Hyundai Model: I20 Model series: I20 Size of motor: 1.2 Brand of engine: G4LA Type description: GB Body: Hatchback From date: 01-11-2014 Fuel: Gasoline Approved: Yes
    Hyundai Model: I20 Model series: I20 Size of motor: 1.2 Brand of engine: G4LA Type description: PB, PBT Body: Hatchback From date: 01-03-2012 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G3LA Type description: TA Body: Hatchback From date: 01-04-2015 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.3 Brand of engine: G4LA Type description: TA Body: Hatchback From date: 01-09-2011 To date: 01-02-2017 Fuel: Petrol Approved: Yes
    Kia Model: Rio Model series: Rio Model type: CVVT Size of motor: 1.3 Brand of engine: G4LA Type description: UB Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
    Kia Model: Rio Model series: Rio Size of motor: 1.2 Brand of engine: G4LA Type description: UB Body: Hatchback From date: 01-09-2011 To date: 01-12-2017 Fuel: Gasoline Approved: Yes
    Kia Model: Rio Model series: Rio Size of motor: 1.3 Brand of engine: G4LA Type description: UB Body: Hatchback From date: 01-11-2014 To date: 01-12-2017 Fuel: Petrol Approved: Yes
    Kia Model: Rio Model series: Rio Type of engine: CVVT Size of motor: 1.2 Brand of engine: G4LA Type description: UB Body: Box Body / Hatchback From date: 01-04-2015 To date: 01-12-2017 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 12
    kW: 1.2
    Mount. flange: 75.00
    Drive dist.: 14.00
    Dist./back: 159.00
    Dist./front: 49.50
    No./teeth: 11
    B+: M8
    Position/B+: 15
    Position/50: 60
    Terminal 50: Plug
    Gear type: GR
    Dist. mm: 99.00
    Rotation: CW
    Total length mm: 208.50
    Starter type: Start/Stop
    No./mount. holes: 2 (2)

    Filer

  • Specifikation
    B+ M8
    No./teeth 11
    Mount. flange 75.00
    No./mount. holes 2 (2)
    Position/50 60
    Position/B+ 15
    Rotation CW
    Dist./back 159.00
    Dist./front 49.50
    Drive dist. 14.00
    Gear type GR
    Starter type Start/Stop
    kW 1.2
    Terminal 50 Plug
    Voltage 12
    Total length 208.50 mm
    Dist. 99.00 mm
  • Fordonsmatchning

    • OEM
      cs1541, F032115390, RGO 115390, 1986S01127, 36100-03300, 1197908, 1197909

    • Konkurrentreferens
      DRS0814, S3211S, 8EA011611-781, 25-4447, 150.591.112, 326.072.112, 30507N, 220699, 220699A, 460237, 608328, 608397, 11040875, 0986025970

    • Normaliserat artikelnummer
      cs1541, drs0814, f032115390, rgo115390, s3211s, 8ea011611781, 1986s01127, 30507n, 220699, 220699a, 254447, 460237, 608328, 608397, 1197908, 1197909, 11040875, 150591112, 326072112, 0986025970, 3610003300

    • Passar modeller
      Hyundai Model: i10 Model series: i10 Size of motor: 1.0 Brand of engine: G3LA Body: Hatchback From date: 01-01-2011 To date: 01-12-2017 Fuel: Gasoline Approved: Yes
      Hyundai Model: i10 Model series: i10 Size of motor: 1.0 Brand of engine: G3LA Type description: BA Body: Hatchback From date: 01-08-2013 Fuel: Gasoline Approved: Yes
      Hyundai Model: i20 Model series: i20 Elite Type of engine: LPG Size of motor: 1.2 Brand of engine: G4LA Type description: GB, IB Body: Hatchback From date: 01-01-2019 Fuel: Petrol/Electro Approved: Yes
      Hyundai Model: I20 Model series: I20 Size of motor: 1.2 Brand of engine: G4LA Type description: GB Body: Hatchback From date: 01-11-2014 Fuel: Electric/Gasoline Approved: Yes
      Hyundai Model: I20 Model series: I20 Size of motor: 1.2 Brand of engine: G4LA Type description: GB Body: Hatchback From date: 01-11-2014 Fuel: Gasoline Approved: Yes
      Hyundai Model: I20 Model series: I20 Size of motor: 1.2 Brand of engine: G4LA Type description: PB, PBT Body: Hatchback From date: 01-03-2012 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G3LA Type description: TA Body: Hatchback From date: 01-04-2015 Fuel: Gasoline Approved: Yes
      Kia Model: Picanto Model series: Picanto Size of motor: 1.3 Brand of engine: G4LA Type description: TA Body: Hatchback From date: 01-09-2011 To date: 01-02-2017 Fuel: Petrol Approved: Yes
      Kia Model: Rio Model series: Rio Model type: CVVT Size of motor: 1.3 Brand of engine: G4LA Type description: UB Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
      Kia Model: Rio Model series: Rio Size of motor: 1.2 Brand of engine: G4LA Type description: UB Body: Hatchback From date: 01-09-2011 To date: 01-12-2017 Fuel: Gasoline Approved: Yes
      Kia Model: Rio Model series: Rio Size of motor: 1.3 Brand of engine: G4LA Type description: UB Body: Hatchback From date: 01-11-2014 To date: 01-12-2017 Fuel: Petrol Approved: Yes
      Kia Model: Rio Model series: Rio Type of engine: CVVT Size of motor: 1.2 Brand of engine: G4LA Type description: UB Body: Box Body / Hatchback From date: 01-04-2015 To date: 01-12-2017 Fuel: Gasoline Approved: Yes
