HC-Cargo Startmotor

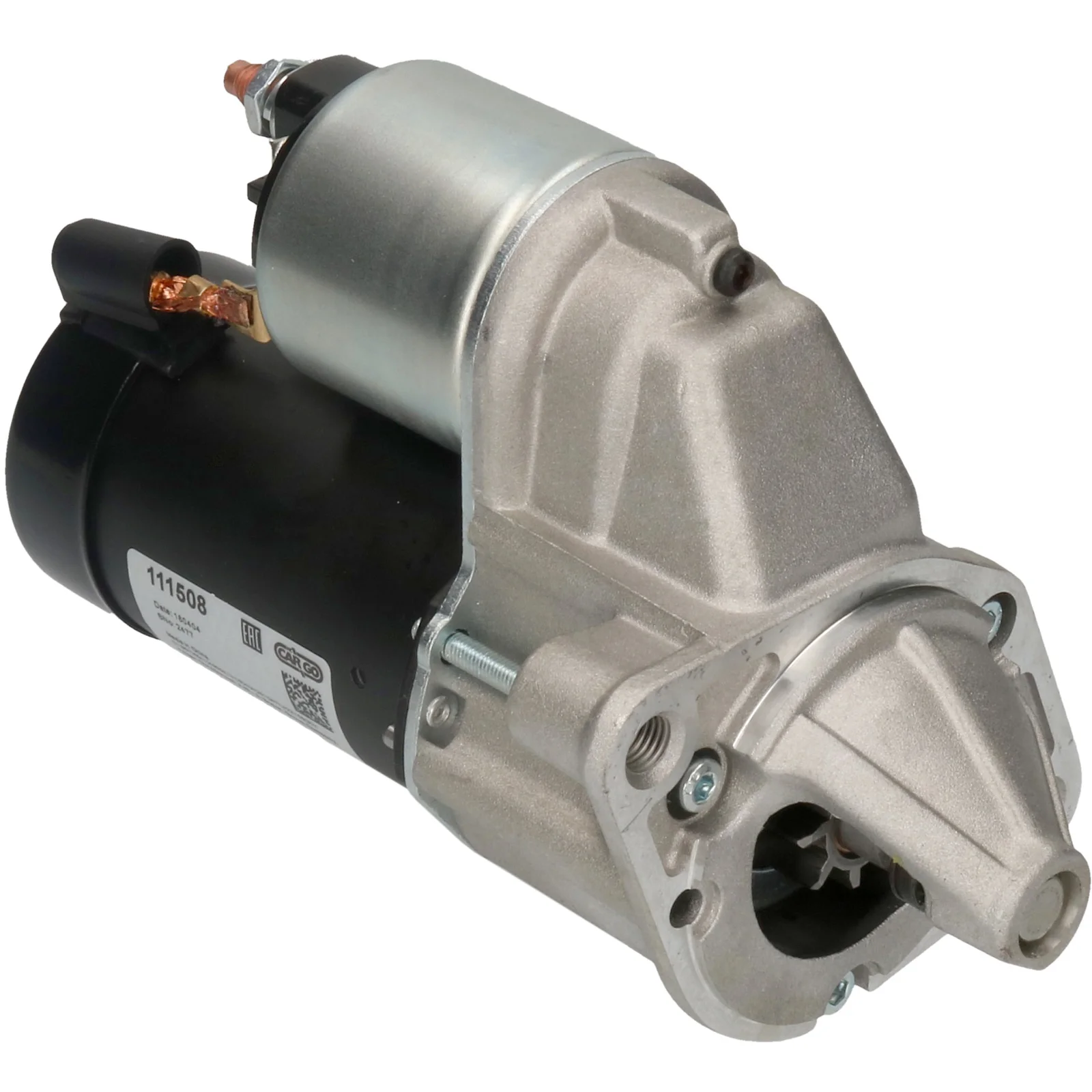

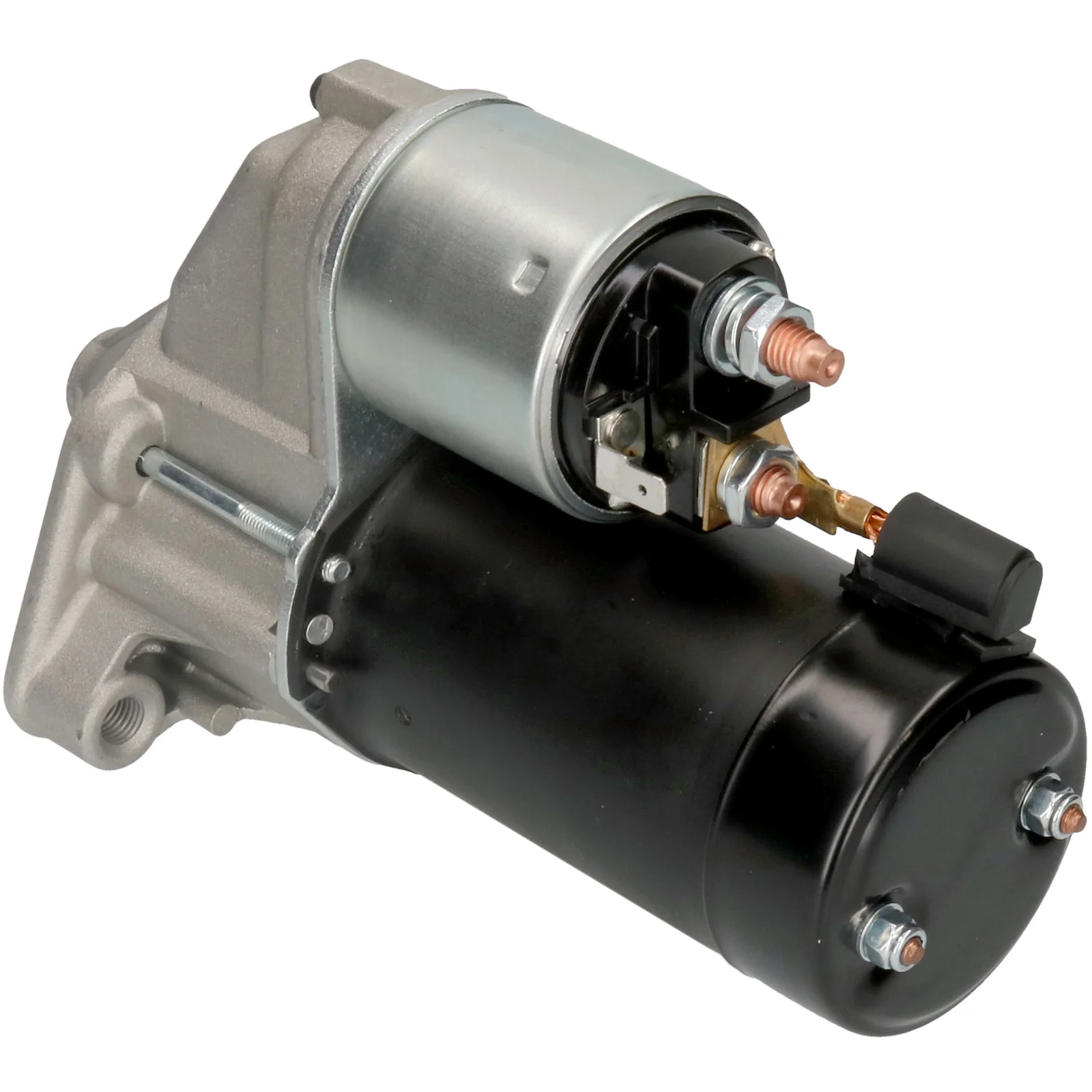

HC-Cargo Startmotor
Artikelnr: F032111508

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.2, No./teeth: 8, Rotation: CW

Beskrivning

Mits. Carisma Startm.12V-1.2kW 12V - 1.2kW, 8 kugg 12V - 1.2kW, 8 kugg Obs! Manuell växellåda! För Yourex produkt order F032111508

Voltage: 12
kW: 1.2
Mount. flange: 71.00
Drive dist.: 3.50
Dist./back: 171.50
Dist./front: 38.00
No./teeth: 8
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 207.50
Clutch type: Dry
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 71.00
Oil sealed No
No./mount. holes 2 (2)
Position/50 45
Clutch type Dry
Prod. info BN
Rotation CW
Dist./back 171.50
Dist./front 38.00
Drive dist. 3.50
Drive type Steel
Gear type GR
kW 1.2
Terminal 50 6.30
Voltage 12
Total length 207.50 mm
Waterproof No
Dist. 105.00 mm

  • OEM
    cs886, D6RA76, d6ra76, F032111508, MD 308088, md308088, RGO 111508, 111508, 455697

  • Konkurrentreferens
    BSO7251, CST15217, drs3277, F042S0H025, FRS677, IS9414, J5215030, lrt00101, MS106, nd217, QS2300, S3013, STR-H025, STR10007, STR54011, 8EA012528-351, 8ea737085-001, 25-2026, 326.021.082, 4149, 9523, 10886, 11707, 31101N, 103736, 220481, 220481A, 432673, 455697, 8018561, 8212759, 11040601, 20510101, 0986018561, 944280185610

  • Bilmärken
    Mitsubishi

  • Normaliserat artikelnummer
    bso7251, cs886, cst15217, d6ra76, drs3277, f032111508, f042s0h025, frs677, is9414, j5215030, lrt00101, md308088, ms106, nd217, qs2300, rgo111508, s3013, str10007, str54011, strh025, 8ea012528351, 8ea737085001, 4149, 9523, 10886, 11707, 31101n, 103736, 111508, 220481, 220481a, 252026, 432673, 455697, 8018561, 8212759, 11040601, 20510101, 326021082, 0986018561, 944280185610

  • Passar modeller
    Mitsubishi Model: Carisma Model series: Carisma Size of motor: 1.6 Brand of engine: 4G92 Body: Hatchback From date: 01-05-1997 To date: 01-06-2006 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Carisma Model series: Carisma Size of motor: 1.6 Brand of engine: 4G92 Body: Hatchback From date: 01-07-1995 To date: 01-06-2006 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Carisma Model series: Carisma Size of motor: 1.6 Brand of engine: 4G92 Body: Hatchback From date: 01-09-2000 To date: 01-06-2006 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Carisma Model series: Carisma Size of motor: 1.6 Brand of engine: 4G92 From date: 01-05-1997 To date: 01-06-2006 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Carisma Model series: Carisma Size of motor: 1.6 Brand of engine: 4G92 From date: 01-09-1996 To date: 01-06-2006 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Carisma Model series: Carisma Size of motor: 1.6 Brand of engine: 4G92 From date: 01-09-2000 To date: 01-06-2006 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Carisma Model series: Carisma Size of motor: 1.6 Brand of engine: 4G92 Type description: DA1A Body: Hatchback From date: 01-12-1998 To date: 01-06-2006 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Carisma Model series: Carisma Size of motor: 1.6 Brand of engine: 4G92 Type description: DA1A From date: 01-12-1998 To date: 01-06-2006 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Carisma Model series: Carisma Size of motor: 1.8 Brand of engine: 4G93 Body: Hatchback From date: 01-07-1995 To date: 01-07-1997 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Carisma Model series: Carisma Size of motor: 1.8 Brand of engine: 4G93 From date: 01-09-1996 To date: 01-09-1997 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Carisma Model series: Carisma Type of engine: 16V Size of motor: 1.3 Brand of engine: 4G13(16V) Type description: DA_ From date: 01-09-2000 To date: 01-10-2004 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Carisma Model series: Carisma Type of engine: 16V Size of motor: 1.8 Brand of engine: 4G93 Body: Hatchback From date: 01-07-1995 To date: 01-07-1997 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Space Star Model series: Space Star Type of engine: 16V Size of motor: 1.3 Brand of engine: 4G13 Body: MPV From date: 01-06-1998 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Space Star Model series: Space Star Type of engine: 16V Size of motor: 1.3 Brand of engine: 4G13 Type description: DG0 Body: MPV From date: 01-09-2000 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Space Star Model series: Space Star Type of engine: 16V Size of motor: 1.3 Brand of engine: 4G13 Type description: DGO Body: MPV From date: 01-12-1998 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Space Star Model series: Space Star Type of engine: 16V Size of motor: 1.6 Brand of engine: 4G18 Type description: DGO Body: MPV From date: 01-01-2001 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Space Star Model series: Space Star Type of engine: GDi Size of motor: 1.8 Brand of engine: 4G93 (DOHC) Type description: DGO Body: MPV From date: 01-10-2002 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Mitsubishi Series: Carisma Model: 1.6 Engine volume: 1.6 Engine type: 4 G 92 Year: 05.95-
    Mitsubishi Series: Carisma Model: 1.6 Engine volume: 1.6 Engine type: 4 G 92 Year: 05.97-02.99
    Mitsubishi Series: Carisma Model: 1.6 Engine volume: 1.6 Engine type: 4 G 92 Year: 05.97-06.00
    Mitsubishi Series: Carisma Model: 1.6 Engine volume: 1.6 Engine type: 4 G 92 Year: 07.95-02.99
    Mitsubishi Series: Carisma Model: 1.6 Engine volume: 1.6 Year: 09.00-12.03
    Mitsubishi Series: Carisma Model: 1.6 MAN Engine volume: 1.6 Engine type: 4 G 92 Year: 09.96-02.99
    Mitsubishi Series: Carisma Model: 1.8 Engine volume: 1.8 Engine type: 4 G 93 Year: 05.95-
    Mitsubishi Series: Carisma Model: 1.8 Engine volume: 1.8 Engine type: 4 G 93 Year: 07.95-02.99
    Mitsubishi Series: Carisma Model: 1.8 Engine volume: 1.8 Engine type: 4 G 93 Year: 09.96-02.99
    Mitsubishi Series: Space Star Model: 1.3 16V Engine volume: 1.3 Engine type: 4 G 13 Year: 08.98-07.00
    Mitsubishi Series: Space Star Model: 1.3 16V Engine volume: 1.3 Engine type: 4 G 13 (16 V) Year: 12.98-05.00
    Mitsubishi Series: Space Star Model: 1.6 16V Engine volume: 1.6 Engine type: 4 G 18 Year: 04.01-
    Mitsubishi Series: Space Star Model: 1.8 MPI MAN Engine volume: 1.8 Engine type: 4 G 93 Year: 10.02-12.04
