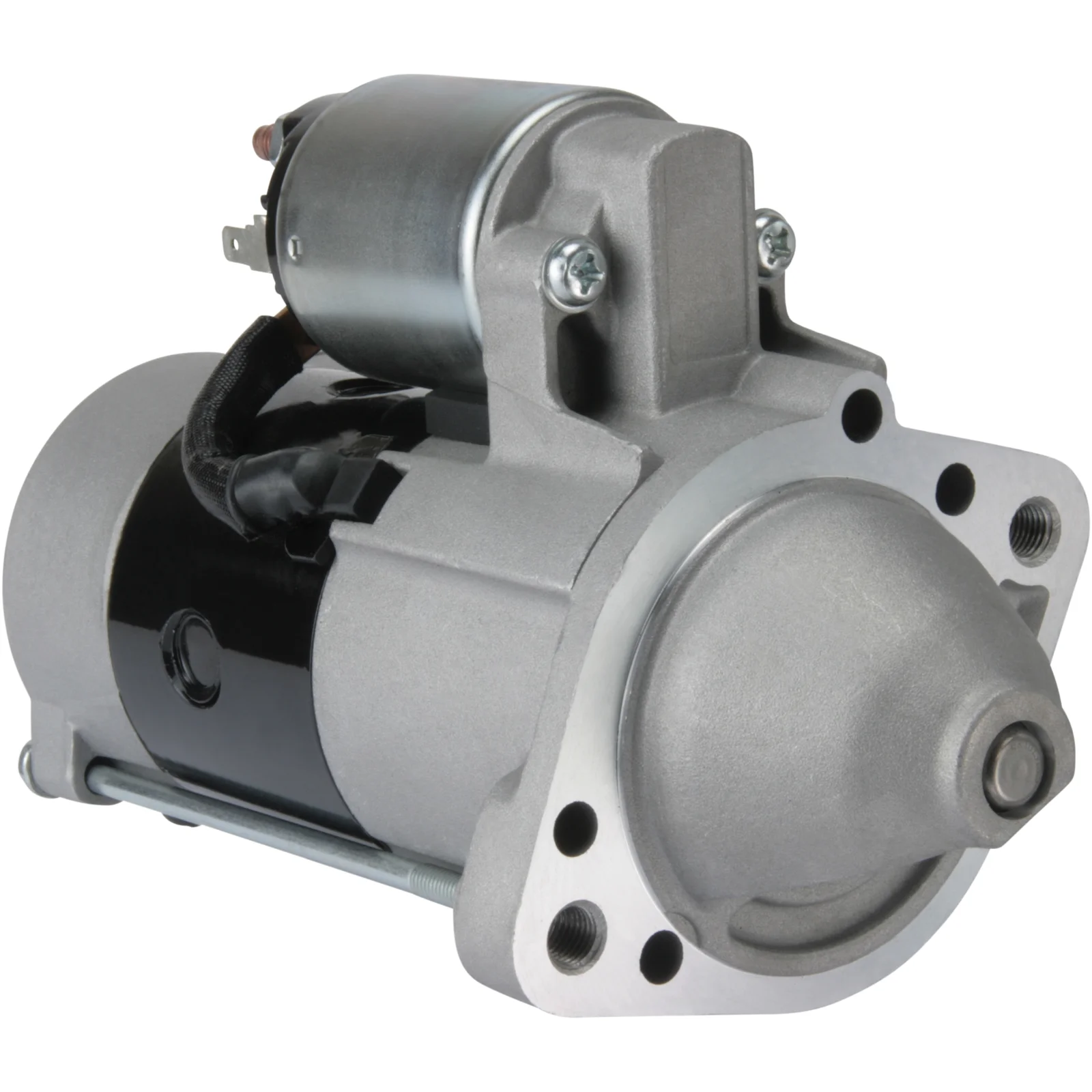

HC-Cargo Startmotor
HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032113445

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.2, No./teeth: 10, Rotation: CW

Beskrivning

Order 91-380-8717, Startmotor För Yourex produkt order 91-380-8717

Voltage: 12
kW: 2.2
Mount. flange: 77.00
Drive dist.: 9.00
Dist./back: 183.00
Dist./front: 44.50
No./teeth: 10
B+: M8
Position/50: 15
Terminal 50: 6.30
Gear type: GR
Dist. mm: 105.00
Rotation: CW
Total length mm: 239.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (2)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 77.00
Oil sealed No
No./mount. holes 2 (2)
Position/50 15
Prod. info BN
Rotation CW
Dist./back 183.00
Dist./front 44.50
Drive dist. 9.00
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 6.30
Voltage 12
Total length 239.00 mm
Waterproof No
Dist. 105.00 mm

  • OEM
    F032113445, js1227, M002T84171, M002T84171ZT, M002T84571, M002T87171, M002T87171ZT, M002T87371, M002T88071, M2T-87171, M2T-87171ZT, M2T-88071, M2T84170, m2t84171, M2T84171ZT, m2t84571, m2t87171, m2t87171zt, m2t87371, m2t88071, MD 315548, MD 344183, md314167, md315547, md315548, md331137, md344183, RGO 113445, TM000A34101, TM000A36101, 1986S00925, 1986S01027, 36100-42250, 36100-42255, 36100-42350, 36100-42450, 113445, 63187001

  • Konkurrentreferens
    CST32115, CST32130, CST35124, DRS0791, DRS3869, DRS3869N, DRS3869X, F042001184, F042S01184, LRS01436, S3166S, S5026, S5223, STR-7039, STR7039, 8EA011610-701, 8EA012527-601, 25-2349, 25-3244, 25-4437, 326.037.122, 326.047.122, 326.071.102, 6949N, 9684, 32695N, 32695R, 105481, 201227, 201351, 220086, 220086A, 220498, 220498A, 220614, 220614A, 600081, 600206, 600223, 8080104, 8212770, 8213104, 11040659, 0986022740, 0986023340

  • Bilmärken
    Hyundai, Mitsubishi

  • Normaliserat artikelnummer
    cst32115, cst32130, cst35124, drs0791, drs3869, drs3869n, drs3869x, f032113445, f042001184, f042s01184, js1227, lrs01436, m002t84171, m002t84171zt, m002t84571, m002t87171, m002t87171zt, m002t87371, m002t88071, m2t84170, m2t84171, m2t84171zt, m2t84571, m2t87171, m2t87171zt, m2t87371, m2t88071, md314167, md315547, md315548, md331137, md344183, rgo113445, s3166s, s5026, s5223, str7039, tm000a34101, tm000a36101, 8ea011610701, 8ea012527601, 1986s00925, 1986s01027, 6949n, 9684, 32695n, 32695r, 105481, 113445, 201227, 201351, 220086, 220086a, 220498, 220498a, 220614, 220614a, 252349, 253244, 254437, 600081, 600206, 600223, 8080104, 8212770, 8213104, 11040659, 63187001, 326037122, 326047122, 326071102, 0986022740, 0986023340, 3610042250, 3610042255, 3610042350, 3610042450

  • Passar modeller
    Hyundai Model: H-1 Cargo Model series: H-1 Cargo Model type: TDCi Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4BH Type description: TQ Body: Van Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Model type: Starex Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: KMF Body: Bus From date: 01-06-2006 To date: 01-12-2007 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4BH Body: Platform / Chassis From date: 01-06-2000 To date: 01-10-2006 Fuel: Diesel Approved: Yes
    Hyundai Model: H-100 Model series: H-100 Bakkie Type of engine: TCi Size of motor: 2.5 Brand of engine: D4BH Type description: HR Body: Box Body / Estate From date: 01-01-2004 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Hyundai Series: H-1 Flak/chassi Model: 2.5 D Engine volume: 2.5 Engine type: D4BH Year: 06.00-10.06
    Hyundai Series: H-1 Model: 2.5 CRDi Engine volume: 2.5 Engine type: D4CB Year: 06.06-12.07
    Hyundai Series: H100 Flak/chassi Model: 2.5 TCi Engine volume: 2.5 TCi Engine type: D4BH Year: 01.04-12.12
    Mitsubishi Model: Galant Model series: Galant Type of engine: TDi Size of motor: 2.0 Brand of engine: 4D68 Type description: EA6A From date: 01-09-1996 To date: 01-10-2004 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Galant Model series: Galant Type of engine: TDi Size of motor: 2.0 Brand of engine: 4D68 Type description: EA6W Body: Estate From date: 01-09-1996 To date: 01-10-2003 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Galant Model series: Galant Type of engine: TDi Size of motor: 2.0 Brand of engine: 4D68T Type description: EA6A From date: 01-09-1996 To date: 01-10-2004 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L200 Model series: L200 Model type: 4x4 Type of engine: DI-D Size of motor: 2.5 Brand of engine: 4D56-T Type description: K7_T, K6_T, K5_T Body: Pickup From date: 01-01-2004 To date: 01-12-2007 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L200 Model series: L200 Model type: DI-D 4x4 (K74T, K34T) Type of engine: DI-D Size of motor: 2.5 Brand of engine: 4D56-TC Type description: K7_T, K6_T, K5_T Body: Pickup Fuel: Diesel Approved: Yes
    Mitsubishi Model: L200 Model series: L200 Type of engine: TDiC Size of motor: 2.5 Brand of engine: 4D56-T Type description: K7_T, K6_T, K5_T Body: Pickup From date: 01-08-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Model type: Sport Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: K9_ From date: 01-07-2002 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Model type: Sport Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: K9_ From date: 01-08-2003 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Model type: Sport Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: K9_ From date: 01-11-1998 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TDi Size of motor: 2.5 Brand of engine: 4D56T Type description: V60 Body: Convertible From date: 01-09-2001 To date: 01-12-2006 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TDi Size of motor: 2.5 Brand of engine: 4D56T Type description: V7_W, V60, V6_W, V70 From date: 01-04-2000 To date: 01-12-2006 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TDi Size of motor: 2.5 Brand of engine: 4D56T Type description: V7_W, V60, V6_W, V70 From date: 01-09-2001 To date: 01-12-2006 Fuel: Diesel Approved: Yes
    Mitsubishi Series: Galant VI (EA5_) Model: 2.0 TDI (EA6A) Engine volume: 2.0 Engine type: 4D68 T Year: 09.96-10.04
    Mitsubishi Series: GALANT VIII Kombi Model: 2.0 TDI Engine volume: 2.0 Engine type: 4D68 T Year: 09.96-10.03
    Mitsubishi Series: PAJERO III Canvas To Model: 2.5 TDi Engine volume: 2.5 Engine type: 4D56-T Year: 09.01-12.06
    Mitsubishi Series: PAJERO III Model: 2.5 TDi Engine volume: 2.5 Engine type: 4D56-T Year: 04.00-12.06
    Mitsubishi Series: PAJERO III Model: 2.5 TDi Engine volume: 2.5 Engine type: 4D56-T Year: 09.01-12.06
    Mitsubishi Series: PAJERO SPORT I Model: 2.5 TD Engine volume: 2.5 Engine type: 4D56-T Year: 07.02-
    Mitsubishi Series: PAJERO SPORT I Model: 2.5 TD Engine volume: 2.5 Engine type: 4D56-T Year: 08.03-
    Mitsubishi Series: PAJERO SPORT I Model: 2.5 TD Engine volume: 2.5 Engine type: 4D56-T Year: 11.98-
