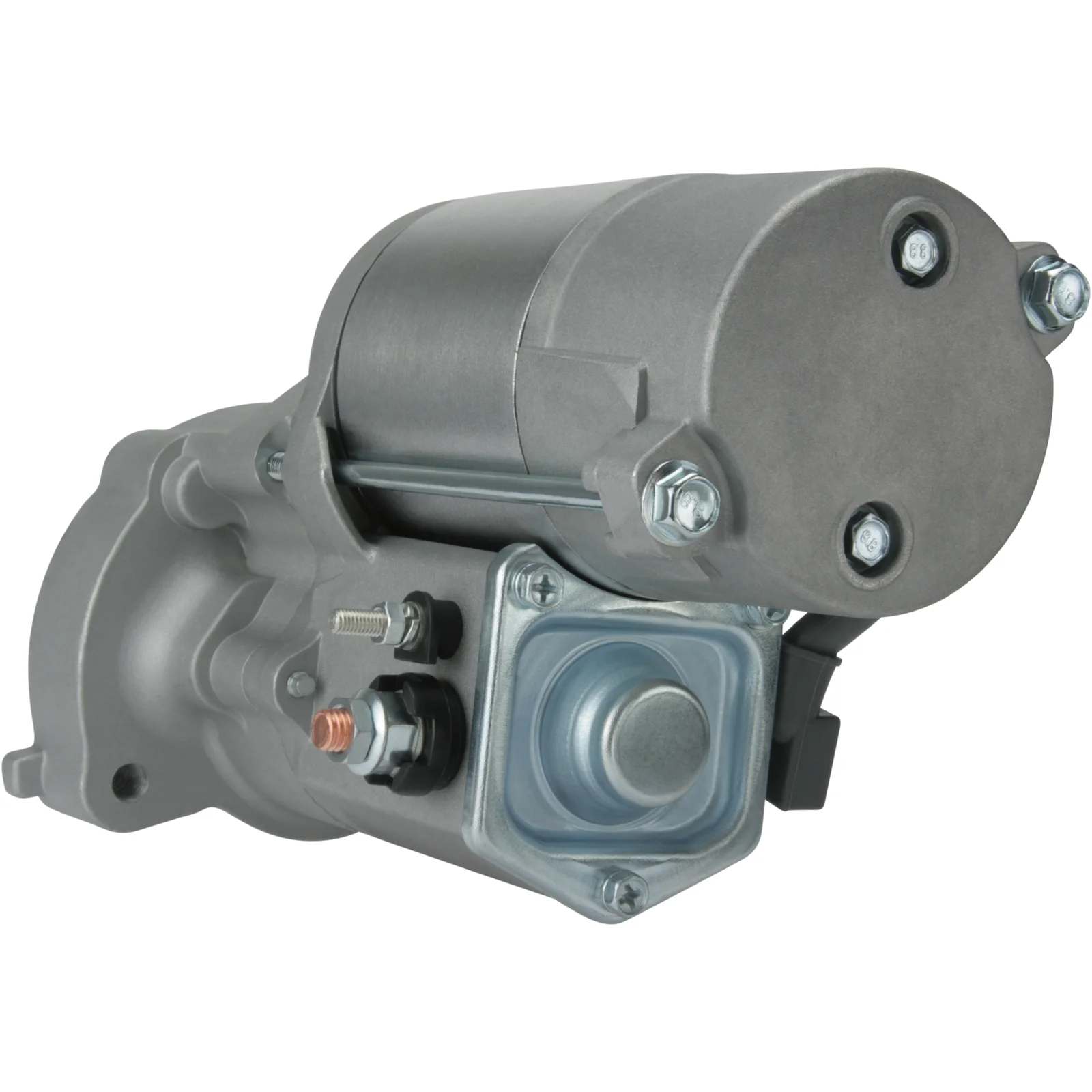

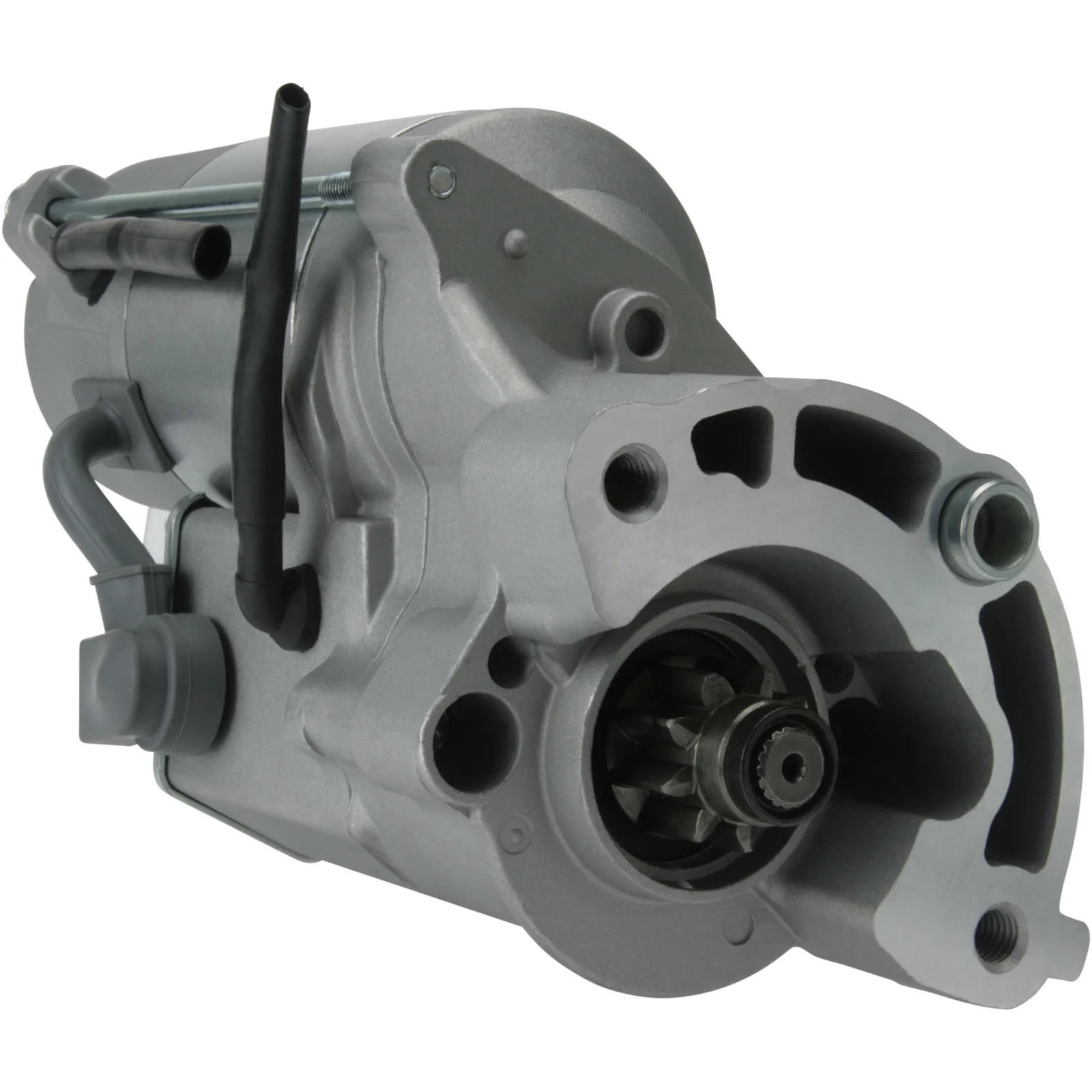

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032115468

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.0
Drive dist.: -5.00
Mount. hole 3 mm: M10
Mount. hole 2 mm: M10
Mount. hole 1 mm: M10
Dist./back: 152.00
Dist./front: 7.00
No./teeth: 9
B+: M8
Position/50: 50
Terminal 50: M5
Gear type: GR
Dist. 2: 102.50
Dist. 3: 66.00
Dist. mm: 66.00
Rotation: CW
Total length mm: 220.00
Prod. info: BN
No./mount. holes: 3 (3)

Filer

Specifikation

B+ M8
No./teeth 9
No./mount. holes 3 (3)
Position/50 50
Prod. info BN
Dist. 2 102.50
Dist. 3 66.00
Rotation CW
Dist./back 152.00
Dist./front 7.00
Drive dist. -5.00
Gear type GR
kW 2.0
Terminal 50 M5
Voltage 12
Total length 220.00 mm
Dist. 66.00 mm
Mount. hole 3 M10 mm
Mount. hole 2 M10 mm
Mount. hole 1 M10 mm

  • OEM
    F032115468, LR003469, lr007373, LR009432, RGO 115468, 6G9N11000NA, 6G9N11000NB, 1986S00626, 428000-4840, 428000-4841

  • Konkurrentreferens
    CST40267, CST40395, drs0959, DSN1209, DSN973, F042200173, LRS02657, S6140, S6140(DENSO), 8EA011613-021, 25-4329, 314.053.092, 450.540.093, 3659, 30160N, 220707, 220707A, 254525, 458906, 0986026500

  • Normaliserat artikelnummer
    cst40267, cst40395, drs0959, dsn1209, dsn973, f032115468, f042200173, lr003469, lr007373, lr009432, lrs02657, rgo115468, s6140, s6140denso, 6g9n11000na, 6g9n11000nb, 8ea011613021, 1986s00626, 3659, 30160n, 220707, 220707a, 254329, 254525, 458906, 314053092, 450540093, 0986026500, 4280004840, 4280004841

  • Passar modeller
    Land Rover Model: Discovery Model series: Discovery Sport Model type: 4WD Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: LC From date: 01-09-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Model type: 4x4 Type of engine: TDI Size of motor: 2.2 Brand of engine: 224DT Type description: L359 Body: Van From date: 01-10-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Evoque Model series: Range Rover Evoque Model type: ED4 Size of motor: 2.2 Brand of engine: 224DT From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Evoque Model series: Range Rover Evoque Model type: TD4 Type of engine: TD Size of motor: 2.2 Brand of engine: 224DT From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Evoque Model type: 4X4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: L538 Body: Box Body / Estate From date: 01-05-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.0
    Drive dist.: -5.00
    Mount. hole 3 mm: M10
    Mount. hole 2 mm: M10
    Mount. hole 1 mm: M10
    Dist./back: 152.00
    Dist./front: 7.00
    No./teeth: 9
    B+: M8
    Position/50: 50
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 102.50
    Dist. 3: 66.00
    Dist. mm: 66.00
    Rotation: CW
    Total length mm: 220.00
    Prod. info: BN
    No./mount. holes: 3 (3)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    No./mount. holes 3 (3)
    Position/50 50
    Prod. info BN
    Dist. 2 102.50
    Dist. 3 66.00
    Rotation CW
    Dist./back 152.00
    Dist./front 7.00
    Drive dist. -5.00
    Gear type GR
    kW 2.0
    Terminal 50 M5
    Voltage 12
    Total length 220.00 mm
    Dist. 66.00 mm
    Mount. hole 3 M10 mm
    Mount. hole 2 M10 mm
    Mount. hole 1 M10 mm
  • Fordonsmatchning

    • OEM
      F032115468, LR003469, lr007373, LR009432, RGO 115468, 6G9N11000NA, 6G9N11000NB, 1986S00626, 428000-4840, 428000-4841

    • Konkurrentreferens
      CST40267, CST40395, drs0959, DSN1209, DSN973, F042200173, LRS02657, S6140, S6140(DENSO), 8EA011613-021, 25-4329, 314.053.092, 450.540.093, 3659, 30160N, 220707, 220707A, 254525, 458906, 0986026500

    • Normaliserat artikelnummer
      cst40267, cst40395, drs0959, dsn1209, dsn973, f032115468, f042200173, lr003469, lr007373, lr009432, lrs02657, rgo115468, s6140, s6140denso, 6g9n11000na, 6g9n11000nb, 8ea011613021, 1986s00626, 3659, 30160n, 220707, 220707a, 254329, 254525, 458906, 314053092, 450540093, 0986026500, 4280004840, 4280004841

    • Passar modeller
      Land Rover Model: Discovery Model series: Discovery Sport Model type: 4WD Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: LC From date: 01-09-2014 Fuel: Diesel Approved: Yes
      Land Rover Model: Freelander Model series: Freelander Model type: 4x4 Type of engine: TDI Size of motor: 2.2 Brand of engine: 224DT Type description: L359 Body: Van From date: 01-10-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Evoque Model series: Range Rover Evoque Model type: ED4 Size of motor: 2.2 Brand of engine: 224DT From date: 01-06-2011 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Evoque Model series: Range Rover Evoque Model type: TD4 Type of engine: TD Size of motor: 2.2 Brand of engine: 224DT From date: 01-06-2011 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Evoque Model type: 4X4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: L538 Body: Box Body / Estate From date: 01-05-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes
