HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114661

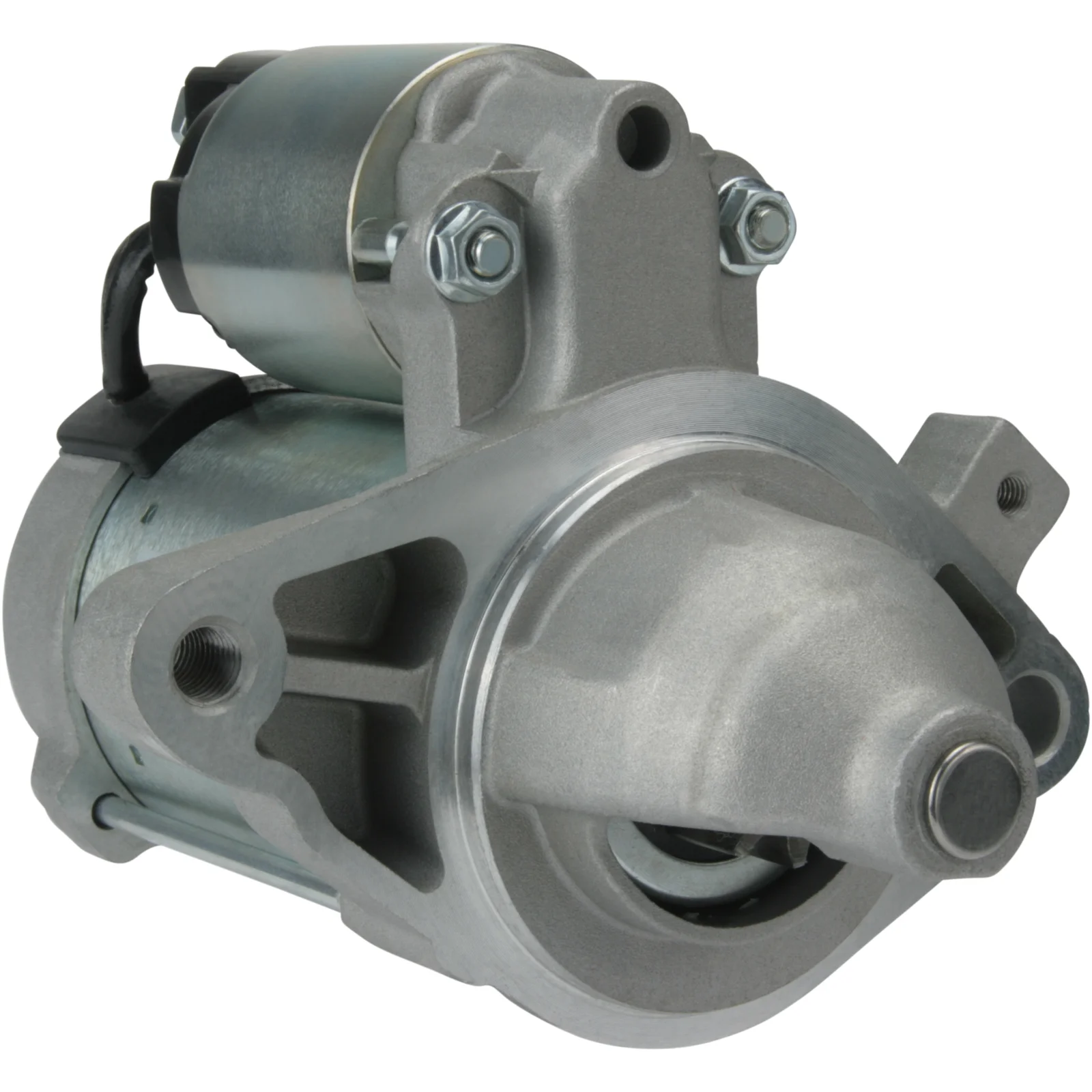

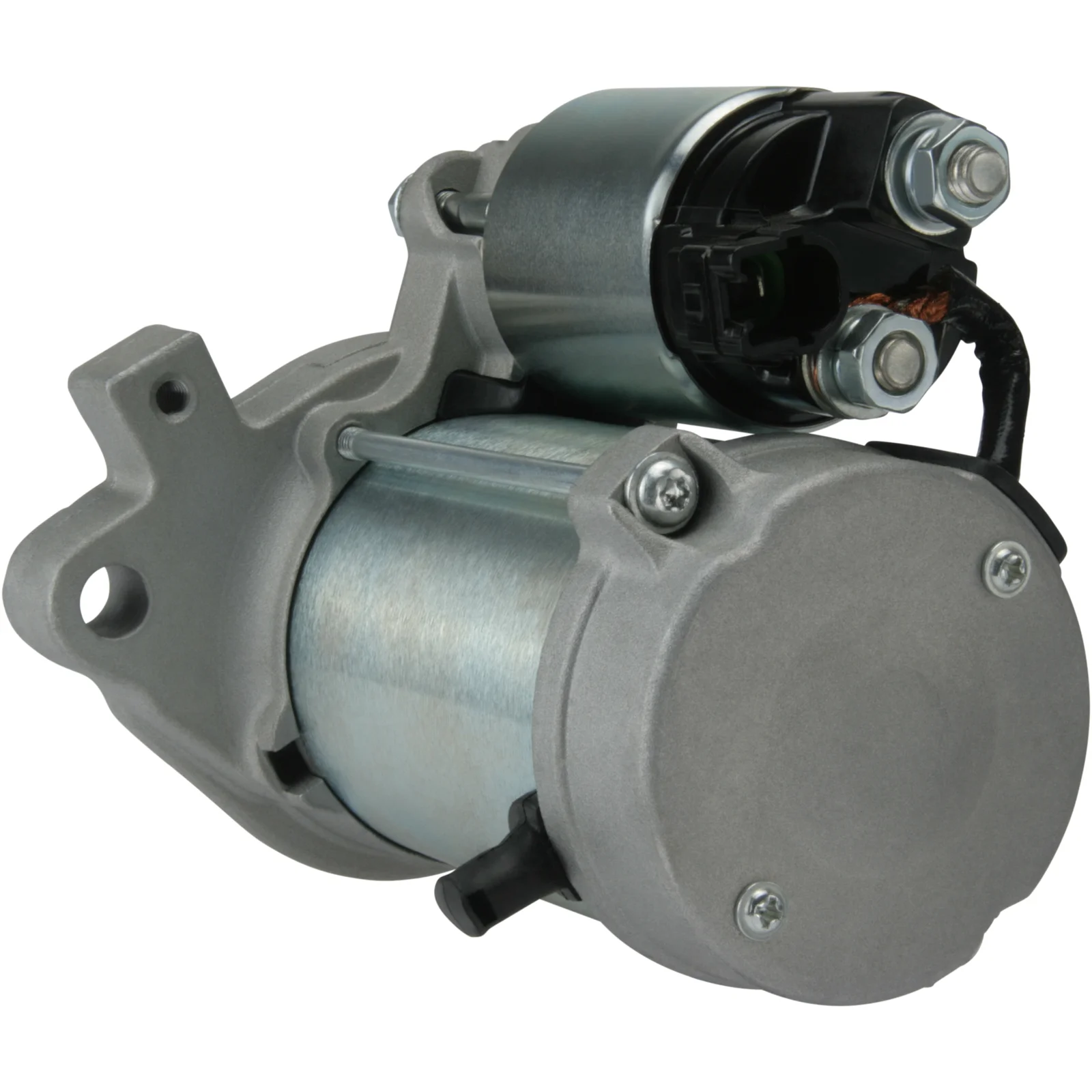

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.3, No./teeth: 9, Rotation: CW

Beskrivning

Toyota Yaris Startm. 12V-1.3kW 12V - 1.3kW, 9k A - 74mm, B - 26mm 12V - 1.3kW, 9k För Yourex produkt order 91-555-4336

Voltage: 12
kW: 1.3
Mount. flange: 74.00
Drive dist.: 25.50
Mount. hole 1 mm: 11.50
Dist./back: 130.00
Dist./front: 58.00
No./teeth: 9
B+: M8
Position/50: 40
Terminal 50: Plug
Gear type: GR
Dist. mm: 129.00
Rotation: CW
Total length mm: 190.00
Prod. info: BN
No./mount. holes: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 74.00
No./mount. holes 2 (1)
Position/50 40
Prod. info BN
Rotation CW
Dist./back 130.00
Dist./front 58.00
Drive dist. 25.50
Gear type GR
kW 1.3
Terminal 50 Plug
Voltage 12
Total length 190.00 mm
Dist. 129.00 mm
Mount. hole 1 11.50 mm

  • OEM
    cs1531, F032114661, RGO 114661, 1986S00989, 28100-0Q041, 28100-0q041, 28100-0Q050, 114661, 428000-3360, 428000-3361, 428000-4560, 428000-4561

  • Konkurrentreferens
    CST40320, DRS0473, DSN948, LRS02276, S6099, S6099(DENSO), 8EA011611-601, 25-3447, 190.903.092, 335.218.092, 33276, 33276R, 33277N, 220677, 220677A, 254409, 458949, 458965, 11040815, 0986025680, 063280075010

  • Bilmärken
    Toyota

  • Normaliserat artikelnummer
    cs1531, cst40320, drs0473, dsn948, f032114661, lrs02276, rgo114661, s6099, s6099denso, 8ea011611601, 1986s00989, 33276, 33276r, 33277n, 114661, 220677, 220677a, 253447, 254409, 281000q041, 281000q050, 458949, 458965, 11040815, 190903092, 335218092, 0986025680, 4280003360, 4280003361, 4280004560, 4280004561, 063280075010

  • Passar modeller
    Toyota Model: Vitz Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Hatchback From date: 01-06-2018 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Hatchback From date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-08-2005 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Box From date: 01-06-2018 Fuel: Petrol Approved: Yes
    Toyota Series: Yaris (_P9_) Model: 1.0 VVT -i Engine volume: 1.0 Engine type: 1KR-FE Year: 01.06-
    Toyota Series: Yaris (_P9_) Model: 1.0 VVT -i Engine volume: 1.0 Engine type: 1KR-FE Year: 01.06-01.07
    1 / 2
  • Beskrivning
    Toyota Yaris Startm. 12V-1.3kW 12V - 1.3kW, 9k A - 74mm, B - 26mm 12V - 1.3kW, 9k För Yourex produkt order 91-555-4336

    Voltage: 12
    kW: 1.3
    Mount. flange: 74.00
    Drive dist.: 25.50
    Mount. hole 1 mm: 11.50
    Dist./back: 130.00
    Dist./front: 58.00
    No./teeth: 9
    B+: M8
    Position/50: 40
    Terminal 50: Plug
    Gear type: GR
    Dist. mm: 129.00
    Rotation: CW
    Total length mm: 190.00
    Prod. info: BN
    No./mount. holes: 2 (1)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 74.00
    No./mount. holes 2 (1)
    Position/50 40
    Prod. info BN
    Rotation CW
    Dist./back 130.00
    Dist./front 58.00
    Drive dist. 25.50
    Gear type GR
    kW 1.3
    Terminal 50 Plug
    Voltage 12
    Total length 190.00 mm
    Dist. 129.00 mm
    Mount. hole 1 11.50 mm
  • Fordonsmatchning

    • OEM
      cs1531, F032114661, RGO 114661, 1986S00989, 28100-0Q041, 28100-0q041, 28100-0Q050, 114661, 428000-3360, 428000-3361, 428000-4560, 428000-4561

    • Konkurrentreferens
      CST40320, DRS0473, DSN948, LRS02276, S6099, S6099(DENSO), 8EA011611-601, 25-3447, 190.903.092, 335.218.092, 33276, 33276R, 33277N, 220677, 220677A, 254409, 458949, 458965, 11040815, 0986025680, 063280075010

    • Bilmärken
      Toyota

    • Normaliserat artikelnummer
      cs1531, cst40320, drs0473, dsn948, f032114661, lrs02276, rgo114661, s6099, s6099denso, 8ea011611601, 1986s00989, 33276, 33276r, 33277n, 114661, 220677, 220677a, 253447, 254409, 281000q041, 281000q050, 458949, 458965, 11040815, 190903092, 335218092, 0986025680, 4280003360, 4280003361, 4280004560, 4280004561, 063280075010

    • Passar modeller
      Toyota Model: Vitz Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Hatchback From date: 01-06-2018 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Hatchback From date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-08-2005 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Box From date: 01-06-2018 Fuel: Petrol Approved: Yes
      Toyota Series: Yaris (_P9_) Model: 1.0 VVT -i Engine volume: 1.0 Engine type: 1KR-FE Year: 01.06-
      Toyota Series: Yaris (_P9_) Model: 1.0 VVT -i Engine volume: 1.0 Engine type: 1KR-FE Year: 01.06-01.07
