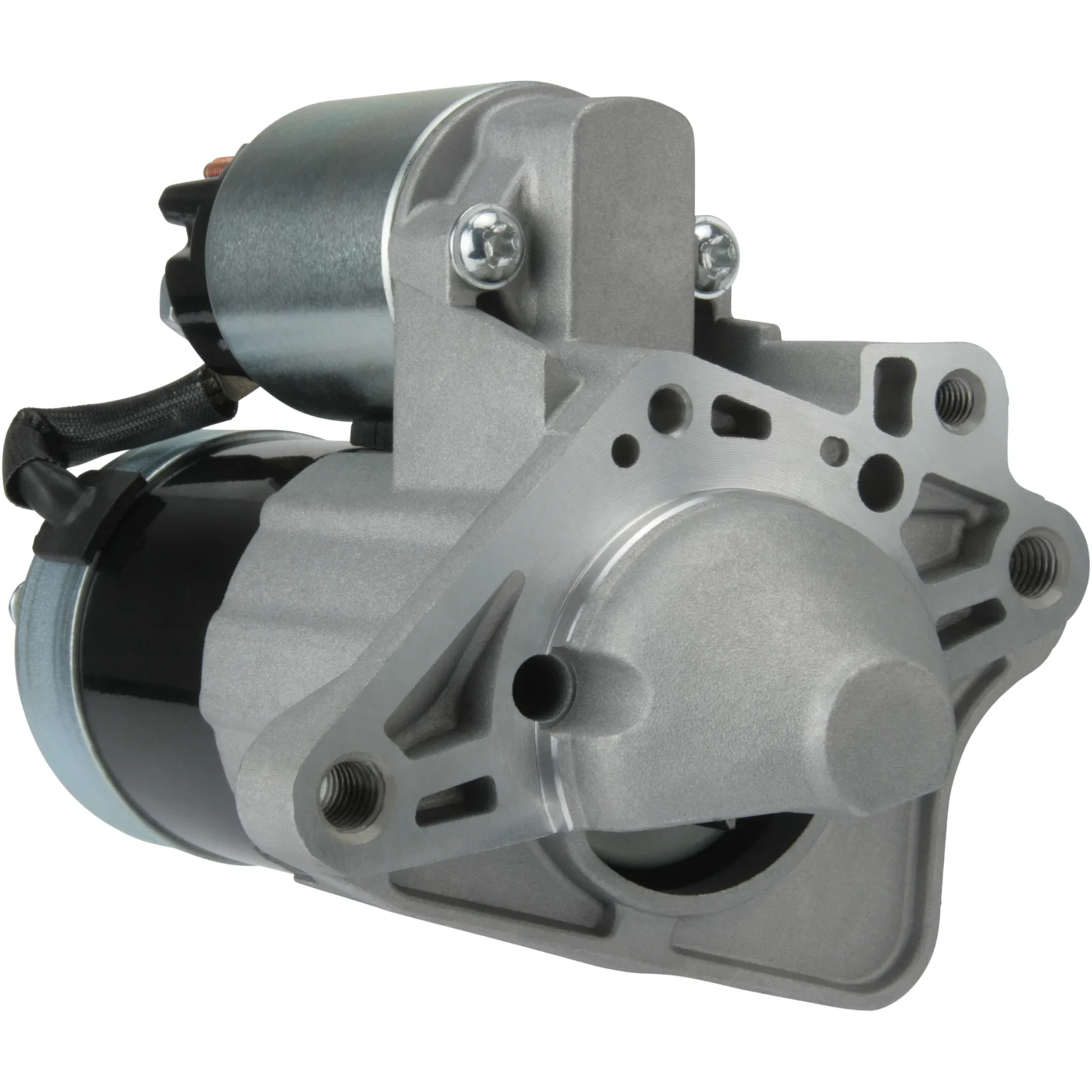

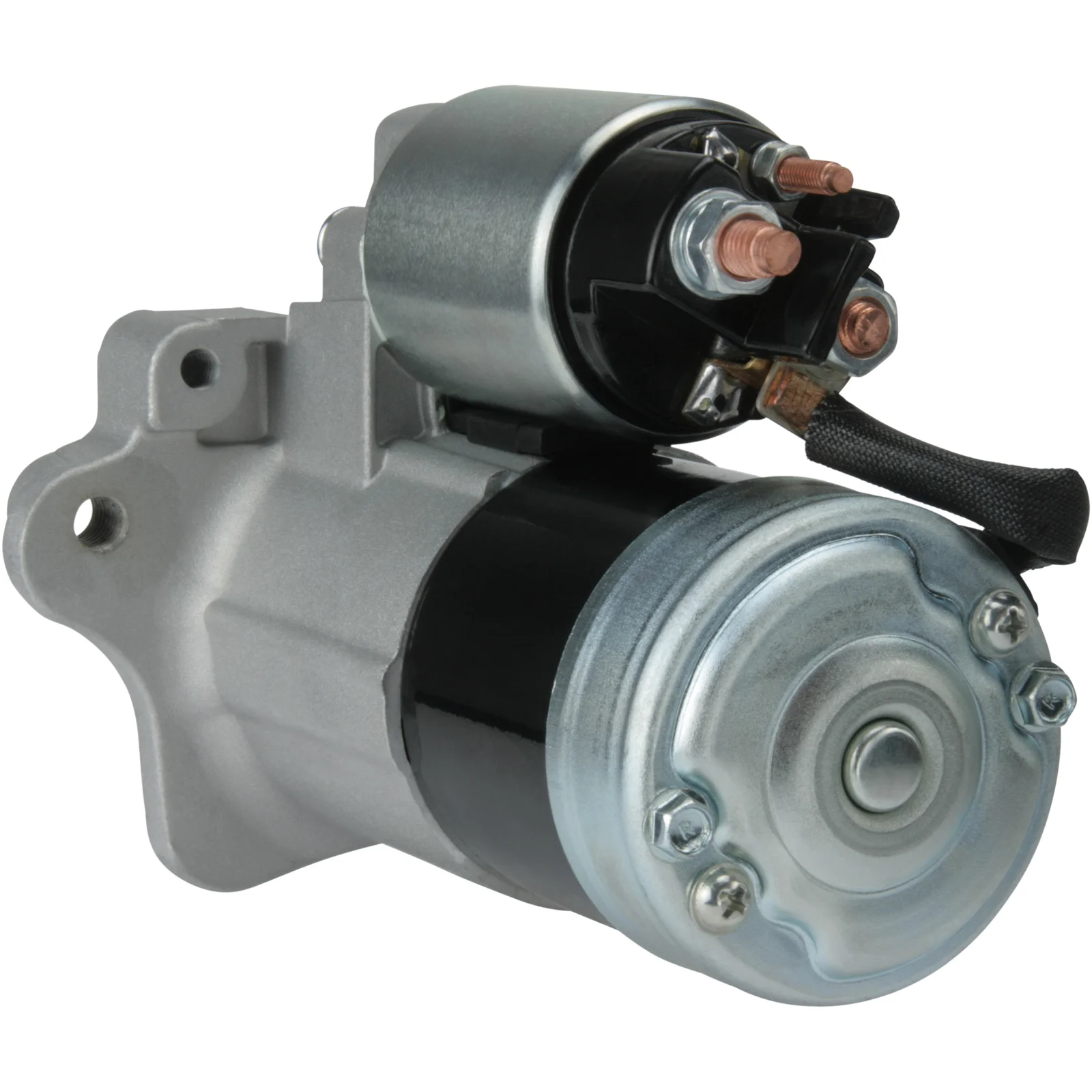

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032115728

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.2, No./teeth: 12, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.2
Mount. flange: 63.00
Drive dist.: 0.00
Mount. hole 3 mm: M10
Dist./back: 158.50
Dist./front: 36.50
No./teeth: 12
B+: M8
Position/50: 5
Terminal 50: M5
Gear type: GR
Dist. 2: 118.50
Dist. 3: 112.50
Dist. mm: 28.50
Rotation: CW
Total length mm: 195.00
Prod. info: BN
No./mount. holes: 3 (3)

Filer

Specifikation

B+ M8
No./teeth 12
Mount. flange 63.00
No./mount. holes 3 (3)
Position/50 5
Prod. info BN
Dist. 2 118.50
Dist. 3 112.50
Rotation CW
Dist./back 158.50
Dist./front 36.50
Drive dist. 0.00
Gear type GR
kW 1.2
Terminal 50 M5
Voltage 12
Total length 195.00 mm
Dist. 28.50 mm
Mount. hole 3 M10 mm

  • OEM
    cs1524, F032115728, M000T93381, M0T93381, RGO 115728, 1986S00591, 7711497302, 8200665520

  • Konkurrentreferens
    CST35241, DRS0638, DRS0638N, S5185, 8EA011612-761, 25-4394, 330.066.122, 570.562.123, 31242N, 31242N-OS, 107217, 220758, 220758A, 11040844, 42001221, 0986026060

  • Normaliserat artikelnummer
    cs1524, cst35241, drs0638, drs0638n, f032115728, m000t93381, m0t93381, rgo115728, s5185, 8ea011612761, 1986s00591, 31242n, 31242nos, 107217, 220758, 220758a, 254394, 11040844, 42001221, 330066122, 570562123, 0986026060, 7711497302, 8200665520

  • Passar modeller
    Renault Model: Clio Model series: Clio Model type: GT Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M862 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2009 Fuel: Gasoline Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M824 Type description: BT0/1 Body: Hatchback From date: 01-10-2007 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M824 Type description: KT0/1 Body: Estate From date: 01-10-2007 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: GRANDTOUR
    Renault Model: Megane Model series: Megane CC Model type: Hi-Flex Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M866 Type description: EZ0/1_ Body: Convertible From date: 01-06-2010 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane CC Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Type description: EZ1Y Body: Convertible From date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Bifuel Size of motor: 1.6 Brand of engine: K4M866 Type description: BZ0_ Body: Hatchback From date: 01-11-2008 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Bifuel Size of motor: 1.6 Brand of engine: K4M866 Type description: DZ0_ Body: Coupe From date: 01-11-2008 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Bifuel Size of motor: 1.6 Brand of engine: K4M866 Type description: KZ0/1 Body: Estate From date: 01-11-2008 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Body: Coupe From date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Body: Hatchback From date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Type description: BZ0/1_ Body: Hatchback From date: 01-05-2009 To date: 01-08-2015 Fuel: LPG Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Type description: KZ0/1 Body: Estate From date: 01-05-2009 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M866 Body: Coupe From date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M866 Body: Hatchback From date: 01-11-2008 Fuel: Gasoline Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M866 Type description: KZ0/1 Body: Estate From date: 01-05-2009 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
    Renault Model: Sc nic Model series: Grand Sc nic Model type: E85 Size of motor: 1.6 Brand of engine: K4M866 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Diesel Approved: Yes
    Renault Model: Sc nic Model series: Grand Sc nic Type of engine: 16V Bifuel Size of motor: 1.6 Brand of engine: K4M866 Type description: JZ0/1_ Body: MPV From date: 01-04-2012 Fuel: Gasoline Approved: Yes
    Renault Model: Sc nic Model series: Grand Sc nic Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Gasoline Approved: Yes
    Renault Model: Sc nic Model series: Grand Sc nic Type of engine: Flexfuel Size of motor: 1.6 Brand of engine: K4M866 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Diesel Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Size of motor: 1.6 Brand of engine: K4M866 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Bi-Fuel Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Type of engine: 16V Bifuel Size of motor: 1.6 Brand of engine: K4M866 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Gasoline Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Type of engine: 16V Bifuel Size of motor: 1.6 Brand of engine: K4M866 Type description: JZ0/1_ Body: MPV From date: 01-04-2012 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Body: MPV From date: 01-02-2009 Fuel: Gasoline Approved: Yes
    Renault Model: Scenic Model series: Scenic Model type: VVT Size of motor: 1.6 Brand of engine: K4M858 Type description: JZ0/1_ Body: Van From date: 01-01-2013 Fuel: Petrol Approved: Yes
    1 / 5
  • Beskrivning
    Voltage: 12
    kW: 1.2
    Mount. flange: 63.00
    Drive dist.: 0.00
    Mount. hole 3 mm: M10
    Dist./back: 158.50
    Dist./front: 36.50
    No./teeth: 12
    B+: M8
    Position/50: 5
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 118.50
    Dist. 3: 112.50
    Dist. mm: 28.50
    Rotation: CW
    Total length mm: 195.00
    Prod. info: BN
    No./mount. holes: 3 (3)

    Filer

  • Specifikation
    B+ M8
    No./teeth 12
    Mount. flange 63.00
    No./mount. holes 3 (3)
    Position/50 5
    Prod. info BN
    Dist. 2 118.50
    Dist. 3 112.50
    Rotation CW
    Dist./back 158.50
    Dist./front 36.50
    Drive dist. 0.00
    Gear type GR
    kW 1.2
    Terminal 50 M5
    Voltage 12
    Total length 195.00 mm
    Dist. 28.50 mm
    Mount. hole 3 M10 mm
  • Fordonsmatchning

    • OEM
      cs1524, F032115728, M000T93381, M0T93381, RGO 115728, 1986S00591, 7711497302, 8200665520

    • Konkurrentreferens
      CST35241, DRS0638, DRS0638N, S5185, 8EA011612-761, 25-4394, 330.066.122, 570.562.123, 31242N, 31242N-OS, 107217, 220758, 220758A, 11040844, 42001221, 0986026060

    • Normaliserat artikelnummer
      cs1524, cst35241, drs0638, drs0638n, f032115728, m000t93381, m0t93381, rgo115728, s5185, 8ea011612761, 1986s00591, 31242n, 31242nos, 107217, 220758, 220758a, 254394, 11040844, 42001221, 330066122, 570562123, 0986026060, 7711497302, 8200665520

    • Passar modeller
      Renault Model: Clio Model series: Clio Model type: GT Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M862 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2009 Fuel: Gasoline Approved: Yes
      Renault Model: Laguna Model series: Laguna Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M824 Type description: BT0/1 Body: Hatchback From date: 01-10-2007 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Renault Model: Laguna Model series: Laguna Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M824 Type description: KT0/1 Body: Estate From date: 01-10-2007 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: GRANDTOUR
      Renault Model: Megane Model series: Megane CC Model type: Hi-Flex Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M866 Type description: EZ0/1_ Body: Convertible From date: 01-06-2010 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane CC Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Type description: EZ1Y Body: Convertible From date: 01-06-2010 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Bifuel Size of motor: 1.6 Brand of engine: K4M866 Type description: BZ0_ Body: Hatchback From date: 01-11-2008 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Bifuel Size of motor: 1.6 Brand of engine: K4M866 Type description: DZ0_ Body: Coupe From date: 01-11-2008 Fuel: Diesel Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Bifuel Size of motor: 1.6 Brand of engine: K4M866 Type description: KZ0/1 Body: Estate From date: 01-11-2008 Fuel: Diesel Approved: Yes Manufacture type: Kombi
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Body: Coupe From date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Body: Hatchback From date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Type description: BZ0/1_ Body: Hatchback From date: 01-05-2009 To date: 01-08-2015 Fuel: LPG Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Type description: KZ0/1 Body: Estate From date: 01-05-2009 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M866 Body: Coupe From date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M866 Body: Hatchback From date: 01-11-2008 Fuel: Gasoline Approved: Yes
      Renault Model: Megane Model series: Megane Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M866 Type description: KZ0/1 Body: Estate From date: 01-05-2009 Fuel: Gasoline Approved: Yes Manufacture type: Kombi
      Renault Model: Sc nic Model series: Grand Sc nic Model type: E85 Size of motor: 1.6 Brand of engine: K4M866 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Diesel Approved: Yes
      Renault Model: Sc nic Model series: Grand Sc nic Type of engine: 16V Bifuel Size of motor: 1.6 Brand of engine: K4M866 Type description: JZ0/1_ Body: MPV From date: 01-04-2012 Fuel: Gasoline Approved: Yes
      Renault Model: Sc nic Model series: Grand Sc nic Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Gasoline Approved: Yes
      Renault Model: Sc nic Model series: Grand Sc nic Type of engine: Flexfuel Size of motor: 1.6 Brand of engine: K4M866 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Diesel Approved: Yes
      Renault Model: Sc nic Model series: Sc nic Size of motor: 1.6 Brand of engine: K4M866 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Bi-Fuel Approved: Yes
      Renault Model: Sc nic Model series: Sc nic Type of engine: 16V Bifuel Size of motor: 1.6 Brand of engine: K4M866 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Gasoline Approved: Yes
      Renault Model: Sc nic Model series: Sc nic Type of engine: 16V Bifuel Size of motor: 1.6 Brand of engine: K4M866 Type description: JZ0/1_ Body: MPV From date: 01-04-2012 To date: 01-12-2013 Fuel: Gasoline Approved: Yes
      Renault Model: Sc nic Model series: Sc nic Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M858 Body: MPV From date: 01-02-2009 Fuel: Gasoline Approved: Yes
      Renault Model: Scenic Model series: Scenic Model type: VVT Size of motor: 1.6 Brand of engine: K4M858 Type description: JZ0/1_ Body: Van From date: 01-01-2013 Fuel: Petrol Approved: Yes
