Artikelnr: F032114183

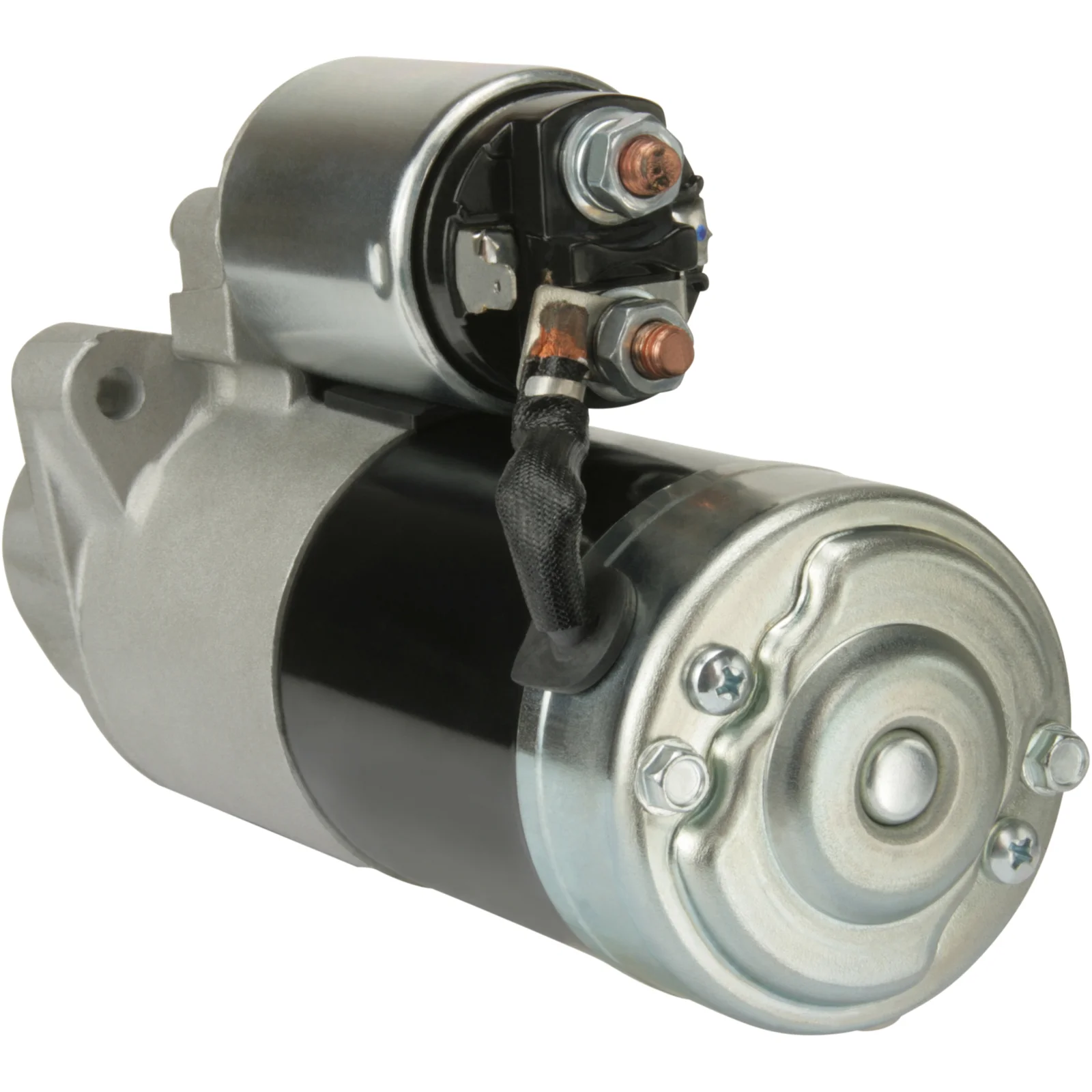

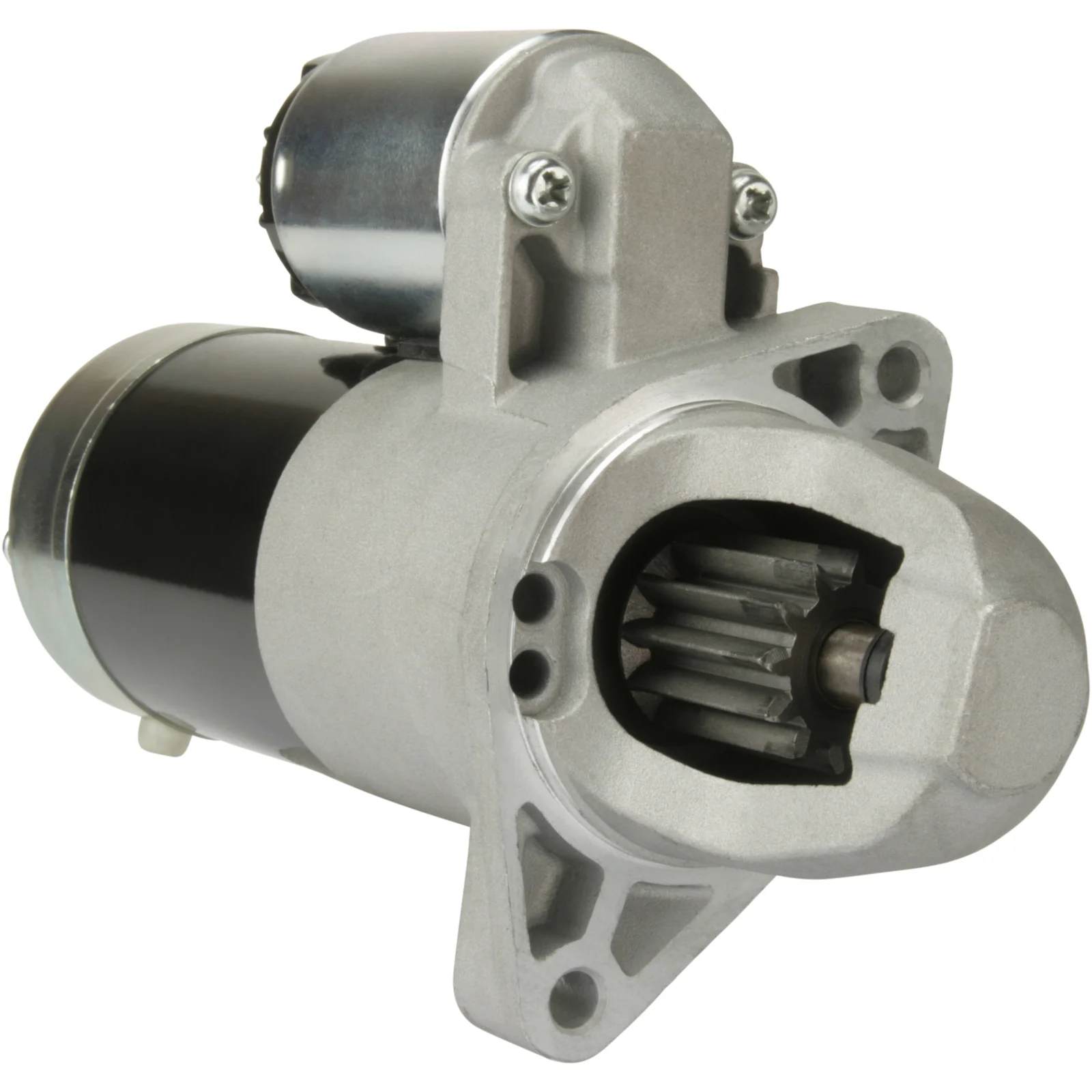

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.8, No./teeth: 12, Rotation: CCW

Beskrivning

Voltage: 12
kW: 1.8
Mount. flange: 70.00
Drive dist.: 34.50
Mount. hole 2 mm: 8.50
Mount. hole 1 mm: 8.50
Dist./back: 172.00
Dist./front: 71.00
No./teeth: 12
B+: M8
Position/50: 45
Terminal 50: 6.30
Gear type: GR
Dist. mm: 109.00
Rotation: CCW
Total length mm: 247.00
Prod. info: BN
No./mount. holes: 2 (0)

Specifikation

B+ M8
No./teeth 12
Mount. flange 70.00
No./mount. holes 2 (0)
Position/50 45
Prod. info BN
Rotation CCW
Dist./back 172.00
Dist./front 71.00
Drive dist. 34.50
Gear type GR
kW 1.8
Terminal 50 6.30
Voltage 12
Total length 247.00 mm
Dist. 109.00 mm
Mount. hole 2 8.50 mm
Mount. hole 1 8.50 mm
  • OEM

    A0061510401, cs1526, F032114183, M001T30271, M1T30271, mn960265, 1810a002, 0061510401, 6391510401
  • Konkurrentreferens

    CST35127, DRS0482, LRS02395, S5142, 25-4067, 150.563.122, 325.053.122, 3137, 30485N-OS, 106912, 220716, 220716A, 254472, 11040772
  • Normaliserat artikelnummer

    a0061510401, cs1526, cst35127, drs0482, f032114183, lrs02395, m001t30271, m1t30271, mn960265, s5142, 1810a002, 3137, 30485nos, 106912, 220716, 220716a, 254067, 254472, 11040772, 0061510401, 150563122, 325053122, 6391510401
  • Passar modeller

    Mitsubishi Model: Colt Model series: Colt Type of engine: Di-D Size of motor: 1.5 Brand of engine: OM639.939 Body: Hatchback From date: 01-08-2004 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Colt Model series: Colt Type of engine: DiD Size of motor: 1.5 Type description: Z3_V Body: Box Body / Hatchback From date: 01-08-2004 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Smart (MCC) Model: Forfour Model series: Forfour Type of engine: CDi Size of motor: 1.5 Brand of engine: OM639.939 Type description: 454 Body: Hatchback From date: 01-09-2004 To date: 01-06-2006 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 1.8
    Mount. flange: 70.00
    Drive dist.: 34.50
    Mount. hole 2 mm: 8.50
    Mount. hole 1 mm: 8.50
    Dist./back: 172.00
    Dist./front: 71.00
    No./teeth: 12
    B+: M8
    Position/50: 45
    Terminal 50: 6.30
    Gear type: GR
    Dist. mm: 109.00
    Rotation: CCW
    Total length mm: 247.00
    Prod. info: BN
    No./mount. holes: 2 (0)
  • Specifikation
    B+ M8
    No./teeth 12
    Mount. flange 70.00
    No./mount. holes 2 (0)
    Position/50 45
    Prod. info BN
    Rotation CCW
    Dist./back 172.00
    Dist./front 71.00
    Drive dist. 34.50
    Gear type GR
    kW 1.8
    Terminal 50 6.30
    Voltage 12
    Total length 247.00 mm
    Dist. 109.00 mm
    Mount. hole 2 8.50 mm
    Mount. hole 1 8.50 mm
  • Fordonsmatchning
    • OEM

      A0061510401, cs1526, F032114183, M001T30271, M1T30271, mn960265, 1810a002, 0061510401, 6391510401
    • Konkurrentreferens

      CST35127, DRS0482, LRS02395, S5142, 25-4067, 150.563.122, 325.053.122, 3137, 30485N-OS, 106912, 220716, 220716A, 254472, 11040772
    • Normaliserat artikelnummer

      a0061510401, cs1526, cst35127, drs0482, f032114183, lrs02395, m001t30271, m1t30271, mn960265, s5142, 1810a002, 3137, 30485nos, 106912, 220716, 220716a, 254067, 254472, 11040772, 0061510401, 150563122, 325053122, 6391510401
    • Passar modeller

      Mitsubishi Model: Colt Model series: Colt Type of engine: Di-D Size of motor: 1.5 Brand of engine: OM639.939 Body: Hatchback From date: 01-08-2004 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Colt Model series: Colt Type of engine: DiD Size of motor: 1.5 Type description: Z3_V Body: Box Body / Hatchback From date: 01-08-2004 To date: 01-06-2012 Fuel: Diesel Approved: Yes
      Smart (MCC) Model: Forfour Model series: Forfour Type of engine: CDi Size of motor: 1.5 Brand of engine: OM639.939 Type description: 454 Body: Hatchback From date: 01-09-2004 To date: 01-06-2006 Fuel: Diesel Approved: Yes
