HC-Cargo Startmotor

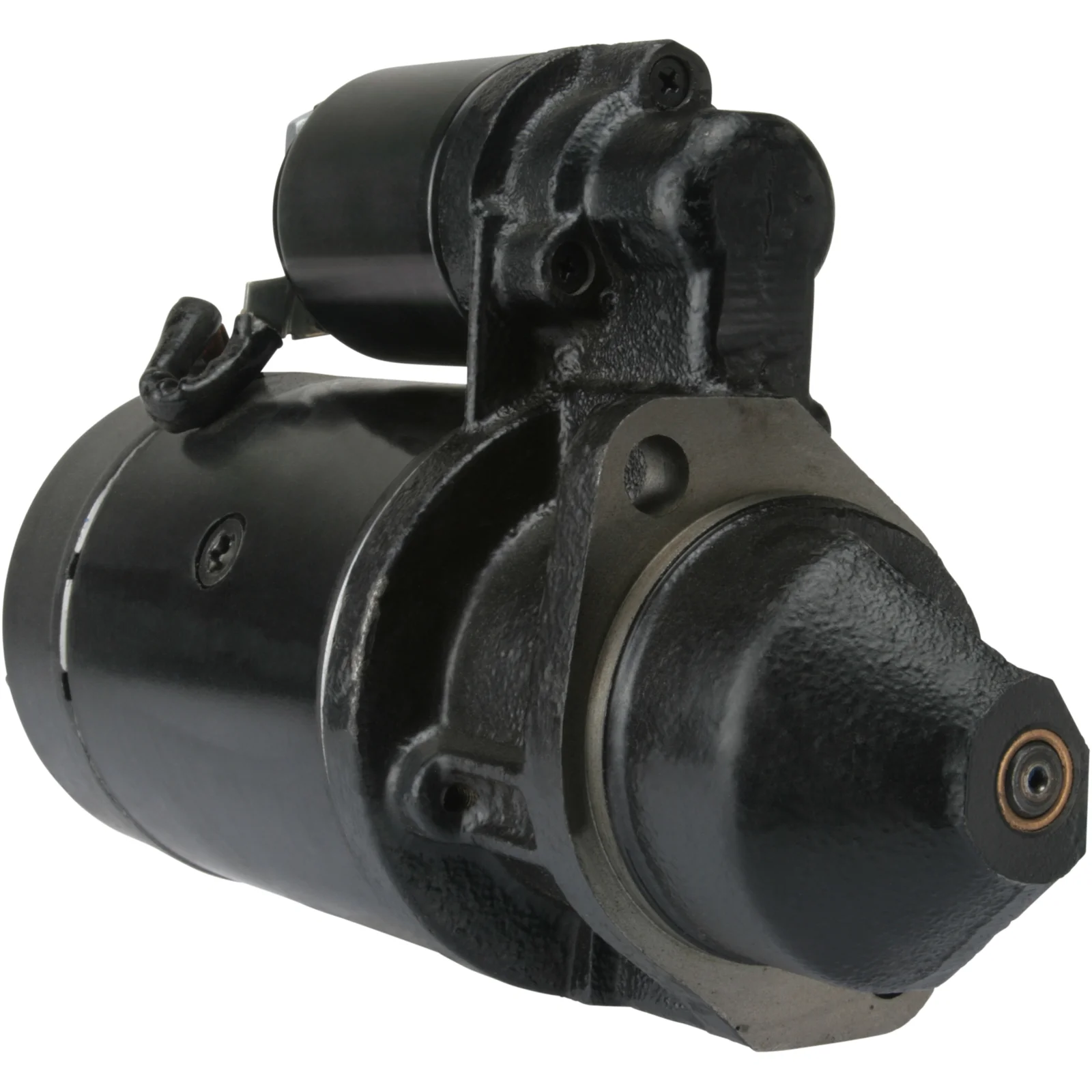

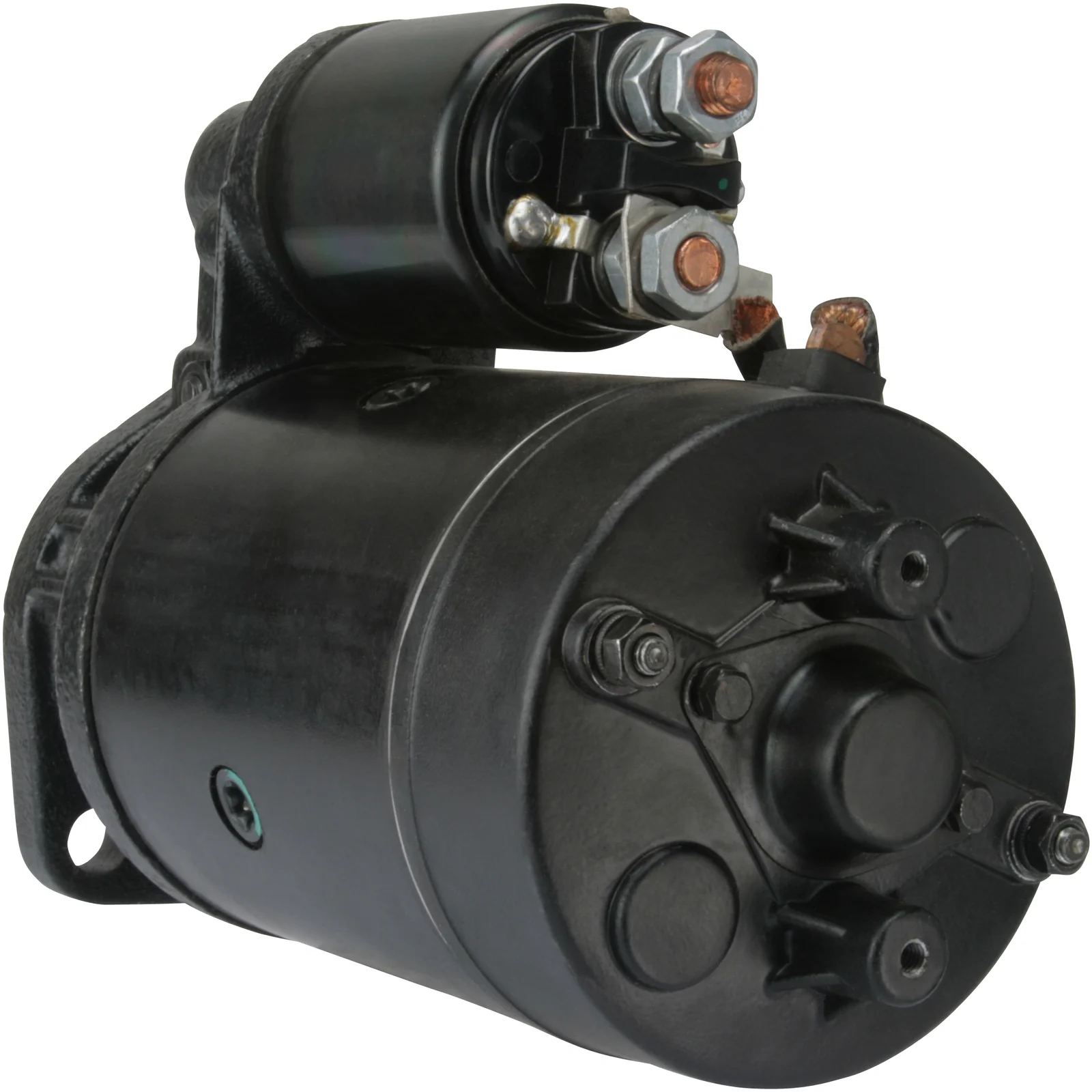

HC-Cargo Startmotor
Artikelnr: F032114181

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.9, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.9
Mount. flange: 82.50
Drive dist.: 21.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Dist./back: 220.00
Dist./front: 65.00
No./teeth: 9
B+: M10
Position/B+: 60
Position/50: 15
Terminal 50: M4
Gear type: DD
Dist. mm: 105.00
Rotation: CW
Total length mm: 294.00
Prod. info: BN
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M10
No./teeth 9
Mount. flange 82.50
No./mount. holes 2 (0)
Position/50 15
Position/B+ 60
Prod. info BN
Rotation CW
Dist./back 220.00
Dist./front 65.00
Drive dist. 21.00
Gear type DD
kW 1.9
Terminal 50 M4
Voltage 12
Total length 294.00 mm
Dist. 105.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    B14R12X18H7622, cs707, F032114181, 01161386, 1161386, 01172683, 1172683, 0001354037, 0001354040, 0001354100, 0001362012, 0001366001, 008009830001

  • Konkurrentreferens
    CST10322, drs2460, drs3328, LRS01365, S0582, 25-2208, 88-12.460, 510.003.112, 510.506.092, 688.005.092, 688.010.092, 8646, 10707, 33455, 8812460, 0986012460

  • Normaliserat artikelnummer
    b14r12x18h7622, cs707, cst10322, drs2460, drs3328, f032114181, lrs01365, s0582, 8646, 10707, 33455, 252208, 01161386, 1161386, 01172683, 1172683, 0001354037, 0001354040, 0001354100, 0001362012, 0001366001, 8812460, 510003112, 510506092, 688005092, 688010092, 0986012460, 008009830001

  • Passar modeller
    Atlas Copco Model: US Model series: US 85 Size of motor: 1.9 Brand of engine: F2L912 From date: 01-02-1972 To date: 01-12-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: D Series Model series: D 2807 Size of motor: 1.9 Brand of engine: F2L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 1.9
    Mount. flange: 82.50
    Drive dist.: 21.00
    Mount. hole 2 mm: 13.00
    Mount. hole 1 mm: 13.00
    Dist./back: 220.00
    Dist./front: 65.00
    No./teeth: 9
    B+: M10
    Position/B+: 60
    Position/50: 15
    Terminal 50: M4
    Gear type: DD
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 294.00
    Prod. info: BN
    No./mount. holes: 2 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 9
    Mount. flange 82.50
    No./mount. holes 2 (0)
    Position/50 15
    Position/B+ 60
    Prod. info BN
    Rotation CW
    Dist./back 220.00
    Dist./front 65.00
    Drive dist. 21.00
    Gear type DD
    kW 1.9
    Terminal 50 M4
    Voltage 12
    Total length 294.00 mm
    Dist. 105.00 mm
    Mount. hole 2 13.00 mm
    Mount. hole 1 13.00 mm
  • Fordonsmatchning

    • OEM
      B14R12X18H7622, cs707, F032114181, 01161386, 1161386, 01172683, 1172683, 0001354037, 0001354040, 0001354100, 0001362012, 0001366001, 008009830001

    • Konkurrentreferens
      CST10322, drs2460, drs3328, LRS01365, S0582, 25-2208, 88-12.460, 510.003.112, 510.506.092, 688.005.092, 688.010.092, 8646, 10707, 33455, 8812460, 0986012460

    • Normaliserat artikelnummer
      b14r12x18h7622, cs707, cst10322, drs2460, drs3328, f032114181, lrs01365, s0582, 8646, 10707, 33455, 252208, 01161386, 1161386, 01172683, 1172683, 0001354037, 0001354040, 0001354100, 0001362012, 0001366001, 8812460, 510003112, 510506092, 688005092, 688010092, 0986012460, 008009830001

    • Passar modeller
      Atlas Copco Model: US Model series: US 85 Size of motor: 1.9 Brand of engine: F2L912 From date: 01-02-1972 To date: 01-12-1986 Fuel: Diesel Approved: Yes
      Deutz-Fahr Model: D Series Model series: D 2807 Size of motor: 1.9 Brand of engine: F2L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
