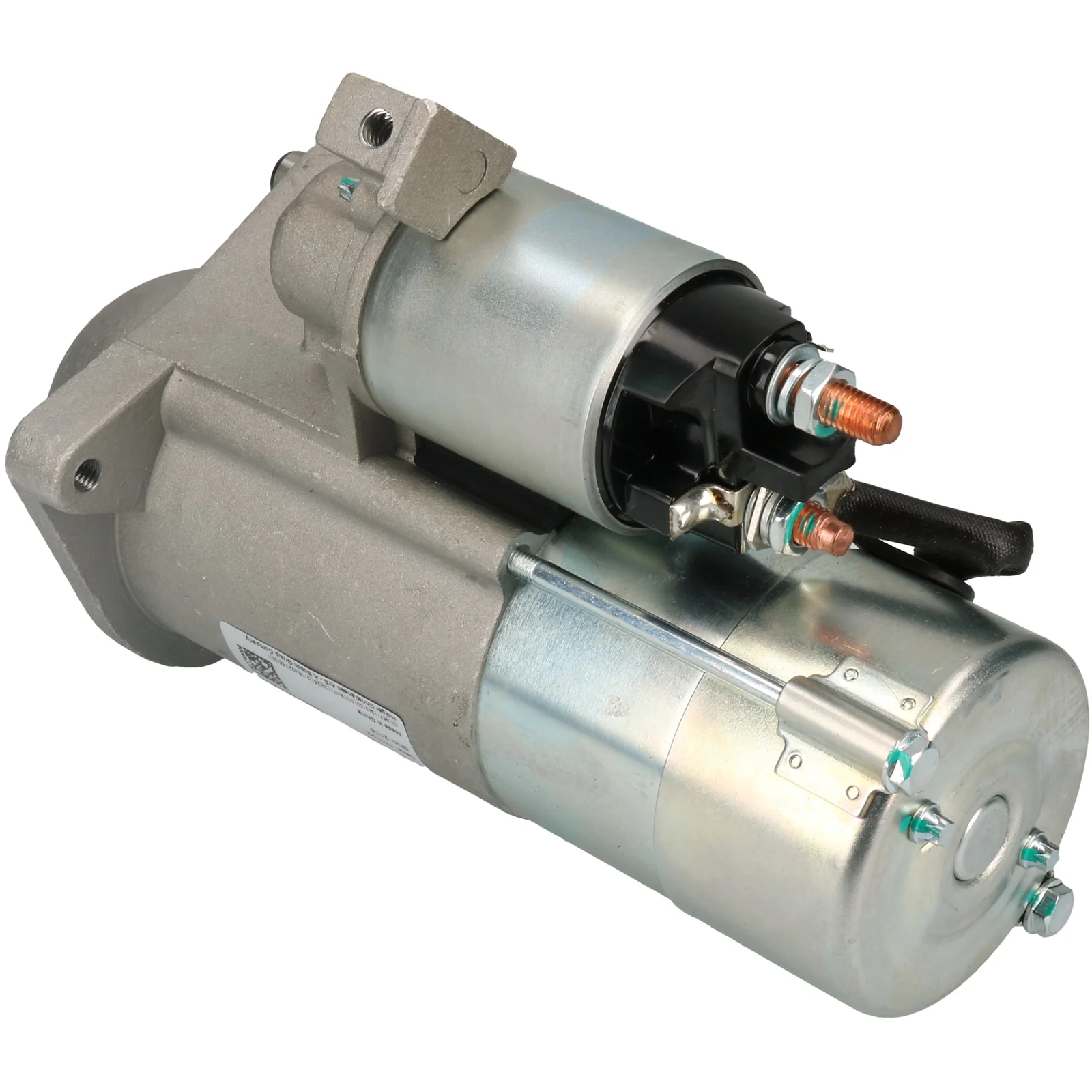

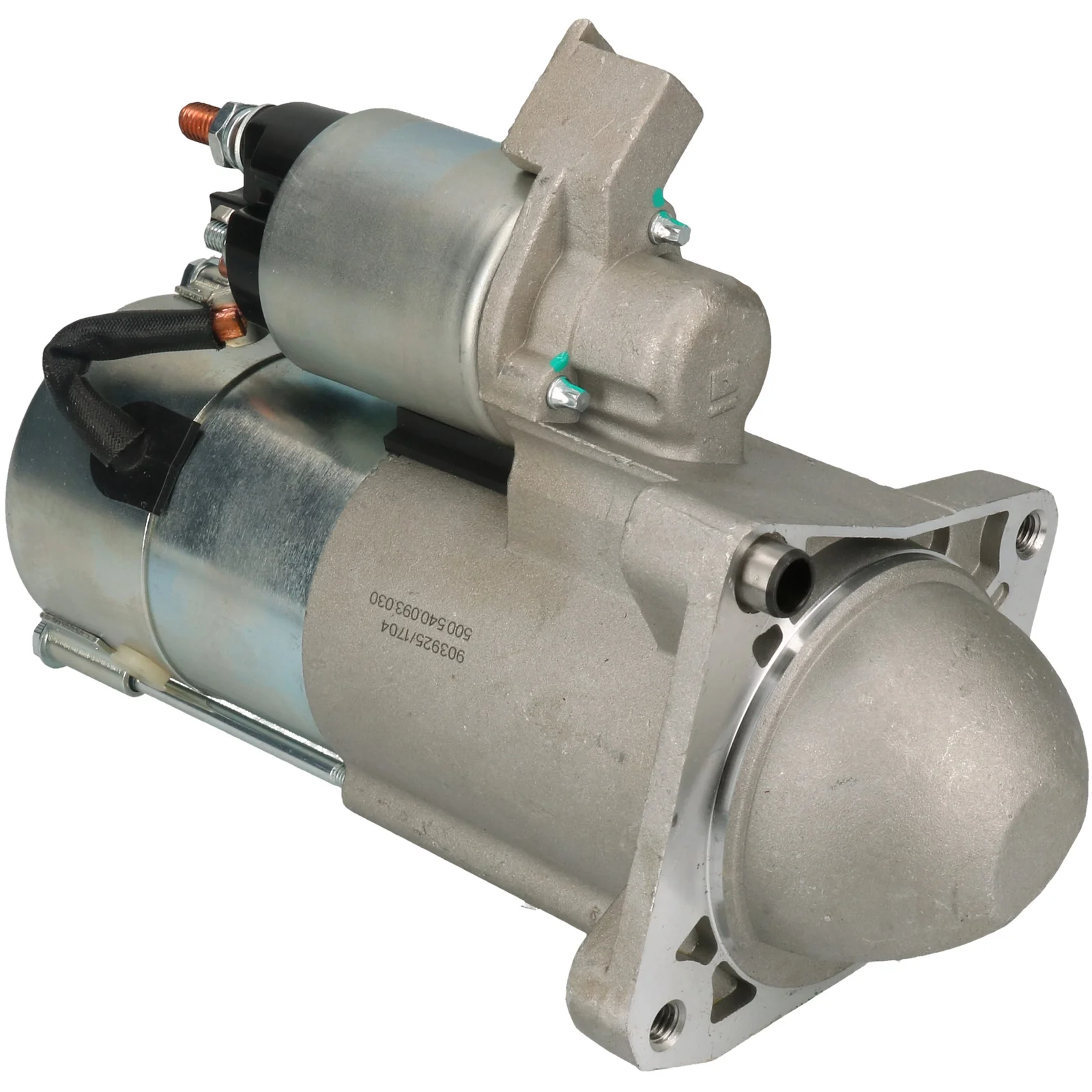

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114145

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.3, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.3
Mount. flange: 81.50
Drive dist.: 1.50
Mount. hole 3 mm: M8
Dist./back: 194.00
Dist./front: 40.00
No./teeth: 9
B+: M8
Position/B+: 60
Position/50: 15
Terminal 50: M6
Gear type: GR
Dist. 2: 82.00
Dist. 3: 82.00
Dist. mm: 115.50
Rotation: CW
Total length mm: 235.00
Prod. info: BN
Remarks: Remy type (Bosch type: HC-CARGO 113935)
No./mount. holes: 3 (3)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 81.50
No./mount. holes 3 (3)
Position/50 15
Position/B+ 60
Prod. info BN
Dist. 2 82.00
Remarks Remy type (Bosch type: HC-CARGO 113935)
Dist. 3 82.00
Rotation CW
Dist./back 194.00
Dist./front 40.00
Drive dist. 1.50
Gear type GR
kW 2.3
Terminal 50 M6
Voltage 12
Total length 235.00 mm
Dist. 115.50 mm
Mount. hole 3 M8 mm

  • OEM
    cs1434, F032114145, 8000032, 55195967, 71724237

  • Konkurrentreferens
    DRS3967, DRS3967N, 8EA012527-651, 8EA738259-121, 201015, 220331, 220331A, 438401, 438516, 0986025580

  • Normaliserat artikelnummer
    cs1434, drs3967, drs3967n, f032114145, 8ea012527651, 8ea738259121, 201015, 220331, 220331a, 438401, 438516, 8000032, 55195967, 71724237, 0986025580

  • Passar modeller
    Fiat Model: Ducato Model series: Ducato Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AE0481D Body: Bus From date: 01-07-2006 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AE0481D Body: Platform / Chassis From date: 01-07-2006 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AE0481D Body: Van From date: 01-07-2006 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AE0481N Body: Platform / Chassis From date: 01-07-2006 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AE0481N Type description: 250 Body: Van From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Fiat Model: Ducato Model series: Ducato Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AE3481D Type description: 250 Body: Van From date: 01-06-2011 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 2.3
    Mount. flange: 81.50
    Drive dist.: 1.50
    Mount. hole 3 mm: M8
    Dist./back: 194.00
    Dist./front: 40.00
    No./teeth: 9
    B+: M8
    Position/B+: 60
    Position/50: 15
    Terminal 50: M6
    Gear type: GR
    Dist. 2: 82.00
    Dist. 3: 82.00
    Dist. mm: 115.50
    Rotation: CW
    Total length mm: 235.00
    Prod. info: BN
    Remarks: Remy type (Bosch type: HC-CARGO 113935)
    No./mount. holes: 3 (3)

    Filer

  • Specifikation
    B+ M8
    No./teeth 9
    Mount. flange 81.50
    No./mount. holes 3 (3)
    Position/50 15
    Position/B+ 60
    Prod. info BN
    Dist. 2 82.00
    Remarks Remy type (Bosch type: HC-CARGO 113935)
    Dist. 3 82.00
    Rotation CW
    Dist./back 194.00
    Dist./front 40.00
    Drive dist. 1.50
    Gear type GR
    kW 2.3
    Terminal 50 M6
    Voltage 12
    Total length 235.00 mm
    Dist. 115.50 mm
    Mount. hole 3 M8 mm
  • Fordonsmatchning

    • OEM
      cs1434, F032114145, 8000032, 55195967, 71724237

    • Konkurrentreferens
      DRS3967, DRS3967N, 8EA012527-651, 8EA738259-121, 201015, 220331, 220331A, 438401, 438516, 0986025580

    • Normaliserat artikelnummer
      cs1434, drs3967, drs3967n, f032114145, 8ea012527651, 8ea738259121, 201015, 220331, 220331a, 438401, 438516, 8000032, 55195967, 71724237, 0986025580

    • Passar modeller
      Fiat Model: Ducato Model series: Ducato Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AE0481D Body: Bus From date: 01-07-2006 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AE0481D Body: Platform / Chassis From date: 01-07-2006 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AE0481D Body: Van From date: 01-07-2006 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AE0481N Body: Platform / Chassis From date: 01-07-2006 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AE0481N Type description: 250 Body: Van From date: 01-06-2011 Fuel: Diesel Approved: Yes
      Fiat Model: Ducato Model series: Ducato Type of engine: Multijet Size of motor: 2.3 Brand of engine: F1AE3481D Type description: 250 Body: Van From date: 01-06-2011 Fuel: Diesel Approved: Yes
