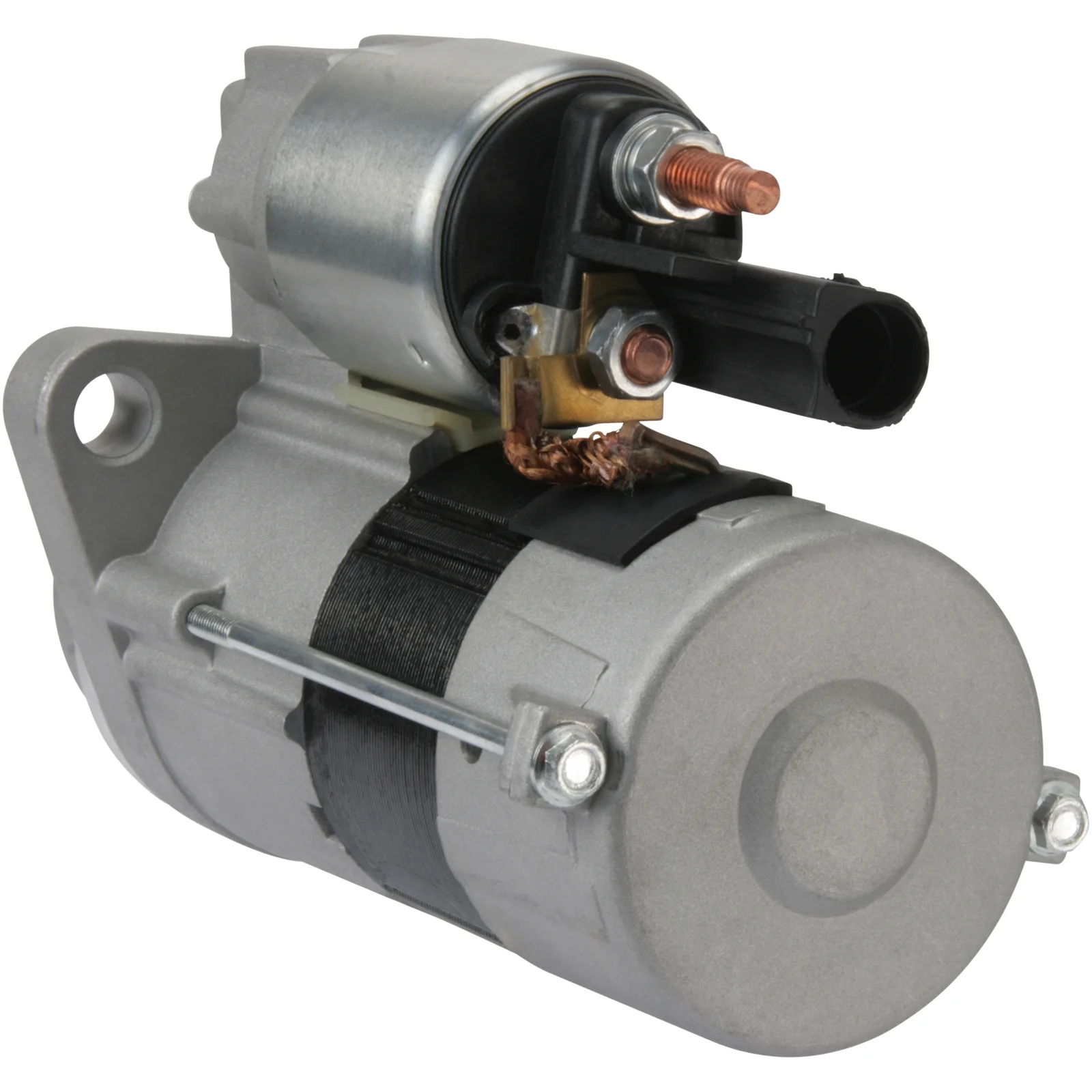

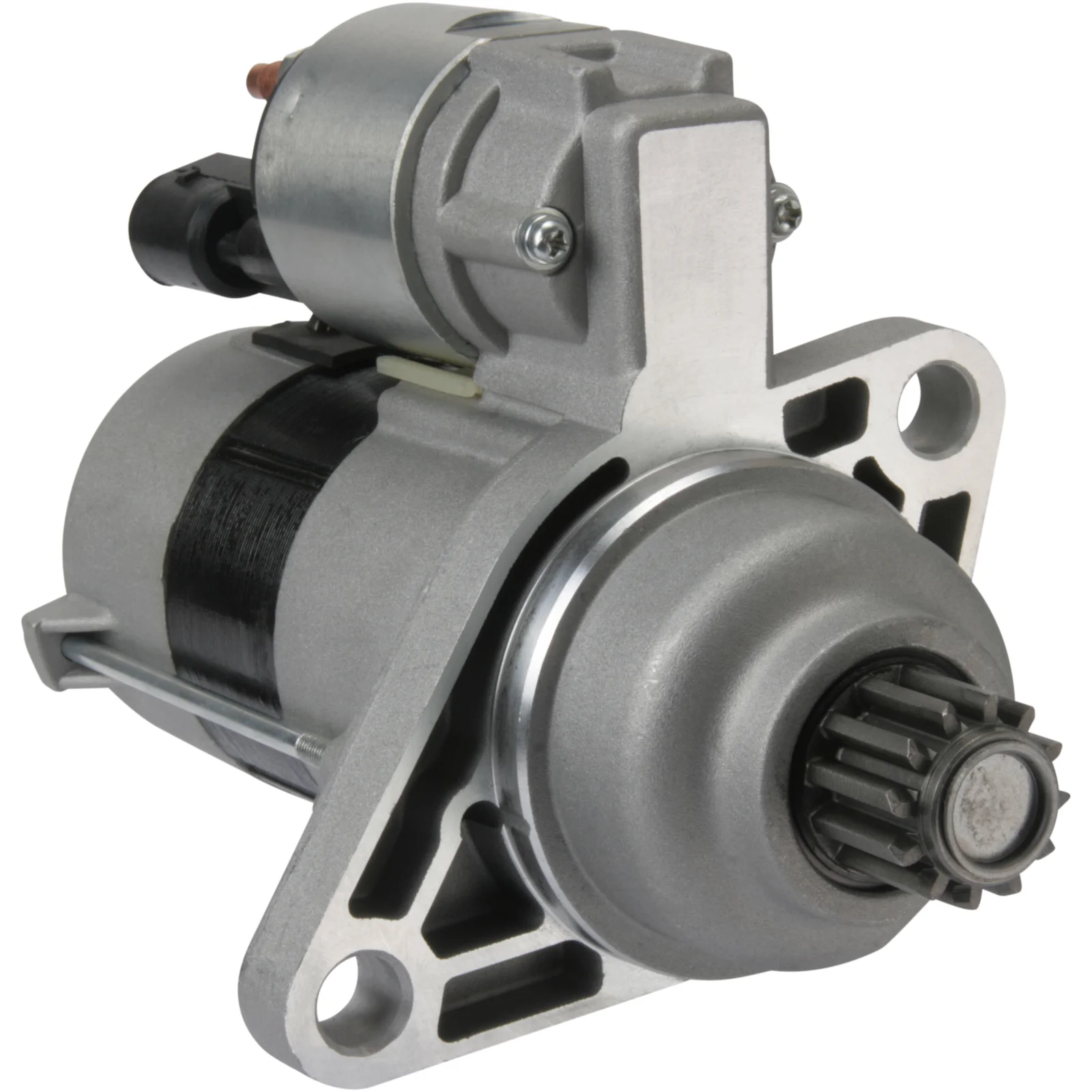

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032115376

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.8, No./teeth: 12, Rotation: CCW

Beskrivning

Voltage: 12
kW: 1.8
Mount. flange: 76.00
Drive dist.: 62.00
Mount. hole 2 mm: 13.00
Mount. hole 1 mm: 13.00
Dist./back: 147.00
Dist./front: 66.50
No./teeth: 12
B+: M8
Position/50: 15
Terminal 50: Plug
Gear type: GR
Dist. mm: 123.00
Rotation: CCW
Total length mm: 217.00
Prod. info: BN
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 12
Mount. flange 76.00
No./mount. holes 2 (0)
Position/50 15
Prod. info BN
Rotation CCW
Dist./back 147.00
Dist./front 66.50
Drive dist. 62.00
Gear type GR
kW 1.8
Terminal 50 Plug
Voltage 12
Total length 217.00 mm
Dist. 123.00 mm
Mount. hole 2 13.00 mm
Mount. hole 1 13.00 mm

  • OEM
    0am911023d, 0am911023q, cs1480, F032115376, RGO 115376, TS18ER20, 1986S01267, 605720100048

  • Konkurrentreferens
    CST15124, drs0882, LRS02590, S3095, S3095PR, 8EA011611-521, 25-4262, 311.267.122, 311.280.122, 3062, 30203, 30203N, 106699, 220646, 220646A, 254556, 255125, 438227, 458391, 11090191, 42438227, 0986028050

  • Normaliserat artikelnummer
    0am911023d, 0am911023q, cs1480, cst15124, drs0882, f032115376, lrs02590, rgo115376, s3095, s3095pr, ts18er20, 8ea011611521, 1986s01267, 3062, 30203, 30203n, 106699, 220646, 220646a, 254262, 254556, 255125, 438227, 458391, 11090191, 42438227, 311267122, 311280122, 0986028050, 605720100048

  • Passar modeller
    Audi Model: A3 Model series: A3 Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Body: Convertible From date: 01-05-2009 To date: 01-05-2013 Fuel: Diesel Approved: Yes
    Audi Model: A3 Model series: A3 Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 8P1 Body: Hatchback From date: 01-05-2009 To date: 01-08-2012 Fuel: Diesel Approved: Yes
    Audi Model: A3 Model series: A3 Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 8PA Body: Hatchback From date: 01-05-2009 To date: 01-03-2013 Fuel: Diesel Approved: Yes Manufacture type: Sportback
    Seat Model: Altea Model series: Altea Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 5P1 Body: MPV From date: 01-10-2009 Fuel: Diesel Approved: Yes
    Seat Model: Altea Model series: Altea Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 5P5 Body: MPV From date: 01-10-2009 Fuel: Diesel Approved: Yes
    Seat Model: Altea Model series: Altea Type of engine: TDi Size of motor: 1.9 Brand of engine: BLS Type description: 5P1 Body: MPV From date: 01-04-2004 Fuel: Diesel Approved: Yes
    Seat Model: Altea Model series: Altea XL Type of engine: TDi Size of motor: 1.9 Brand of engine: BKC Type description: 5P5 Body: MPV From date: 01-10-2006 Fuel: Diesel Approved: Yes
    Seat Model: Altea Model series: Altea XL Type of engine: TDi Size of motor: 1.9 Brand of engine: BLS Type description: 5P5 Body: MPV From date: 01-10-2006 Fuel: Diesel Approved: Yes
    Seat Model: Leon Model series: Leon Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 1P1 Body: Hatchback From date: 01-02-2010 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Seat Model: Leon Model series: Leon Type of engine: TDi Size of motor: 1.9 Brand of engine: BLS Type description: 1P1 Body: Hatchback From date: 01-07-2005 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYA Type description: 5J2, 572 Body: Hatchback From date: 01-04-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYA Type description: 5J5 Body: Estate From date: 01-04-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Combi
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYB Type description: 5J2 Body: Hatchback From date: 01-03-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYB Type description: 5J5 Body: Estate From date: 01-03-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Combi
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 5J2 Body: Hatchback From date: 01-03-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Skoda Model: Fabia Model series: Fabia Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 5J5 Body: Estate From date: 01-03-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Combi
    Skoda Model: Octavia Model series: Octavia Model type: 4x4 Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 1Z5 Body: Estate From date: 01-06-2009 To date: 01-02-2013 Fuel: Diesel Approved: Yes Manufacture type: Combi
    Skoda Model: Octavia Model series: Octavia Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 1Z3 Body: Hatchback From date: 01-06-2009 To date: 01-04-2013 Fuel: Diesel Approved: Yes
    Skoda Model: Octavia Model series: Octavia Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 1Z5 Body: Estate From date: 01-06-2009 To date: 01-04-2013 Fuel: Diesel Approved: Yes Manufacture type: Combi
    Skoda Model: Roomster Model series: Roomster Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYB Type description: 5J7 Body: MPV From date: 01-03-2010 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    Skoda Model: Roomster Model series: Roomster Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 5J7 Body: MPV From date: 01-03-2010 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    VW Model: Caddy Model series: Caddy Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYD Type description: 2KA, 2KH, 2CA, 2CH Body: Van From date: 01-08-2010 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    VW Model: Caddy Model series: Caddy Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYD Type description: 2KB, 2KJ Body: Estate From date: 01-08-2010 To date: 01-05-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    VW Model: Caddy Model series: Caddy Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYE Type description: 2KB, 2KJ Body: Estate From date: 01-08-2010 To date: 01-05-2015 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    VW Model: Golf Model series: Golf Plus Van Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 521 Body: Box Body / Hatchback From date: 01-02-2009 To date: 01-08-2014 Fuel: Diesel Approved: Yes
    VW Model: Golf Model series: Golf V Model type: Plus Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 5M1, 521 Body: Hatchback From date: 01-03-2009 To date: 01-12-2013 Fuel: Diesel Approved: Yes
    VW Model: Golf Model series: Golf Van VI Variant Model type: BlueMotion Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: AJ5 Body: Box Body / Estate From date: 01-07-2009 To date: 01-05-2014 Fuel: Diesel Approved: Yes
    VW Model: Golf Model series: Golf Van VI Variant Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYB Type description: AJ5 Body: Box Body / Estate From date: 01-12-2009 To date: 01-10-2012 Fuel: Diesel Approved: Yes
    VW Model: Golf Model series: Golf VI Model type: BlueMotion Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 5K1_ Body: Box Body / Hatchback From date: 01-05-2009 To date: 01-11-2012 Fuel: Diesel Approved: Yes
    VW Model: Golf Model series: Golf VI Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYB Type description: AJ5 Body: Estate From date: 01-12-2009 To date: 01-07-2013 Fuel: Diesel Approved: Yes Manufacture type: Variant
    VW Model: Golf Model series: Golf VI Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: 5K1 Body: Hatchback From date: 01-02-2009 To date: 01-11-2012 Fuel: Diesel Approved: Yes
    VW Model: Golf Model series: Golf VI Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYC Type description: AJ5 Body: Estate From date: 01-07-2009 To date: 01-07-2013 Fuel: Diesel Approved: Yes Manufacture type: Variant
    VW Model: Polo Model series: Polo Cityvan Model type: BlueMotion Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYB Type description: 6R Body: Box Body / Hatchback From date: 01-06-2009 To date: 01-05-2014 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: TDi Size of motor: 1.6 Brand of engine: CAYB Type description: 6R_ Body: Hatchback From date: 01-06-2009 Fuel: Diesel Approved: Yes
    VW Model: Touran Model series: Touran Type of engine: TDi Size of motor: 1.9 Brand of engine: BLS Body: MPV From date: 01-08-2003 To date: 01-05-2010 Fuel: Diesel Approved: Yes
