Artikelnr: F032113644

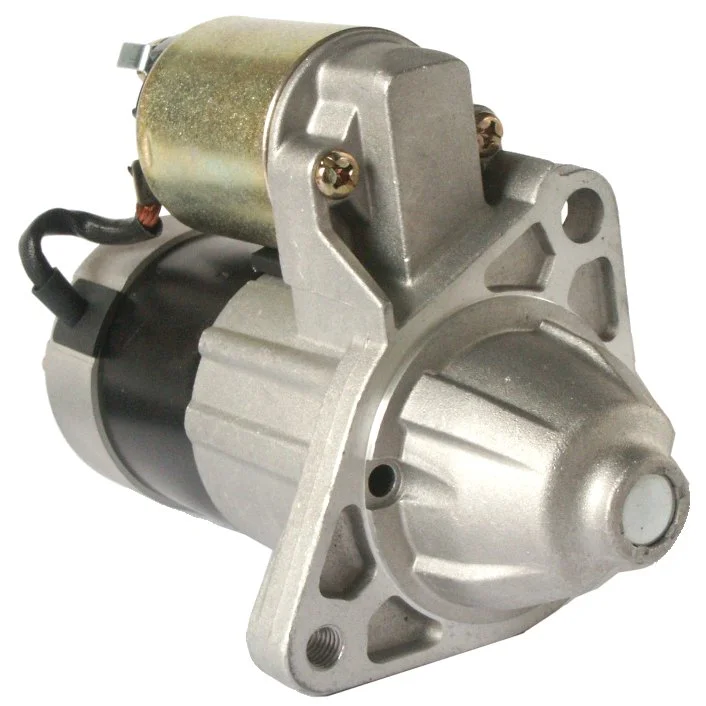

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 1.2, No./teeth: 8, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.2
Mount. flange: 70.00
Drive dist.: 10.50
Mount. hole 1 mm: 11.00
Dist./back: 142.00
Dist./front: 47.00
No./teeth: 8
B+: M8
Position/B+: 60
Position/50: 45
Terminal 50: 6.30
Gear type: DD/GR
Dist. mm: 104.50
Rotation: CW
Total length mm: 189.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (1)

Filer

Specifikation

B+ M8
No./teeth 8
Mount. flange 70.00
Oil sealed No
No./mount. holes 2 (1)
Position/50 45
Position/B+ 60
Prod. info BN
Rotation CW
Dist./back 142.00
Dist./front 47.00
Drive dist. 10.50
Drive type Steel
Gear type DD/GR
kW 1.2
Terminal 50 6.30
Voltage 12
Total length 189.00 mm
Waterproof No
Dist. 104.50 mm
Mount. hole 1 11.00 mm

  • OEM
    F032113644, M000T84585, M002T42881, m0t84585, m2t42881, RGO 113644, 1986S01039, 23300-30s30, 23300-30s60, 23300-41b70, 23300-41b71, 23300-94851, 23300-99b10, 23300-9W200, 23300-AX010, 23300-ax01a, 233001F715, 0001107092, 0001112017, 2330099B16

  • Konkurrentreferens
    CST35285, DRS0681, DRS3478, drs6730, F042001147, F042S01147, LRS01555, lrt00125, QS2113, S0239, S0239(BOSCH), S3022SR, STR-3596, STR3596, 8EA011610-601, 8ea737313-001, 25-2247, 25-3049, 28-52.117, 160.909.082, 327.070.082, 627.018.082, 4492, 33079R, 201016, 201104, 458463, 726126, 838044, 0986016730

  • Normaliserat artikelnummer
    cst35285, drs0681, drs3478, drs6730, f032113644, f042001147, f042s01147, lrs01555, lrt00125, m000t84585, m002t42881, m0t84585, m2t42881, qs2113, rgo113644, s0239, s0239bosch, s3022sr, str3596, 8ea011610601, 8ea737313001, 1986s01039, 4492, 23300ax010, 23300ax01a, 33079r, 201016, 201104, 233001f715, 233009w200, 252247, 253049, 458463, 726126, 838044, 0001107092, 0001112017, 2330030s30, 2330030s60, 2330041b70, 2330041b71, 2330099b10, 2330099b16, 2852117, 160909082, 327070082, 627018082, 0986016730, 2330094851

  • Passar modeller
    Nissan Model: Micra Model series: Micra Type of engine: i 16V Size of motor: 1.0 Brand of engine: CG10DE Type description: K11 Body: Hatchback From date: 01-08-1992 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Type of engine: i 16V Size of motor: 1.0 Brand of engine: CG10DE Type description: K11 Body: Hatchback From date: 01-09-2000 To date: 01-02-2003 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Type of engine: i 16V Size of motor: 1.3 Brand of engine: CG13DE Type description: K11E Body: Hatchback From date: 01-08-1992 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Type of engine: i 16V Size of motor: 1.4 Brand of engine: CGA3DE Type description: K11 Body: Hatchback From date: 01-09-2000 To date: 01-02-2003 Fuel: Gasoline Approved: Yes
    Nissan Model: Note Model series: Note Model type: LPG Type of engine: LPG Size of motor: 1.4 Brand of engine: CR14DE Type description: E11, NE11 Body: MPV From date: 01-01-2006 To date: 01-08-2013 Fuel: Petrol/Electro Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 1.2
    Mount. flange: 70.00
    Drive dist.: 10.50
    Mount. hole 1 mm: 11.00
    Dist./back: 142.00
    Dist./front: 47.00
    No./teeth: 8
    B+: M8
    Position/B+: 60
    Position/50: 45
    Terminal 50: 6.30
    Gear type: DD/GR
    Dist. mm: 104.50
    Rotation: CW
    Total length mm: 189.00
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 2 (1)

    Filer

  • Specifikation
    B+ M8
    No./teeth 8
    Mount. flange 70.00
    Oil sealed No
    No./mount. holes 2 (1)
    Position/50 45
    Position/B+ 60
    Prod. info BN
    Rotation CW
    Dist./back 142.00
    Dist./front 47.00
    Drive dist. 10.50
    Drive type Steel
    Gear type DD/GR
    kW 1.2
    Terminal 50 6.30
    Voltage 12
    Total length 189.00 mm
    Waterproof No
    Dist. 104.50 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032113644, M000T84585, M002T42881, m0t84585, m2t42881, RGO 113644, 1986S01039, 23300-30s30, 23300-30s60, 23300-41b70, 23300-41b71, 23300-94851, 23300-99b10, 23300-9W200, 23300-AX010, 23300-ax01a, 233001F715, 0001107092, 0001112017, 2330099B16

    • Konkurrentreferens
      CST35285, DRS0681, DRS3478, drs6730, F042001147, F042S01147, LRS01555, lrt00125, QS2113, S0239, S0239(BOSCH), S3022SR, STR-3596, STR3596, 8EA011610-601, 8ea737313-001, 25-2247, 25-3049, 28-52.117, 160.909.082, 327.070.082, 627.018.082, 4492, 33079R, 201016, 201104, 458463, 726126, 838044, 0986016730

    • Normaliserat artikelnummer
      cst35285, drs0681, drs3478, drs6730, f032113644, f042001147, f042s01147, lrs01555, lrt00125, m000t84585, m002t42881, m0t84585, m2t42881, qs2113, rgo113644, s0239, s0239bosch, s3022sr, str3596, 8ea011610601, 8ea737313001, 1986s01039, 4492, 23300ax010, 23300ax01a, 33079r, 201016, 201104, 233001f715, 233009w200, 252247, 253049, 458463, 726126, 838044, 0001107092, 0001112017, 2330030s30, 2330030s60, 2330041b70, 2330041b71, 2330099b10, 2330099b16, 2852117, 160909082, 327070082, 627018082, 0986016730, 2330094851

    • Passar modeller
      Nissan Model: Micra Model series: Micra Type of engine: i 16V Size of motor: 1.0 Brand of engine: CG10DE Type description: K11 Body: Hatchback From date: 01-08-1992 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
      Nissan Model: Micra Model series: Micra Type of engine: i 16V Size of motor: 1.0 Brand of engine: CG10DE Type description: K11 Body: Hatchback From date: 01-09-2000 To date: 01-02-2003 Fuel: Gasoline Approved: Yes
      Nissan Model: Micra Model series: Micra Type of engine: i 16V Size of motor: 1.3 Brand of engine: CG13DE Type description: K11E Body: Hatchback From date: 01-08-1992 To date: 01-09-2000 Fuel: Gasoline Approved: Yes
      Nissan Model: Micra Model series: Micra Type of engine: i 16V Size of motor: 1.4 Brand of engine: CGA3DE Type description: K11 Body: Hatchback From date: 01-09-2000 To date: 01-02-2003 Fuel: Gasoline Approved: Yes
      Nissan Model: Note Model series: Note Model type: LPG Type of engine: LPG Size of motor: 1.4 Brand of engine: CR14DE Type description: E11, NE11 Body: MPV From date: 01-01-2006 To date: 01-08-2013 Fuel: Petrol/Electro Approved: Yes
