HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114775

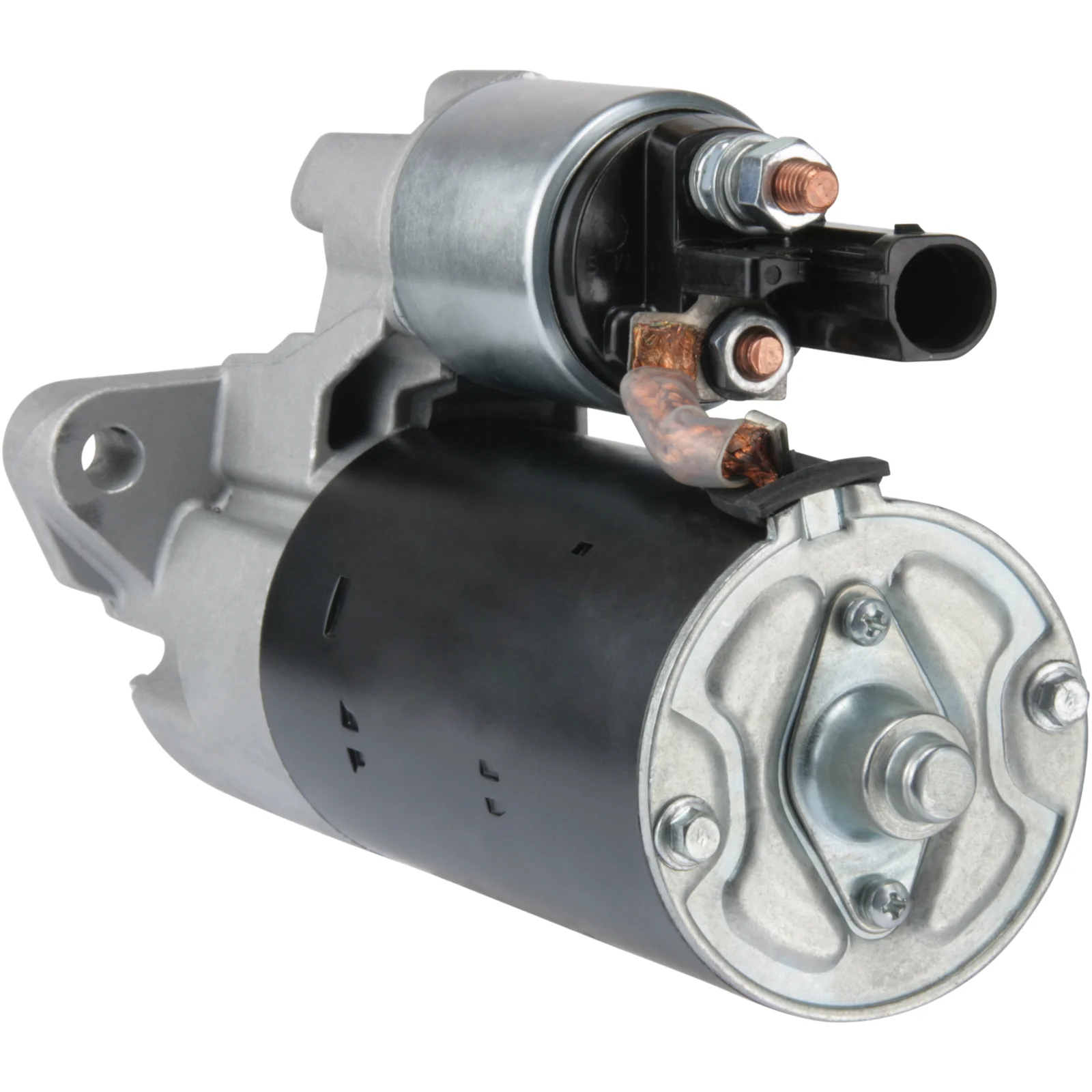

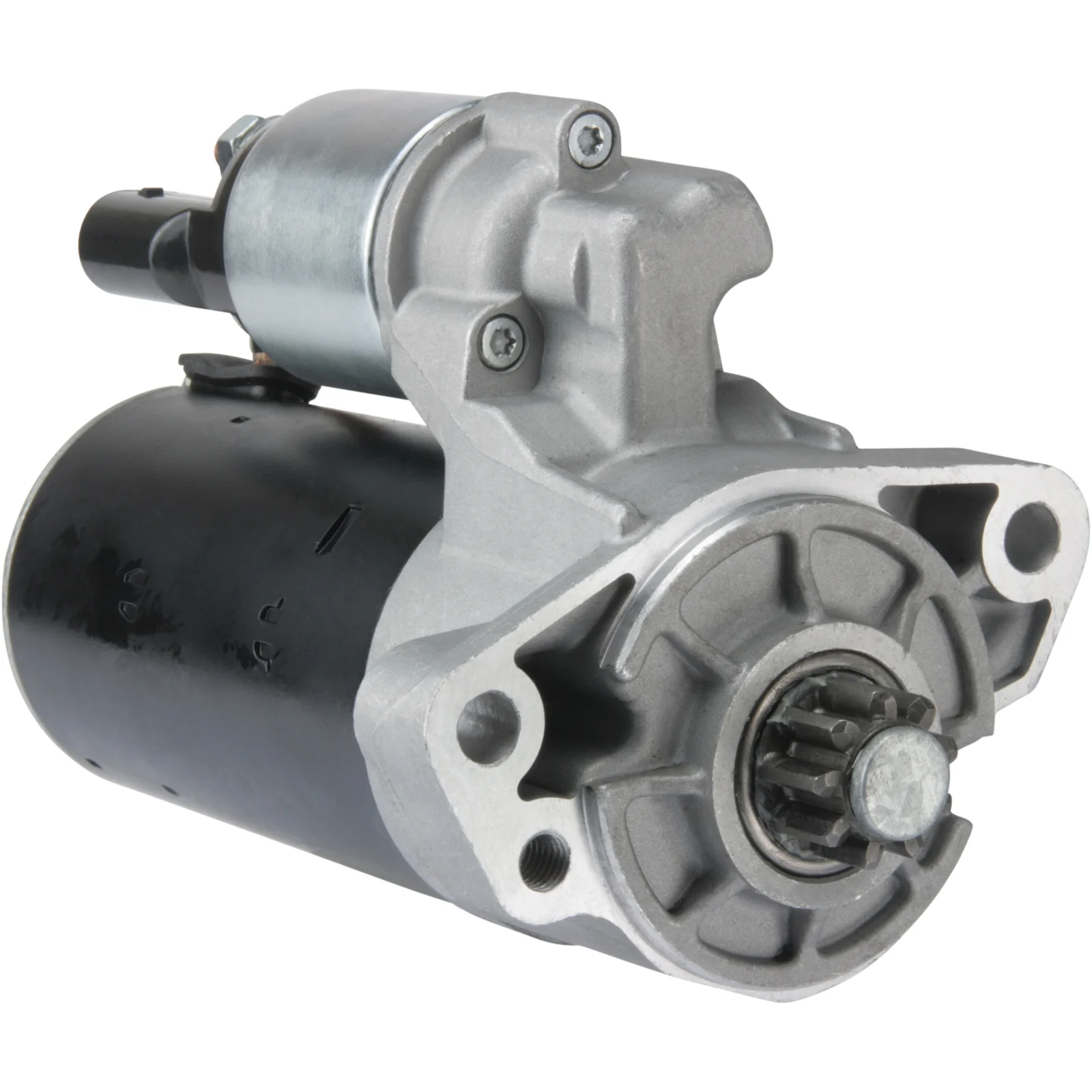

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.2, No./teeth: 9, Rotation: CW

Beskrivning

VAG 3.0TDI Startm. 12V-2.2kW 12V - 2.2kW, 9k A - 76.2mm, B - 25mm För Yourex produkt order 91-620-2405

Voltage: 12
kW: 2.2
Mount. flange: 76.20
Drive dist.: 25.00
Mount. hole 3 mm: 10.50
Mount. hole 1 mm: 11.00
Dist./back: 192.50
Dist./front: 28.50
No./teeth: 9
B+: M8
Position/50: 15
Terminal 50: Plug
Gear type: GR
Dist. 2: 23.50
Dist. 3: 104.50
Dist. mm: 101.50
Rotation: CW
Total length mm: 235.50
Drive type: Steel
No./mount. holes: 3 (1)

Filer

Specifikation

B+ M8
No./teeth 9
Mount. flange 76.20
No./mount. holes 3 (1)
Position/50 15
Dist. 2 23.50
Dist. 3 104.50
Rotation CW
Dist./back 192.50
Dist./front 28.50
Drive dist. 25.00
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 Plug
Voltage 12
Total length 235.50 mm
Dist. 101.50 mm
Mount. hole 3 10.50 mm
Mount. hole 1 11.00 mm

  • OEM
    F032114775, RGO 114775, 0001 125 609, 0001 125 610, 059 911 024H, 0986 024 050, 1986S00824, 114775, 0001109054, 0001125609, 0001125610, 059911024E, 059911024h

  • Konkurrentreferens
    CST10421, DRS0244, LRS02624, S0270, S0270PR, 8EA011611-881, 25-4297, 300.586.093, 311.282.092, 3384, 17678, 17678N, 17678R, 254373, 458920, 11024050, 0986024050, 0986024057

  • Bilmärken
    Audi, VW, VW Engines & Miscellaneous

  • Normaliserat artikelnummer
    cst10421, drs0244, f032114775, lrs02624, rgo114775, s0270, s0270pr, 8ea011611881, 1986s00824, 3384, 17678, 17678n, 17678r, 114775, 254297, 254373, 458920, 0001109054, 0001125609, 0001125610, 11024050, 059911024e, 059911024h, 300586093, 311282092, 0986024050, 0986024057

  • Passar modeller
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: BUG Type description: 4LB Body: Box Body / Estate From date: 01-03-2006 To date: 01-05-2008 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CASB,BUN Type description: 4LB Body: Box Body / Estate From date: 01-03-2006 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CCMA,CASA,CJGA Type description: 4LB Body: Box Body / Estate From date: 01-11-2007 To date: 01-05-2012 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 4LB Body: Box Body / Estate From date: 01-11-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA,CLZB Type description: 4LB Body: Box Body / Estate From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CZZB,CZZA Type description: 4MB, 4MG Body: Box Body / Estate From date: 01-08-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: BUG Body: SUV From date: 01-03-2006 To date: 01-05-2008 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: BUN Body: SUV From date: 01-03-2006 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CASA Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CASB Body: SUV From date: 01-03-2006 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CATA Type description: 4L From date: 01-06-2009 To date: 01-05-2012 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CCMA Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGD Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 4L From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Series: Q 7 Model: 3.0 TDI Engine volume: 3.0 Engine type: BUN Year: 03.06-11.07
    Audi Series: Q7 (4L) Model: 3.0 TDI Quattro Engine volume: 3.0 Engine type: BUG Year: 08.06-05.08
    Audi Series: Q7 (4L) Model: 3.0 TDI Quattro Engine volume: 3.0 Engine type: CASA / CCMA Year: 11.07-
    VW Engines & Miscellaneous Series: Marinmotor Model: BSP Engine volume: 3.0
    VW Engines & Miscellaneous Series: Marinmotor Model: CEZA Engine volume: 3.0
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: BKS Type description: 7LA Body: SUV From date: 01-11-2004 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: BUN Type description: 7LA, 7L6, 7L7 Body: SUV From date: 01-04-2006 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CATA Type description: 7LA Body: SUV From date: 01-11-2004 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGD Type description: 7P5 From date: 01-05-2011 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 7P5 From date: 01-05-2011 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 TDi Size of motor: 3.0 Brand of engine: CASA Type description: 7LA, 7L6, 7L7 Body: SUV From date: 01-11-2007 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 TDi Size of motor: 3.0 Brand of engine: CASC Type description: 7LA, 7L6, 7L7 Body: SUV From date: 01-11-2007 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 TDI Size of motor: 3.0 Brand of engine: CVVA Type description: 7P5 From date: 01-09-2014 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Van Model type: 4Motion Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 7P5 Body: Box Body / Estate From date: 01-05-2011 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    VW Series: Touareg Model: 3.0 V6 TDI Chnr:7L.8.062500-> Engine volume: 3.0 Engine type: CASC Year: 01.08-02.08
    VW Series: Touareg Model: 3.0 V6 TDI Engine volume: 3.0 Engine type: BKS / CATA Year: 11.04-05.10
