Artikelnr: F032111273

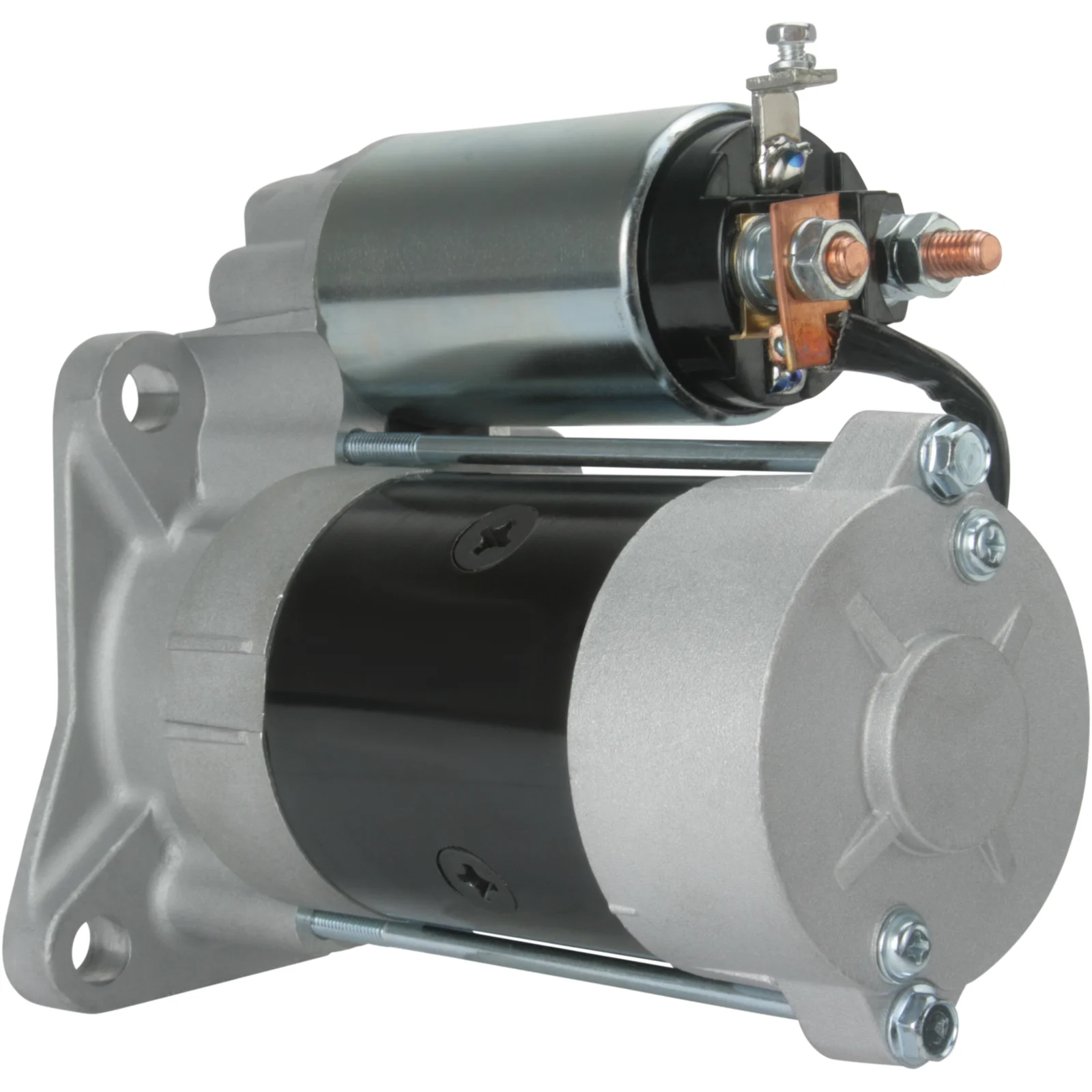

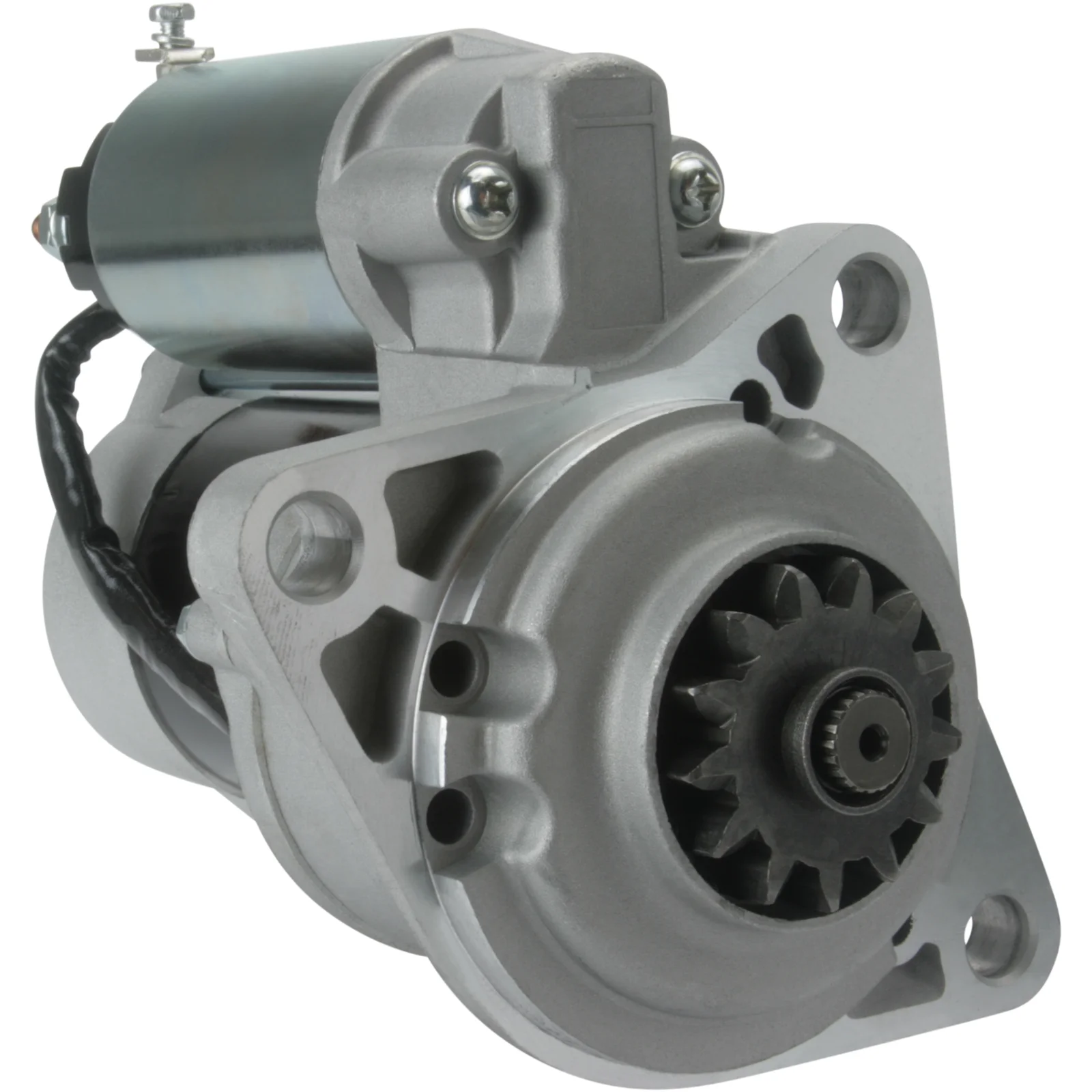

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.7, No./teeth: 12, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.7
Mount. flange: 100.00
Drive dist.: 31.50
Mount. hole 3 mm: 14.00
Mount. hole 2 mm: 14.00
Mount. hole 1 mm: 14.00
Dist./back: 199.50
Dist./front: 38.00
No./teeth: 12
B+: M8
Position/50: 60
Terminal 50: M5
Gear type: GR
Dist. 2: 145.00
Dist. 3: 105.00
Dist. mm: 105.00
Rotation: CW
Total length mm: 240.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 3 (0)

Specifikation

B+ M8
No./teeth 12
Mount. flange 100.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 60
Prod. info BN
Dist. 2 145.00
Dist. 3 105.00
Rotation CW
Dist./back 199.50
Dist./front 38.00
Drive dist. 31.50
Drive type Steel
Gear type GR
kW 2.7
Terminal 50 M5
Voltage 12
Total length 240.50 mm
Waterproof No
Dist. 105.00 mm
Mount. hole 3 14.00 mm
Mount. hole 2 14.00 mm
Mount. hole 1 14.00 mm
  • OEM

    F032111273, M002T54571, M002T54572, M005T22171, m2t54571, m2t54572, m5t22171, 4840-18-400, 4840-18-400A, 4840-18-400B, 2021166, 901098891
  • Konkurrentreferens

    CST35112, CST35200, DRS0105, DRS0503, F042001165, F042S01165, LRS01254, LRS01402, S5069, STR-6047, STR28005, STR6047, 2-2024-MI, 8EA015642-181, 8ea737265-001, 25-1433, 25-2289, 624.004.122, 626.043.132, 4471, 18171, 18171N, 18171R, 104138, 201011, 255120, 11040325
  • Normaliserat artikelnummer

    cst35112, cst35200, drs0105, drs0503, f032111273, f042001165, f042s01165, lrs01254, lrs01402, m002t54571, m002t54572, m005t22171, m2t54571, m2t54572, m5t22171, s5069, str28005, str6047, 8ea015642181, 8ea737265001, 4471, 18171, 18171n, 18171r, 22024mi, 104138, 201011, 251433, 252289, 255120, 2021166, 11040325, 484018400, 484018400a, 484018400b, 624004122, 626043132, 901098891
  • Passar modeller

    Hyster Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    Yale Model: GDP25-30TF Model series: GDP25-30TF Type of engine: Diesel Approved: Yes
    Yale Model: Various Models Model series: Various Models Brand of engine: DBHA Approved: Yes
    Yale Model: Various Models Model series: Various Models Brand of engine: HA Approved: Yes
    Yale Model: Various Models Model series: Various Models Brand of engine: XA Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 2.7
    Mount. flange: 100.00
    Drive dist.: 31.50
    Mount. hole 3 mm: 14.00
    Mount. hole 2 mm: 14.00
    Mount. hole 1 mm: 14.00
    Dist./back: 199.50
    Dist./front: 38.00
    No./teeth: 12
    B+: M8
    Position/50: 60
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 145.00
    Dist. 3: 105.00
    Dist. mm: 105.00
    Rotation: CW
    Total length mm: 240.50
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    No./mount. holes: 3 (0)
  • Specifikation
    B+ M8
    No./teeth 12
    Mount. flange 100.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 60
    Prod. info BN
    Dist. 2 145.00
    Dist. 3 105.00
    Rotation CW
    Dist./back 199.50
    Dist./front 38.00
    Drive dist. 31.50
    Drive type Steel
    Gear type GR
    kW 2.7
    Terminal 50 M5
    Voltage 12
    Total length 240.50 mm
    Waterproof No
    Dist. 105.00 mm
    Mount. hole 3 14.00 mm
    Mount. hole 2 14.00 mm
    Mount. hole 1 14.00 mm
  • Fordonsmatchning
    • OEM

      F032111273, M002T54571, M002T54572, M005T22171, m2t54571, m2t54572, m5t22171, 4840-18-400, 4840-18-400A, 4840-18-400B, 2021166, 901098891
    • Konkurrentreferens

      CST35112, CST35200, DRS0105, DRS0503, F042001165, F042S01165, LRS01254, LRS01402, S5069, STR-6047, STR28005, STR6047, 2-2024-MI, 8EA015642-181, 8ea737265-001, 25-1433, 25-2289, 624.004.122, 626.043.132, 4471, 18171, 18171N, 18171R, 104138, 201011, 255120, 11040325
    • Normaliserat artikelnummer

      cst35112, cst35200, drs0105, drs0503, f032111273, f042001165, f042s01165, lrs01254, lrs01402, m002t54571, m002t54572, m005t22171, m2t54571, m2t54572, m5t22171, s5069, str28005, str6047, 8ea015642181, 8ea737265001, 4471, 18171, 18171n, 18171r, 22024mi, 104138, 201011, 251433, 252289, 255120, 2021166, 11040325, 484018400, 484018400a, 484018400b, 624004122, 626043132, 901098891
    • Passar modeller

      Hyster Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
      Yale Model: GDP25-30TF Model series: GDP25-30TF Type of engine: Diesel Approved: Yes
      Yale Model: Various Models Model series: Various Models Brand of engine: DBHA Approved: Yes
      Yale Model: Various Models Model series: Various Models Brand of engine: HA Approved: Yes
      Yale Model: Various Models Model series: Various Models Brand of engine: XA Approved: Yes
