Artikelnr: F032111222

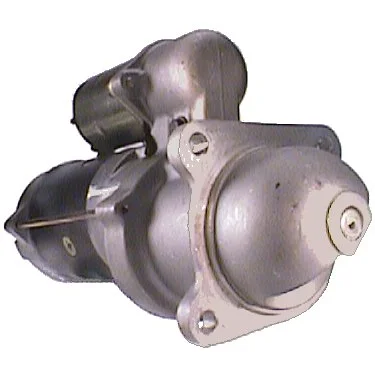

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 2.8, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 2.8
Mount. flange: 89.00
Drive dist.: 20.00
Mount. hole 3 mm: 10.70
Mount. hole 2 mm: 10.70
Mount. hole 1 mm: 10.70
Dist./back: 274.50
Dist./front: 61.50
No./teeth: 10
B+: M10
Position/15a: 2
Position/50: 55
Terminal 50: M5
Gear type: GR
Dist. 2: 89.50
Dist. 3: 89.50
Dist. mm: 126.00
Rotation: CW
Total length mm: 338.00
Clutch type: Wet
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: Yes
Remarks: Replacing: 28MT.
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed Yes
No./mount. holes 3 (0)
Position/15a 2
Position/50 55
Clutch type Wet
Prod. info BN
Dist. 2 89.50
Remarks Replacing: 28MT.
Dist. 3 89.50
Rotation CW
Dist./back 274.50
Dist./front 61.50
Drive dist. 20.00
Drive type Steel
Gear type GR
kW 2.8
Terminal 50 M5
Voltage 12
Total length 338.00 mm
Waterproof No
Dist. 126.00 mm
Mount. hole 3 10.70 mm
Mount. hole 2 10.70 mm
Mount. hole 1 10.70 mm

  • OEM
    0-23000-2000, F032111222, 1109540, 1113288, 1998389, 2385788

  • Konkurrentreferens
    CST50105, CST60109, drz5124, S1012, 8ea732860-001, 25-1459, 50-8423, 91-01-4246, 692.016.102, 4407, 6168, 6581, 6581N, 33782, 60842, 60868, 254710

  • Normaliserat artikelnummer
    cst50105, cst60109, drz5124, f032111222, s1012, 8ea732860001, 4407, 6168, 6581, 6581n, 33782, 60842, 60868, 251459, 254710, 508423, 1109540, 1113288, 1998389, 2385788, 91014246, 0230002000, 692016102

  • Passar modeller
    Clark Model: GCX Model series: GCX40 Brand of engine: Perkins From date: 01-01-1990 Fuel: Diesel Approved: Yes
    Clark Model: GCX Model series: GCX50 Brand of engine: Perkins From date: 01-01-1990 Fuel: Diesel Approved: Yes
    Clark Model: GPX Model series: GPX35D Brand of engine: Perkins From date: 01-01-1990 Fuel: Diesel Approved: Yes
    Clark Model: GPX Model series: GPX40D Brand of engine: Perkins From date: 01-01-1990 Fuel: Diesel Approved: Yes
    Clark Model: GPX Model series: GPX50D Brand of engine: Perkins From date: 01-01-1990 Fuel: Diesel Approved: Yes
    Clark Model: Various Models Model series: Various Models From date: 01-01-1968 Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 12
    kW: 2.8
    Mount. flange: 89.00
    Drive dist.: 20.00
    Mount. hole 3 mm: 10.70
    Mount. hole 2 mm: 10.70
    Mount. hole 1 mm: 10.70
    Dist./back: 274.50
    Dist./front: 61.50
    No./teeth: 10
    B+: M10
    Position/15a: 2
    Position/50: 55
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 89.50
    Dist. 3: 89.50
    Dist. mm: 126.00
    Rotation: CW
    Total length mm: 338.00
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: Yes
    Remarks: Replacing: 28MT.
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    Oil sealed Yes
    No./mount. holes 3 (0)
    Position/15a 2
    Position/50 55
    Clutch type Wet
    Prod. info BN
    Dist. 2 89.50
    Remarks Replacing: 28MT.
    Dist. 3 89.50
    Rotation CW
    Dist./back 274.50
    Dist./front 61.50
    Drive dist. 20.00
    Drive type Steel
    Gear type GR
    kW 2.8
    Terminal 50 M5
    Voltage 12
    Total length 338.00 mm
    Waterproof No
    Dist. 126.00 mm
    Mount. hole 3 10.70 mm
    Mount. hole 2 10.70 mm
    Mount. hole 1 10.70 mm
  • Fordonsmatchning

    • OEM
      0-23000-2000, F032111222, 1109540, 1113288, 1998389, 2385788

    • Konkurrentreferens
      CST50105, CST60109, drz5124, S1012, 8ea732860-001, 25-1459, 50-8423, 91-01-4246, 692.016.102, 4407, 6168, 6581, 6581N, 33782, 60842, 60868, 254710

    • Normaliserat artikelnummer
      cst50105, cst60109, drz5124, f032111222, s1012, 8ea732860001, 4407, 6168, 6581, 6581n, 33782, 60842, 60868, 251459, 254710, 508423, 1109540, 1113288, 1998389, 2385788, 91014246, 0230002000, 692016102

    • Passar modeller
      Clark Model: GCX Model series: GCX40 Brand of engine: Perkins From date: 01-01-1990 Fuel: Diesel Approved: Yes
      Clark Model: GCX Model series: GCX50 Brand of engine: Perkins From date: 01-01-1990 Fuel: Diesel Approved: Yes
      Clark Model: GPX Model series: GPX35D Brand of engine: Perkins From date: 01-01-1990 Fuel: Diesel Approved: Yes
      Clark Model: GPX Model series: GPX40D Brand of engine: Perkins From date: 01-01-1990 Fuel: Diesel Approved: Yes
      Clark Model: GPX Model series: GPX50D Brand of engine: Perkins From date: 01-01-1990 Fuel: Diesel Approved: Yes
      Clark Model: Various Models Model series: Various Models From date: 01-01-1968 Approved: Yes
