Artikelnr: F032111217

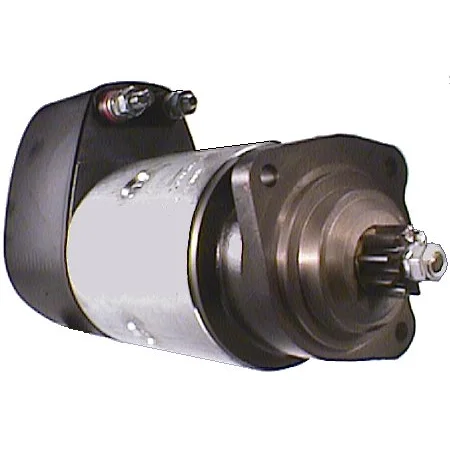

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 3.0, No./teeth: 9, Rotation: CW

Beskrivning

Voltage: 12
kW: 3.0
Mount. flange: 89.00
Drive dist.: 48.00
Mount. hole 3 mm: 10.50
Mount. hole 2 mm: 10.50
Mount. hole 1 mm: 10.50
Dist./back: 324.00
Dist./front: 62.50
No./teeth: 9
B+: M10
Position/50: 60
Terminal 50: M6
Gear type: DD
Dist. 2: 90.00
Dist. 3: 127.00
Dist. mm: 90.00
Rotation: CW
B-: M10
Total length mm: 386.50
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
Info: Alternative Cargo 115404
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
B- M10
No./teeth 9
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 60
Prod. info BN
Dist. 2 90.00
Dist. 3 127.00
Rotation CW
Dist./back 324.00
Dist./front 62.50
Drive dist. 48.00
Drive type Steel
Gear type DD
Info Alternative Cargo 115404
kW 3.0
Terminal 50 M6
Voltage 12
Total length 386.50 mm
Waterproof No
Dist. 90.00 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    A0031514401, A0041514001, azk5112, AZK5192, AZK5457, azk5511, bng4/12cr222, F032111217, mt38m, mt38r, mt38ra, 10.130.142, 10.130.143, 10.130.207, 11.130.142, 11.139.033, 11.139.108, 35, 35/1, 51.26201-7008, 51.26201-9008, 88.26201-6002, 403, 03109, 07940, 22802, 240500, 240524, 240847, 01304445, 1304445, 0001401012, 0001401013, 0001401014, 0001401027, 0001401028, 0001401052, 0001401068, 0001401069, 0001413007, 0001413010, 0001413011, 0001418003, 0001418004, 0001418007, 05710906, 05710993, 6643669, 6643900, 7240524, 19024565, 19024566, 0031514401, 0041514001

  • Konkurrentreferens
    CST10193, is0654, is0657, IS9083, IS9128, LRS01064, MS505, MS578, MS695, MS716, S0653S, S0740S, S0855S, S0857S, 8ea737102-001, 25-0018, 25-0264, 338.013.092, 550.101.113, 625.004.092, 4166, 10956, 33638, 33653, 33779, 220244, 220244A, 220256, 220256A, 220312, 220312A

  • Normaliserat artikelnummer
    a0031514401, a0041514001, azk5112, azk5192, azk5457, azk5511, bng412cr222, cst10193, f032111217, is0654, is0657, is9083, is9128, lrs01064, ms505, ms578, ms695, ms716, mt38m, mt38r, mt38ra, s0653s, s0740s, s0855s, s0857s, 8ea737102001, 35, 351, 403, 03109, 4166, 07940, 10956, 22802, 33638, 33653, 33779, 220244, 220244a, 220256, 220256a, 220312, 220312a, 240500, 240524, 240847, 250018, 250264, 01304445, 1304445, 0001401012, 0001401013, 0001401014, 0001401027, 0001401028, 0001401052, 0001401068, 0001401069, 0001413007, 0001413010, 0001413011, 0001418003, 0001418004, 0001418007, 05710906, 05710993, 6643669, 6643900, 7240524, 10130142, 10130143, 10130207, 11130142, 11139033, 11139108, 19024565, 19024566, 0031514401, 0041514001, 338013092, 550101113, 625004092, 51262017008, 51262019008, 88262016002

  • Passar modeller
    Volvo BM Model: T Model series: T800 Brand of engine: D50A From date: 01-01-1967 To date: 01-01-1975 Fuel: Diesel Approved: Yes
    Volvo BM Model: T Model series: T810 Brand of engine: TD50A From date: 01-01-1969 To date: 01-01-1975 Fuel: Diesel Approved: Yes
    Volvo Model: F 80 Model series: F 86/207 Size of motor: 6.7 Brand of engine: TD70B Body: Platform / Chassis From date: 01-08-1965 To date: 01-12-1974 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 12
    kW: 3.0
    Mount. flange: 89.00
    Drive dist.: 48.00
    Mount. hole 3 mm: 10.50
    Mount. hole 2 mm: 10.50
    Mount. hole 1 mm: 10.50
    Dist./back: 324.00
    Dist./front: 62.50
    No./teeth: 9
    B+: M10
    Position/50: 60
    Terminal 50: M6
    Gear type: DD
    Dist. 2: 90.00
    Dist. 3: 127.00
    Dist. mm: 90.00
    Rotation: CW
    B-: M10
    Total length mm: 386.50
    Drive type: Steel
    Prod. info: BN
    Waterproof: No
    Oil sealed: No
    Info: Alternative Cargo 115404
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    B- M10
    No./teeth 9
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 60
    Prod. info BN
    Dist. 2 90.00
    Dist. 3 127.00
    Rotation CW
    Dist./back 324.00
    Dist./front 62.50
    Drive dist. 48.00
    Drive type Steel
    Gear type DD
    Info Alternative Cargo 115404
    kW 3.0
    Terminal 50 M6
    Voltage 12
    Total length 386.50 mm
    Waterproof No
    Dist. 90.00 mm
    Mount. hole 3 10.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Fordonsmatchning

    • OEM
      A0031514401, A0041514001, azk5112, AZK5192, AZK5457, azk5511, bng4/12cr222, F032111217, mt38m, mt38r, mt38ra, 10.130.142, 10.130.143, 10.130.207, 11.130.142, 11.139.033, 11.139.108, 35, 35/1, 51.26201-7008, 51.26201-9008, 88.26201-6002, 403, 03109, 07940, 22802, 240500, 240524, 240847, 01304445, 1304445, 0001401012, 0001401013, 0001401014, 0001401027, 0001401028, 0001401052, 0001401068, 0001401069, 0001413007, 0001413010, 0001413011, 0001418003, 0001418004, 0001418007, 05710906, 05710993, 6643669, 6643900, 7240524, 19024565, 19024566, 0031514401, 0041514001

    • Konkurrentreferens
      CST10193, is0654, is0657, IS9083, IS9128, LRS01064, MS505, MS578, MS695, MS716, S0653S, S0740S, S0855S, S0857S, 8ea737102-001, 25-0018, 25-0264, 338.013.092, 550.101.113, 625.004.092, 4166, 10956, 33638, 33653, 33779, 220244, 220244A, 220256, 220256A, 220312, 220312A

    • Normaliserat artikelnummer
      a0031514401, a0041514001, azk5112, azk5192, azk5457, azk5511, bng412cr222, cst10193, f032111217, is0654, is0657, is9083, is9128, lrs01064, ms505, ms578, ms695, ms716, mt38m, mt38r, mt38ra, s0653s, s0740s, s0855s, s0857s, 8ea737102001, 35, 351, 403, 03109, 4166, 07940, 10956, 22802, 33638, 33653, 33779, 220244, 220244a, 220256, 220256a, 220312, 220312a, 240500, 240524, 240847, 250018, 250264, 01304445, 1304445, 0001401012, 0001401013, 0001401014, 0001401027, 0001401028, 0001401052, 0001401068, 0001401069, 0001413007, 0001413010, 0001413011, 0001418003, 0001418004, 0001418007, 05710906, 05710993, 6643669, 6643900, 7240524, 10130142, 10130143, 10130207, 11130142, 11139033, 11139108, 19024565, 19024566, 0031514401, 0041514001, 338013092, 550101113, 625004092, 51262017008, 51262019008, 88262016002

    • Passar modeller
      Volvo BM Model: T Model series: T800 Brand of engine: D50A From date: 01-01-1967 To date: 01-01-1975 Fuel: Diesel Approved: Yes
      Volvo BM Model: T Model series: T810 Brand of engine: TD50A From date: 01-01-1969 To date: 01-01-1975 Fuel: Diesel Approved: Yes
      Volvo Model: F 80 Model series: F 86/207 Size of motor: 6.7 Brand of engine: TD70B Body: Platform / Chassis From date: 01-08-1965 To date: 01-12-1974 Fuel: Diesel Approved: Yes
