- Startmotor
-

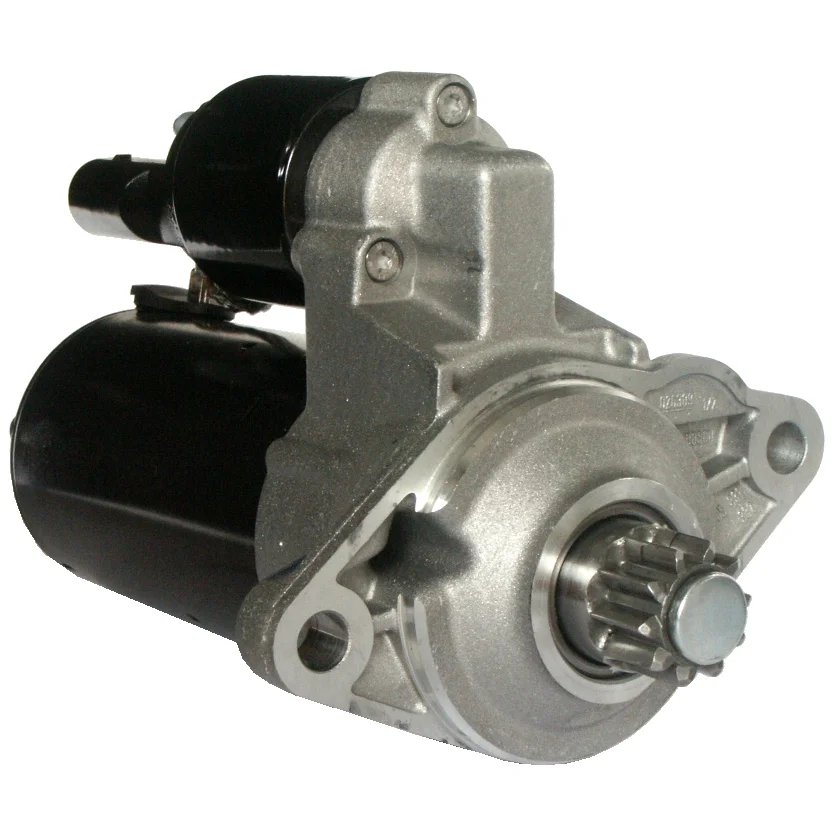

HC-Cargo Startmotor
- Startmotor
-
HC-Cargo Startmotor
Artikelnr: F032113509
HC-Cargo Startmotor
Voltage: 12, kW: 1.7, No./teeth: 10, Rotation: CCW
Beskrivning
VAG Diesel Startm. 12V-2.0kW 12V - 2.0KW, 10k, CCW A - 76mm, B - 42.5mm VW/Seat - Automat växellåda. Utom VW Passat då det är blandat. Audi A3 - för fordon med dubbelkoppling. Audi TT/Skoda - vissa modeller Automat För Yourex produkt order 91-620-2028
Voltage: 12
kW: 1.7
Mount. flange: 76.20
Drive dist.: 42.50
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 183.00
Dist./front: 46.50
No./teeth: 10
B+: M8
Position/50: 15
Terminal 50: 4.80
Gear type: GR
Dist. mm: 119.00
Rotation: CCW
Total length mm: 242.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)
Voltage: 12
kW: 1.7
Mount. flange: 76.20
Drive dist.: 42.50
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 183.00
Dist./front: 46.50
No./teeth: 10
B+: M8
Position/50: 15
Terminal 50: 4.80
Gear type: GR
Dist. mm: 119.00
Rotation: CCW
Total length mm: 242.00
Drive type: Steel
Prod. info: BN
Waterproof: No
Oil sealed: No
No./mount. holes: 2 (0)
Filer
Specifikation
| B+ | M8 |
|---|---|
| No./teeth | 10 |
| Mount. flange | 76.20 |
| Oil sealed | No |
| No./mount. holes | 2 (0) |
| Position/50 | 15 |
| Prod. info | BN |
| Rotation | CCW |
| Dist./back | 183.00 |
| Dist./front | 46.50 |
| Drive dist. | 42.50 |
| Drive type | Steel |
| Gear type | GR |
| kW | 1.7 |
| Terminal 50 | 4.80 |
| Voltage | 12 |
| Total length | 242.00 mm |
| Waterproof | No |
| Dist. | 119.00 mm |
| Mount. hole 2 | 11.00 mm |
| Mount. hole 1 | 11.00 mm |
-
OEM
CS1286, CST10256, DRT0280, DRT0280X, DSN3008, F032113509, F042S0H054, LRS01672, MSN2106, S0253, S0253PR, S0253R, STR-H054, STR50252, 0001 123 016, 0001 123 017, 0001 123 036, 02E 911 023H, 02E 911 023L, 02E911023H, 02E911023HX, 02E911023LX, 2E911023H, 2E911023HX, 8EA012526-191, 25-3218, 311.203.102, 0986 020 280, 1986S00803, 3041, 17971N, 17971R, 101286, 105281, 113509, 201060, 220606, 220606A, 0001123016, 0001123017, 8020280, 42020280, 0986020280, 0986020287, 063521230160, 944280202800 -
Konkurrentreferens
CST10256, DRT0280, DRT0280X, DSN3008, F042S0H054, lrs01672, MSN2106, S0253, S0253PR, S0253R, STR-H054, STR50252, 8EA012526-191, 25-3218, 311.203.102, 3041, 17971N, 17971R, 101286, 105281, 201060, 220606, 220606A, 8020280, 42020280, 0986020280, 0986020287, 063521230160, 944280202800 -
Bilmärken
AUDI, SEAT, SKODA, VW -
Normaliserat artikelnummer
cs1286, cst10256, drt0280, drt0280x, dsn3008, f032113509, f042s0h054, lrs01672, msn2106, s0253, s0253pr, s0253r, str50252, strh054, 02e911023h, 02e911023hx, 02e911023l, 02e911023lx, 2e911023h, 2e911023hx, 8ea012526191, 1986s00803, 3041, 17971n, 17971r, 101286, 105281, 113509, 201060, 220606, 220606a, 253218, 0001123016, 0001123017, 0001123036, 8020280, 42020280, 311203102, 0986020280, 0986020287, 063521230160, 944280202800 -
Passar modeller
AUDI A3 (8P1) 1.9 TDI Engine volume: 1.9 Engine type: BXE, BKC, BLS Year: 05.03-05.10 AUDI A3 (8P1) 2.0 TDI 16V Engine volume: 2.0 Engine type: BKD, CLJA, CFFB, CBAB Year: 05.03-08.12 AUDI A3 (8P1) 2.0 TDI 16V quattro Engine volume: 2.0 Engine type: BKD, CFFB, CBAB Year: 08.04-08.12 AUDI A3 (8P1) 2.0 TDI Engine volume: 2.0 Engine type: BMM Year: 06.05-06.08 AUDI A3 (8P1) 2.0 TDI Engine volume: 2.0 Engine type: BUY Year: 06.06-06.08 AUDI A3 (8P1) 2.0 TDI Engine volume: 2.0 Engine type: CFFA, AZV, CBAA Year: 05.03-08.12 AUDI A3 (8P1) 2.0 TDI Engine volume: 2.0 Engine type: CFGB, CBBB, BMN Year: 03.06-08.12 AUDI A3 (8P1) 2.0 TDI quattro Engine volume: 2.0 Engine type: AZV Year: 05.03-06.08 AUDI A3 (8P1) 2.0 TDI quattro Engine volume: 2.0 Engine type: BMM Year: 01.06-06.08 AUDI A3 (8P1) 2.0 TDI quattro Engine volume: 2.0 Engine type: CFGB, CBBB, BMN Year: 03.06-08.12 AUDI A3 (8P1) 3.2 V6 quattro Engine volume: 3.2 Engine type: BUB, BDB, BMJ Year: 07.03-05.09 AUDI A3 Cabriolet (8P7) 2.0 TDI Engine volume: 2.0 Engine type: CFFA, CBAA Year: 04.08-05.13 AUDI A3 Cabriolet (8P7) 2.0 TDI Engine volume: 2.0 Engine type: CFFB, CBAB Year: 04.08-05.13 AUDI A3 Sportback (8PA) 1.9 TDI Engine volume: 1.9 Engine type: BXE, BKC, BLS Year: 09.04-05.10 AUDI A3 Sportback (8PA) 2.0 TDI 16V Engine volume: 2.0 Engine type: BKD, CLJA, CFFB, CBAB Year: 09.04-03.13 AUDI A3 Sportback (8PA) 2.0 TDI 16V quattro Engine volume: 2.0 Engine type: BKD, CFFB, CBAB Year: 11.05-03.13 AUDI A3 Sportback (8PA) 2.0 TDI Engine volume: 2.0 Engine type: BMM Year: 06.05-06.08 AUDI A3 Sportback (8PA) 2.0 TDI Engine volume: 2.0 Engine type: BUY Year: 06.06-06.08 AUDI A3 Sportback (8PA) 2.0 TDI Engine volume: 2.0 Engine type: CFFA, AZV, CBAA Year: 09.04-03.13 AUDI A3 Sportback (8PA) 2.0 TDI Engine volume: 2.0 Engine type: CFGB, CBBB, BMN Year: 03.06-03.13 AUDI A3 Sportback (8PA) 2.0 TDI quattro Engine volume: 2.0 Engine type: BMM Year: 01.06-06.08 AUDI A3 Sportback (8PA) 2.0 TDI quattro Engine volume: 2.0 Engine type: CFGB, CBBB, BMN Year: 03.06-03.13 AUDI A3 Sportback (8PA) 3.2 V6 quattro Engine volume: 3.2 Engine type: BUB, BDB, BMJ Year: 09.04-05.09 AUDI TT (8J3) 3.2 V6 quattro Engine volume: 3.2 Engine type: BUB, CBRA Year: 08.06-06.10 AUDI TT (8N3) 1.8 T Engine volume: 1.8 Engine type: AJQ, APP, AUQ, AWP, ATC Year: 10.98-06.06 AUDI TT (8N3) 1.8 T Engine volume: 1.8 Engine type: AUM Year: 09.02-06.06 AUDI TT (8N3) 1.8 T Engine volume: 1.8 Engine type: BVP Year: 09.05-06.06 AUDI TT (8N3) 1.8 T Engine volume: 1.8 Engine type: BVR Year: 09.05-06.06 AUDI TT (8N3) 1.8 T quattro Engine volume: 1.8 Engine type: AJQ, ARY, AUQ, ATC Year: 10.98-06.06 AUDI TT (8N3) 1.8 T quattro Engine volume: 1.8 Engine type: BVR Year: 09.05-06.06 AUDI TT (8N3) 3.2 VR6 quattro Engine volume: 3.2 Engine type: BHE Year: 07.03-06.06 AUDI TT Roadster (8J9) 3.2 V6 quattro Engine volume: 3.2 Engine type: BUB, CBRA Year: 03.07-06.10 AUDI TT Roadster (8N9) 1.8 T Engine volume: 1.8 Engine type: AJQ, APP, AUQ, ATC Year: 10.99-06.06 AUDI TT Roadster (8N9) 1.8 T Engine volume: 1.8 Engine type: AUM Year: 01.01-06.06 AUDI TT Roadster (8N9) 1.8 T Engine volume: 1.8 Engine type: BVP Year: 09.05-06.06 AUDI TT Roadster (8N9) 1.8 T Engine volume: 1.8 Engine type: BVR Year: 09.05-06.06 AUDI TT Roadster (8N9) 1.8 T quattro Engine volume: 1.8 Engine type: AJQ, ARY, AUQ Year: 02.00-06.06 AUDI TT Roadster (8N9) 1.8 T quattro Engine volume: 1.8 Engine type: APX, BEA, BAM Year: 10.99-06.06 AUDI TT Roadster (8N9) 1.8 T quattro Engine volume: 1.8 Engine type: BVR Year: 09.05-06.06 AUDI TT Roadster (8N9) 3.2 VR6 quattro Engine volume: 3.2 Engine type: BHE Year: 07.03-06.06 SEAT ALTEA (5P1) 1.9 TDI Engine volume: 1.9 Engine type: BKC, BXE, BJB, BLS Year: 04.04-12.10 SEAT ALTEA (5P1) 2.0 TDI 16V Engine volume: 2.0 Engine type: CFHC, BKD Year: 03.04-07.15 SEAT ALTEA (5P1) 2.0 TDI Engine volume: 2.0 Engine type: AZV Year: 03.04-05.09 SEAT ALTEA (5P1) 2.0 TDI Engine volume: 2.0 Engine type: BMM Year: 11.05-11.10 SEAT ALTEA (5P1) 2.0 TDI Engine volume: 2.0 Engine type: BMN, CEGA Year: 03.06-05.10 SEAT ALTEA XL (5P5, 5P8) 1.9 TDI 4x4 Engine volume: 1.9 Engine type: BLS Year: 06.09-12.10 SEAT ALTEA XL (5P5, 5P8) 1.9 TDI Engine volume: 1.9 Engine type: BKC, BXE, BLS Year: 10.06-12.10 SEAT ALTEA XL (5P5, 5P8) 2.0 TDI 16V Engine volume: 2.0 Engine type: CFHC, BKD Year: 10.06-07.15 SEAT ALTEA XL (5P5, 5P8) 2.0 TDI 4x4 Engine volume: 2.0 Engine type: BMM Year: 06.07-11.10 SEAT ALTEA XL (5P5, 5P8) 2.0 TDI 4x4 Engine volume: 2.0 Engine type: BMN, CEGA, CFJA Year: 06.07-06.13 SEAT ALTEA XL (5P5, 5P8) 2.0 TDI Engine volume: 2.0 Engine type: BMM Year: 10.06-11.10 SEAT ALTEA XL (5P5, 5P8) 2.0 TDI Engine volume: 2.0 Engine type: BMN, CEGA Year: 06.07-12.13 SEAT LEON (1P1) 1.9 TDI Engine volume: 1.9 Engine type: BKC, BXE, BLS Year: 07.05-12.10 SEAT LEON (1P1) 1.9 TDI Engine volume: 1.9 Engine type: BXF Year: 06.07-12.10 SEAT LEON (1P1) 2.0 TDI 16V Engine volume: 2.0 Engine type: CFHC, BKD, CLCB Year: 07.05-12.12 SEAT LEON (1P1) 2.0 TDI Engine volume: 2.0 Engine type: AZV Year: 07.05-05.10 SEAT LEON (1P1) 2.0 TDI Engine volume: 2.0 Engine type: BMM Year: 10.05-10.10 SEAT LEON (1P1) 2.0 TDI Engine volume: 2.0 Engine type: BMN, CEGA, CFJA Year: 05.06-12.12 SEAT TOLEDO III (5P2) 1.9 TDI Engine volume: 1.9 Engine type: BKC, BXE, BJB, BLS Year: 10.04-05.09 SEAT TOLEDO III (5P2) 2.0 TDI 16V Engine volume: 2.0 Engine type: BKD Year: 04.04-05.09 SEAT TOLEDO III (5P2) 2.0 TDI Engine volume: 2.0 Engine type: AZV Year: 09.04-05.09 SEAT TOLEDO III (5P2) 2.0 TDI Engine volume: 2.0 Engine type: BMM Year: 11.05-05.09 SKODA OCTAVIA II (1Z3) 1.9 TDI Engine volume: 1.9 Engine type: BXE, BLS, BKC, BJB Year: 06.04-12.10 SKODA OCTAVIA II (1Z3) 2.0 TDI 16V Engine volume: 2.0 Engine type: CFHC, CLCB, BKD Year: 02.04-04.13 SKODA OCTAVIA II (1Z3) 2.0 TDI Engine volume: 2.0 Engine type: AZV Year: 02.04-05.10 SKODA OCTAVIA II (1Z3) 2.0 TDI Engine volume: 2.0 Engine type: BMM Year: 11.05-05.10 SKODA OCTAVIA II (1Z3) 2.0 TDI RS Engine volume: 2.0 Engine type: CEGA, BMN Year: 04.06-02.13 SKODA OCTAVIA II Combi (1Z5) 1.9 TDI 4x4 Engine volume: 1.9 Engine type: BXE, BLS, BKC Year: 11.04-12.10 SKODA OCTAVIA II Combi (1Z5) 1.9 TDI Engine volume: 1.9 Engine type: BXE, BLS, BKC, BJB Year: 09.04-12.10 SKODA OCTAVIA II Combi (1Z5) 2.0 TDI 16V 4x4 Engine volume: 2.0 Engine type: CFHC, CLCB, BKD Year: 05.10-02.13 SKODA OCTAVIA II Combi (1Z5) 2.0 TDI 16V Engine volume: 2.0 Engine type: AZV Year: 02.04-05.10 SKODA OCTAVIA II Combi (1Z5) 2.0 TDI 16V Engine volume: 2.0 Engine type: CFHC, CLCB, BKD Year: 02.04-05.13 SKODA OCTAVIA II Combi (1Z5) 2.0 TDI 4x4 Engine volume: 2.0 Engine type: BMM Year: 07.06-05.10 SKODA OCTAVIA II Combi (1Z5) 2.0 TDI Engine volume: 2.0 Engine type: BMM Year: 11.05-05.10 SKODA OCTAVIA II Combi (1Z5) 2.0 TDI RS Engine volume: 2.0 Engine type: CEGA, BMN Year: 04.06-02.13 SKODA SUPERB II (3T4) 2.0 TDI 16V 4x4 Engine volume: 2.0 Engine type: CFFB Year: 11.10-05.15 SKODA SUPERB II (3T4) 2.0 TDI 16V Engine volume: 2.0 Engine type: CFFB, CLJA, BKD Year: 01.09-05.15 SKODA SUPERB II (3T4) 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CBBB, CFGB Year: 09.08-05.15 SKODA SUPERB II (3T4) 2.0 TDI Engine volume: 2.0 Engine type: BMP Year: 03.08-05.10 SKODA SUPERB II (3T4) 2.0 TDI Engine volume: 2.0 Engine type: CBBB, CFGB Year: 07.08-05.15 SKODA SUPERB II (3T4) 3.6 FSI 4x4 Engine volume: 3.6 Engine type: CDVA Year: 11.08-05.15 SKODA SUPERB II Kombi (3T5) 2.0 TDI 16V 4x4 Engine volume: 2.0 Engine type: CFFB Year: 11.10-05.15 SKODA SUPERB II Kombi (3T5) 2.0 TDI 16V Engine volume: 2.0 Engine type: CFFB, CLJA, BKD Year: 10.09-05.15 SKODA SUPERB II Kombi (3T5) 2.0 TDI 4x4 Engine volume: 2.0 Engine type: CBBB, CFGB Year: 10.09-05.15 SKODA SUPERB II Kombi (3T5) 2.0 TDI Engine volume: 2.0 Engine type: BMP Year: 10.09-03.10 SKODA SUPERB II Kombi (3T5) 2.0 TDI Engine volume: 2.0 Engine type: CBBB, CFGB Year: 10.09-05.15 SKODA SUPERB II Kombi (3T5) 3.6 V6 4x4 Engine volume: 3.6 Engine type: CDVA Year: 10.09-05.15 VW CADDY III Minibus, minivan (2KB, 2KJ, 2CB, 2CJ) 1.9 TDI 4motion Engine volume: 1.9 Engine type: BLS Year: 05.08-08.10 VW CADDY III Minibus, minivan (2KB, 2KJ, 2CB, 2CJ) 1.9 TDI Engine volume: 1.9 Engine type: BLS, BJB Year: 04.04-08.10 VW CADDY III Skåp/stor limousine (2KA, 2KH, 2CA, 2CH) 1.9 TDI 4motion Engine volume: 1.9 Engine type: BLS Year: 11.08-08.10 VW CADDY III Skåp/stor limousine (2KA, 2KH, 2CA, 2CH) 1.9 TDI Engine volume: 1.9 Engine type: BLS, BJB Year: 04.04-08.10 VW CC B7 (358) 3.6 FSI 4motion Engine volume: 3.6 Engine type: BWS Year: 11.11-12.16 VW EOS (1F7, 1F8) 2.0 TDI 16V Engine volume: 2.0 Engine type: CFFB, CBAB Year: 05.08-08.15 VW EOS (1F7, 1F8) 2.0 TDI Engine volume: 2.0 Engine type: BMM Year: 06.06-05.08 VW EOS (1F7, 1F8) 2.0 TFSI Engine volume: 2.0 Engine type: CAWB, CCZA, BWA, CBFA Year: 03.06-08.15 VW EOS (1F7, 1F8) 3.2 V6 Engine volume: 3.2 Engine type: CBRA, BUB Year: 06.06-05.09 VW EOS (1F7, 1F8) 3.6 V6 Engine volume: 3.6 Engine type: CDVA Year: 05.09-11.10 VW GOLF IV (1J1) 3.2 R32 4motion Engine volume: 3.2 Engine type: BML, BFH Year: 09.02-06.05 VW GOLF PLUS V (5M1, 521) 1.9 TDI Engine volume: 1.9 Engine type: BLS, BKC, BXE Year: 01.05-01.09 VW GOLF PLUS V (5M1, 521) 2.0 TDI 16V Engine volume: 2.0 Engine type: BKD, CFHC, CBDB Year: 01.05-12.13 VW GOLF PLUS V (5M1, 521) 2.0 TDI Engine volume: 2.0 Engine type: BEE Year: 05.05-05.07 VW GOLF PLUS V (5M1, 521) 2.0 TDI Engine volume: 2.0 Engine type: BMM Year: 12.05-05.11 VW GOLF PLUS V (5M1, 521) 2.0 TDI Engine volume: 2.0 Engine type: CFHB, CBDA, AZV Year: 05.05-12.13 VW GOLF PLUS V (5M1, 521) 2.0 TDI Engine volume: 2.0 Engine type: CLCA, CBDC Year: 01.09-12.13 VW GOLF PLUS Van (521) 2.0 TDi Engine volume: 2.0 Engine type: CFHC Year: 11.09-08.14 VW GOLF V (1K1) 1.9 TDI 4motion Engine volume: 1.9 Engine type: BLS, BKC, BXE Year: 08.04-11.08 VW GOLF V (1K1) 1.9 TDI Engine volume: 1.9 Engine type: BLS, BKC, BXE Year: 10.03-11.08 VW GOLF V (1K1) 2.0 TDI 16V 4motion Engine volume: 2.0 Engine type: BKD Year: 08.04-11.08 VW GOLF V (1K1) 2.0 TDI 16V Engine volume: 2.0 Engine type: BKD Year: 10.03-11.08 VW GOLF V (1K1) 2.0 TDI 4motion Engine volume: 2.0 Engine type: BMM Year: 01.07-11.08 VW GOLF V (1K1) 2.0 TDI Engine volume: 2.0 Engine type: AZV Year: 10.03-11.08 VW GOLF V (1K1) 2.0 TDI Engine volume: 2.0 Engine type: BMM Year: 12.04-11.08 VW GOLF V (1K1) 2.0 TDI Engine volume: 2.0 Engine type: BMN Year: 11.05-11.08 VW GOLF V (1K1) 3.2 R32 4motion Engine volume: 3.2 Engine type: CBRA, BUB Year: 11.05-11.08 VW GOLF V Variant (1K5) 1.9 TDI 4motion Engine volume: 1.9 Engine type: BLS Year: 01.08-07.09 VW GOLF V Variant (1K5) 1.9 TDI Engine volume: 1.9 Engine type: BLS, BXE Year: 06.07-07.09 VW GOLF V Variant (1K5) 2.0 TDI 16V Engine volume: 2.0 Engine type: BKD, CBDB Year: 06.07-07.09 VW GOLF V Variant (1K5) 2.0 TDI Engine volume: 2.0 Engine type: BMM Year: 06.07-07.09 VW GOLF V Variant (1K5) 2.0 TDI Engine volume: 2.0 Engine type: CBDA, AZV Year: 06.07-07.09 VW GOLF VAN VI Variant (AJ5) 2.0 TDi Engine volume: 2.0 Engine type: CFHC, CBDB Year: 07.09-05.14 VW GOLF VI (5K1) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFFB, CBAB Year: 05.09-11.12 VW GOLF VI (5K1) 2.0 TDI Engine volume: 2.0 Engine type: CBBB, CFGB Year: 04.09-11.12 VW GOLF VI (5K1) 2.0 TDI Engine volume: 2.0 Engine type: CFFA, CBAA Year: 10.08-11.12 VW GOLF VI (5K1) 2.0 TDI Engine volume: 2.0 Engine type: CFFB, CJAA, CBAB Year: 10.08-05.13 VW GOLF VI (5K1) 2.0 TDI Engine volume: 2.0 Engine type: CLCA, CBDC Year: 10.08-11.12 VW GOLF VI Van (5K1) 2.0 TDi Engine volume: 2.0 Engine type: CFFB, CJAA Year: 09.09-11.12 VW GOLF VI Van (5K1) 2.0 TDi Engine volume: 2.0 Engine type: CFGB Year: 05.10-11.12 VW GOLF VI Variant (AJ5) 2.0 TDI Engine volume: 2.0 Engine type: CJAA, CFHC, CBDB Year: 07.09-07.13 VW GOLF VI Variant (AJ5) 2.0 TDI Engine volume: 2.0 Engine type: CLCA Year: 01.10-07.13 VW JETTA III (1K2) 1.4 TSI Engine volume: 1.4 Engine type: CAVD Year: 07.08-10.10 VW JETTA III (1K2) 1.9 TDI Engine volume: 1.9 Engine type: BLS, BKC, BXE Year: 08.05-10.10 VW JETTA III (1K2) 2.0 TDI 16V Engine volume: 2.0 Engine type: BKD, CJAA, CBDB Year: 08.05-10.10 VW JETTA III (1K2) 2.0 TDI Engine volume: 2.0 Engine type: BMM Year: 10.05-10.10 VW JETTA III (1K2) 2.0 TDI Engine volume: 2.0 Engine type: CBDA, AZV Year: 09.05-10.10 VW JETTA III (1K2) 2.0 TDI Engine volume: 2.0 Engine type: CEGA, BMN Year: 10.06-10.10 VW JETTA IV (162, 163, AV3, AV2) 2.0 TDI Engine volume: 2.0 Engine type: CLCA, CUUA Year: 10.10-12.17 VW NEW BEETLE (9C1, 1C1) 1.9 TDI Engine volume: 1.9 Engine type: ATD, AXR, BEW Year: 02.01-09.10 VW NEW BEETLE Cabriolet (1Y7) 1.8 T Engine volume: 1.8 Engine type: AWU, AWV, BKF Year: 01.03-09.10 VW PASSAT B6 (3C2) 1.9 TDI Engine volume: 1.9 Engine type: BLS, BKC, BXE Year: 03.05-07.10 VW PASSAT B6 (3C2) 2.0 BlueTDI Engine volume: 2.0 Engine type: CBAC Year: 01.09-11.10 VW PASSAT B6 (3C2) 2.0 TDI 16V 4motion Engine volume: 2.0 Engine type: BKP, CBAB Year: 03.05-08.10 VW PASSAT B6 (3C2) 2.0 TDI 16V Engine volume: 2.0 Engine type: BKP, CBAB Year: 03.05-07.10 VW PASSAT B6 (3C2) 2.0 TDI 4motion Engine volume: 2.0 Engine type: BMP Year: 03.05-05.09 VW PASSAT B6 (3C2) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CBBB Year: 05.09-07.10 VW PASSAT B6 (3C2) 2.0 TDI Engine volume: 2.0 Engine type: BMA, CBAA Year: 03.05-11.10 VW PASSAT B6 (3C2) 2.0 TDI Engine volume: 2.0 Engine type: BMP Year: 03.05-05.09 VW PASSAT B6 (3C2) 2.0 TDI Engine volume: 2.0 Engine type: BUZ Year: 08.05-05.09 VW PASSAT B6 (3C2) 2.0 TDI Engine volume: 2.0 Engine type: BVE Year: 08.05-07.06 VW PASSAT B6 (3C2) 2.0 TDI Engine volume: 2.0 Engine type: BWV Year: 11.05-05.07 VW PASSAT B6 (3C2) 2.0 TDI Engine volume: 2.0 Engine type: CBBB, BMR Year: 08.05-07.10 VW PASSAT B6 (3C2) 3.2 FSI 4motion Engine volume: 3.2 Engine type: AXZ Year: 11.05-07.10 VW PASSAT B6 (3C2) 3.6 R36 4motion Engine volume: 3.6 Engine type: BWS Year: 04.07-07.10 VW PASSAT B6 Variant (3C5) 1.9 TDI Engine volume: 1.9 Engine type: BLS, BKC, BXE Year: 08.05-11.10 VW PASSAT B6 Variant (3C5) 2.0 BlueTDI Engine volume: 2.0 Engine type: CBAC Year: 01.09-11.10 VW PASSAT B6 Variant (3C5) 2.0 TDI 16V 4motion Engine volume: 2.0 Engine type: BKP, CBAB Year: 08.05-11.10 VW PASSAT B6 Variant (3C5) 2.0 TDI 16V Engine volume: 2.0 Engine type: BKP, CBAB Year: 08.05-11.10 VW PASSAT B6 Variant (3C5) 2.0 TDI 4motion Engine volume: 2.0 Engine type: BMP Year: 08.05-05.09 VW PASSAT B6 Variant (3C5) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CBBB Year: 05.09-11.10 VW PASSAT B6 Variant (3C5) 2.0 TDI Engine volume: 2.0 Engine type: BMA, CBAA Year: 08.05-11.10 VW PASSAT B6 Variant (3C5) 2.0 TDI Engine volume: 2.0 Engine type: BMP Year: 08.05-05.09 VW PASSAT B6 Variant (3C5) 2.0 TDI Engine volume: 2.0 Engine type: BUZ Year: 08.05-05.09 VW PASSAT B6 Variant (3C5) 2.0 TDI Engine volume: 2.0 Engine type: BVE Year: 08.05-02.06 VW PASSAT B6 Variant (3C5) 2.0 TDI Engine volume: 2.0 Engine type: BWV Year: 11.05-05.07 VW PASSAT B6 Variant (3C5) 2.0 TDI Engine volume: 2.0 Engine type: CBBB, BMR Year: 08.05-11.10 VW PASSAT B6 Variant (3C5) 3.2 FSI 4motion Engine volume: 3.2 Engine type: AXZ Year: 11.05-11.10 VW PASSAT B6 Variant (3C5) 3.6 R36 4motion Engine volume: 3.6 Engine type: BWS Year: 04.07-11.10 VW PASSAT B7 (362) 3.6 FSI 4motion Engine volume: 3.6 Engine type: BWS Year: 01.11-12.14 VW PASSAT B7 Skåp / kombi (365) 3.6 FSi 4motion Engine volume: 3.6 Engine type: BWS Year: 01.11-12.14 VW PASSAT B7 Variant (365) 3.6 FSI 4motion Engine volume: 3.6 Engine type: BWS Year: 01.11-12.14 VW PASSAT CC B6 (357) 2.0 BlueTDI Engine volume: 2.0 Engine type: CBAC Year: 05.09-11.10 VW PASSAT CC B6 (357) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CBBB, CFGB Year: 11.09-01.12 VW PASSAT CC B6 (357) 2.0 TDI 4motion Engine volume: 2.0 Engine type: CFFB, CBAB Year: 08.09-01.12 VW PASSAT CC B6 (357) 2.0 TDI Engine volume: 2.0 Engine type: CBBB, CLLA, CFGB Year: 06.08-01.12 VW PASSAT CC B6 (357) 2.0 TDI Engine volume: 2.0 Engine type: CFFA, CBAA Year: 06.08-05.11 VW PASSAT CC B6 (357) 2.0 TDI Engine volume: 2.0 Engine type: CFFB, CBAB Year: 06.08-01.12 VW PASSAT CC B6 (357) 3.6 FSI 4motion Engine volume: 3.6 Engine type: BWS Year: 02.08-12.11 VW SCIROCCO III (137, 138) 2.0 TDI Engine volume: 2.0 Engine type: CBBB, CFGB Year: 05.09-11.17 VW SCIROCCO III (137, 138) 2.0 TDI Engine volume: 2.0 Engine type: CFHC, CBDB Year: 08.08-11.17 VW SCIROCCO Van (137) 2.0 TDi Engine volume: 2.0 Engine type: CBBB, CFGB Year: 05.09-05.14 VW SCIROCCO Van (137) 2.0 TDi Engine volume: 2.0 Engine type: CFHC, CBDB Year: 08.08-05.14 VW TOURAN (1T1, 1T2) 1.9 TDI Engine volume: 1.9 Engine type: AVQ Year: 02.03-05.04 VW TOURAN (1T1, 1T2) 1.9 TDI Engine volume: 1.9 Engine type: BLS, BKC, BXE Year: 08.03-05.10 VW TOURAN (1T1, 1T2) 1.9 TDI Engine volume: 1.9 Engine type: BXF, BRU, BXJ Year: 11.04-05.10 VW TOURAN (1T1, 1T2) 2.0 TDI 16V Engine volume: 2.0 Engine type: BKD Year: 08.03-05.10 VW TOURAN (1T1, 1T2) 2.0 TDI Engine volume: 2.0 Engine type: AZV Year: 02.03-05.10 VW TOURAN (1T1, 1T2) 2.0 TDI Engine volume: 2.0 Engine type: BMM Year: 12.05-05.10 VW TOURAN (1T1, 1T2) 2.0 TDI Engine volume: 2.0 Engine type: CFJA, BMN Year: 12.05-05.10 VW TOURAN (1T3) 1.4 TSI EcoFuel Engine volume: 1.4 Engine type: CDGA Year: 05.10-05.15 VW TOURAN Skåp/stor limousine (1T1, 1T2) 1.9 TDI Engine volume: 1.9 Engine type: BKC, BXE Year: 08.03-11.06 VW TOURAN Skåp/stor limousine (1T3) 1.4 TSi EcoFuel Engine volume: 1.4 Engine type: CDGA Year: 05.10-05.15 1 / 38
-
