HC-Cargo Startmotor

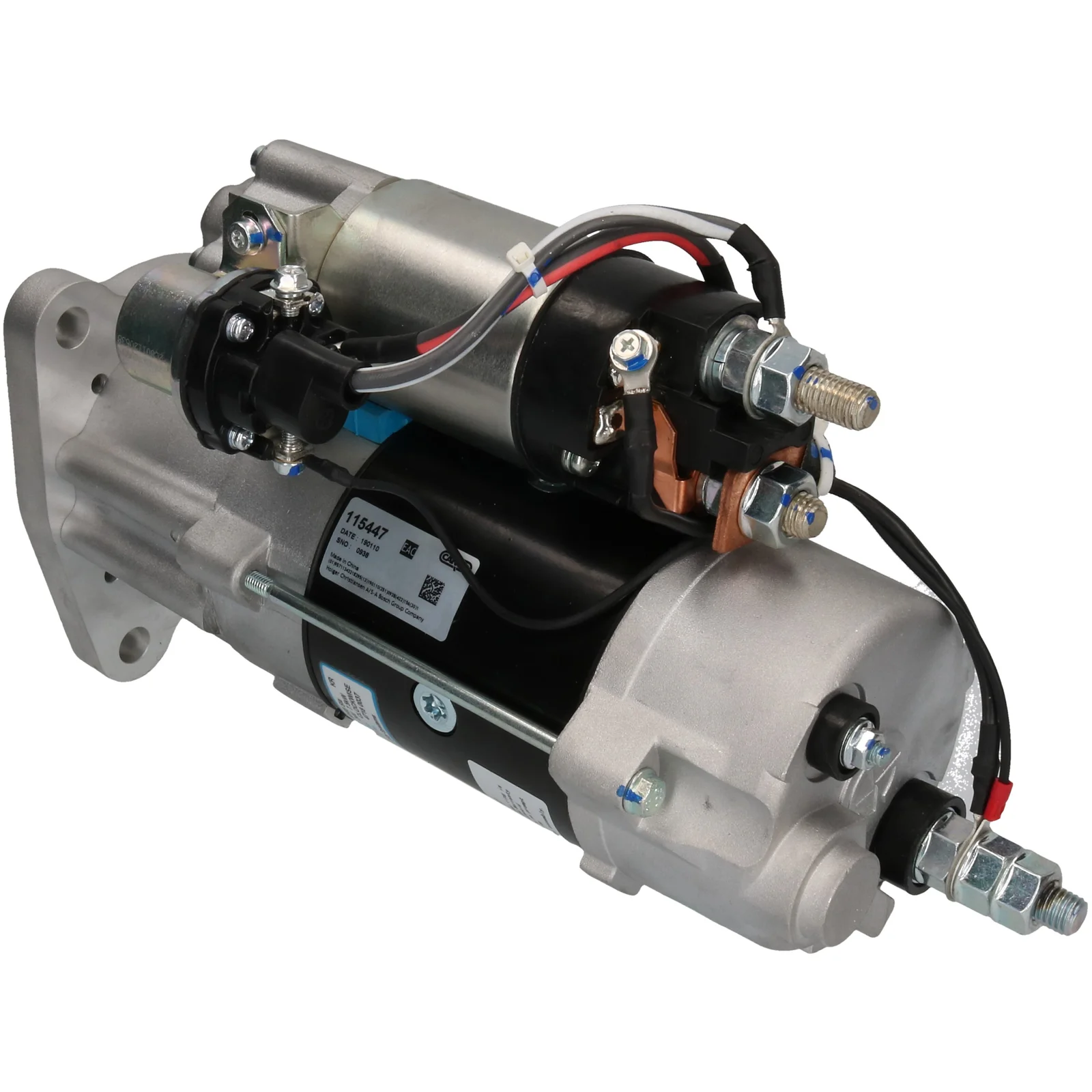

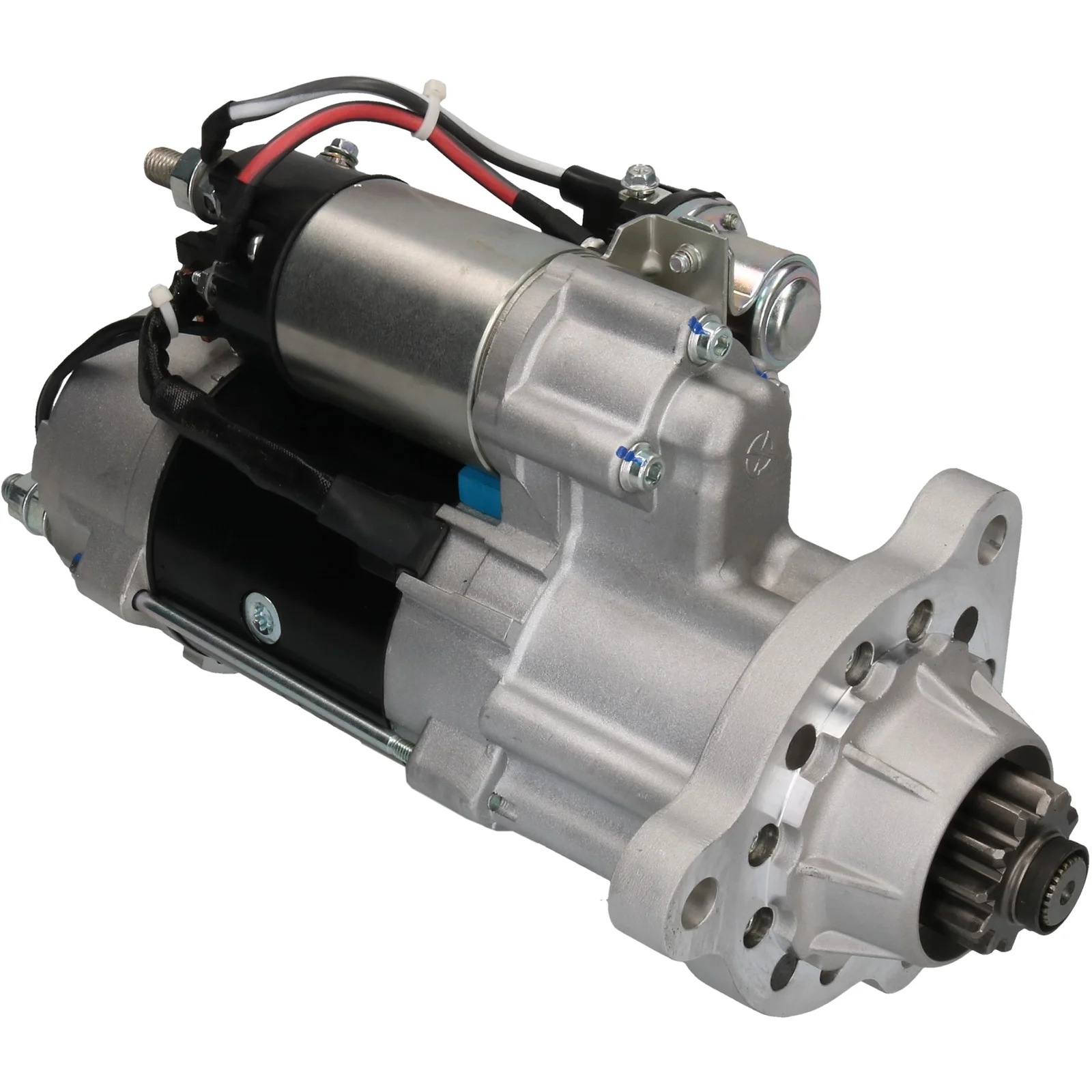

HC-Cargo Startmotor
Artikelnr: F032115447

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 7.5, No./teeth: 12, Rotation: CW

Beskrivning

Voltage: 24
kW: 7.5
Insulated return: Yes
Mount. flange: 92.00
Drive dist.: 47.50
Mount. hole 3 mm: 16.70
Mount. hole 2 mm: 16.70
Mount. hole 1 mm: 16.70
Dist./back: 310.00
Dist./front: 55.00
No./teeth: 12
B+: M12
Position/B+: 60
Thread length mm: 34.00
Terminal 50: M5
Gear type: GR
Dist. 2: 126.50
Dist. 3: 126.50
Dist. mm: 126.50
Rotation: CW
B-: M12
Total length mm: 413.00
Oil sealed: Yes
Remarks: Replacing: 39MT.
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M12
B- M12
No./teeth 12
Mount. flange 92.00
Oil sealed Yes
No./mount. holes 3 (0)
Position/B+ 60
Dist. 2 126.50
Remarks Replacing: 39MT.
Dist. 3 126.50
Rotation CW
Dist./back 310.00
Dist./front 55.00
Drive dist. 47.50
Gear type GR
Insulated return Yes
kW 7.5
Terminal 50 M5
Voltage 24
Total length 413.00 mm
Dist. 126.50 mm
Thread length 34.00 mm
Mount. hole 3 16.70 mm
Mount. hole 2 16.70 mm
Mount. hole 1 16.70 mm

  • OEM
    F032115447, M105R3505SE, M105R3509, M105R3509SE, M9T81971, 8200435, 8200702, 8300011

  • Konkurrentreferens
    F042003126, F042S03126, S1028, STR-4398, 641.536.123, 641.542.123, 811.524.123, 6823, 255569

  • Normaliserat artikelnummer
    f032115447, f042003126, f042s03126, m105r3505se, m105r3509, m105r3509se, m9t81971, s1028, str4398, 6823, 255569, 8200435, 8200702, 8300011, 641536123, 641542123, 811524123

  • Passar modeller
    Case Model: Various Models Model series: Various Models Approved: Yes
    Cummins Model: Various Models Model series: Various Models From date: 01-01-1987 Approved: Yes
    Fiat-Allis Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    Lister Model: Tractors Model series: Various Models Approved: Yes
    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
    Various Industrial applications Model: Various Industrial applications Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 24
    kW: 7.5
    Insulated return: Yes
    Mount. flange: 92.00
    Drive dist.: 47.50
    Mount. hole 3 mm: 16.70
    Mount. hole 2 mm: 16.70
    Mount. hole 1 mm: 16.70
    Dist./back: 310.00
    Dist./front: 55.00
    No./teeth: 12
    B+: M12
    Position/B+: 60
    Thread length mm: 34.00
    Terminal 50: M5
    Gear type: GR
    Dist. 2: 126.50
    Dist. 3: 126.50
    Dist. mm: 126.50
    Rotation: CW
    B-: M12
    Total length mm: 413.00
    Oil sealed: Yes
    Remarks: Replacing: 39MT.
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M12
    B- M12
    No./teeth 12
    Mount. flange 92.00
    Oil sealed Yes
    No./mount. holes 3 (0)
    Position/B+ 60
    Dist. 2 126.50
    Remarks Replacing: 39MT.
    Dist. 3 126.50
    Rotation CW
    Dist./back 310.00
    Dist./front 55.00
    Drive dist. 47.50
    Gear type GR
    Insulated return Yes
    kW 7.5
    Terminal 50 M5
    Voltage 24
    Total length 413.00 mm
    Dist. 126.50 mm
    Thread length 34.00 mm
    Mount. hole 3 16.70 mm
    Mount. hole 2 16.70 mm
    Mount. hole 1 16.70 mm
  • Fordonsmatchning

    • OEM
      F032115447, M105R3505SE, M105R3509, M105R3509SE, M9T81971, 8200435, 8200702, 8300011

    • Konkurrentreferens
      F042003126, F042S03126, S1028, STR-4398, 641.536.123, 641.542.123, 811.524.123, 6823, 255569

    • Normaliserat artikelnummer
      f032115447, f042003126, f042s03126, m105r3505se, m105r3509, m105r3509se, m9t81971, s1028, str4398, 6823, 255569, 8200435, 8200702, 8300011, 641536123, 641542123, 811524123

    • Passar modeller
      Case Model: Various Models Model series: Various Models Approved: Yes
      Cummins Model: Various Models Model series: Various Models From date: 01-01-1987 Approved: Yes
      Fiat-Allis Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
      Lister Model: Tractors Model series: Various Models Approved: Yes
      Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
      Various Industrial applications Model: Various Industrial applications Approved: Yes
