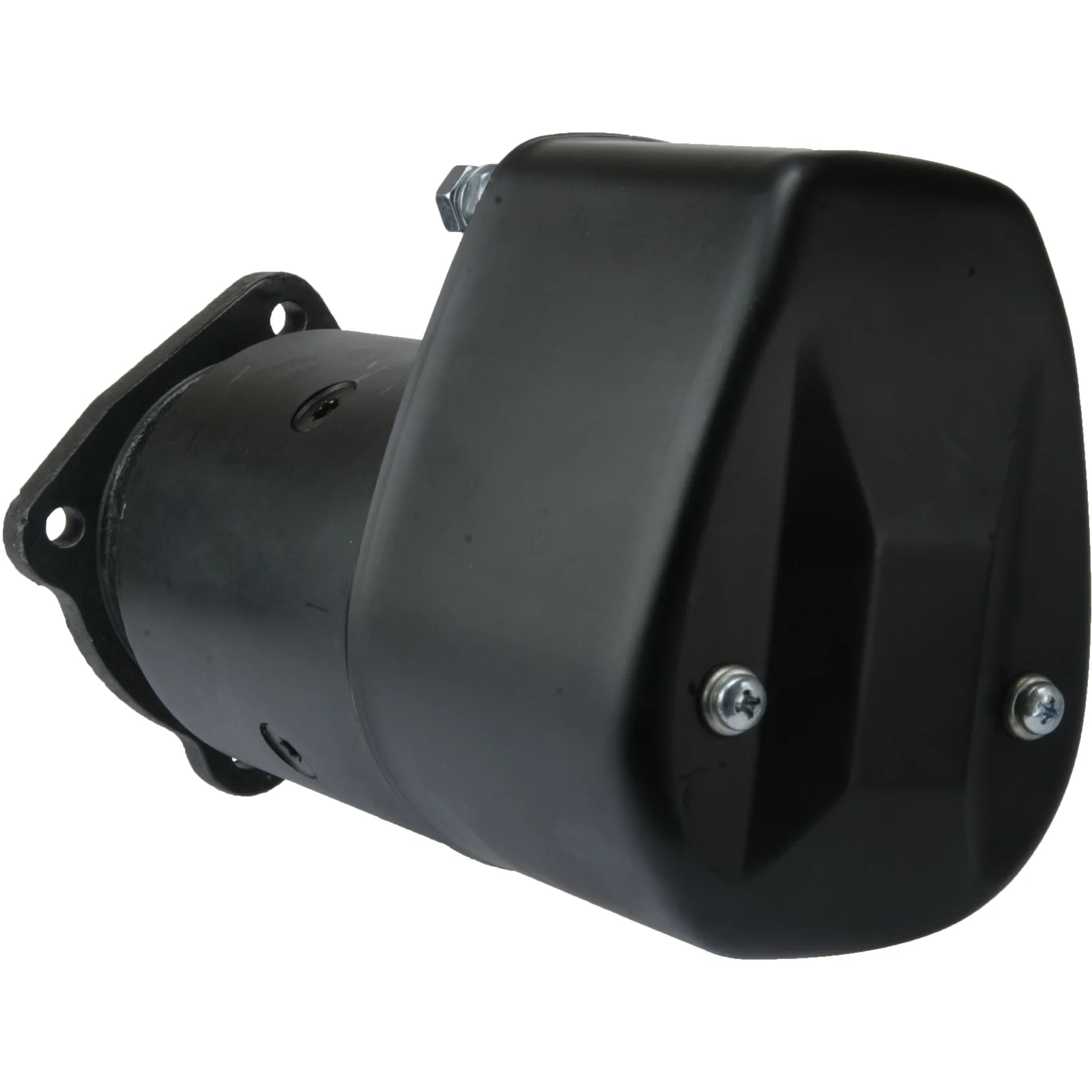

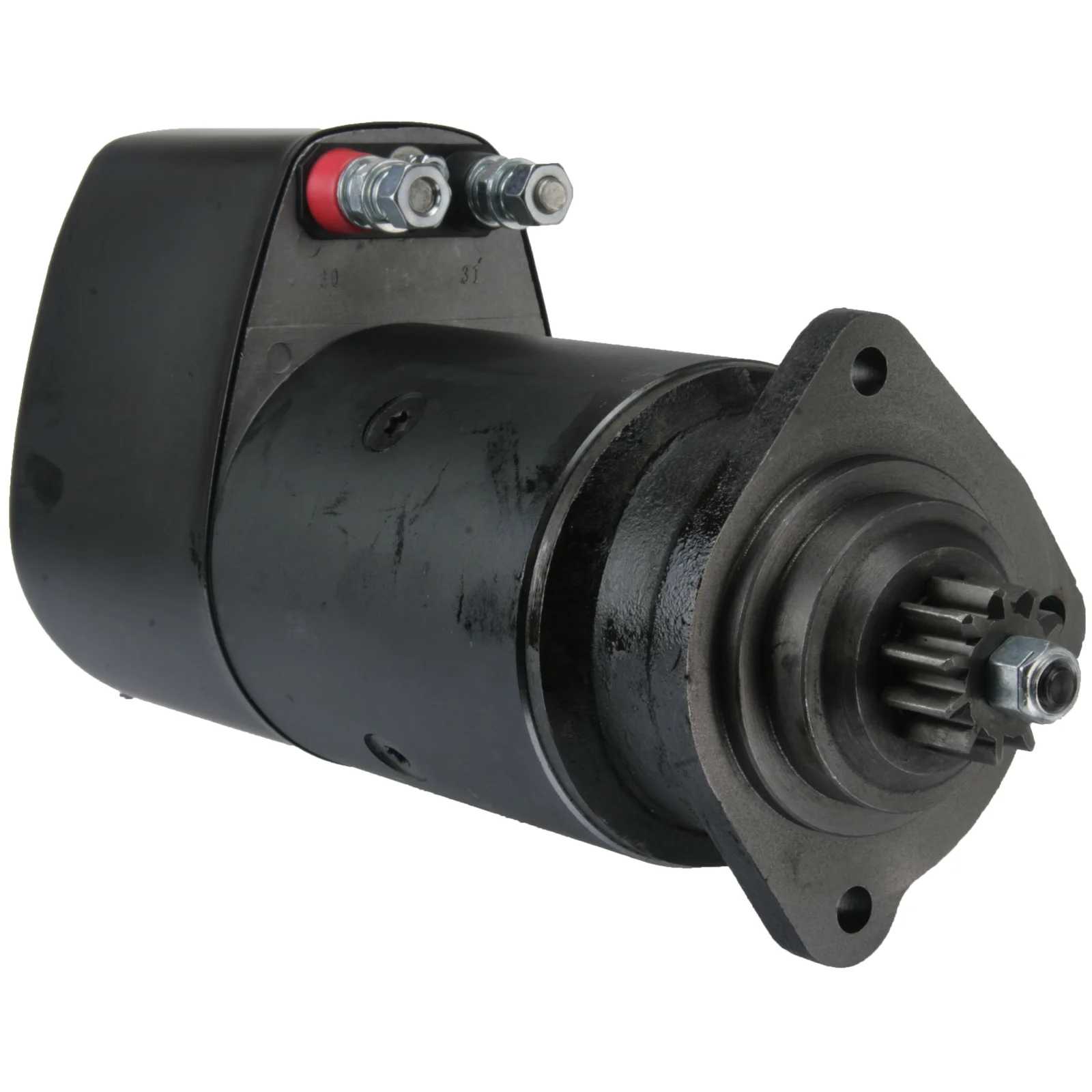

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032114744

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 5.4, No./teeth: 11, Rotation: CW

Beskrivning

Voltage: 24
kW: 5.4
Insulated return: Yes
Mount. flange: 89.00
Drive dist.: 47.50
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 324.00
Dist./front: 63.00
No./teeth: 11
B+: M10
Position/50: 60
Terminal 50: M6
Gear type: DD
Dist. 2: 90.00
Dist. 3: 127.00
Dist. mm: 90.00
Rotation: CW
Position/b-: 5
B-: M10
Total length mm: 387.00
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
B- M10
No./teeth 11
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 60
Position/b- 5
Dist. 2 90.00
Dist. 3 127.00
Rotation CW
Dist./back 324.00
Dist./front 63.00
Drive dist. 47.50
Gear type DD
Insulated return Yes
kW 5.4
Terminal 50 M6
Voltage 24
Total length 387.00 mm
Dist. 90.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032114744, 571, 01174641, 0001410087, 0001416071, 1701052, 5991324, 6000970, 081466032

  • Konkurrentreferens
    CST10627, DRS1480, is0486, IS9003, IS9113, MS484, MS549, MS714, S0283, 45-1468, 88-11.480, 600.025.114, 18118N, 33551, 254015, 11011480, 0986011480

  • Normaliserat artikelnummer
    cst10627, drs1480, f032114744, is0486, is9003, is9113, ms484, ms549, ms714, s0283, 571, 18118n, 33551, 254015, 451468, 01174641, 0001410087, 0001416071, 1701052, 5991324, 6000970, 8811480, 11011480, 081466032, 600025114, 0986011480

  • Passar modeller
    Various Industrial applications Model: Various Industrial applications Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 5.4
    Insulated return: Yes
    Mount. flange: 89.00
    Drive dist.: 47.50
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 324.00
    Dist./front: 63.00
    No./teeth: 11
    B+: M10
    Position/50: 60
    Terminal 50: M6
    Gear type: DD
    Dist. 2: 90.00
    Dist. 3: 127.00
    Dist. mm: 90.00
    Rotation: CW
    Position/b-: 5
    B-: M10
    Total length mm: 387.00
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    B- M10
    No./teeth 11
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 60
    Position/b- 5
    Dist. 2 90.00
    Dist. 3 127.00
    Rotation CW
    Dist./back 324.00
    Dist./front 63.00
    Drive dist. 47.50
    Gear type DD
    Insulated return Yes
    kW 5.4
    Terminal 50 M6
    Voltage 24
    Total length 387.00 mm
    Dist. 90.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      F032114744, 571, 01174641, 0001410087, 0001416071, 1701052, 5991324, 6000970, 081466032

    • Konkurrentreferens
      CST10627, DRS1480, is0486, IS9003, IS9113, MS484, MS549, MS714, S0283, 45-1468, 88-11.480, 600.025.114, 18118N, 33551, 254015, 11011480, 0986011480

    • Normaliserat artikelnummer
      cst10627, drs1480, f032114744, is0486, is9003, is9113, ms484, ms549, ms714, s0283, 571, 18118n, 33551, 254015, 451468, 01174641, 0001410087, 0001416071, 1701052, 5991324, 6000970, 8811480, 11011480, 081466032, 600025114, 0986011480

    • Passar modeller
      Various Industrial applications Model: Various Industrial applications Approved: Yes
