Artikelnr: F032114734

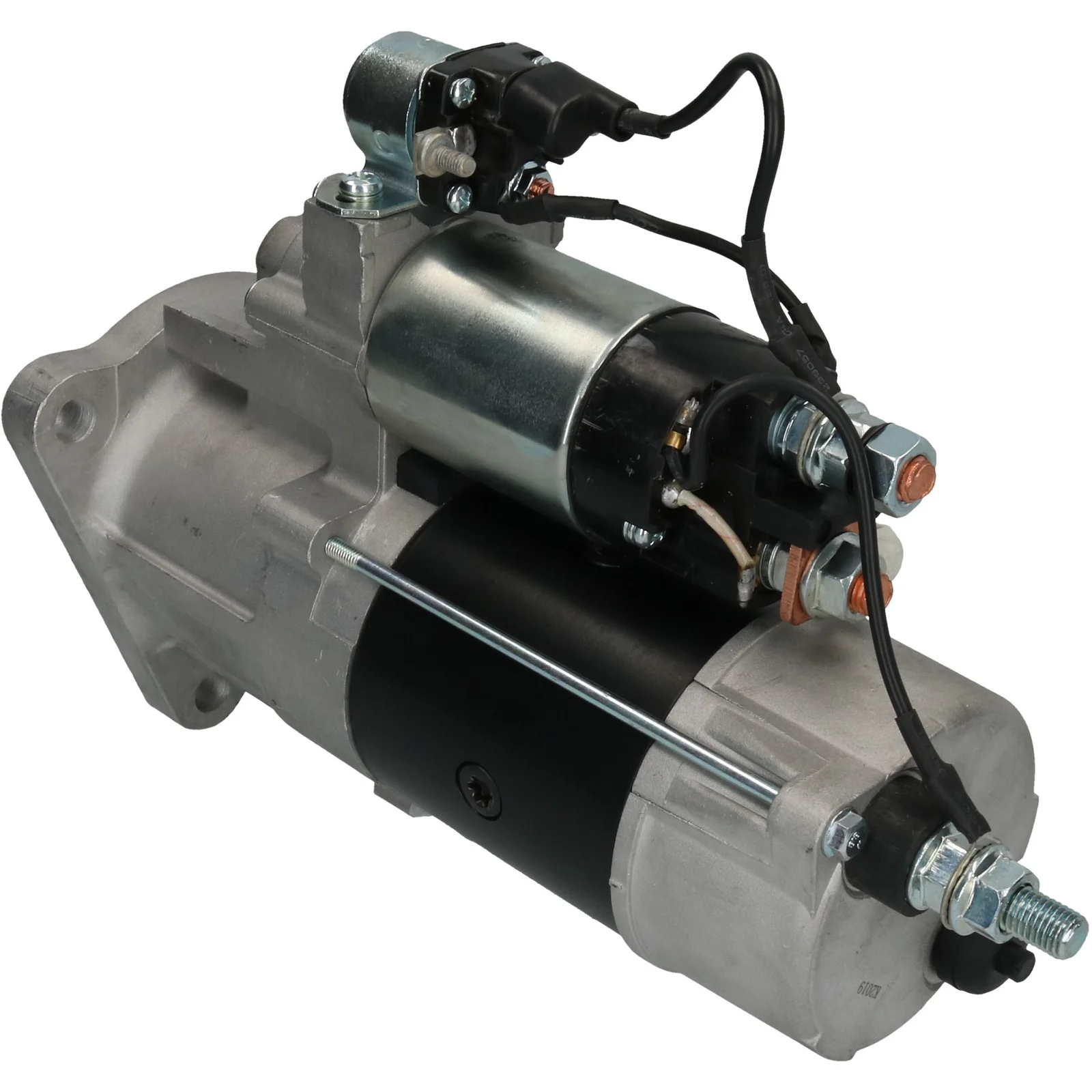

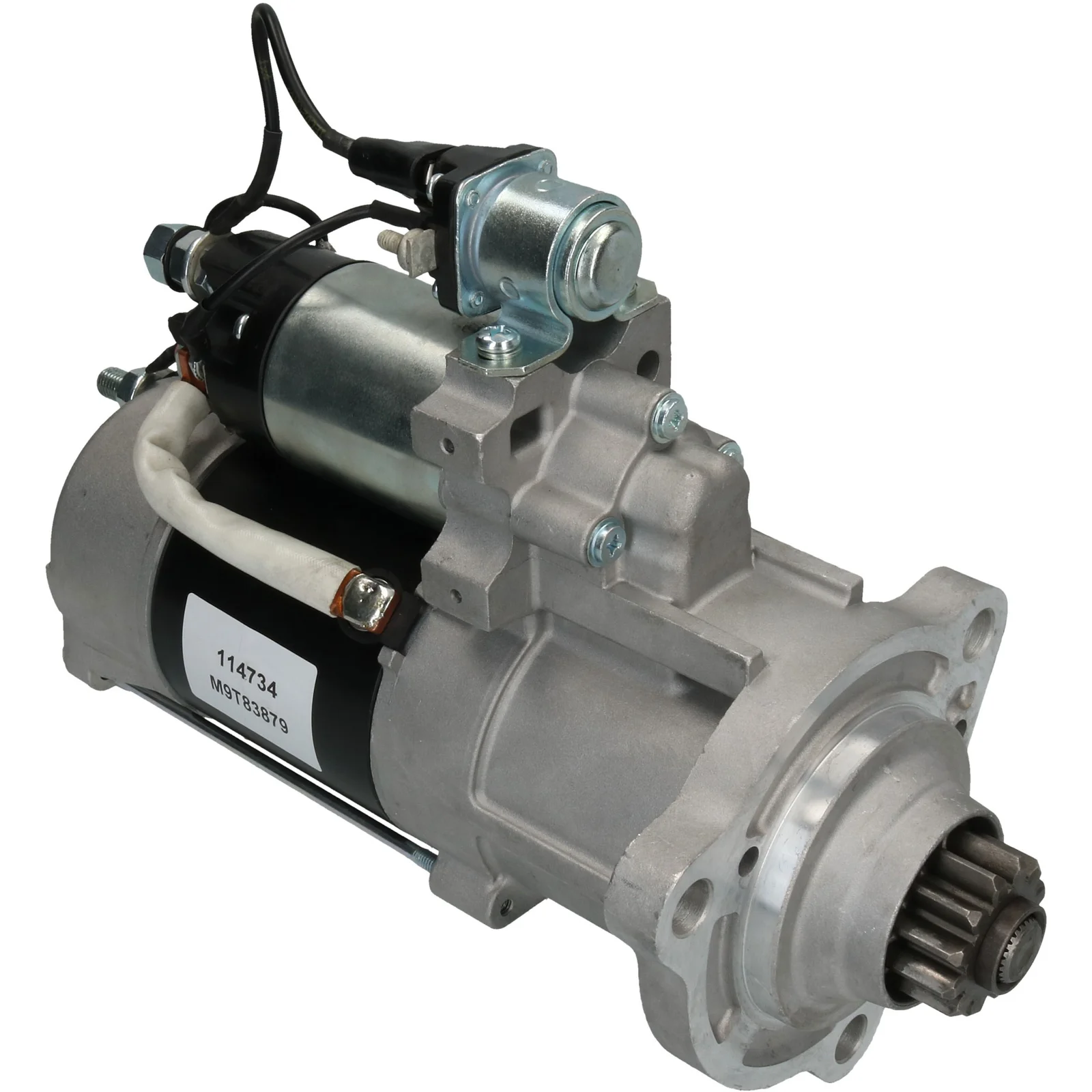

HC-Cargo Startmotor

Teknisk info:

Voltage: 24, kW: 7.0, No./teeth: 12, Rotation: CW

Beskrivning

Voltage: 24
kW: 7.0
Insulated return: Yes
Mount. flange: 92.00
Drive dist.: 47.50
Mount. hole 3 mm: 14.50
Mount. hole 2 mm: 14.50
Mount. hole 1 mm: 14.50
Dist./back: 348.00
Dist./front: 56.00
No./teeth: 12
B+: M12
Position/B+: 60
Thread length mm: 43.50
Terminal 50: M6
Gear type: GR
Dist. 2: 126.00
Dist. 3: 126.00
Dist. mm: 126.00
Rotation: CW
Position/b-: 52
B-: M12
Total length mm: 404.00
No./mount. holes: 3 (0)

Specifikation

B+ M12
B- M12
No./teeth 12
Mount. flange 92.00
No./mount. holes 3 (0)
Position/b- 52
Position/B+ 60
Dist. 2 126.00
Dist. 3 126.00
Rotation CW
Dist./back 348.00
Dist./front 56.00
Drive dist. 47.50
Gear type GR
Insulated return Yes
kW 7.0
Terminal 50 M6
Voltage 24
Total length 404.00 mm
Dist. 126.00 mm
Thread length 43.50 mm
Mount. hole 3 14.50 mm
Mount. hole 2 14.50 mm
Mount. hole 1 14.50 mm
  • OEM

    F032114734, M9T83879, 3801289, 3803838, 21103722
  • Konkurrentreferens

    CST35642, DRS0547, MITM9T83879, S5062, S5204, 107133, 220573, 220573A, 254471
  • Normaliserat artikelnummer

    cst35642, drs0547, f032114734, m9t83879, mitm9t83879, s5062, s5204, 107133, 220573, 220573a, 254471, 3801289, 3803838, 21103722
  • Passar modeller

    Volvo Penta Model: Engine Model series: Engine Brand of engine: D16C-A MH Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Brand of engine: D16C-B MH Approved: Yes
    Volvo Penta Model: Engine Model series: Engine Brand of engine: D16C-C MH Approved: Yes
  • Beskrivning
    Voltage: 24
    kW: 7.0
    Insulated return: Yes
    Mount. flange: 92.00
    Drive dist.: 47.50
    Mount. hole 3 mm: 14.50
    Mount. hole 2 mm: 14.50
    Mount. hole 1 mm: 14.50
    Dist./back: 348.00
    Dist./front: 56.00
    No./teeth: 12
    B+: M12
    Position/B+: 60
    Thread length mm: 43.50
    Terminal 50: M6
    Gear type: GR
    Dist. 2: 126.00
    Dist. 3: 126.00
    Dist. mm: 126.00
    Rotation: CW
    Position/b-: 52
    B-: M12
    Total length mm: 404.00
    No./mount. holes: 3 (0)
  • Specifikation
    B+ M12
    B- M12
    No./teeth 12
    Mount. flange 92.00
    No./mount. holes 3 (0)
    Position/b- 52
    Position/B+ 60
    Dist. 2 126.00
    Dist. 3 126.00
    Rotation CW
    Dist./back 348.00
    Dist./front 56.00
    Drive dist. 47.50
    Gear type GR
    Insulated return Yes
    kW 7.0
    Terminal 50 M6
    Voltage 24
    Total length 404.00 mm
    Dist. 126.00 mm
    Thread length 43.50 mm
    Mount. hole 3 14.50 mm
    Mount. hole 2 14.50 mm
    Mount. hole 1 14.50 mm
  • Fordonsmatchning
    • OEM

      F032114734, M9T83879, 3801289, 3803838, 21103722
    • Konkurrentreferens

      CST35642, DRS0547, MITM9T83879, S5062, S5204, 107133, 220573, 220573A, 254471
    • Normaliserat artikelnummer

      cst35642, drs0547, f032114734, m9t83879, mitm9t83879, s5062, s5204, 107133, 220573, 220573a, 254471, 3801289, 3803838, 21103722
    • Passar modeller

      Volvo Penta Model: Engine Model series: Engine Brand of engine: D16C-A MH Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Brand of engine: D16C-B MH Approved: Yes
      Volvo Penta Model: Engine Model series: Engine Brand of engine: D16C-C MH Approved: Yes
