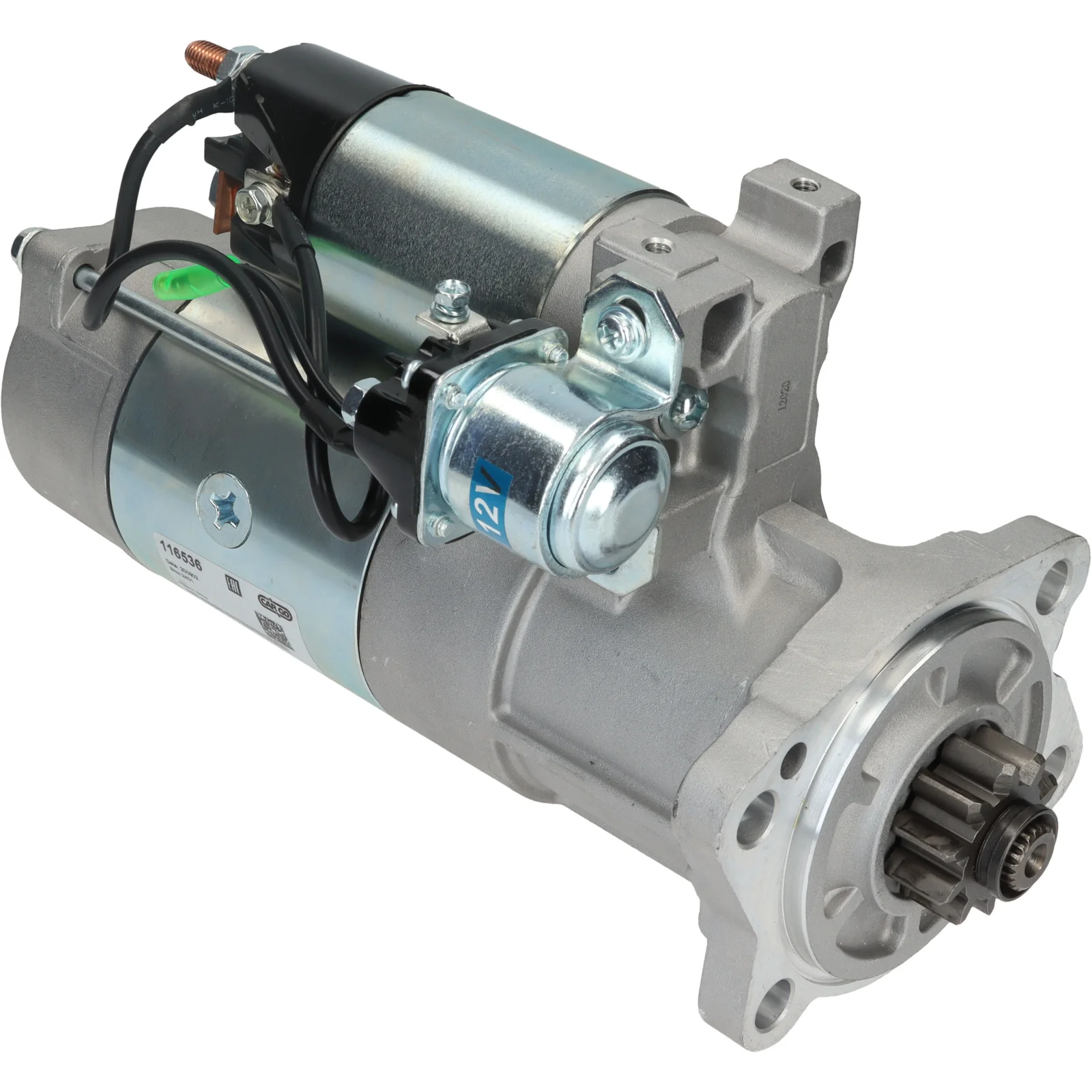

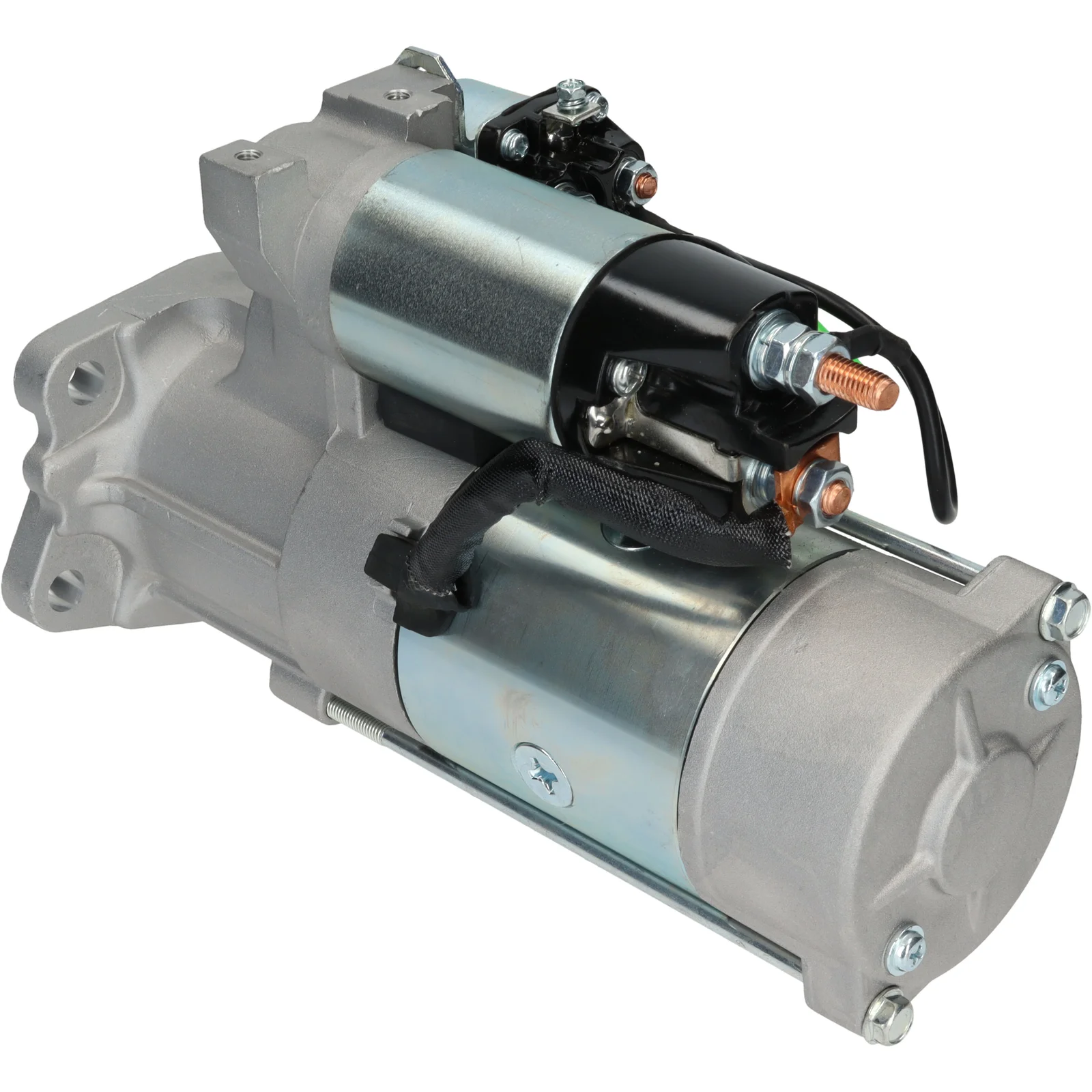

HC-Cargo Startmotor
HC-Cargo Startmotor
Artikelnr: F032116536

HC-Cargo Startmotor

Teknisk info:

Voltage: 12, kW: 3.0, No./teeth: 10, Rotation: CW

Beskrivning

Voltage: 12
kW: 3.0
Mount. flange: 82.50
Drive dist.: 22.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 258.00
Dist./front: 30.00
No./teeth: 10
B+: M8
Position/B+: 60
Gear type: GR
Dist. mm: 115.00
Rotation: CW
Total length mm: 288.00
No./mount. holes: 2 (0)

Filer

Specifikation

B+ M8
No./teeth 10
Mount. flange 82.50
No./mount. holes 2 (0)
Position/B+ 60
Rotation CW
Dist./back 258.00
Dist./front 30.00
Drive dist. 22.00
Gear type GR
kW 3.0
Voltage 12
Total length 288.00 mm
Dist. 115.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032116536, M008T55471, M008T55472, M008T55473, M8T55471, M8T55472, M8T55473, 32B66-20300

  • Konkurrentreferens
    CST35305, S5191, 150.923.102, 640.536.102, 256039

  • Normaliserat artikelnummer
    cst35305, f032116536, m008t55471, m008t55472, m008t55473, m8t55471, m8t55472, m8t55473, s5191, 32b6620300, 256039, 150923102, 640536102

  • Passar modeller
    Caterpillar Model: DP40K Model series: DP40K Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP40K, DP40KL, DP45K & DP50K Model series: DP40K, DP40KL, DP45K & DP50K Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP40N Model series: DP40N Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP40NM1 MEXICO Model series: DP40NM1 MEXICO Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP45K Model series: DP45K Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP45N Model series: DP45N Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP45NM1 MEXICO Model series: DP45NM1 MEXICO Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP50CN Model series: DP50CN Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP50CNM1 MEXICO Model series: DP50CNM1 MEXICO Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP50K Model series: DP50K Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP50N Model series: DP50N Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP50NM1 MEXICO Model series: DP50NM1 MEXICO Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP55N Model series: DP55N Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP55NM1 MEXICO Model series: DP55NM1 MEXICO Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: DP70 Model series: DP70 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: PD10000 Model series: PD10000 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: PD11000 Model series: PD11000 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: PD12000 Model series: PD12000 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: PD8000 Model series: PD8000 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Caterpillar Model: PD9000 Model series: PD9000 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD35 Model series: FD35 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD40 Model series: FD40 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD40K Model series: FD40K Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD40KL Model series: FD40KL Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD40N Model series: FD40N Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD45 Model series: FD45 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD45K Model series: FD45K Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD45N Model series: FD45N Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD50(C) Model series: FD50(C) Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD50CN Model series: FD50CN Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD50K Model series: FD50K Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD50N Model series: FD50N Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD55N Model series: FD55N Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: FD60 - FD70 Model series: FD60 - FD70 Model type: Forklifts Brand of engine: S6S Approved: Yes
    Mitsubishi Model: PG87QX Model series: PG87QX Model type: Generator Sets Brand of engine: S6S Approved: Yes
    Nissan Model: JPD100Y Model series: JPD100Y Model type: Forklifts Brand of engine: S6S Approved: Yes
    Nissan Model: JPD110H Model series: JPD110H Model type: Forklifts Brand of engine: S6S Approved: Yes
    Nissan Model: JPD80Y Model series: JPD80Y Model type: Forklifts Brand of engine: S6S Approved: Yes
    Nissan Model: JPD90Y Model series: JPD90Y Model type: Forklifts Brand of engine: S6S Approved: Yes
    TCM Model: FD35T9 & FD40T9 Model series: FD35T9 & FD40T9 Model type: Forklifts Brand of engine: S6S Approved: Yes
    TCM Model: FD40T9 Model series: FD40T9 Model type: Forklifts Brand of engine: S6S Approved: Yes
    TCM Model: FD45T9 Model series: FD45T9 Model type: Forklifts Brand of engine: S6S Approved: Yes
