Artikelnr: F032113482

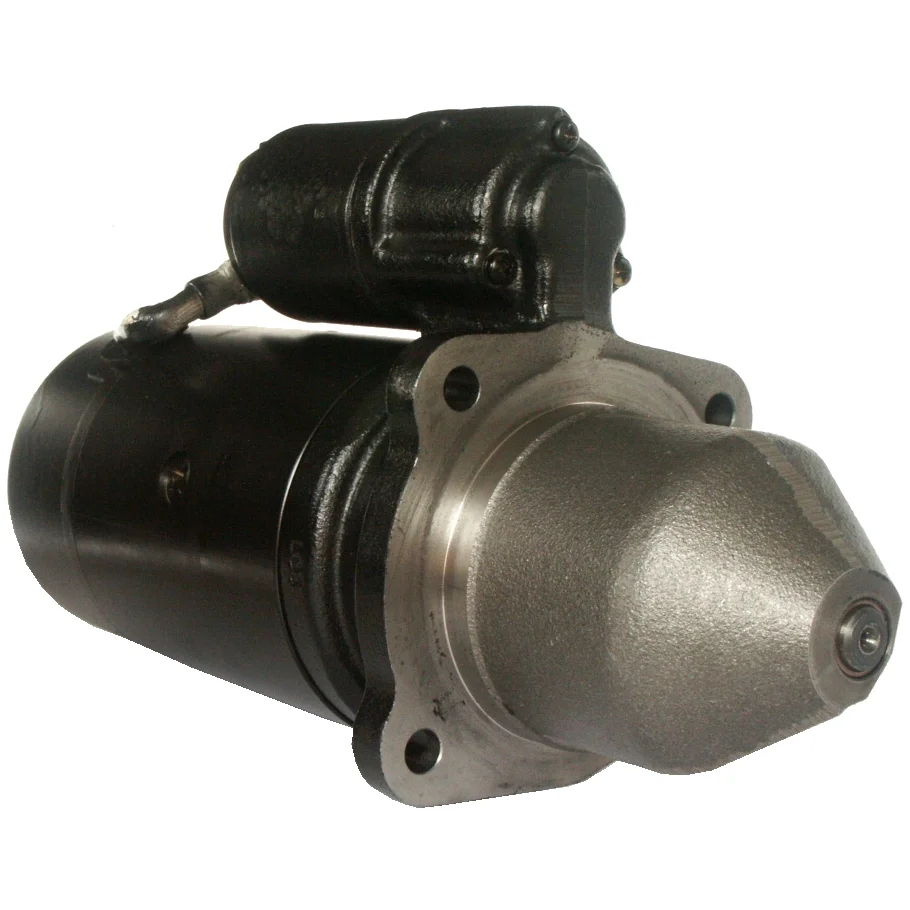

HC-Cargo Startmotor 12V

Teknisk info:

Voltage: 12, kW: 3.0, No./teeth: 9, Rotation: CW

Beskrivning

Start 12V-3.0kW passar Volvo 12V - 3.0kW, 9k, Oil sealed A - 89mm, B - 48mm För Yourex produkt order 91-600-1485

Voltage: 12
kW: 3.0
Mount. flange: 89.00
Drive dist.: 47.00
Mount. hole 3 mm: 11.00
Mount. hole 2 mm: 11.00
Mount. hole 1 mm: 11.00
Dist./back: 243.50
Dist./front: 95.50
No./teeth: 9
B+: M10
Position/50: 45
Terminal 50: M4
Gear type: DD
Dist. 2: 90.00
Dist. 3: 90.00
Dist. mm: 127.00
Rotation: CW
Total length mm: 338.50
Clutch type: Wet
Drive type: Steel
Prod. info: BN/OE
Waterproof: No
Oil sealed: Yes
Source: Mahle Letrika
No./mount. holes: 3 (0)

Filer

Specifikation

B+ M10
No./teeth 9
Mount. flange 89.00
Oil sealed Yes
No./mount. holes 3 (0)
Position/50 45
Clutch type Wet
Prod. info BN/OE
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 243.50
Dist./front 95.50
Drive dist. 47.00
Drive type Steel
Gear type DD
Source Mahle Letrika
kW 3.0
Terminal 50 M4
Voltage 12
Total length 338.50 mm
Waterproof No
Dist. 127.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AZJ 3310, AZJ3310, F032113482, MS 322, 0001 359 044, 0001 359 051, 0001 359 087, 0001 359 089, 0001 367 045, 0001 367 046, 11.130.881, 0881, 0986 014 850, 11130 881, 050582, 050747, 113482, 241599, 0001359013, 0001359044, 0001359087, 0001359089, 0001367045, 0001367046, 4785538, 4785539, 4785542, 4880692, 4880693

  • Konkurrentreferens
    CST10173, drs1240, DRS4850, IS0881, lrs00435, LRS01027, LRS01109, MS322, S0797S, S9226(LETRIKA), STR50160, 25-0162, 25-0487, 88-14.850, 638.002.092, 638.009.092, 33570, 33865, 220252, 220252A, 11014850, 0986014850

  • Bilmärken
    Volvo BM / Construction Equipment

  • Normaliserat artikelnummer
    azj3310, cst10173, drs1240, drs4850, f032113482, is0881, lrs00435, lrs01027, lrs01109, ms322, s0797s, s9226letrika, str50160, 0881, 33570, 33865, 050582, 050747, 113482, 220252, 220252a, 241599, 250162, 250487, 0001359013, 0001359044, 0001359051, 0001359087, 0001359089, 0001367045, 0001367046, 4785538, 4785539, 4785542, 4880692, 4880693, 8814850, 11014850, 11130881, 638002092, 638009092, 0986014850

  • Passar modeller
    Volvo BM / Construction Equipment Series: Dumper Model: 861
    Volvo BM / Construction Equipment Series: Dumper Model: DR 861 Engine type: TD 60 B
    Volvo BM / Construction Equipment Series: Grävlastare Model: GM 612 Engine type: 1113
    Volvo BM / Construction Equipment Series: Lastare Model: LM 640 Engine volume: 4.2 Engine type: D 42 A Year: 12.73-06.78
    Volvo BM / Construction Equipment Series: Skogsmaskin Model: SM 868 Engine volume: 5.0 Engine type: D 50 B Year: 04.72-10.74
    Volvo BM / Construction Equipment Series: Traktor Model: 2650, 2654 Engine volume: 5.5 Engine type: TD 60 B Year: 05.79-06.82
    Volvo BM / Construction Equipment Series: Traktor Model: BM 350 Boxer (Alternativ) Engine volume: 3.8 Engine type: BM 1113
    Volvo BM / Construction Equipment Series: Traktor Model: T 650 Engine volume: 4.2 Engine type: D 42 Year: 02.70-06.82
    Volvo BM / Construction Equipment Series: Traktor Model: T 700 Engine volume: 4.2 Engine type: TD 42 Year: 06.76-06.82
    Volvo BM / Construction Equipment Series: Traktor Model: T 800 (Alternativ) Engine type: D 50; D 60
    Volvo BM / Construction Equipment Series: Traktor Model: T 810 (Alternativ) Engine type: TD 50; TD 60
    Volvo BM / Construction Equipment Series: Traktor Model: T 814 (Alternativ) Engine type: TD 50; TD 60
    Volvo BM Model: 2600 Model series: 2650 Size of motor: 5.5 Brand of engine: TD60B From date: 01-05-1979 To date: 01-06-1982 Fuel: Diesel Approved: Yes
    Volvo BM Model: 2600 Model series: 2654 Size of motor: 5.5 Brand of engine: TD60B From date: 01-05-1979 To date: 01-06-1982 Fuel: Diesel Approved: Yes
    Volvo BM Model: 800 Model series: 861 Size of motor: 5.5 Brand of engine: TD60B From date: 01-09-1979 To date: 01-07-1986 Fuel: Diesel Approved: Yes
    Volvo BM Model: SM Model series: SM 868 Size of motor: 5.0 Brand of engine: D50B From date: 01-08-1970 To date: 01-10-1974 Fuel: Diesel Approved: Yes
    Volvo BM Model: SM Model series: SM 980 Size of motor: 5.0 Brand of engine: TD50B From date: 01-11-1971 To date: 01-06-1976 Fuel: Diesel Approved: Yes
    Volvo BM Model: T Model series: T 650 Size of motor: 4.0 Brand of engine: D42A From date: 01-02-1970 To date: 01-06-1982 Fuel: Diesel Approved: Yes
    Volvo BM Model: T Model series: T 700 Size of motor: 4.0 Brand of engine: TD42 From date: 01-06-1976 To date: 01-06-1982 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivning
    Start 12V-3.0kW passar Volvo 12V - 3.0kW, 9k, Oil sealed A - 89mm, B - 48mm För Yourex produkt order 91-600-1485

    Voltage: 12
    kW: 3.0
    Mount. flange: 89.00
    Drive dist.: 47.00
    Mount. hole 3 mm: 11.00
    Mount. hole 2 mm: 11.00
    Mount. hole 1 mm: 11.00
    Dist./back: 243.50
    Dist./front: 95.50
    No./teeth: 9
    B+: M10
    Position/50: 45
    Terminal 50: M4
    Gear type: DD
    Dist. 2: 90.00
    Dist. 3: 90.00
    Dist. mm: 127.00
    Rotation: CW
    Total length mm: 338.50
    Clutch type: Wet
    Drive type: Steel
    Prod. info: BN/OE
    Waterproof: No
    Oil sealed: Yes
    Source: Mahle Letrika
    No./mount. holes: 3 (0)

    Filer

  • Specifikation
    B+ M10
    No./teeth 9
    Mount. flange 89.00
    Oil sealed Yes
    No./mount. holes 3 (0)
    Position/50 45
    Clutch type Wet
    Prod. info BN/OE
    Dist. 2 90.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 243.50
    Dist./front 95.50
    Drive dist. 47.00
    Drive type Steel
    Gear type DD
    Source Mahle Letrika
    kW 3.0
    Terminal 50 M4
    Voltage 12
    Total length 338.50 mm
    Waterproof No
    Dist. 127.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Fordonsmatchning

    • OEM
      AZJ 3310, AZJ3310, F032113482, MS 322, 0001 359 044, 0001 359 051, 0001 359 087, 0001 359 089, 0001 367 045, 0001 367 046, 11.130.881, 0881, 0986 014 850, 11130 881, 050582, 050747, 113482, 241599, 0001359013, 0001359044, 0001359087, 0001359089, 0001367045, 0001367046, 4785538, 4785539, 4785542, 4880692, 4880693

    • Konkurrentreferens
      CST10173, drs1240, DRS4850, IS0881, lrs00435, LRS01027, LRS01109, MS322, S0797S, S9226(LETRIKA), STR50160, 25-0162, 25-0487, 88-14.850, 638.002.092, 638.009.092, 33570, 33865, 220252, 220252A, 11014850, 0986014850

    • Bilmärken
      Volvo BM / Construction Equipment

    • Normaliserat artikelnummer
      azj3310, cst10173, drs1240, drs4850, f032113482, is0881, lrs00435, lrs01027, lrs01109, ms322, s0797s, s9226letrika, str50160, 0881, 33570, 33865, 050582, 050747, 113482, 220252, 220252a, 241599, 250162, 250487, 0001359013, 0001359044, 0001359051, 0001359087, 0001359089, 0001367045, 0001367046, 4785538, 4785539, 4785542, 4880692, 4880693, 8814850, 11014850, 11130881, 638002092, 638009092, 0986014850

    • Passar modeller
      Volvo BM / Construction Equipment Series: Dumper Model: 861
      Volvo BM / Construction Equipment Series: Dumper Model: DR 861 Engine type: TD 60 B
      Volvo BM / Construction Equipment Series: Grävlastare Model: GM 612 Engine type: 1113
      Volvo BM / Construction Equipment Series: Lastare Model: LM 640 Engine volume: 4.2 Engine type: D 42 A Year: 12.73-06.78
      Volvo BM / Construction Equipment Series: Skogsmaskin Model: SM 868 Engine volume: 5.0 Engine type: D 50 B Year: 04.72-10.74
      Volvo BM / Construction Equipment Series: Traktor Model: 2650, 2654 Engine volume: 5.5 Engine type: TD 60 B Year: 05.79-06.82
      Volvo BM / Construction Equipment Series: Traktor Model: BM 350 Boxer (Alternativ) Engine volume: 3.8 Engine type: BM 1113
      Volvo BM / Construction Equipment Series: Traktor Model: T 650 Engine volume: 4.2 Engine type: D 42 Year: 02.70-06.82
      Volvo BM / Construction Equipment Series: Traktor Model: T 700 Engine volume: 4.2 Engine type: TD 42 Year: 06.76-06.82
      Volvo BM / Construction Equipment Series: Traktor Model: T 800 (Alternativ) Engine type: D 50; D 60
      Volvo BM / Construction Equipment Series: Traktor Model: T 810 (Alternativ) Engine type: TD 50; TD 60
      Volvo BM / Construction Equipment Series: Traktor Model: T 814 (Alternativ) Engine type: TD 50; TD 60
      Volvo BM Model: 2600 Model series: 2650 Size of motor: 5.5 Brand of engine: TD60B From date: 01-05-1979 To date: 01-06-1982 Fuel: Diesel Approved: Yes
      Volvo BM Model: 2600 Model series: 2654 Size of motor: 5.5 Brand of engine: TD60B From date: 01-05-1979 To date: 01-06-1982 Fuel: Diesel Approved: Yes
      Volvo BM Model: 800 Model series: 861 Size of motor: 5.5 Brand of engine: TD60B From date: 01-09-1979 To date: 01-07-1986 Fuel: Diesel Approved: Yes
      Volvo BM Model: SM Model series: SM 868 Size of motor: 5.0 Brand of engine: D50B From date: 01-08-1970 To date: 01-10-1974 Fuel: Diesel Approved: Yes
      Volvo BM Model: SM Model series: SM 980 Size of motor: 5.0 Brand of engine: TD50B From date: 01-11-1971 To date: 01-06-1976 Fuel: Diesel Approved: Yes
      Volvo BM Model: T Model series: T 650 Size of motor: 4.0 Brand of engine: D42A From date: 01-02-1970 To date: 01-06-1982 Fuel: Diesel Approved: Yes
      Volvo BM Model: T Model series: T 700 Size of motor: 4.0 Brand of engine: TD42 From date: 01-06-1976 To date: 01-06-1982 Fuel: Diesel Approved: Yes
