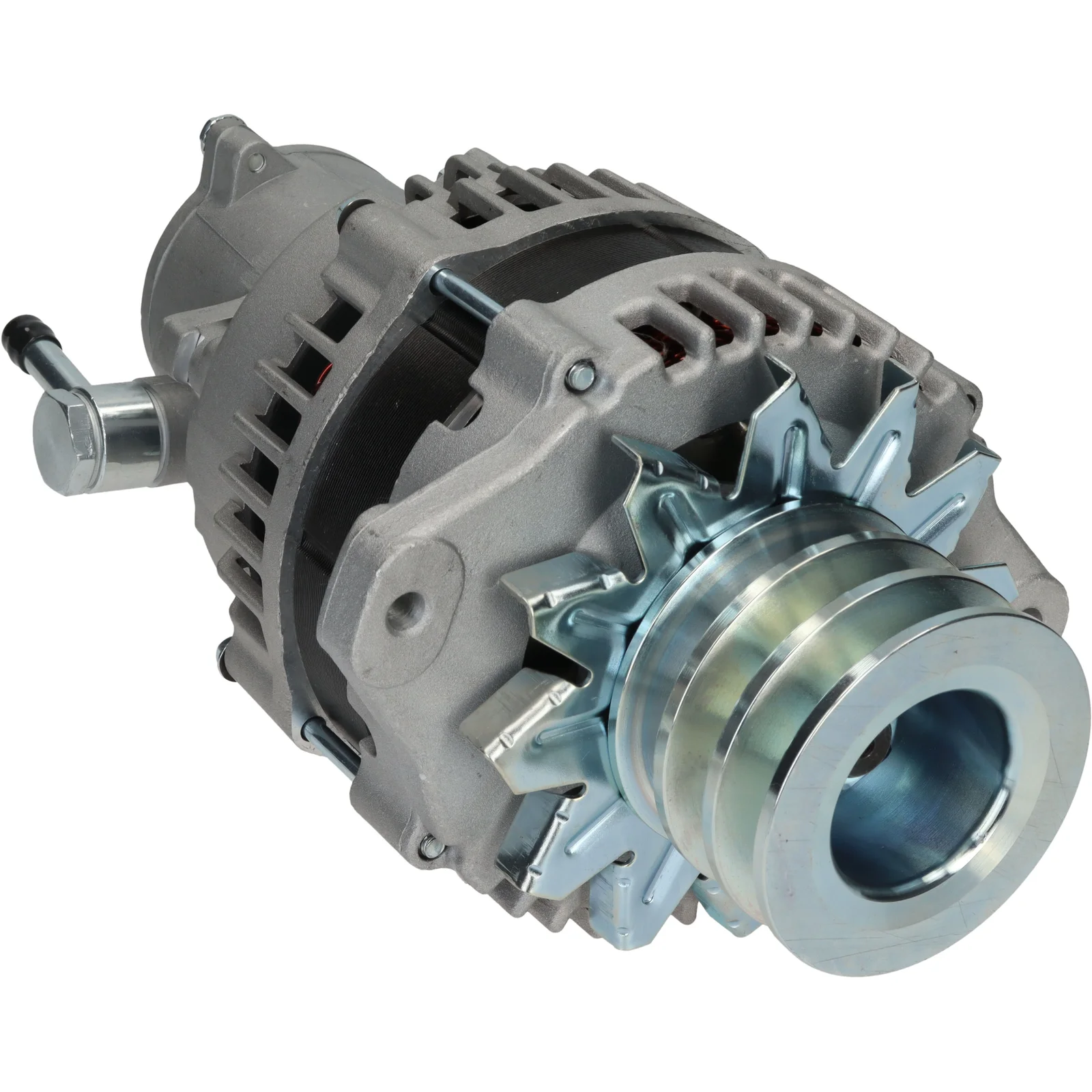

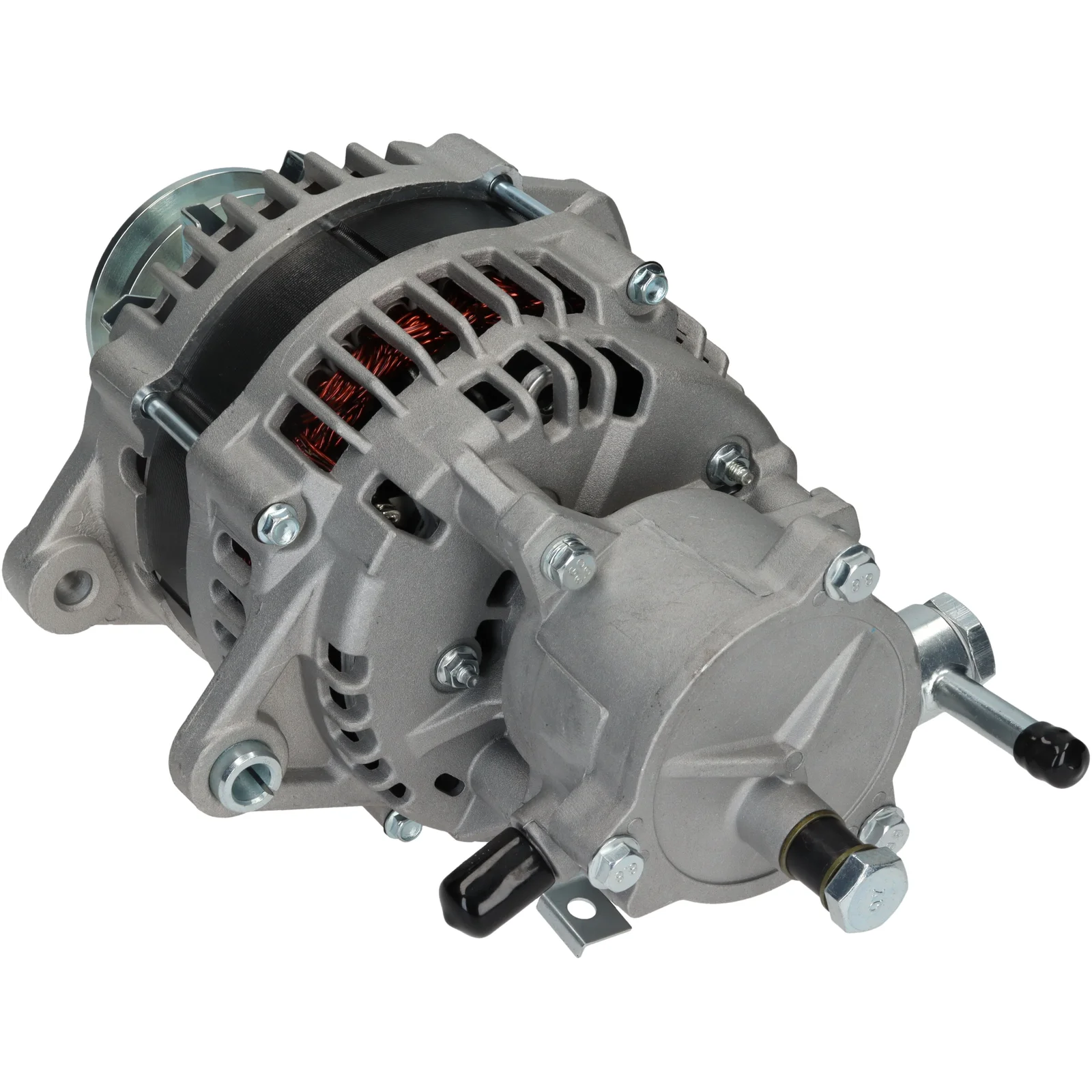

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116531

HC-Cargo Generator

Teknisk info:

Voltage: 28, Amp: 80, Rotation: CW, Mount. bracket dist.: 75.00

Beskrivning

Voltage: 28
Amp: 80
Pulley dist.: 42.30
Width/holder arm: 18.00
Mount. bracket dist.: 75.00
Bracket hole: 10.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 8.20
Pulley dia.: 82.00
Grooves/pulley: 3
Radius: 90.00
Radius 2: 84.00
B+: M6
Position/B+ in min.: 16
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 302.00
Terminal type: L-S
Pulley: Triple Pulley
Fan: EF
Vac. pump: Yes

Filer

Specifikation

B+ M6
Mount. bracket dist. 75.00
Belt. adj. bracket hole 1 8.20
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.20
Position/B+ in min. 16
Pulley Triple Pulley
Pulley dia. 82.00
Pulley dist. 42.30
Radius 90.00
D+ Size Plug
Radius 2 84.00
Rotation CW
Fan EF
Grooves/pulley 3
Terminal type L-S
Vac. pump Yes
Voltage 28
Total length 302.00 mm
Width/holder arm 18.00
Amp 80

  • OEM
    F032116531, LR280-501, LR280-506, LR280-508, LR280509, 8972489141, 8973515740

  • Konkurrentreferens
    A2046, A2055, CAL20608, CAL2068, 136.804.080, 12718, 113204

  • Normaliserat artikelnummer
    a2046, a2055, cal20608, cal2068, f032116531, lr280501, lr280506, lr280508, lr280509, 12718, 113204, 136804080, 8972489141, 8973515740

  • Passar modeller
    Caterpillar Model: MD5050 Model series: MD5050 Model type: Bore/Drill Rigs Brand of engine: 4HK1X Approved: Yes
    Caterpillar Model: MD5050T Model series: MD5050T Model type: Bore/Drill Rigs Brand of engine: 4HK1X Approved: Yes
    Hidromek Model: HMK 200 W SERIES Model series: HMK 200 W SERIES Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hidromek Model: HMK 220 LC Model series: HMK 220 LC Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: DEERE 190D W Model series: DEERE 190D W Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: DEERE 200D W Model series: DEERE 200D W Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: DEERE 225D LC Model series: DEERE 225D LC Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZAXIS 210 F-3 FORESTER Model series: ZAXIS 210 F-3 FORESTER Model type: Forestry Equipment Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZAXIS 240 F-3 FORESTER Model series: ZAXIS 240 F-3 FORESTER Model type: Forestry Equipment Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZAXIS 290 F-3 FORESTER Model series: ZAXIS 290 F-3 FORESTER Model type: Forestry Equipment Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZW140 Model series: ZW140 Model type: Wheel Loaders and Dozers Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZW150 Model series: ZW150 Model type: Wheel Loaders and Dozers Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX170-3 Model series: ZX170-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX170W Model series: ZX170W Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX170W-3 Model series: ZX170W-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX190W Model series: ZX190W Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX190W-3 Model series: ZX190W-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX200-3 Model series: ZX200-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX200-3G Model series: ZX200-3G Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX200-5B Model series: ZX200-5B Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX200LC-3 Model series: ZX200LC-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX210 Model series: ZX210 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX210H-3 Model series: ZX210H-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX210HBE-3 Model series: ZX210HBE-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX210K-3 Model series: ZX210K-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX210K-5G Model series: ZX210K-5G Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX210LC-3 Model series: ZX210LC-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX210LC-5 & ZX210-5 Model series: ZX210LC-5 & ZX210-5 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX210LC-6 & ZX210-6 Model series: ZX210LC-6 & ZX210-6 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX210W Model series: ZX210W Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX210W-3 Model series: ZX210W-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX225 Model series: ZX225 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX225US-3 Model series: ZX225US-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX225US-5B Model series: ZX225US-5B Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX225USR-3 Model series: ZX225USR-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX225USR-5B Model series: ZX225USR-5B Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX240-3 Model series: ZX240-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX240-3G Model series: ZX240-3G Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX240-5B Model series: ZX240-5B Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX240LC-3 Model series: ZX240LC-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX250 Model series: ZX250 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX250H-3 Model series: ZX250H-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX250HBE-3 Model series: ZX250HBE-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX250K-3 Model series: ZX250K-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX250K-3G Model series: ZX250K-3G Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX250LC-3 Model series: ZX250LC-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX250LC-5 Model series: ZX250LC-5 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX250LC-6 Model series: ZX250LC-6 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX270-3 Model series: ZX270-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX270LC-3 Model series: ZX270LC-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX280-5B Model series: ZX280-5B Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Hitachi Model: ZX290LC-5 Model series: ZX290LC-5 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    JCB Model: JS 260 Model series: JS 260 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    JCB Model: JS175W & JS200W Model series: JS175W & JS200W Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    JCB Model: JS200 Model series: JS200 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    JCB Model: JS200 SERIES Model series: JS200 SERIES Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    JCB Model: JS210L Model series: JS210L Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    JCB Model: JS220 SERIES Model series: JS220 SERIES Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    JCB Model: JS240 SERIES Model series: JS240 SERIES Model type: Excavators Brand of engine: 4HK1X Approved: Yes
    Kawasaki Model: 62Z7 Model series: 62Z7 Model type: Wheel Loaders and Dozers Brand of engine: 4HK1X Approved: Yes
    Kawasaki Model: 65ZV-2 & 65TMV-2 Model series: 65ZV-2 & 65TMV-2 Model type: Wheel Loaders and Dozers Brand of engine: 4HK1X Approved: Yes
    Kawasaki Model: 67TM7 Model series: 67TM7 Model type: Wheel Loaders and Dozers Brand of engine: 4HK1X Approved: Yes
    Kawasaki Model: 67Z7 Model series: 67Z7 Model type: Wheel Loaders and Dozers Brand of engine: 4HK1X Approved: Yes
    1 / 13
  • Beskrivning
    Voltage: 28
    Amp: 80
    Pulley dist.: 42.30
    Width/holder arm: 18.00
    Mount. bracket dist.: 75.00
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 8.20
    Pulley dia.: 82.00
    Grooves/pulley: 3
    Radius: 90.00
    Radius 2: 84.00
    B+: M6
    Position/B+ in min.: 16
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 302.00
    Terminal type: L-S
    Pulley: Triple Pulley
    Fan: EF
    Vac. pump: Yes

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 75.00
    Belt. adj. bracket hole 1 8.20
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole 10.20
    Position/B+ in min. 16
    Pulley Triple Pulley
    Pulley dia. 82.00
    Pulley dist. 42.30
    Radius 90.00
    D+ Size Plug
    Radius 2 84.00
    Rotation CW
    Fan EF
    Grooves/pulley 3
    Terminal type L-S
    Vac. pump Yes
    Voltage 28
    Total length 302.00 mm
    Width/holder arm 18.00
    Amp 80
  • Fordonsmatchning

    • OEM
      F032116531, LR280-501, LR280-506, LR280-508, LR280509, 8972489141, 8973515740

    • Konkurrentreferens
      A2046, A2055, CAL20608, CAL2068, 136.804.080, 12718, 113204

    • Normaliserat artikelnummer
      a2046, a2055, cal20608, cal2068, f032116531, lr280501, lr280506, lr280508, lr280509, 12718, 113204, 136804080, 8972489141, 8973515740

    • Passar modeller
      Caterpillar Model: MD5050 Model series: MD5050 Model type: Bore/Drill Rigs Brand of engine: 4HK1X Approved: Yes
      Caterpillar Model: MD5050T Model series: MD5050T Model type: Bore/Drill Rigs Brand of engine: 4HK1X Approved: Yes
      Hidromek Model: HMK 200 W SERIES Model series: HMK 200 W SERIES Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hidromek Model: HMK 220 LC Model series: HMK 220 LC Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: DEERE 190D W Model series: DEERE 190D W Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: DEERE 200D W Model series: DEERE 200D W Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: DEERE 225D LC Model series: DEERE 225D LC Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZAXIS 210 F-3 FORESTER Model series: ZAXIS 210 F-3 FORESTER Model type: Forestry Equipment Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZAXIS 240 F-3 FORESTER Model series: ZAXIS 240 F-3 FORESTER Model type: Forestry Equipment Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZAXIS 290 F-3 FORESTER Model series: ZAXIS 290 F-3 FORESTER Model type: Forestry Equipment Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZW140 Model series: ZW140 Model type: Wheel Loaders and Dozers Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZW150 Model series: ZW150 Model type: Wheel Loaders and Dozers Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX170-3 Model series: ZX170-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX170W Model series: ZX170W Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX170W-3 Model series: ZX170W-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX190W Model series: ZX190W Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX190W-3 Model series: ZX190W-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX200-3 Model series: ZX200-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX200-3G Model series: ZX200-3G Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX200-5B Model series: ZX200-5B Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX200LC-3 Model series: ZX200LC-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX210 Model series: ZX210 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX210H-3 Model series: ZX210H-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX210HBE-3 Model series: ZX210HBE-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX210K-3 Model series: ZX210K-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX210K-5G Model series: ZX210K-5G Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX210LC-3 Model series: ZX210LC-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX210LC-5 & ZX210-5 Model series: ZX210LC-5 & ZX210-5 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX210LC-6 & ZX210-6 Model series: ZX210LC-6 & ZX210-6 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX210W Model series: ZX210W Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX210W-3 Model series: ZX210W-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX225 Model series: ZX225 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX225US-3 Model series: ZX225US-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX225US-5B Model series: ZX225US-5B Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX225USR-3 Model series: ZX225USR-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX225USR-5B Model series: ZX225USR-5B Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX240-3 Model series: ZX240-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX240-3G Model series: ZX240-3G Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX240-5B Model series: ZX240-5B Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX240LC-3 Model series: ZX240LC-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX250 Model series: ZX250 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX250H-3 Model series: ZX250H-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX250HBE-3 Model series: ZX250HBE-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX250K-3 Model series: ZX250K-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX250K-3G Model series: ZX250K-3G Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX250LC-3 Model series: ZX250LC-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX250LC-5 Model series: ZX250LC-5 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX250LC-6 Model series: ZX250LC-6 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX270-3 Model series: ZX270-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX270LC-3 Model series: ZX270LC-3 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX280-5B Model series: ZX280-5B Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Hitachi Model: ZX290LC-5 Model series: ZX290LC-5 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      JCB Model: JS 260 Model series: JS 260 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      JCB Model: JS175W & JS200W Model series: JS175W & JS200W Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      JCB Model: JS200 Model series: JS200 Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      JCB Model: JS200 SERIES Model series: JS200 SERIES Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      JCB Model: JS210L Model series: JS210L Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      JCB Model: JS220 SERIES Model series: JS220 SERIES Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      JCB Model: JS240 SERIES Model series: JS240 SERIES Model type: Excavators Brand of engine: 4HK1X Approved: Yes
      Kawasaki Model: 62Z7 Model series: 62Z7 Model type: Wheel Loaders and Dozers Brand of engine: 4HK1X Approved: Yes
      Kawasaki Model: 65ZV-2 & 65TMV-2 Model series: 65ZV-2 & 65TMV-2 Model type: Wheel Loaders and Dozers Brand of engine: 4HK1X Approved: Yes
      Kawasaki Model: 67TM7 Model series: 67TM7 Model type: Wheel Loaders and Dozers Brand of engine: 4HK1X Approved: Yes
      Kawasaki Model: 67Z7 Model series: 67Z7 Model type: Wheel Loaders and Dozers Brand of engine: 4HK1X Approved: Yes
      1 / 13

Vi använder cookies för att ge dig den bästa upplevelsen av vår webbplats. Du godkänner användningen av cookies genom att trycka OK och surfa vidare på webbplatsen.
