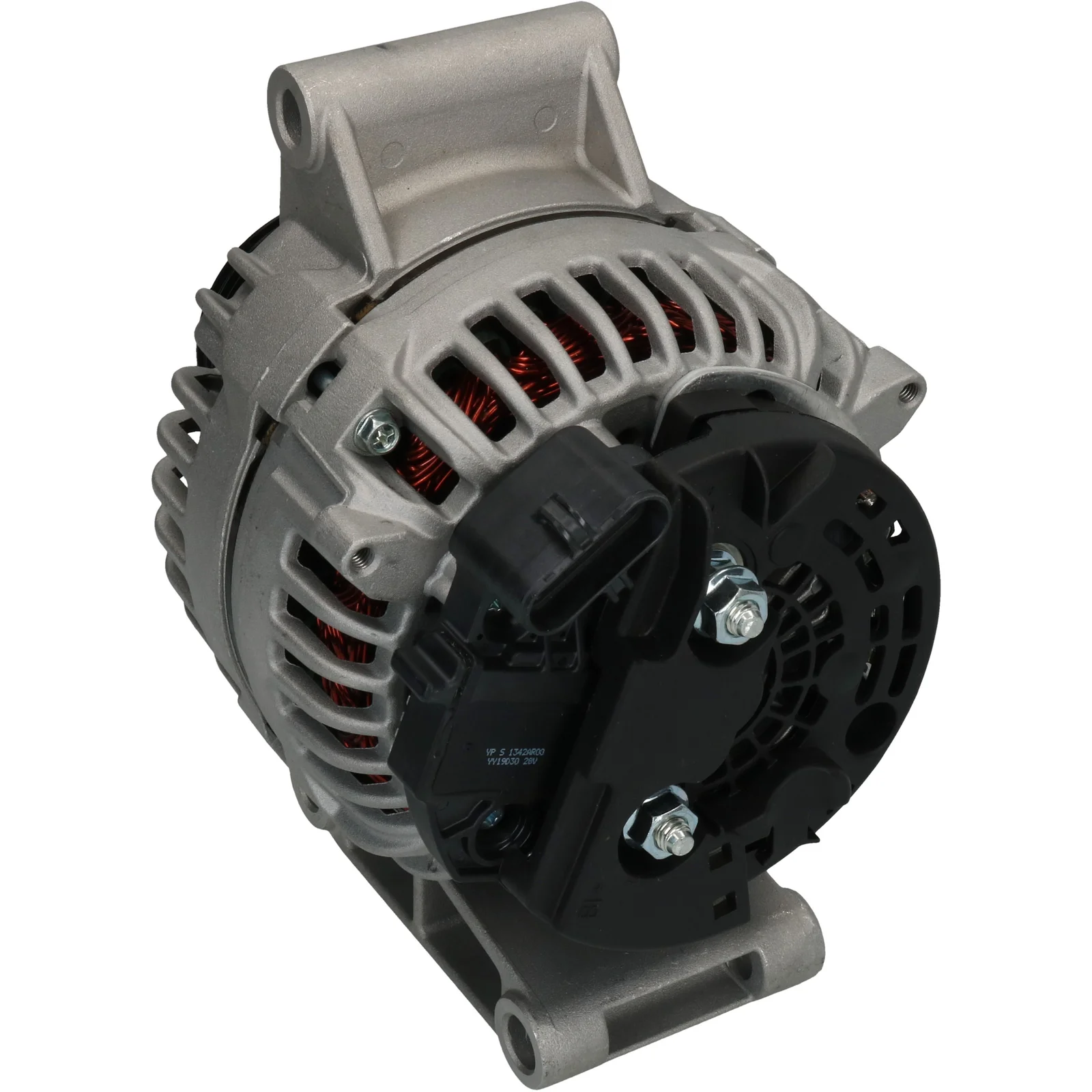

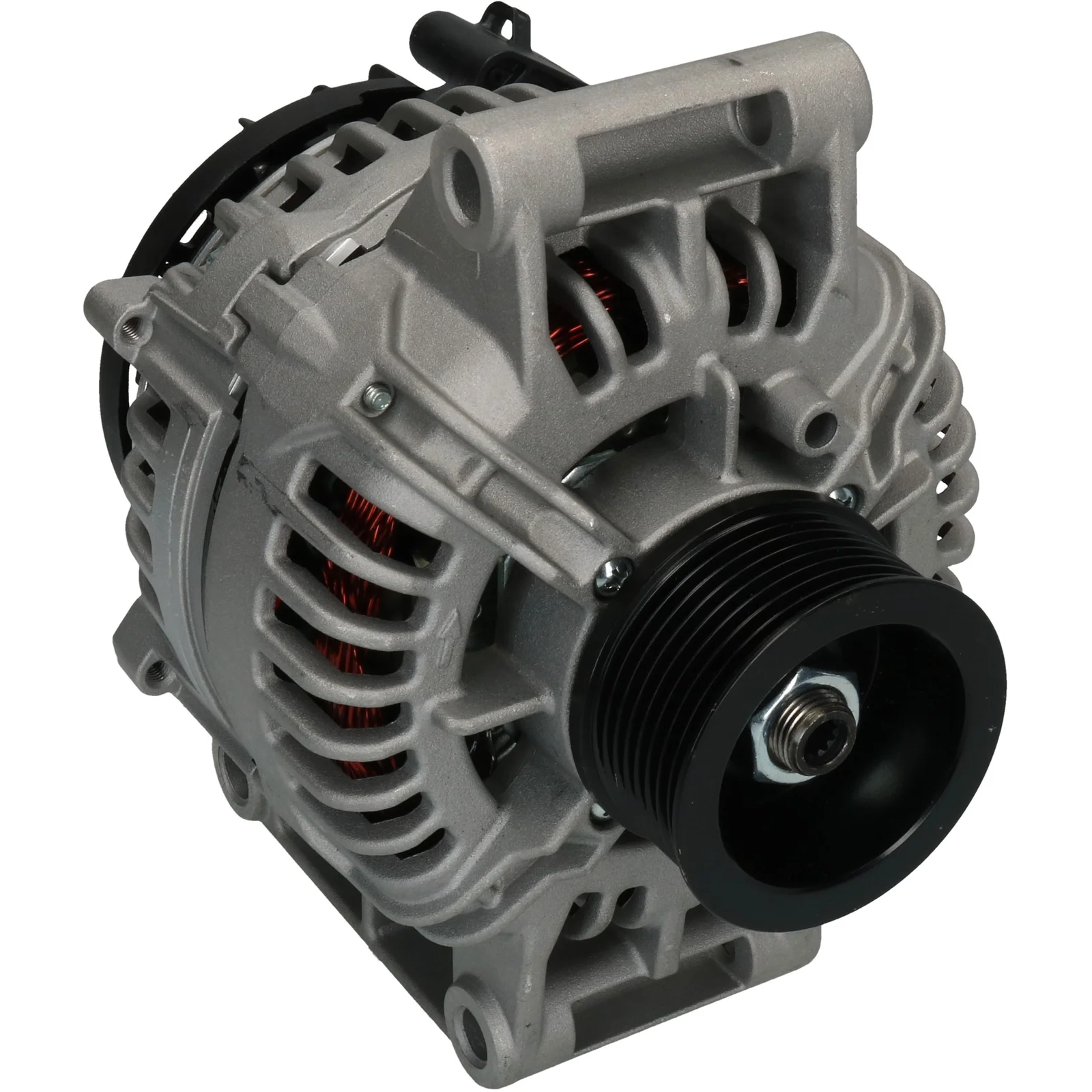

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116508

HC-Cargo Generator

Teknisk info:

Voltage: 28, Amp: 150, Rotation: CW, Mount. bracket dist.: 108.00

Beskrivning

Voltage: 28
Amp: 150
Pulley dist.: 38.00
Width/holder arm: 80.00
Mount. bracket dist.: 108.00
Bracket hole: 10.20
Belt. adj. bracket hole 1: 10.20/12.00
Pulley dia.: 69.00
Grooves/pulley: 8
Radius: 95.00
Radius 2: 95.00
B+: M8
Position/B+ in min.: 58
Rotation: CW
Plug no.: PL190
Total length mm: 205.00
Terminal type: COM
Communication: LIN
Pulley: SP
Fan: IF
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 108.00
Belt. adj. bracket hole 1 10.20/12.00
Plug no. PL190
Bracket hole 10.20
Position/B+ in min. 58
Pulley SP
Pulley dia. 69.00
Pulley dist. 38.00
Radius 95.00
Radius 2 95.00
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 8
Terminal type COM
Voltage 28
Total length 205.00 mm
Width/holder arm 80.00
Amp 150

  • OEM
    A0001506950, F032116508, 1986A00996, 0001506950, 0124655235, 0124655236

  • Konkurrentreferens
    A0728S, CAL10679, DRA1465, 48-7849, 556.518.150, 554386RI

  • Normaliserat artikelnummer
    a0001506950, a0728s, cal10679, dra1465, f032116508, 1986a00996, 487849, 554386ri, 0001506950, 0124655235, 0124655236, 556518150

  • Passar modeller
    Mercedes-Benz Model: Integro (O 550) Model series: Integro Size of motor: 7.7 Brand of engine: OM936.915 Type description: CapaCity Body: Bus From date: 01-02-2013 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Integro (O 550) Model series: Integro Size of motor: 7.7 Brand of engine: OM936.915 Type description: Integro Body: Bus From date: 01-02-2013 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Integro (O 550) Model series: Integro Size of motor: 7.7 Brand of engine: OM936.919 Type description: Integro Body: Bus From date: 01-02-2013 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Integro (O 550) Model series: Integro Size of motor: 7.7 Brand of engine: OM936.923 Type description: Integro Body: Bus From date: 01-02-2013 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 28
    Amp: 150
    Pulley dist.: 38.00
    Width/holder arm: 80.00
    Mount. bracket dist.: 108.00
    Bracket hole: 10.20
    Belt. adj. bracket hole 1: 10.20/12.00
    Pulley dia.: 69.00
    Grooves/pulley: 8
    Radius: 95.00
    Radius 2: 95.00
    B+: M8
    Position/B+ in min.: 58
    Rotation: CW
    Plug no.: PL190
    Total length mm: 205.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP
    Fan: IF
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 108.00
    Belt. adj. bracket hole 1 10.20/12.00
    Plug no. PL190
    Bracket hole 10.20
    Position/B+ in min. 58
    Pulley SP
    Pulley dia. 69.00
    Pulley dist. 38.00
    Radius 95.00
    Radius 2 95.00
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 8
    Terminal type COM
    Voltage 28
    Total length 205.00 mm
    Width/holder arm 80.00
    Amp 150
  • Fordonsmatchning

    • OEM
      A0001506950, F032116508, 1986A00996, 0001506950, 0124655235, 0124655236

    • Konkurrentreferens
      A0728S, CAL10679, DRA1465, 48-7849, 556.518.150, 554386RI

    • Normaliserat artikelnummer
      a0001506950, a0728s, cal10679, dra1465, f032116508, 1986a00996, 487849, 554386ri, 0001506950, 0124655235, 0124655236, 556518150

    • Passar modeller
      Mercedes-Benz Model: Integro (O 550) Model series: Integro Size of motor: 7.7 Brand of engine: OM936.915 Type description: CapaCity Body: Bus From date: 01-02-2013 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Integro (O 550) Model series: Integro Size of motor: 7.7 Brand of engine: OM936.915 Type description: Integro Body: Bus From date: 01-02-2013 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Integro (O 550) Model series: Integro Size of motor: 7.7 Brand of engine: OM936.919 Type description: Integro Body: Bus From date: 01-02-2013 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Integro (O 550) Model series: Integro Size of motor: 7.7 Brand of engine: OM936.923 Type description: Integro Body: Bus From date: 01-02-2013 Fuel: Diesel Approved: Yes
