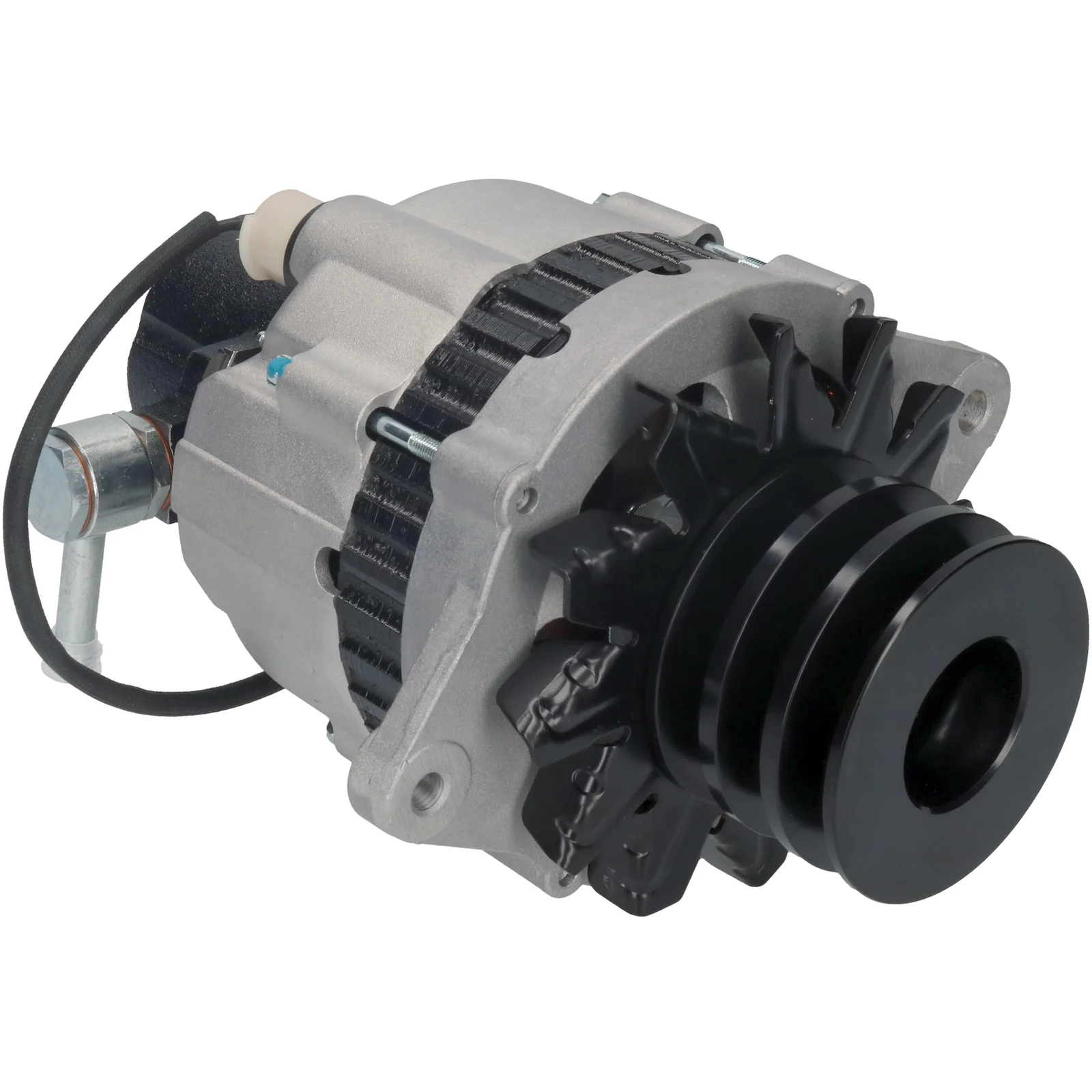

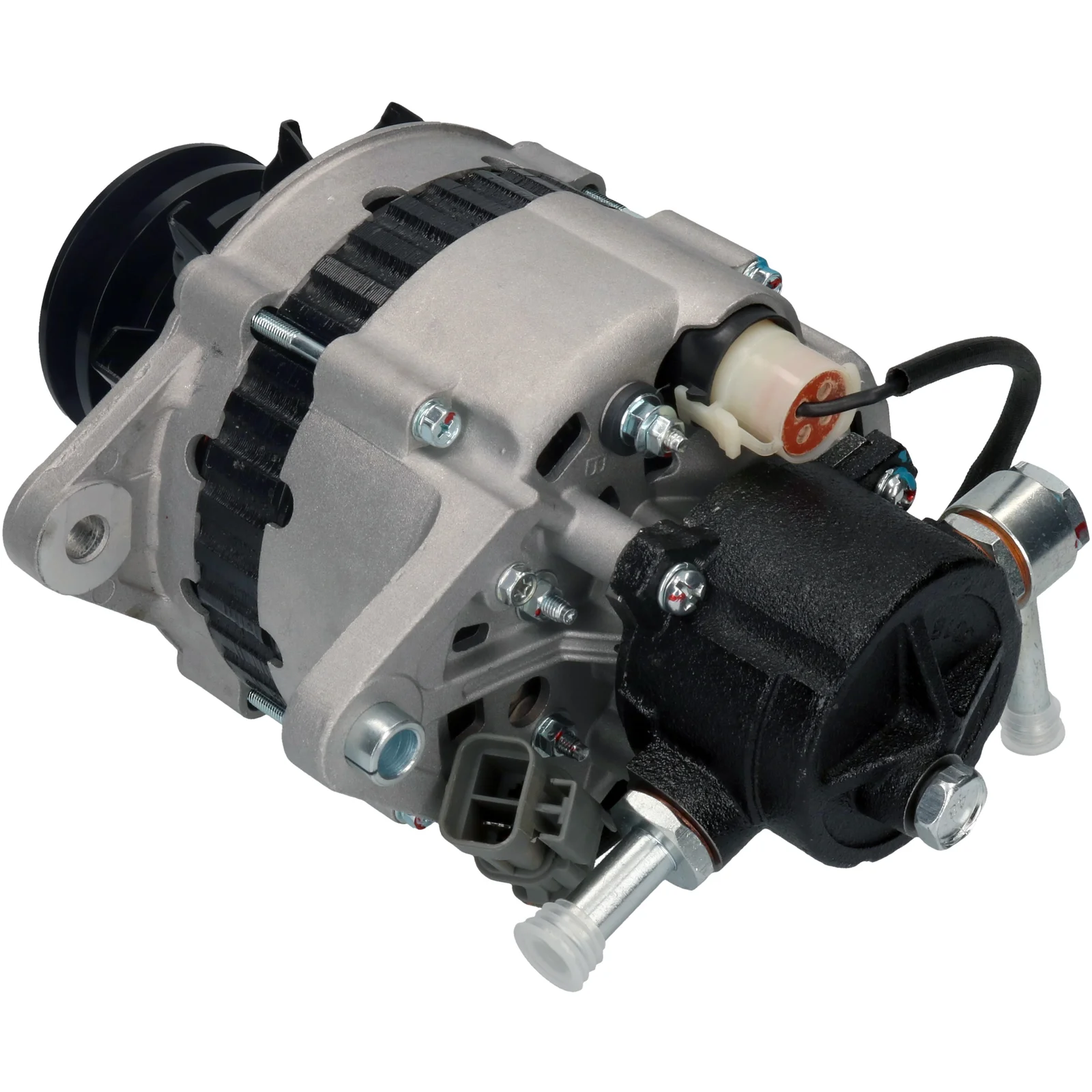

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116108

HC-Cargo Generator

Teknisk info:

Voltage: 28, Amp: 50, Rotation: CW, Mount. bracket dist.: 81.30

Beskrivning

Voltage: 28
Amp: 50
Pulley dist.: 42.00
Width/holder arm: 13.00
Mount. bracket dist.: 81.30
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 82.00
Grooves/pulley: 3
Radius: 90.00
Radius 2: 85.00
B+: M6
Position/B+ in min.: 8
D+ Size: Plug
Rotation: CW
Plug no.: PL100
Total length mm: 164.00
Pulley: Triple Pulley
Regulator type: IR
Vac. pump: Yes

Filer

Specifikation

B+ M6
Mount. bracket dist. 81.30
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 60
Plug no. PL100
Bracket hole 10.50
Position/B+ in min. 8
Pulley Triple Pulley
Pulley dia. 82.00
Pulley dist. 42.00
Radius 90.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Grooves/pulley 3
Vac. pump Yes
Voltage 28
Total length 164.00 mm
Width/holder arm 13.00
Amp 50

  • OEM
    F032116108, lr250-511, lr250-511b, 8971865511

  • Konkurrentreferens
    A2045

  • Normaliserat artikelnummer
    a2045, f032116108, lr250511, lr250511b, 8971865511

  • Passar modeller
    Isuzu Model: N-Serie Model series: NKR 66 E Size of motor: 4.3 Brand of engine: 4HF1-II Body: Platform / Chassis Fuel: Diesel Approved: Yes
    Isuzu Model: N-Serie Model series: NKR 77, NPR 77 Size of motor: 2.9 Brand of engine: 4JH1-X Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 28
    Amp: 50
    Pulley dist.: 42.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 81.30
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 82.00
    Grooves/pulley: 3
    Radius: 90.00
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 8
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL100
    Total length mm: 164.00
    Pulley: Triple Pulley
    Regulator type: IR
    Vac. pump: Yes

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 81.30
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 60
    Plug no. PL100
    Bracket hole 10.50
    Position/B+ in min. 8
    Pulley Triple Pulley
    Pulley dia. 82.00
    Pulley dist. 42.00
    Radius 90.00
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 3
    Vac. pump Yes
    Voltage 28
    Total length 164.00 mm
    Width/holder arm 13.00
    Amp 50
  • Fordonsmatchning

    • OEM
      F032116108, lr250-511, lr250-511b, 8971865511

    • Konkurrentreferens
      A2045

    • Normaliserat artikelnummer
      a2045, f032116108, lr250511, lr250511b, 8971865511

    • Passar modeller
      Isuzu Model: N-Serie Model series: NKR 66 E Size of motor: 4.3 Brand of engine: 4HF1-II Body: Platform / Chassis Fuel: Diesel Approved: Yes
      Isuzu Model: N-Serie Model series: NKR 77, NPR 77 Size of motor: 2.9 Brand of engine: 4JH1-X Body: Platform / Chassis From date: 01-10-2005 Fuel: Diesel Approved: Yes
