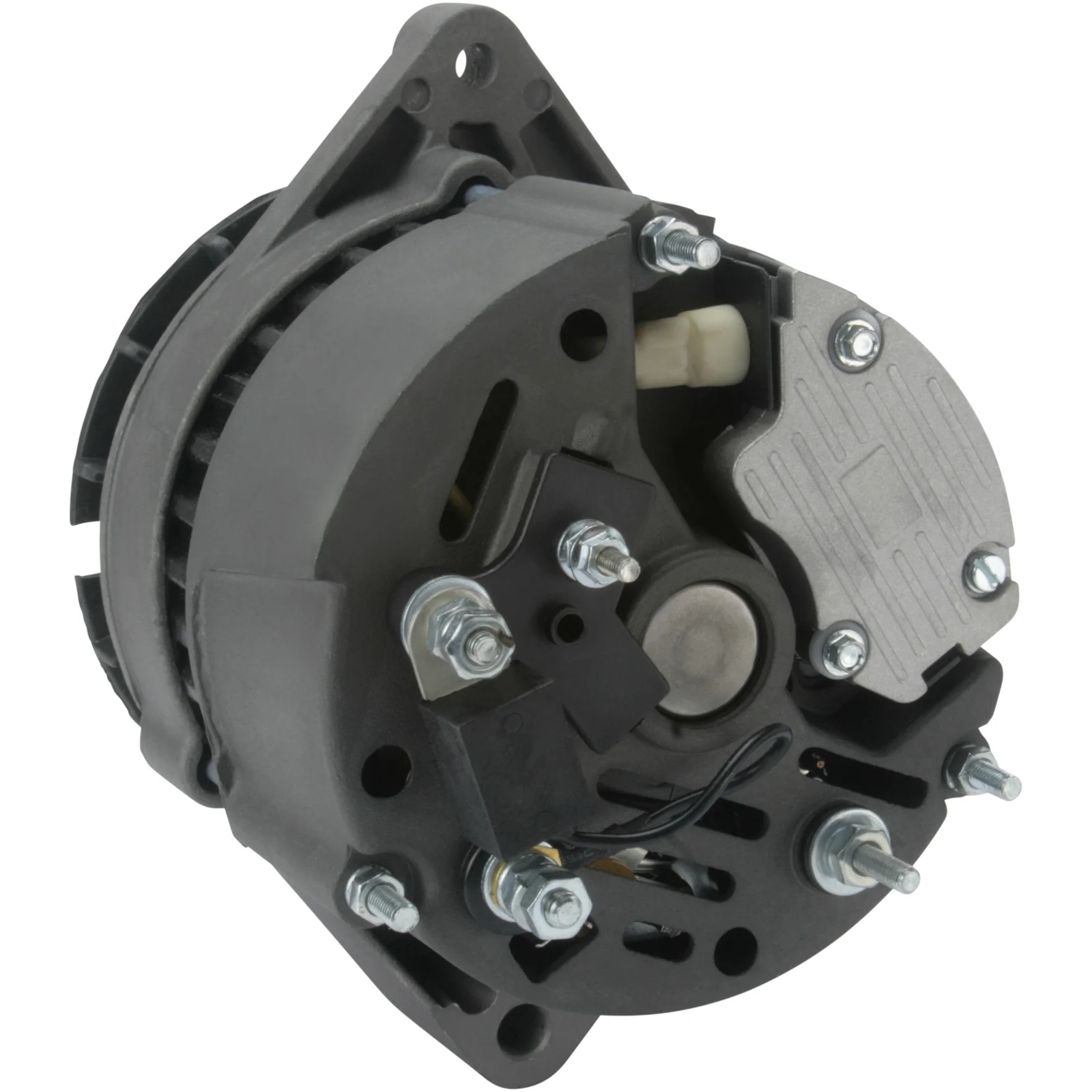

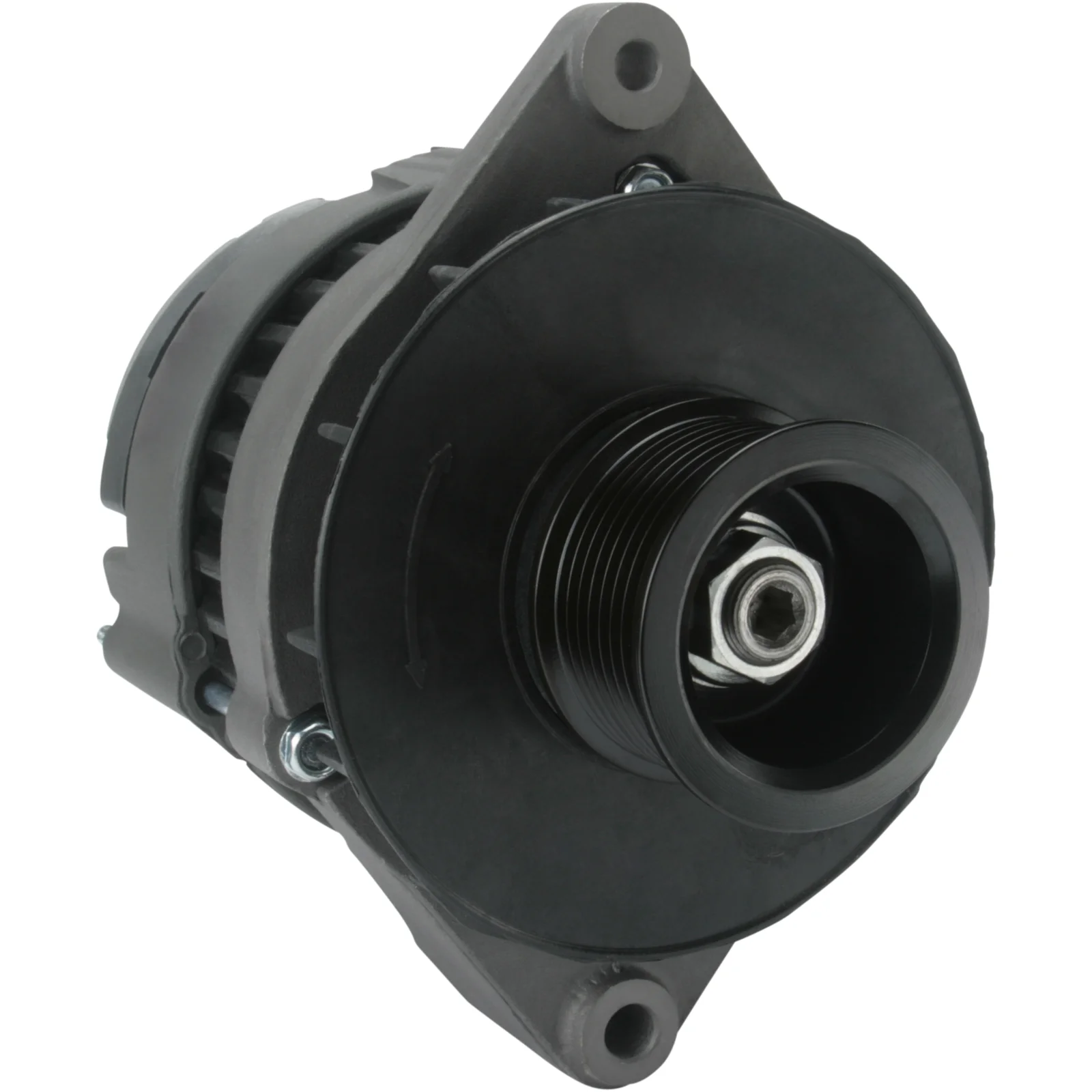

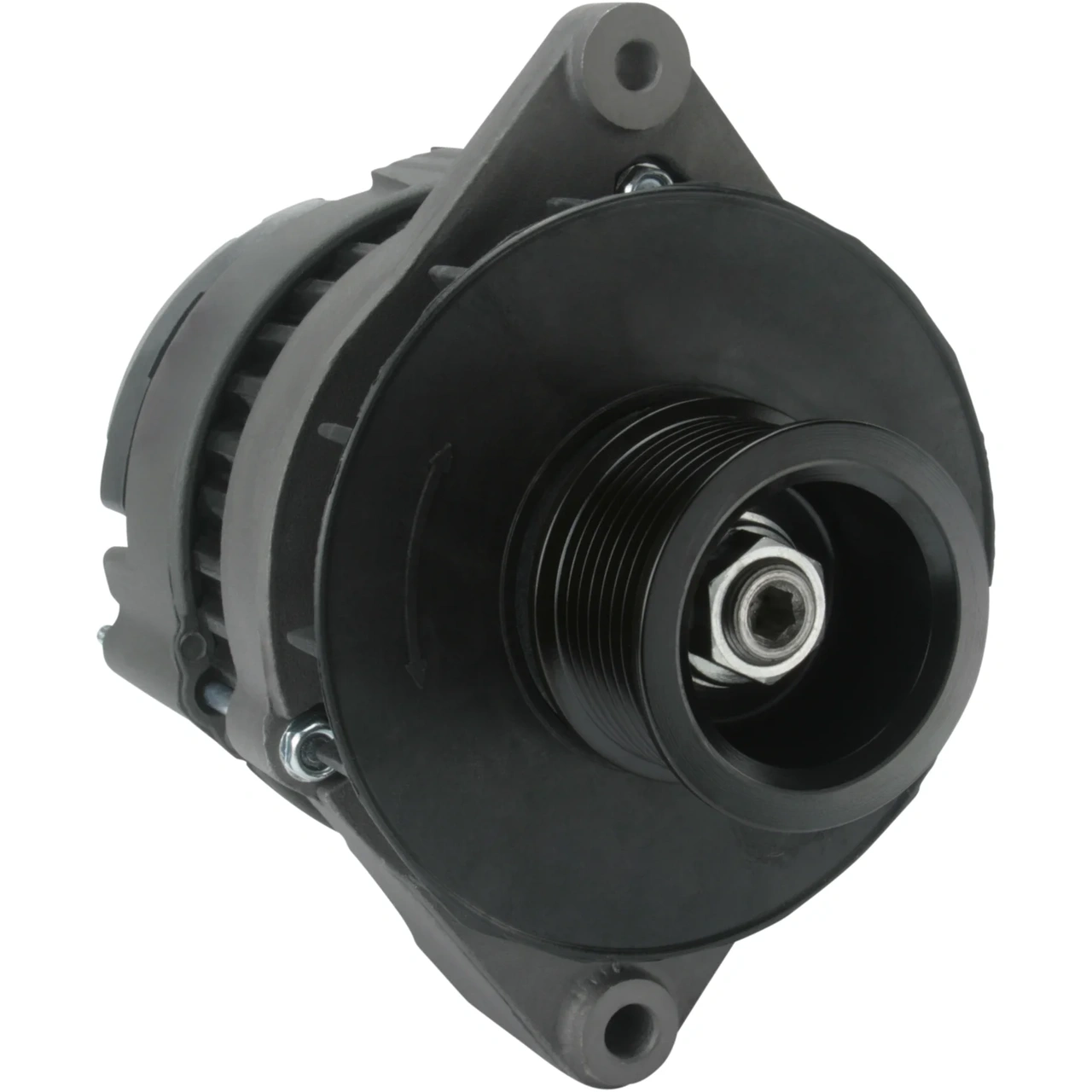

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116023

HC-Cargo Generator

Teknisk info:

Voltage: 28, Amp: 50, Rotation: CW, Pulley dia.: 59.80

Beskrivning

Voltage: 28
Amp: 50
Insulated return: Yes
Terminal: W
Pulley dist.: 79.00
Width/holder arm: 51.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 8.20
Pulley dia.: 59.80
Grooves/pulley: 8
Radius: 85.00
Radius 2: 87.50
B+: M6
Position/B+ in min.: 38
D+ Size: M4
Rotation: CW
W plug type: M5
Total length mm: 188.00
Pulley: SP
Regulator type: IR
Remarks: Dustproof

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 8.20
Belt. adj. brackethole pos. 60
Bracket hole 10.00
Position/B+ in min. 38
Pulley SP
Pulley dia. 59.80
Pulley dist. 79.00
Radius 85.00
D+ Size M4
Radius 2 87.50
Regulator type IR
Remarks Dustproof
Rotation CW
Grooves/pulley 8
Terminal W
Insulated return Yes
Voltage 28
W plug type M5
Total length 188.00 mm
Width/holder arm 51.00
Amp 50

  • OEM
    AAK4335, AAK4362, F032116023, RE525690, RE540413, 11.203.369, 11.203.461, 01912362

  • Konkurrentreferens
    CAL21609, LEA0482, lea0772, LRA03540, MG322, 48-6650, 586.117.504, 706.009.050, 12823

  • Normaliserat artikelnummer
    aak4335, aak4362, cal21609, f032116023, lea0482, lea0772, lra03540, mg322, re525690, re540413, 12823, 486650, 01912362, 11203369, 11203461, 586117504, 706009050

  • Passar modeller
    John Deere Model: Engine Brand of engine: 4045DFM50 Approved: Yes
    John Deere Model: Engine Brand of engine: 4045DFM70 Approved: Yes
    John Deere Model: Engine Brand of engine: 6068DFM Approved: Yes
    John Deere Model: Engine Brand of engine: 6068FM50 Approved: Yes
  • Beskrivning
    Voltage: 28
    Amp: 50
    Insulated return: Yes
    Terminal: W
    Pulley dist.: 79.00
    Width/holder arm: 51.00
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 8.20
    Pulley dia.: 59.80
    Grooves/pulley: 8
    Radius: 85.00
    Radius 2: 87.50
    B+: M6
    Position/B+ in min.: 38
    D+ Size: M4
    Rotation: CW
    W plug type: M5
    Total length mm: 188.00
    Pulley: SP
    Regulator type: IR
    Remarks: Dustproof

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 8.20
    Belt. adj. brackethole pos. 60
    Bracket hole 10.00
    Position/B+ in min. 38
    Pulley SP
    Pulley dia. 59.80
    Pulley dist. 79.00
    Radius 85.00
    D+ Size M4
    Radius 2 87.50
    Regulator type IR
    Remarks Dustproof
    Rotation CW
    Grooves/pulley 8
    Terminal W
    Insulated return Yes
    Voltage 28
    W plug type M5
    Total length 188.00 mm
    Width/holder arm 51.00
    Amp 50
  • Fordonsmatchning

    • OEM
      AAK4335, AAK4362, F032116023, RE525690, RE540413, 11.203.369, 11.203.461, 01912362

    • Konkurrentreferens
      CAL21609, LEA0482, lea0772, LRA03540, MG322, 48-6650, 586.117.504, 706.009.050, 12823

    • Normaliserat artikelnummer
      aak4335, aak4362, cal21609, f032116023, lea0482, lea0772, lra03540, mg322, re525690, re540413, 12823, 486650, 01912362, 11203369, 11203461, 586117504, 706009050

    • Passar modeller
      John Deere Model: Engine Brand of engine: 4045DFM50 Approved: Yes
      John Deere Model: Engine Brand of engine: 4045DFM70 Approved: Yes
      John Deere Model: Engine Brand of engine: 6068DFM Approved: Yes
      John Deere Model: Engine Brand of engine: 6068FM50 Approved: Yes
