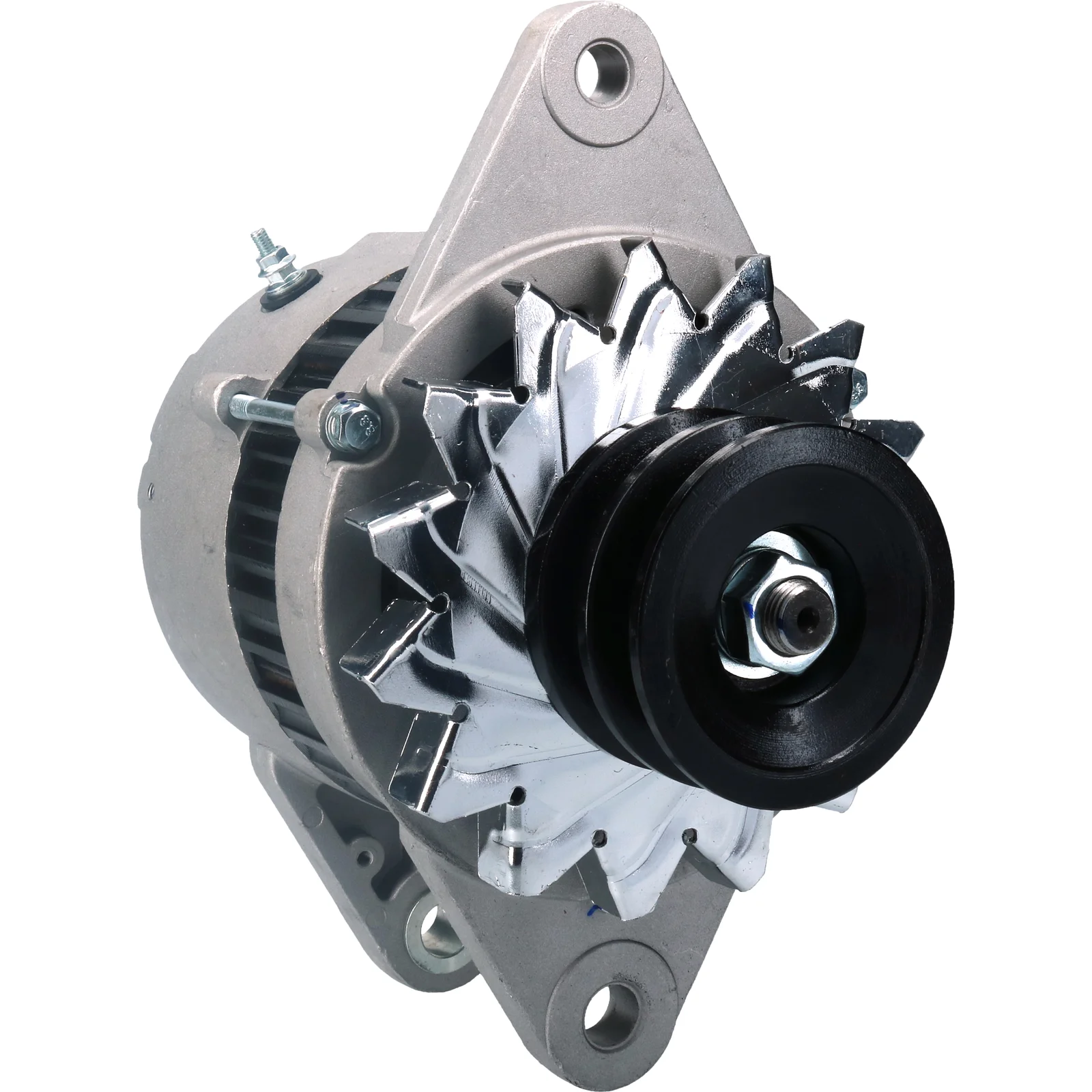

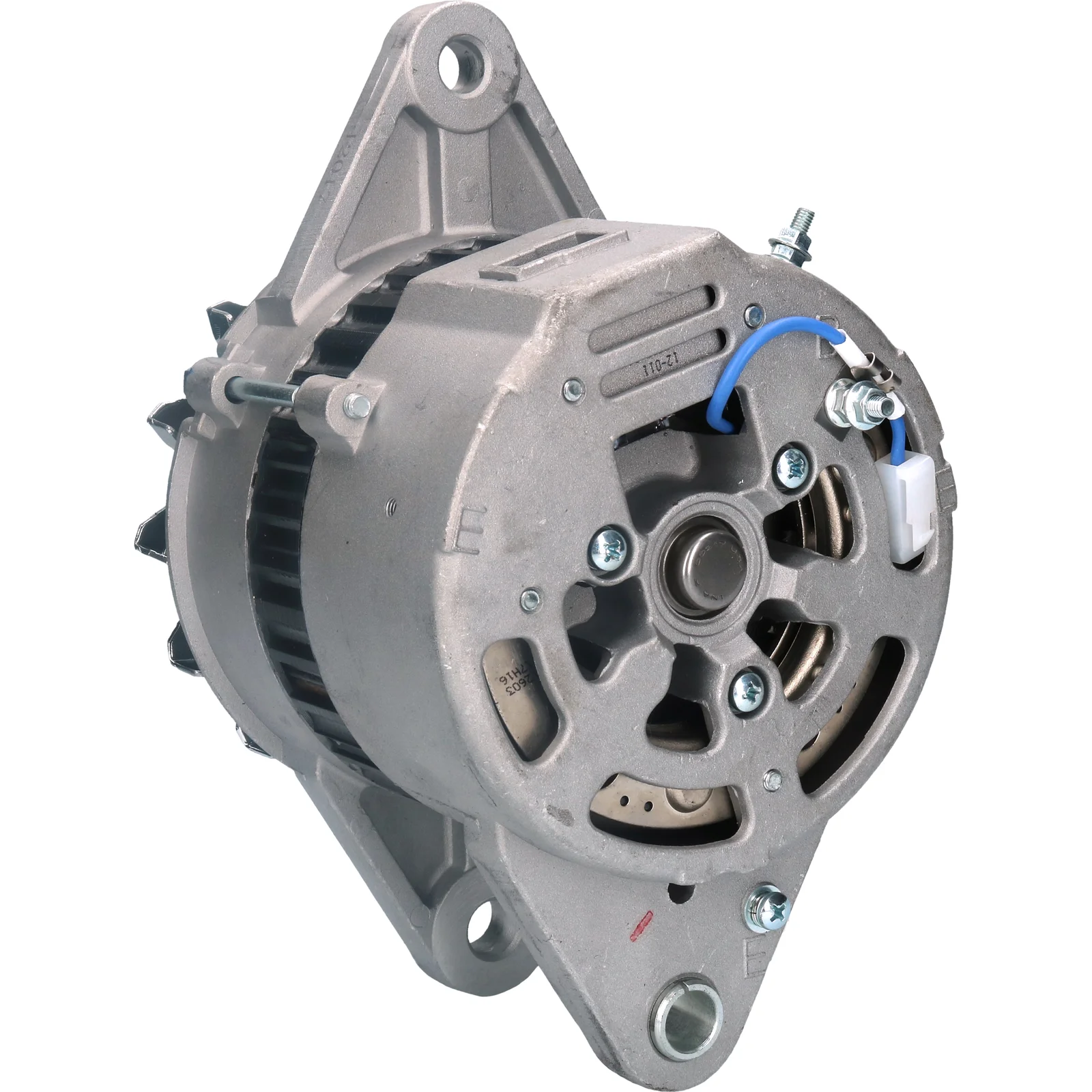

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115994

HC-Cargo Generator

Teknisk info:

Voltage: 28, Amp: 40, Rotation: CW, Mount. bracket dist.: 68.00

Beskrivning

Voltage: 28
Amp: 40
Terminal: W
Pulley dist.: 60.00
Width/holder arm: 16.00
Mount. bracket dist.: 68.00
Bracket hole: 15.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 13.20
Pulley dia.: 82.00
Grooves/pulley: 2
Radius: 110.00
Radius 2: 115.00
B+: M5
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL185
W plug type: Plug
Total length mm: 220.00
Lamp type: Active
Pulley: DP
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M5
Mount. bracket dist. 68.00
Belt. adj. bracket hole 1 13.20
Belt. adj. brackethole pos. 60
Plug no. PL185
Bracket hole 15.00
Position/B+ in min. 5
Prod. info BN
Pulley DP
Pulley dia. 82.00
Pulley dist. 60.00
Radius 110.00
D+ Size Plug
Radius 2 115.00
Regulator type IR
Rotation CW
Grooves/pulley 2
Terminal W
Lamp type Active
Voltage 28
W plug type Plug
Total length 220.00 mm
Width/holder arm 16.00
Amp 40

  • OEM
    0-35000-0013, 0-35000-3010, 0-35000-3011, 0-35000-3012, 0-35000-3013, 0-35000-3113, 0-35000-3410, F032115994, 714-40321, 1812002491, 1812002493

  • Konkurrentreferens
    A9266S, CAL50627, DRA1255, LRA03203, 48-5815, 266.003.050, 543.129.404, 111364, 553031RI

  • Normaliserat artikelnummer
    a9266s, cal50627, dra1255, f032115994, lra03203, 111364, 485815, 553031ri, 71440321, 266003050, 0350000013, 0350003010, 0350003011, 0350003012, 0350003013, 0350003113, 0350003410, 543129404, 1812002491, 1812002493

  • Passar modeller
    Hitachi Model: EX120 Model series: EX120 Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    Hitachi Model: EX130 Model series: EX130 Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    Hitachi Model: EX135 Model series: EX135 Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    Hitachi Model: EX150 Model series: EX150 Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    Hitachi Model: Zaxis 120 Model series: Zaxis 120 Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    Hitachi Model: ZX110 Model series: ZX110 Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    Hitachi Model: ZX120 Model series: ZX120 Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    Hitachi Model: ZX130H Model series: ZX130H Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    Hitachi Model: ZX135 Model series: ZX135 Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    Hitachi Model: ZX135US Model series: ZX135US Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    Isuzu Model: Various Industrial applications Approved: Yes
    JCB Model: JS130 Model series: JS130 Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    JCB Model: JS130 SERIES Model series: JS130 SERIES Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    JCB Model: JS130L Model series: JS130L Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    JCB Model: JS130LC Model series: JS130LC Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    JCB Model: JS130W Model series: JS130W Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    JCB Model: JS145W Model series: JS145W Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    JCB Model: JS160 Model series: JS160 Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    JCB Model: JS160L/NL Model series: JS160L/NL Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    JCB Model: JS160W Model series: JS160W Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    JCB Model: JS180L Model series: JS180L Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    JCB Model: JS220LR Model series: JS220LR Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    JCB Model: JZ140 SERIES Model series: JZ140 SERIES Model type: Excavators Brand of engine: 4BG1T Approved: Yes
    Takeuchi Model: TB1140 Model series: TB1140 Model type: Excavators Brand of engine: 4BG1T Approved: Yes
