HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032113549

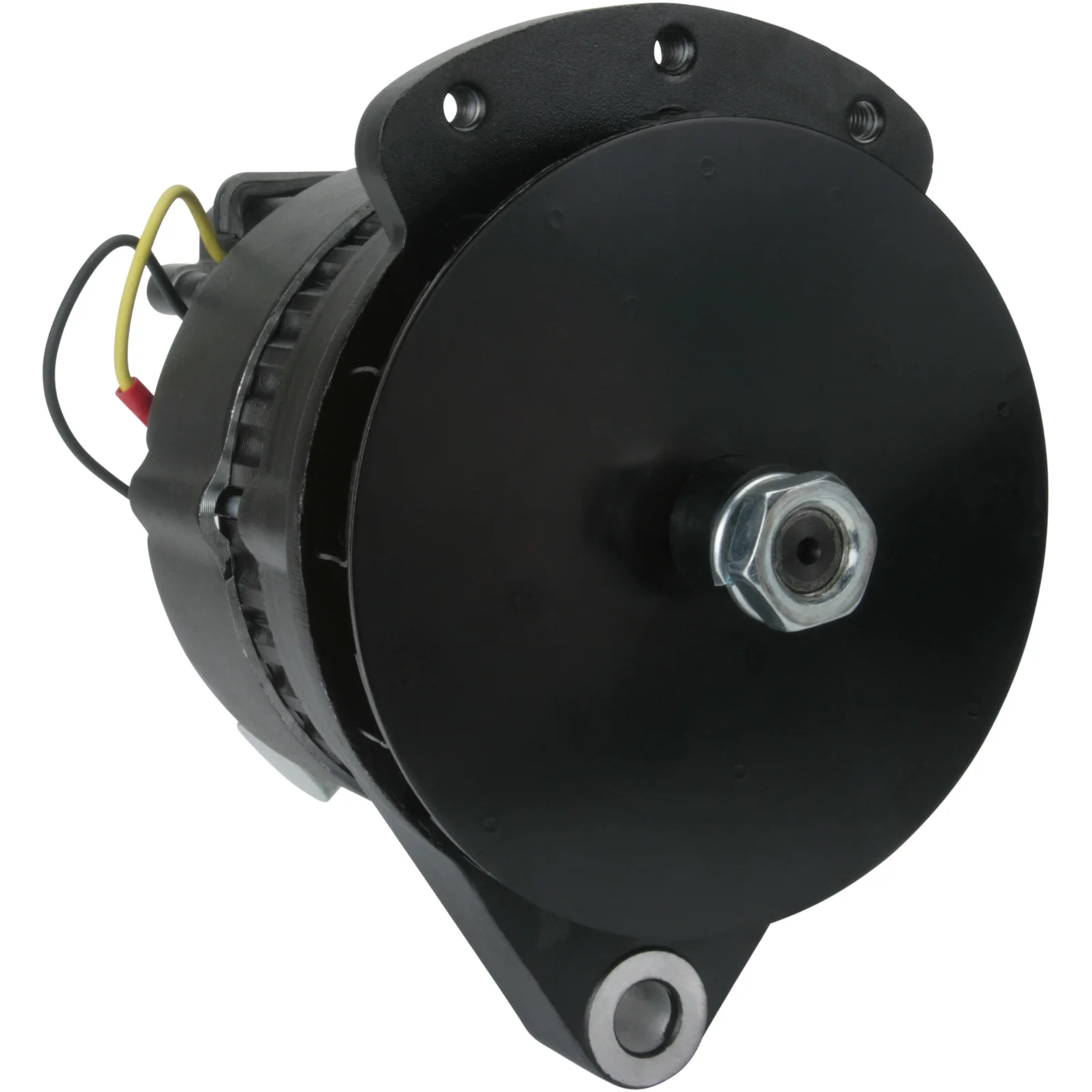

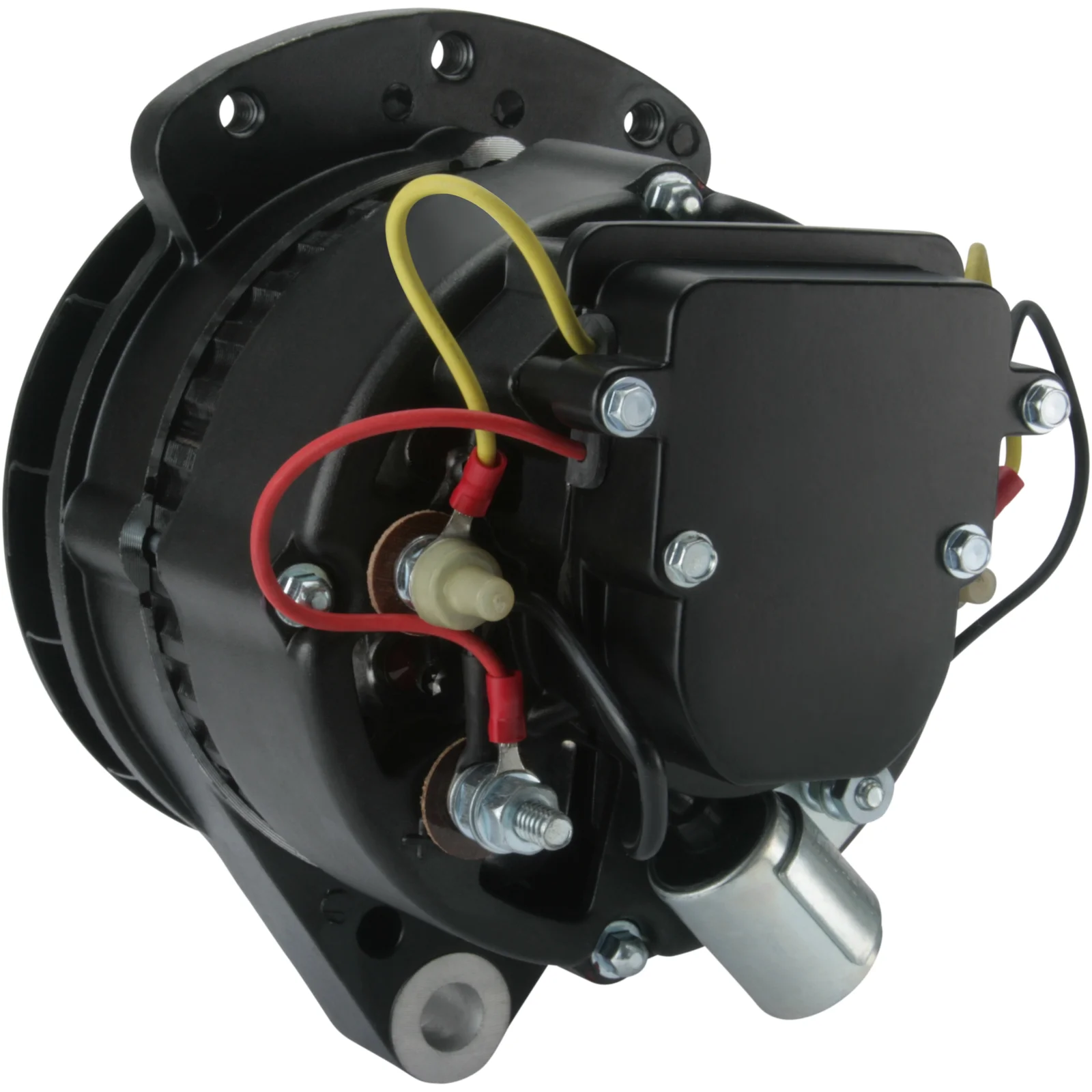

HC-Cargo Generator

Teknisk info:

Voltage: 28, Amp: 35, Rotation: CW, Radius: 90.00

Beskrivning

Voltage: 28
Amp: 35
Insulated return: Yes
Width/holder arm: 27.20
Bracket hole: 13.00
Belt. adj. brackethole pos.: 55
Belt. adj. brackethole pos. 3: 5
Belt. adj. brackethole pos. 2: 60
Belt. adj. bracket hole 1: 5/16" UNC
Belt. adj. bracket hole 2: 5/16" UNC
Belt. adj. bracket hole 3: 5/16" UNC
Radius: 90.00
Radius 2: 83.00
Radius 3: 82.00
Radius 4: 83.00
B+: 1/4" UNC
Position/B+ in min.: 40
Rotation: CW
W plug type: 3/16" UNF
Total length mm: 186.00
One Wire hookup (Self exciting): Yes
Pulley: w/o
Regulator type: IR
Prod. info: BN
Servicing: Caterpillar
Remarks: D+ = 3/16 W.

Filer

Specifikation

B+ 1/4" UNC
Belt. adj. bracket hole 1 5/16" UNC
Belt. adj. bracket hole 2 5/16" UNC
Belt. adj. bracket hole 3 5/16" UNC
One Wire hookup (Self exciting) Yes
Belt. adj. brackethole pos. 55
Belt. adj. brackethole pos. 2 60
Belt. adj. brackethole pos. 3 5
Bracket hole 13.00
Position/B+ in min. 40
Prod. info BN
Pulley w/o
Radius 90.00
Radius 2 83.00
Radius 3 82.00
Radius 4 83.00
Regulator type IR
Remarks D+ = 3/16 W.
Rotation CW
Servicing Caterpillar
Insulated return Yes
Voltage 28
W plug type 3/16" UNF
Total length 186.00 mm
Width/holder arm 27.20
Amp 35

  • OEM
    0R3653, F032113549, 6T1395, 7T2095, 8hc3022f, 8HC3022FS, 8hc3025f, 110-285, 110-313

  • Konkurrentreferens
    ALT32015, CAL11609, CAL11624, DRA0274, LRA02514, 48-3987, 8050, 8050N

  • Normaliserat artikelnummer
    0r3653, alt32015, cal11609, cal11624, dra0274, f032113549, lra02514, 6t1395, 7t2095, 8hc3022f, 8hc3022fs, 8hc3025f, 8050, 8050n, 110285, 110313, 483987

  • Passar modeller
    Caterpillar Model: 3100 Model series: 3176 From date: 01-01-1991 Fuel: Diesel Approved: Yes
    Caterpillar Model: 3300 Model series: 3306 From date: 01-01-1975 To date: 01-01-1984 Approved: Yes
    Caterpillar Model: Engine Model series: 3176B Approved: Yes
    Caterpillar Model: Engine Model series: 3176C Approved: Yes
    Caterpillar Model: Engine Model series: 3196C Approved: Yes
    Caterpillar Model: Engine Model series: 3304 Approved: Yes
    Caterpillar Model: Engine Model series: 3306 Approved: Yes
    Caterpillar Model: Engine Model series: 3406 Approved: Yes
    Caterpillar Model: Engine Model series: 3406B Approved: Yes
    Caterpillar Model: Engine Model series: 3406C Approved: Yes
    Caterpillar Model: Engine Model series: 3408 Approved: Yes
    Caterpillar Model: Engine Model series: 3412 Approved: Yes
    Caterpillar Model: Various Models Model series: Various Models Approved: Yes
