HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032113457

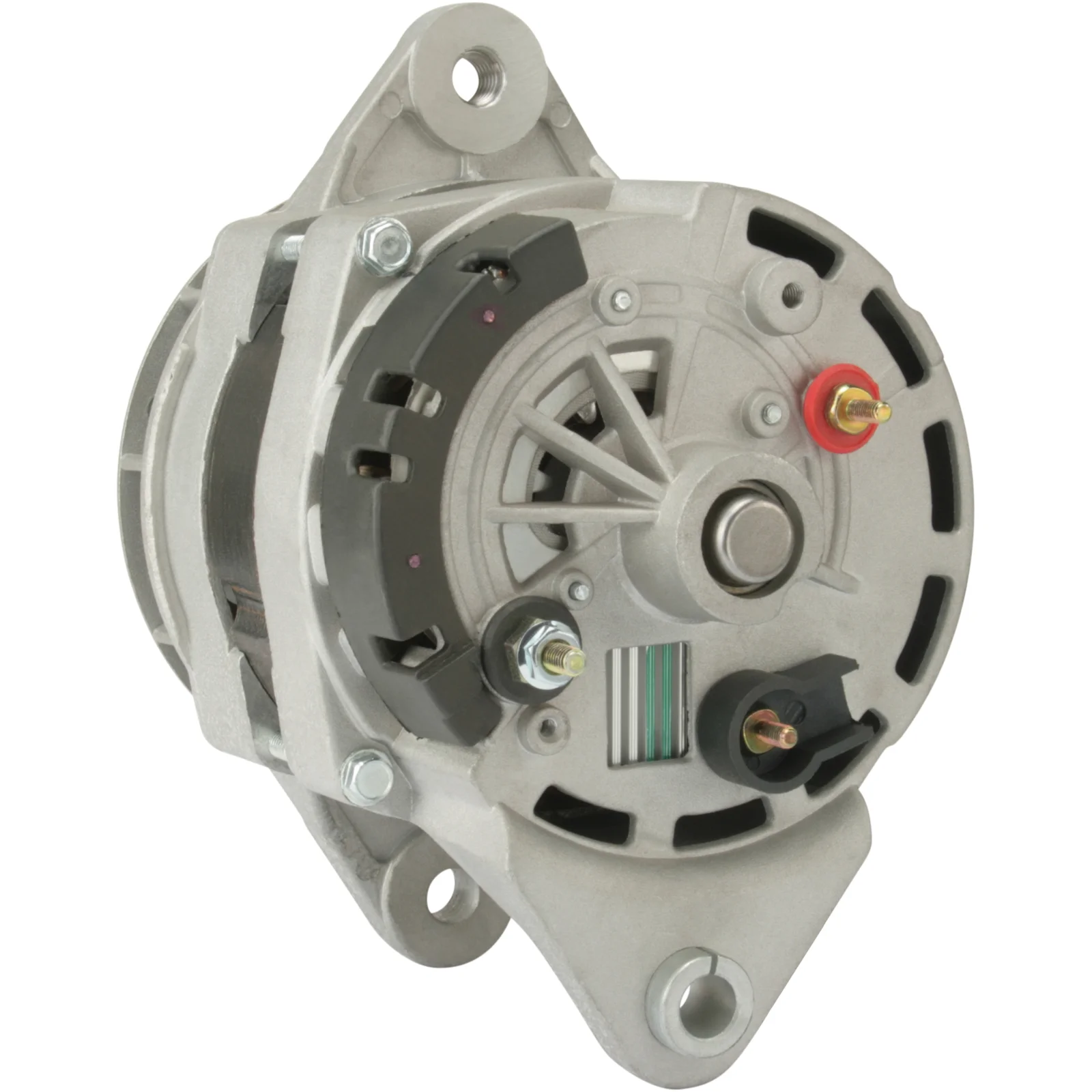

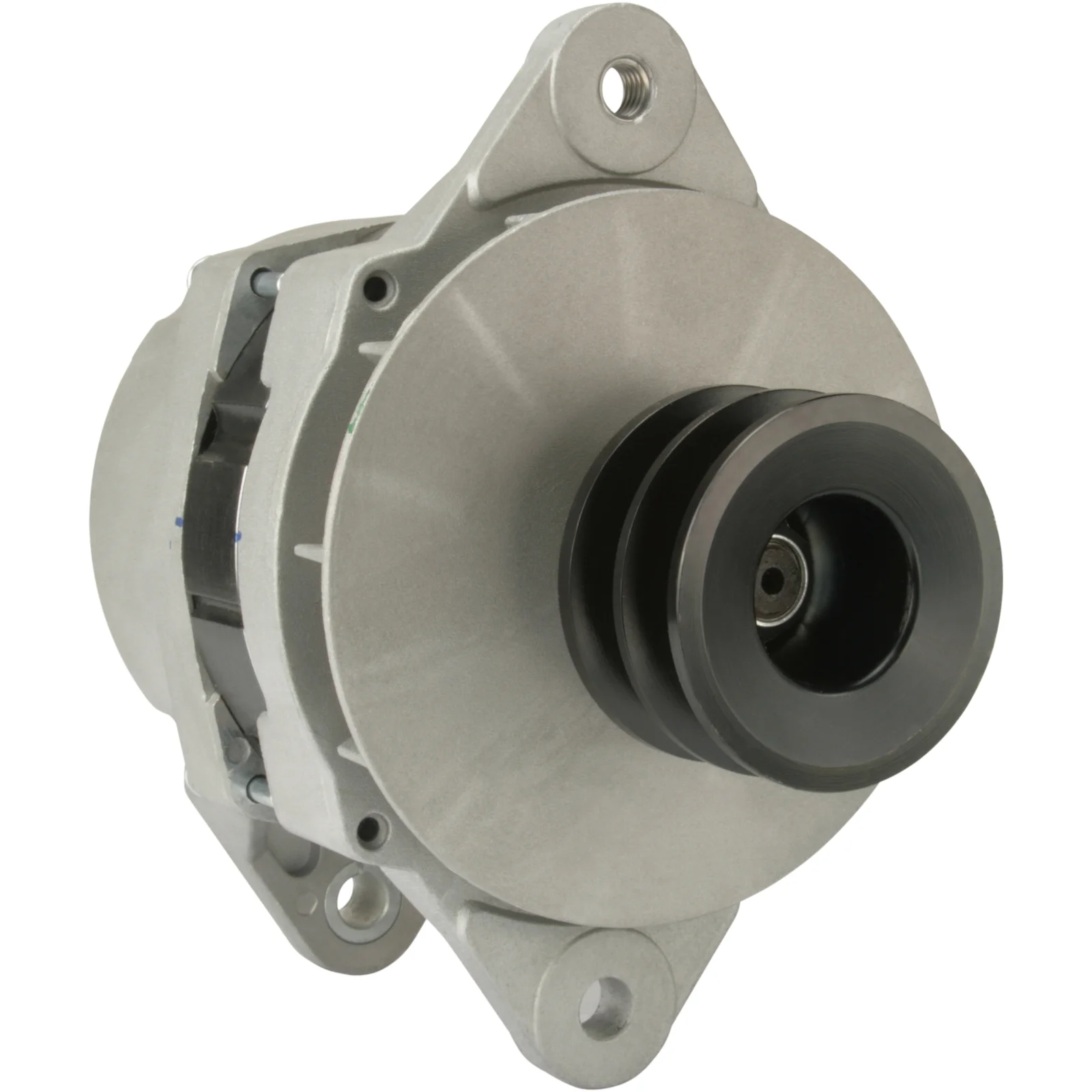

HC-Cargo Generator

Teknisk info:

Voltage: 28, Amp: 60, Rotation: CW, Mount. bracket dist.: 101.00

Beskrivning

Voltage: 28
Amp: 60
Terminal: W
Pulley dist.: 66.00
Width/holder arm: 14.00
Mount. bracket dist.: 101.00
Bracket hole: 12.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 1/2" UNF
Pulley dia.: 75.70
Grooves/pulley: 2
Radius: 99.00
Radius 2: 99.00
B+: M6
Position/B+ in min.: 40
D+ Size: M5
Rotation: CW
W plug type: M5
Total length mm: 230.00
Pulley: DP
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M6
Mount. bracket dist. 101.00
Belt. adj. bracket hole 1 1/2" UNF
Belt. adj. brackethole pos. 60
Bracket hole 12.50
Position/B+ in min. 40
Prod. info BN
Pulley DP
Pulley dia. 75.70
Pulley dist. 66.00
Radius 99.00
D+ Size M5
Radius 2 99.00
Regulator type IR
Rotation CW
Grooves/pulley 2
Terminal W
Voltage 28
W plug type M5
Total length 230.00 mm
Width/holder arm 14.00
Amp 60
