Artikelnr: F032113212

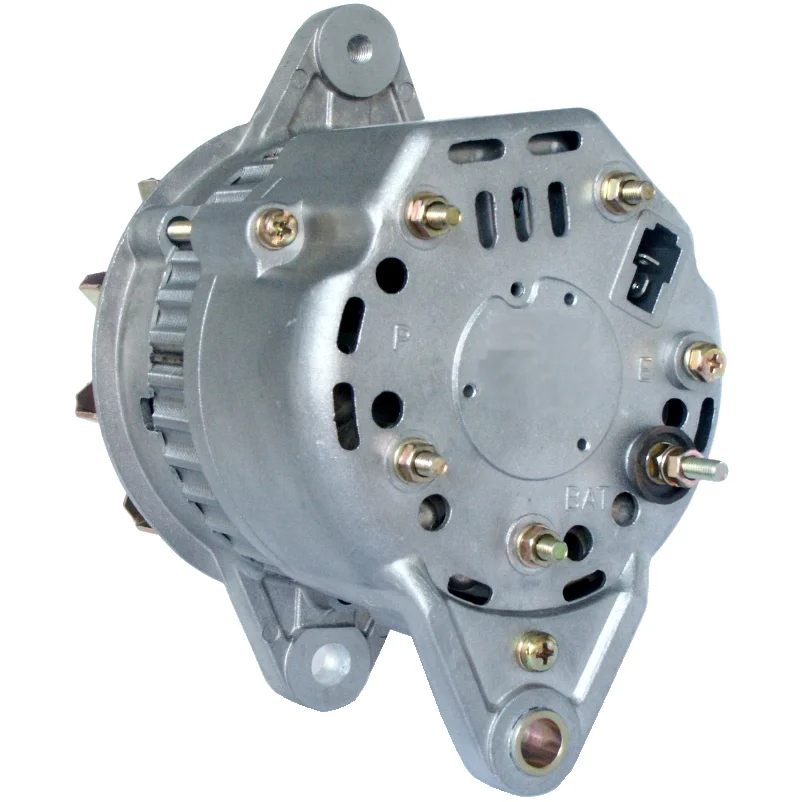

HC-Cargo Generator

Teknisk info:

Voltage: 28, Amp: 20, Rotation: CW, Mount. bracket dist.: 81.50

Beskrivning

Voltage: 28
Amp: 20
Pulley dist.: 44.50
Width/holder arm: 13.50
Mount. bracket dist.: 81.50
Bracket hole: 10.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 85.00
Grooves/pulley: 1
Radius: 77.00
Radius 2: 77.00
B+: M5
Position/B+ in min.: 20
D+ Size: Plug
Rotation: CW
Plug no.: PL09
Total length mm: 168.00
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Mitsubishi

Filer

Specifikation

B+ M5
Mount. bracket dist. 81.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL09
Bracket hole 10.20
Position/B+ in min. 20
Prod. info BN
Pulley P
Pulley dia. 85.00
Pulley dist. 44.50
Radius 77.00
D+ Size Plug
Radius 2 77.00
Regulator type IR
Rotation CW
Servicing Mitsubishi
Grooves/pulley 1
Voltage 28
Total length 168.00 mm
Width/holder arm 13.50
Amp 20

  • OEM
    0-33000-5480, 0-33000-5510, 0-33000-5670, 0-33000-5700, 0-33000-6250, F032113212, LR22-027, 8-94404790-2, 600-821-3840, 600-821-3850, 8943388470, 8943388471

  • Konkurrentreferens
    ALT29002, CAL50620, DRA0326, DRA1324, LRA02531, 48-1849, 48-4822, 136.025.020, 500.143.204, 12243N, 12253N, 12323N, 111307

  • Normaliserat artikelnummer
    alt29002, cal50620, dra0326, dra1324, f032113212, lr22027, lra02531, 12243n, 12253n, 12323n, 111307, 481849, 484822, 136025020, 0330005480, 0330005510, 0330005670, 0330005700, 0330006250, 500143204, 6008213840, 6008213850, 8943388470, 8943388471, 8944047902

  • Passar modeller
    Mitsubishi Model: FD Model series: FD10 Approved: Yes
    Mitsubishi Model: FD Model series: FD15 Approved: Yes
    Mitsubishi Model: FD Model series: FD20 From date: 01-01-1983 Approved: Yes
    Mitsubishi Model: FD Model series: FD25 From date: 01-01-1983 To date: 01-01-1991 Approved: Yes
    Mitsubishi Model: FD Model series: FD30 From date: 01-01-1983 Approved: Yes
    Mitsubishi Model: FD Model series: FD35 Approved: Yes
    Mitsubishi Model: FDC Model series: FDC20 Approved: Yes
    Mitsubishi Model: FDC Model series: FDC25 Approved: Yes
    Mitsubishi Model: Various Models Model series: Various Models Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 28
    Amp: 20
    Pulley dist.: 44.50
    Width/holder arm: 13.50
    Mount. bracket dist.: 81.50
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 85.00
    Grooves/pulley: 1
    Radius: 77.00
    Radius 2: 77.00
    B+: M5
    Position/B+ in min.: 20
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL09
    Total length mm: 168.00
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: Mitsubishi

    Filer

  • Specifikation
    B+ M5
    Mount. bracket dist. 81.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL09
    Bracket hole 10.20
    Position/B+ in min. 20
    Prod. info BN
    Pulley P
    Pulley dia. 85.00
    Pulley dist. 44.50
    Radius 77.00
    D+ Size Plug
    Radius 2 77.00
    Regulator type IR
    Rotation CW
    Servicing Mitsubishi
    Grooves/pulley 1
    Voltage 28
    Total length 168.00 mm
    Width/holder arm 13.50
    Amp 20
  • Fordonsmatchning

    • OEM
      0-33000-5480, 0-33000-5510, 0-33000-5670, 0-33000-5700, 0-33000-6250, F032113212, LR22-027, 8-94404790-2, 600-821-3840, 600-821-3850, 8943388470, 8943388471

    • Konkurrentreferens
      ALT29002, CAL50620, DRA0326, DRA1324, LRA02531, 48-1849, 48-4822, 136.025.020, 500.143.204, 12243N, 12253N, 12323N, 111307

    • Normaliserat artikelnummer
      alt29002, cal50620, dra0326, dra1324, f032113212, lr22027, lra02531, 12243n, 12253n, 12323n, 111307, 481849, 484822, 136025020, 0330005480, 0330005510, 0330005670, 0330005700, 0330006250, 500143204, 6008213840, 6008213850, 8943388470, 8943388471, 8944047902

    • Passar modeller
      Mitsubishi Model: FD Model series: FD10 Approved: Yes
      Mitsubishi Model: FD Model series: FD15 Approved: Yes
      Mitsubishi Model: FD Model series: FD20 From date: 01-01-1983 Approved: Yes
      Mitsubishi Model: FD Model series: FD25 From date: 01-01-1983 To date: 01-01-1991 Approved: Yes
      Mitsubishi Model: FD Model series: FD30 From date: 01-01-1983 Approved: Yes
      Mitsubishi Model: FD Model series: FD35 Approved: Yes
      Mitsubishi Model: FDC Model series: FDC20 Approved: Yes
      Mitsubishi Model: FDC Model series: FDC25 Approved: Yes
      Mitsubishi Model: Various Models Model series: Various Models Approved: Yes
      1 / 2
