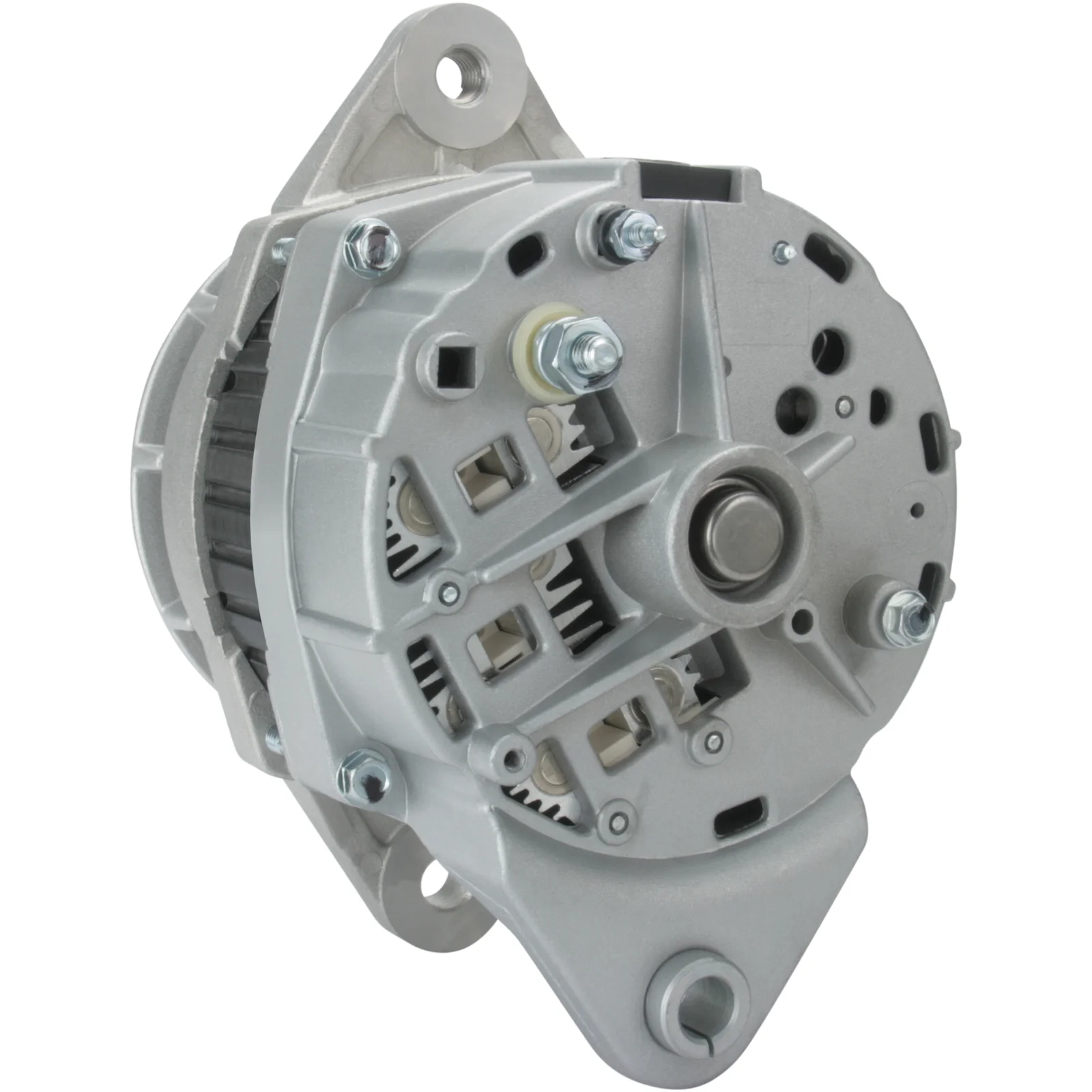

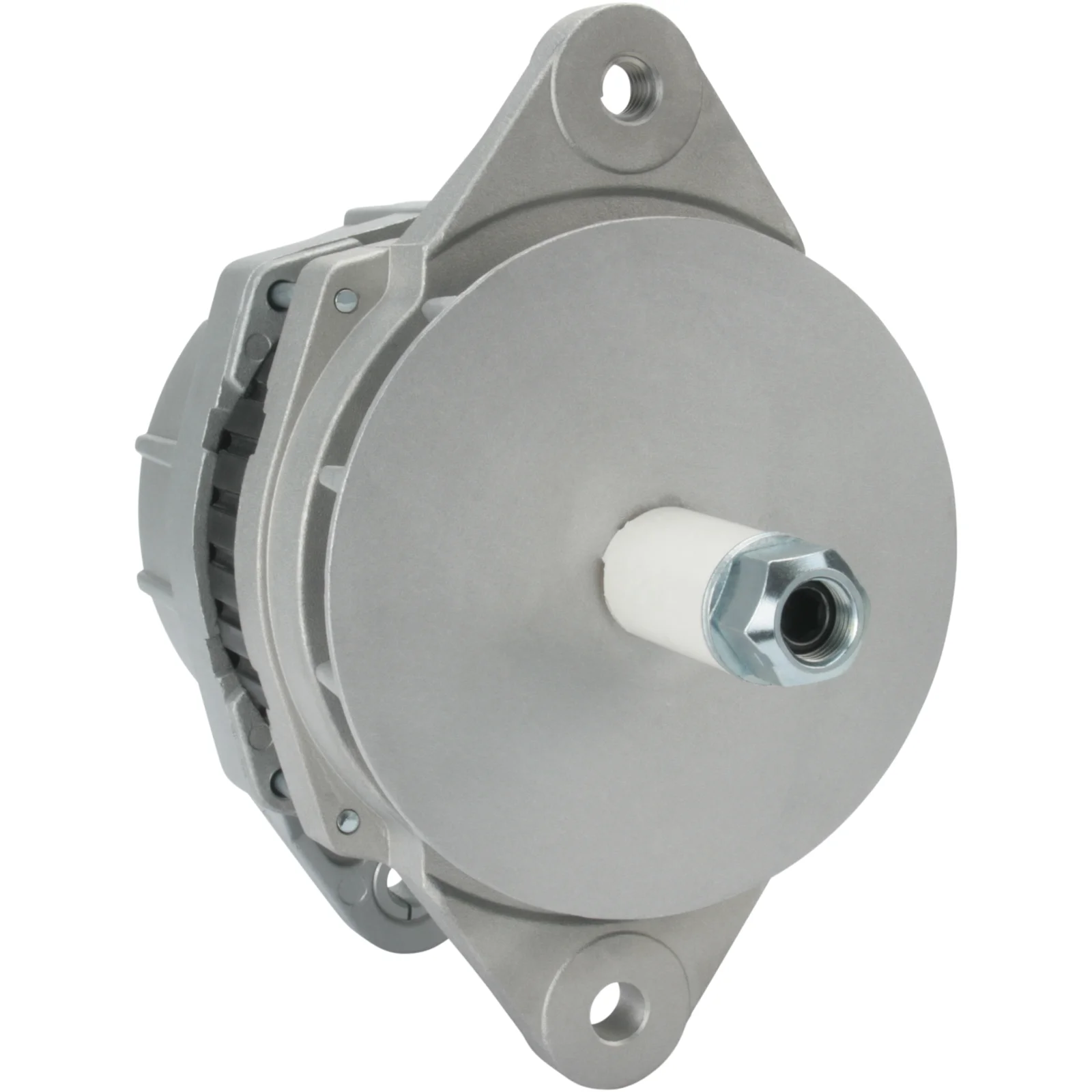

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032112992

HC-Cargo Generator

Teknisk info:

Voltage: 28, Amp: 70, Rotation: CW, Mount. bracket dist.: 101.50

Beskrivning

Voltage: 28
Amp: 70
Width/holder arm: 14.50
Mount. bracket dist.: 101.50
Bracket hole: 13.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 1/2" UNC
Radius: 98.00
Radius 2: 100.50
B+: 5/16" UNC
Position/B+ in min.: 50
Rotation: CW
Total length mm: 220.50
Pulley: w/o
Regulator type: IR
Prod. info: BN
Remarks: Replacing: 20SI. Negative grounding. One-wire system. B+: 5/16".

Filer

Specifikation

B+ 5/16" UNC
Mount. bracket dist. 101.50
Belt. adj. bracket hole 1 1/2" UNC
Belt. adj. brackethole pos. 60
Bracket hole 13.20
Position/B+ in min. 50
Prod. info BN
Pulley w/o
Radius 98.00
Radius 2 100.50
Regulator type IR
Remarks Replacing: 20SI. Negative grounding. One-wire system. B+: 5/16".
Rotation CW
Voltage 28
Total length 220.50 mm
Width/holder arm 14.50
Amp 70
  • Beskrivning
    Voltage: 28
    Amp: 70
    Width/holder arm: 14.50
    Mount. bracket dist.: 101.50
    Bracket hole: 13.20
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 1/2" UNC
    Radius: 98.00
    Radius 2: 100.50
    B+: 5/16" UNC
    Position/B+ in min.: 50
    Rotation: CW
    Total length mm: 220.50
    Pulley: w/o
    Regulator type: IR
    Prod. info: BN
    Remarks: Replacing: 20SI. Negative grounding. One-wire system. B+: 5/16".

    Filer

  • Specifikation
    B+ 5/16" UNC
    Mount. bracket dist. 101.50
    Belt. adj. bracket hole 1 1/2" UNC
    Belt. adj. brackethole pos. 60
    Bracket hole 13.20
    Position/B+ in min. 50
    Prod. info BN
    Pulley w/o
    Radius 98.00
    Radius 2 100.50
    Regulator type IR
    Remarks Replacing: 20SI. Negative grounding. One-wire system. B+: 5/16".
    Rotation CW
    Voltage 28
    Total length 220.50 mm
    Width/holder arm 14.50
    Amp 70
