Artikelnr: F032112265

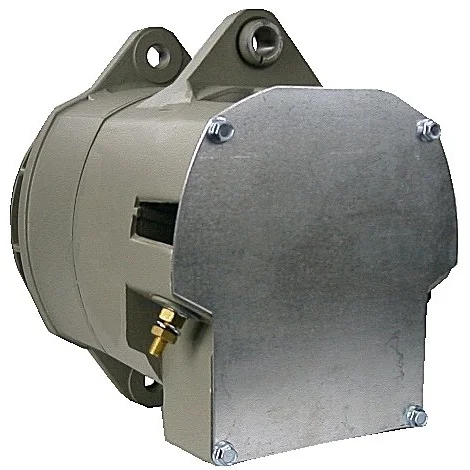

HC-Cargo Generator

Teknisk info:

Voltage: 28, Amp: 100, Rotation: CW, Mount. bracket dist.: 101.00

Beskrivning

Voltage: 28
Amp: 100
Width/holder arm: 13.80
Mount. bracket dist.: 101.00
Bracket hole: 13.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 1/2" UNC
Radius: 98.00
Radius 2: 98.00
B+: 1/4" UNF
Position/B+ in min.: 12
Rotation: CW
Total length mm: 268.00
Pulley: w/o
Prod. info: BN
Servicing: Cummins
Remarks: Replacing: 30SI. Negative grounding.

Filer

Specifikation

B+ 1/4" UNF
Mount. bracket dist. 101.00
Belt. adj. bracket hole 1 1/2" UNC
Belt. adj. brackethole pos. 60
Bracket hole 13.00
Position/B+ in min. 12
Prod. info BN
Pulley w/o
Radius 98.00
Radius 2 98.00
Remarks Replacing: 30SI. Negative grounding.
Rotation CW
Servicing Cummins
Voltage 28
Total length 268.00 mm
Width/holder arm 13.80
Amp 100

  • OEM
    F032112265, 9X7803, 10R-8755, 10R8755, 316-7251, 1117817, 1117828, 1117836, 3000347, 3056492, 3072483, 3604687RX, 10459057, 10461238

  • Konkurrentreferens
    A9044, ALT22010, ALT22011, BAX1441026, CAL60603, F042205241, LRA04507, 20-132, 20-132-1, 48-8616, 7965, 7965N, 7965R, 7975, 7975N, 42735, 119759

  • Normaliserat artikelnummer
    a9044, alt22010, alt22011, bax1441026, cal60603, f032112265, f042205241, lra04507, 9x7803, 10r8755, 7965, 7965n, 7965r, 7975, 7975n, 20132, 42735, 119759, 201321, 488616, 1117817, 1117828, 1117836, 3000347, 3056492, 3072483, 3167251, 3604687rx, 10459057, 10461238

  • Passar modeller
    Caterpillar Model: Engine Model series: 3176 Approved: Yes
    Cummins Model: B Series Model series: Engine Approved: Yes
    Cummins Model: C Series Model series: Engine Approved: Yes
    Cummins Model: Engine Model series: Engine Size of motor: 5.9 Approved: Yes
    Cummins Model: Engine Model series: Engine Size of motor: 8.3 Approved: Yes
    Cummins Model: K Series Model series: Engine Approved: Yes
    Cummins Model: L Series Model series: Engine Size of motor: 10.0 Approved: Yes
    Cummins Model: L Series Model series: Engine Size of motor: 14.0 Approved: Yes
