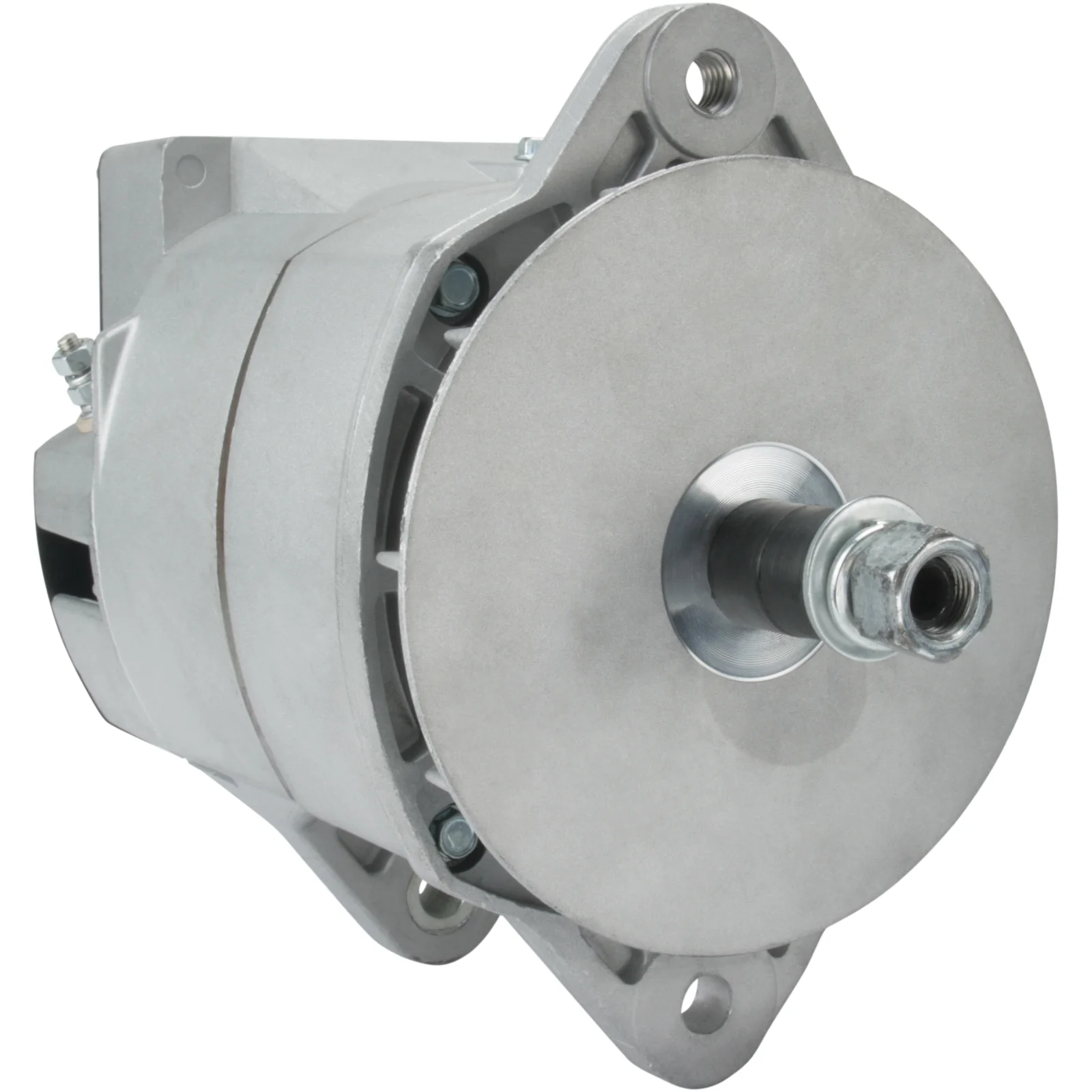

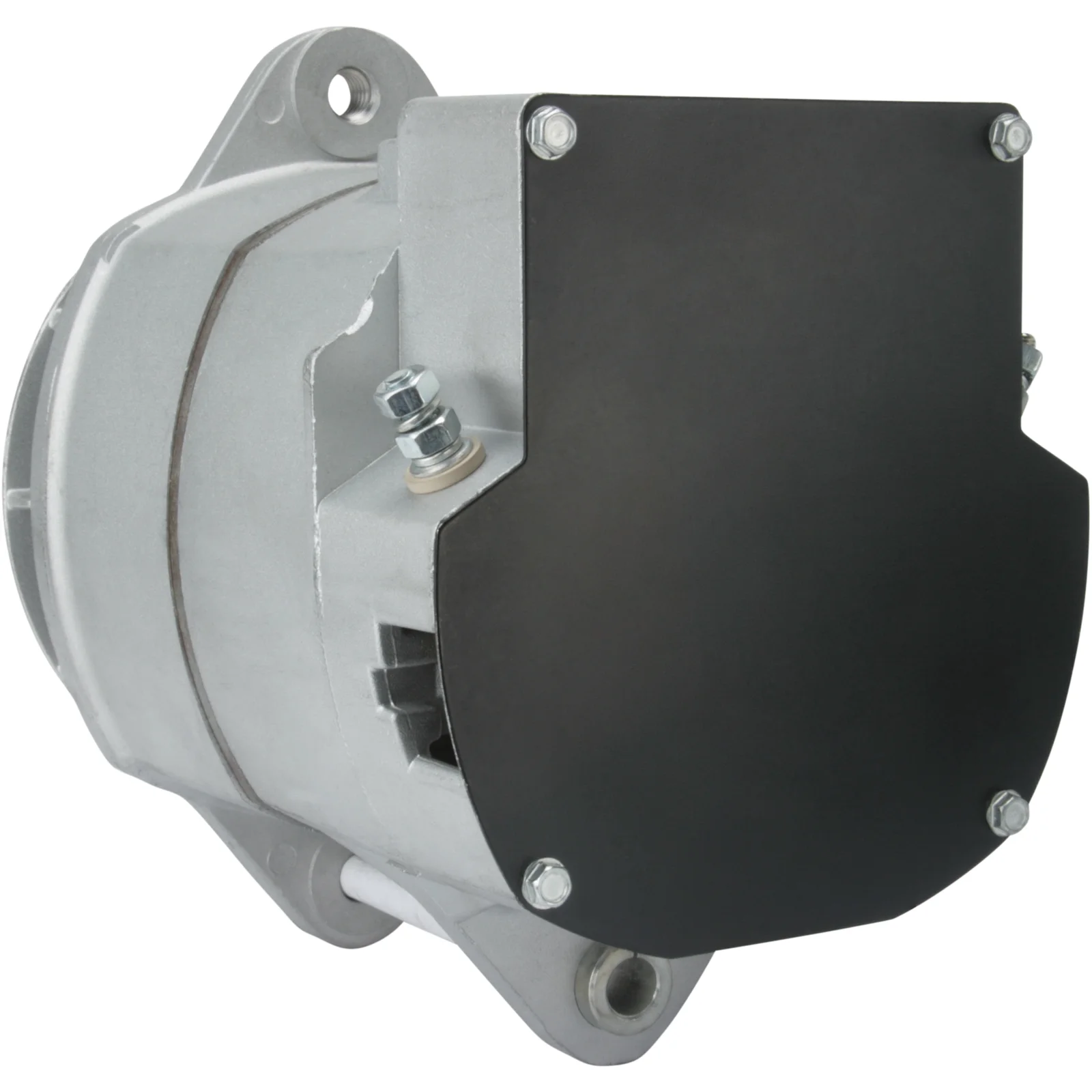

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032112261

HC-Cargo Generator

Teknisk info:

Voltage: 28, Amp: 60, Mount. bracket dist.: 101.00, Radius: 99.00

Beskrivning

Voltage: 28
Amp: 60
Insulated return: Yes
Width/holder arm: 14.00
Mount. bracket dist.: 101.00
Bracket hole: 13.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 1/2" UNC
Radius: 99.00
Radius 2: 99.00
B+: 1/4" UNF
Position/B+ in min.: 10
Total length mm: 268.00
One Wire hookup (Self exciting): Yes
Pulley: w/o
Regulator type: IR
Prod. info: BN
Servicing: Caterpillar
Info: Shaft 22.20 mm diameter
Remarks: Replacing: 30SI.

Filer

Specifikation

B+ 1/4" UNF
Mount. bracket dist. 101.00
Belt. adj. bracket hole 1 1/2" UNC
One Wire hookup (Self exciting) Yes
Belt. adj. brackethole pos. 60
Bracket hole 13.00
Position/B+ in min. 10
Prod. info BN
Pulley w/o
Radius 99.00
Radius 2 99.00
Regulator type IR
Remarks Replacing: 30SI.
Servicing Caterpillar
Info Shaft 22.20 mm diameter
Insulated return Yes
Voltage 28
Total length 268.00 mm
Width/holder arm 14.00
Amp 60

  • OEM
    0R5203, F032112261, OR3667, OR3669, 4n3986, 333-1184, 100211-0890, 100211-6100, 1005045, 1117734, 1117746, 1117805, 1117826, 1117831, 1117834, 1117838, 1142401, 3000347, 3000347rx, 3675103RX, 10459002, 10459057, 10461238

  • Konkurrentreferens
    ALT22009, BAO3277, BAX1441001, CAL11631, CAL60602, DRA0331, 48-0636, 646.001.060, 646.052.050, 7263, 7263N, 7263R, 7975N, 12060N, 75647, 1117734, 32992870, 32992877

  • Normaliserat artikelnummer
    0r5203, alt22009, bao3277, bax1441001, cal11631, cal60602, dra0331, f032112261, or3667, or3669, 4n3986, 7263, 7263n, 7263r, 7975n, 12060n, 75647, 480636, 1005045, 1117734, 1117746, 1117805, 1117826, 1117831, 1117834, 1117838, 1142401, 3000347, 3000347rx, 3331184, 3675103rx, 10459002, 10459057, 10461238, 32992870, 32992877, 646001060, 646052050, 1002110890, 1002116100

  • Passar modeller
    Caterpillar Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 28
    Amp: 60
    Insulated return: Yes
    Width/holder arm: 14.00
    Mount. bracket dist.: 101.00
    Bracket hole: 13.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 1/2" UNC
    Radius: 99.00
    Radius 2: 99.00
    B+: 1/4" UNF
    Position/B+ in min.: 10
    Total length mm: 268.00
    One Wire hookup (Self exciting): Yes
    Pulley: w/o
    Regulator type: IR
    Prod. info: BN
    Servicing: Caterpillar
    Info: Shaft 22.20 mm diameter
    Remarks: Replacing: 30SI.

    Filer

  • Specifikation
    B+ 1/4" UNF
    Mount. bracket dist. 101.00
    Belt. adj. bracket hole 1 1/2" UNC
    One Wire hookup (Self exciting) Yes
    Belt. adj. brackethole pos. 60
    Bracket hole 13.00
    Position/B+ in min. 10
    Prod. info BN
    Pulley w/o
    Radius 99.00
    Radius 2 99.00
    Regulator type IR
    Remarks Replacing: 30SI.
    Servicing Caterpillar
    Info Shaft 22.20 mm diameter
    Insulated return Yes
    Voltage 28
    Total length 268.00 mm
    Width/holder arm 14.00
    Amp 60
  • Fordonsmatchning

    • OEM
      0R5203, F032112261, OR3667, OR3669, 4n3986, 333-1184, 100211-0890, 100211-6100, 1005045, 1117734, 1117746, 1117805, 1117826, 1117831, 1117834, 1117838, 1142401, 3000347, 3000347rx, 3675103RX, 10459002, 10459057, 10461238

    • Konkurrentreferens
      ALT22009, BAO3277, BAX1441001, CAL11631, CAL60602, DRA0331, 48-0636, 646.001.060, 646.052.050, 7263, 7263N, 7263R, 7975N, 12060N, 75647, 1117734, 32992870, 32992877

    • Normaliserat artikelnummer
      0r5203, alt22009, bao3277, bax1441001, cal11631, cal60602, dra0331, f032112261, or3667, or3669, 4n3986, 7263, 7263n, 7263r, 7975n, 12060n, 75647, 480636, 1005045, 1117734, 1117746, 1117805, 1117826, 1117831, 1117834, 1117838, 1142401, 3000347, 3000347rx, 3331184, 3675103rx, 10459002, 10459057, 10461238, 32992870, 32992877, 646001060, 646052050, 1002110890, 1002116100

    • Passar modeller
      Caterpillar Model: Various Models Model series: Various Models Approved: Yes
