Artikelnr: F032112210

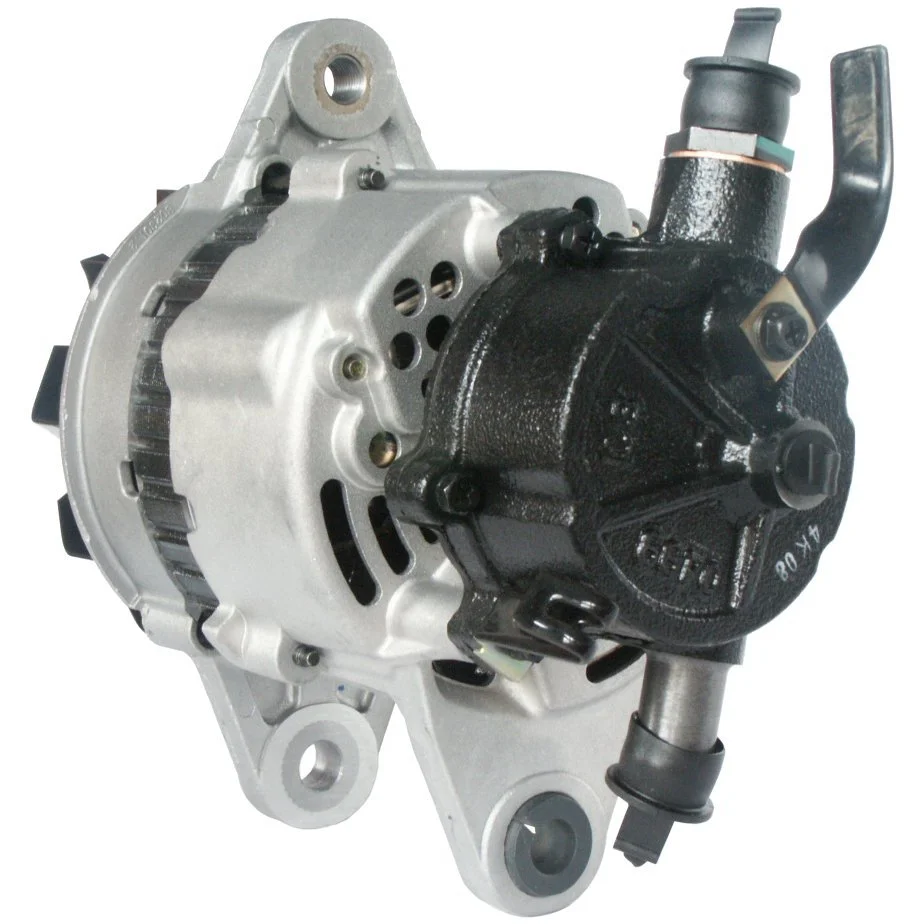

HC-Cargo Generator

Teknisk info:

Voltage: 28, Amp: 30, Rotation: CW, Mount. bracket dist.: 81.00

Beskrivning

Voltage: 28
Amp: 30
Pulley dist.: 44.00
Width/holder arm: 13.30
Mount. bracket dist.: 81.00
Bracket hole: 12.60
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M12
Pulley dia.: 84.30
Grooves/pulley: 1
Radius: 90.00
Radius 2: 85.00
B+: M5
Position/B+ in min.: 7
D+ Size: Plug
Rotation: CW
Plug no.: PL09
Total length mm: 229.50
Pulley: P
Regulator type: IR
Vac. pump: Yes
Prod. info: BN
Servicing: Mitsubishi

Filer

Specifikation

B+ M5
Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 M12
Belt. adj. brackethole pos. 60
Plug no. PL09
Bracket hole 12.60
Position/B+ in min. 7
Prod. info BN
Pulley P
Pulley dia. 84.30
Pulley dist. 44.00
Radius 90.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Mitsubishi
Grooves/pulley 1
Vac. pump Yes
Voltage 28
Total length 229.50 mm
Width/holder arm 13.30
Amp 30

  • OEM
    A002T72383, a2t72383, F032112210, ja1427ir, me017562

  • Konkurrentreferens
    A5278, dra3189, DRA3874, LRA02421, 8EL012584-421, 8el737720-001, 48-0710, 226.114.304, 5805, 12551N, 119839, 401427RI, 12060154, 0986080160

  • Normaliserat artikelnummer
    a002t72383, a2t72383, a5278, dra3189, dra3874, f032112210, ja1427ir, lra02421, me017562, 8el012584421, 8el737720001, 5805, 12551n, 119839, 401427ri, 480710, 12060154, 226114304, 0986080160

  • Passar modeller
    Mitsubishi Model: Canter Model series: Canter 60 Size of motor: 3.3 Brand of engine: 4D31T Body: Dump Truck From date: 01-07-1986 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Canter Model series: Canter 60 Size of motor: 3.3 Brand of engine: 4D31T Body: Platform / Chassis From date: 01-07-1986 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 28
    Amp: 30
    Pulley dist.: 44.00
    Width/holder arm: 13.30
    Mount. bracket dist.: 81.00
    Bracket hole: 12.60
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M12
    Pulley dia.: 84.30
    Grooves/pulley: 1
    Radius: 90.00
    Radius 2: 85.00
    B+: M5
    Position/B+ in min.: 7
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL09
    Total length mm: 229.50
    Pulley: P
    Regulator type: IR
    Vac. pump: Yes
    Prod. info: BN
    Servicing: Mitsubishi

    Filer

  • Specifikation
    B+ M5
    Mount. bracket dist. 81.00
    Belt. adj. bracket hole 1 M12
    Belt. adj. brackethole pos. 60
    Plug no. PL09
    Bracket hole 12.60
    Position/B+ in min. 7
    Prod. info BN
    Pulley P
    Pulley dia. 84.30
    Pulley dist. 44.00
    Radius 90.00
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Servicing Mitsubishi
    Grooves/pulley 1
    Vac. pump Yes
    Voltage 28
    Total length 229.50 mm
    Width/holder arm 13.30
    Amp 30
  • Fordonsmatchning

    • OEM
      A002T72383, a2t72383, F032112210, ja1427ir, me017562

    • Konkurrentreferens
      A5278, dra3189, DRA3874, LRA02421, 8EL012584-421, 8el737720-001, 48-0710, 226.114.304, 5805, 12551N, 119839, 401427RI, 12060154, 0986080160

    • Normaliserat artikelnummer
      a002t72383, a2t72383, a5278, dra3189, dra3874, f032112210, ja1427ir, lra02421, me017562, 8el012584421, 8el737720001, 5805, 12551n, 119839, 401427ri, 480710, 12060154, 226114304, 0986080160

    • Passar modeller
      Mitsubishi Model: Canter Model series: Canter 60 Size of motor: 3.3 Brand of engine: 4D31T Body: Dump Truck From date: 01-07-1986 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Canter Model series: Canter 60 Size of motor: 3.3 Brand of engine: 4D31T Body: Platform / Chassis From date: 01-07-1986 Fuel: Diesel Approved: Yes
