HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032112170

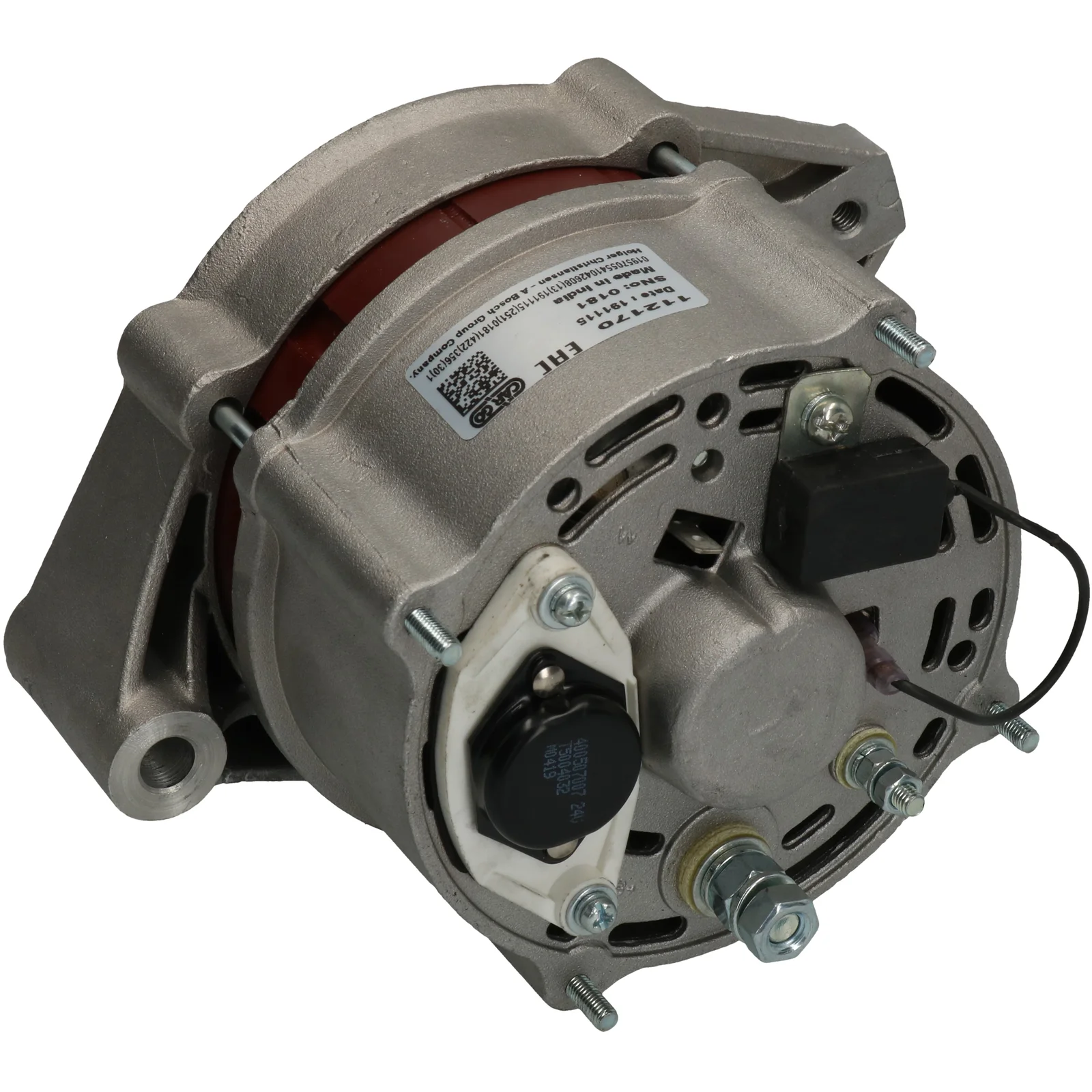

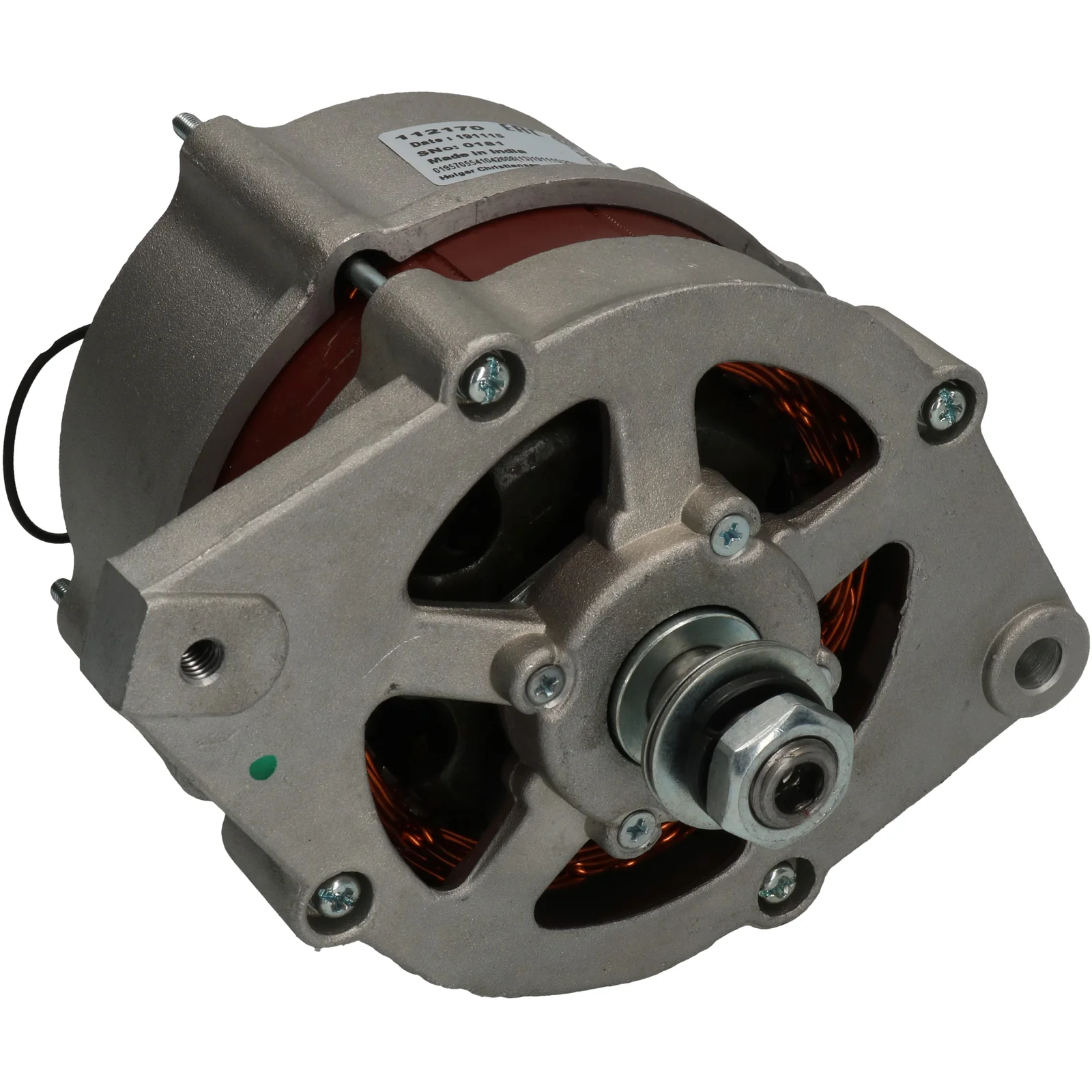

HC-Cargo Generator

Teknisk info:

Voltage: 28, Amp: 45, Rotation: CW, Radius: 84.00

Beskrivning

Voltage: 28
Amp: 45
Terminal: W
Width/holder arm: 51.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Radius: 84.00
Radius 2: 86.50
B+: M8
Position/B+ in min.: 50
D+ Size: M4
Rotation: CW
W plug type: M5
Total length mm: 172.50
Pulley: w/o
Fan: EF
Regulator type: IR
Prod. info: BN
Servicing: Case
Remarks: Dustproof

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Bracket hole 10.00
Position/B+ in min. 50
Prod. info BN
Pulley w/o
Radius 84.00
D+ Size M4
Radius 2 86.50
Regulator type IR
Remarks Dustproof
Rotation CW
Servicing Case
Fan EF
Terminal W
Voltage 28
W plug type M5
Total length 172.50 mm
Width/holder arm 51.00
Amp 45

  • OEM
    A187916, aak1387, aak3336, AL12148, AR187916, at161324, AT175195, AT221116, AT228217, F032112170, P941518P, P941542, PO9415420, RE161324, RE507631, RE537146, TY24322, ty6774, 11.201.759, 11.201.941, 714-31500, 501341, 501835, 3020678, 3144988R93, 3284392, 3911247, 3920678, 3939028, 84172866, 0120488206, 0120488294, 0120489071, 0120489481

  • Konkurrentreferens
    A0185, A9246(LETRIKA), al9940x, al9948x, ALT-2122, ALT20013, ALT20014, BAO3054, CAL10642, F042301136, F042A01136, ia0759, LRA02495, LRA03760, MG568, MG84, 1-2518-41BO, 48-3684, 48-6870, 585.101.454, 585.104.454, 12147, 12147N, 12148, 12148N, 12148R, 12587N, 209020, 209020A, 553043RI, 12090405, 0986043257, 0986043404, 063534882060

  • Normaliserat artikelnummer
    a0185, a187916, a9246letrika, aak1387, aak3336, al12148, al9940x, al9948x, alt20013, alt20014, alt2122, ar187916, at161324, at175195, at221116, at228217, bao3054, cal10642, f032112170, f042301136, f042a01136, ia0759, lra02495, lra03760, mg568, mg84, p941518p, p941542, po9415420, re161324, re507631, re537146, ty24322, ty6774, 12147, 12147n, 12148, 12148n, 12148r, 12587n, 209020, 209020a, 483684, 486870, 501341, 501835, 553043ri, 1251841bo, 3020678, 3144988r93, 3284392, 3911247, 3920678, 3939028, 11201759, 11201941, 12090405, 71431500, 84172866, 0120488206, 0120488294, 0120489071, 0120489481, 585101454, 585104454, 0986043257, 0986043404, 063534882060

  • Passar modeller
    Case Model: 1000 Series Model series: 1150 From date: 01-01-1989 To date: 01-01-1994 Approved: Yes
    Case Model: 1000 Series Model series: 1150 Model type: E/G From date: 01-01-1989 To date: 01-01-1994 Approved: Yes
    Case Model: 400 Series Model series: 455 From date: 01-01-1989 To date: 01-01-1994 Approved: Yes
    Case Model: 800 Series Model series: 850 Model type: G/D/E From date: 01-01-1989 To date: 01-01-1994 Approved: Yes
    Case Model: 900 Series Model series: 988 Approved: Yes
    Case Model: Various Models Model series: Various Models Approved: Yes
    John Deere Model: Engine Brand of engine: 4045DFM70 Approved: Yes
    Komatsu Model: Various Models Model series: Various Models From date: 01-01-1988 Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 28
    Amp: 45
    Terminal: W
    Width/holder arm: 51.00
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Radius: 84.00
    Radius 2: 86.50
    B+: M8
    Position/B+ in min.: 50
    D+ Size: M4
    Rotation: CW
    W plug type: M5
    Total length mm: 172.50
    Pulley: w/o
    Fan: EF
    Regulator type: IR
    Prod. info: BN
    Servicing: Case
    Remarks: Dustproof

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Bracket hole 10.00
    Position/B+ in min. 50
    Prod. info BN
    Pulley w/o
    Radius 84.00
    D+ Size M4
    Radius 2 86.50
    Regulator type IR
    Remarks Dustproof
    Rotation CW
    Servicing Case
    Fan EF
    Terminal W
    Voltage 28
    W plug type M5
    Total length 172.50 mm
    Width/holder arm 51.00
    Amp 45
  • Fordonsmatchning

    • OEM
      A187916, aak1387, aak3336, AL12148, AR187916, at161324, AT175195, AT221116, AT228217, F032112170, P941518P, P941542, PO9415420, RE161324, RE507631, RE537146, TY24322, ty6774, 11.201.759, 11.201.941, 714-31500, 501341, 501835, 3020678, 3144988R93, 3284392, 3911247, 3920678, 3939028, 84172866, 0120488206, 0120488294, 0120489071, 0120489481

    • Konkurrentreferens
      A0185, A9246(LETRIKA), al9940x, al9948x, ALT-2122, ALT20013, ALT20014, BAO3054, CAL10642, F042301136, F042A01136, ia0759, LRA02495, LRA03760, MG568, MG84, 1-2518-41BO, 48-3684, 48-6870, 585.101.454, 585.104.454, 12147, 12147N, 12148, 12148N, 12148R, 12587N, 209020, 209020A, 553043RI, 12090405, 0986043257, 0986043404, 063534882060

    • Normaliserat artikelnummer
      a0185, a187916, a9246letrika, aak1387, aak3336, al12148, al9940x, al9948x, alt20013, alt20014, alt2122, ar187916, at161324, at175195, at221116, at228217, bao3054, cal10642, f032112170, f042301136, f042a01136, ia0759, lra02495, lra03760, mg568, mg84, p941518p, p941542, po9415420, re161324, re507631, re537146, ty24322, ty6774, 12147, 12147n, 12148, 12148n, 12148r, 12587n, 209020, 209020a, 483684, 486870, 501341, 501835, 553043ri, 1251841bo, 3020678, 3144988r93, 3284392, 3911247, 3920678, 3939028, 11201759, 11201941, 12090405, 71431500, 84172866, 0120488206, 0120488294, 0120489071, 0120489481, 585101454, 585104454, 0986043257, 0986043404, 063534882060

    • Passar modeller
      Case Model: 1000 Series Model series: 1150 From date: 01-01-1989 To date: 01-01-1994 Approved: Yes
      Case Model: 1000 Series Model series: 1150 Model type: E/G From date: 01-01-1989 To date: 01-01-1994 Approved: Yes
      Case Model: 400 Series Model series: 455 From date: 01-01-1989 To date: 01-01-1994 Approved: Yes
      Case Model: 800 Series Model series: 850 Model type: G/D/E From date: 01-01-1989 To date: 01-01-1994 Approved: Yes
      Case Model: 900 Series Model series: 988 Approved: Yes
      Case Model: Various Models Model series: Various Models Approved: Yes
      John Deere Model: Engine Brand of engine: 4045DFM70 Approved: Yes
      Komatsu Model: Various Models Model series: Various Models From date: 01-01-1988 Approved: Yes
      1 / 2
