Artikelnr: F032112160

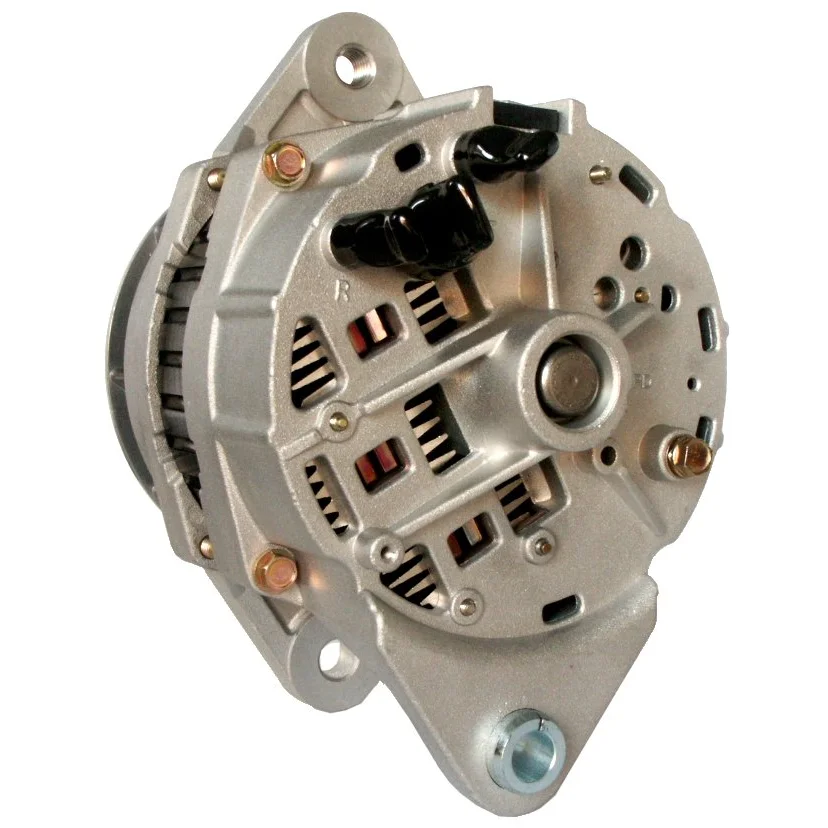

HC-Cargo Generator

Teknisk info:

Voltage: 28, Amp: 75, Rotation: CW, Mount. bracket dist.: 101.50

Beskrivning

Delco Generator 24V-70A 24V - 70A För Yourex produkt order GE-8003

Voltage: 28
Amp: 75
Width/holder arm: 14.20
Mount. bracket dist.: 101.50
Bracket hole: 13.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 1/2" UNC
Radius: 98.00
Radius 2: 98.00
B+: M6
Position/B+ in min.: 53
D+ Size: M4
Rotation: CW
Total length mm: 215.50
One Wire hookup (Self exciting): Yes
Pulley: w/o
Regulator type: IR
Prod. info: BN
Servicing: Cummins
Remarks: Replacing: 21SI. One wire system.

Specifikation

B+ M6
Mount. bracket dist. 101.50
Belt. adj. bracket hole 1 1/2" UNC
One Wire hookup (Self exciting) Yes
Belt. adj. brackethole pos. 60
Bracket hole 13.00
Position/B+ in min. 53
Prod. info BN
Pulley w/o
Radius 98.00
D+ Size M4
Radius 2 98.00
Regulator type IR
Remarks Replacing: 21SI. One wire system.
Rotation CW
Servicing Cummins
Voltage 28
Total length 215.50 mm
Width/holder arm 14.20
Amp 75
  • OEM

    0-35000-0390, 0-35000-0391, 0-35000-0392, 0-35000-0402, 0-35000-0460, 0-35000-0461, 0-35000-0462, 0-35000-0471, 0-35000-0480, 0R8279, CU 3923624, F032112160, F054034, F434805, MDA3946, T 107-7977, ua1620ir, 21EA-00040, 107-7977, 0120 468 054, 0120 468 147, 132-2156, 600-825-3120, 600-825-3150, 600-825-3151, 600-825-3160, 600-825-3161, 600-861-3111, 1022-03500, 1022-03510, 11087, 219072, 219079, 860568, 1117897, 1117900, 1305787H91, 1307203H1, 3251135, 3675174RX, 3675201RX, 3675226RX, 3675242rx, 3920617, 3920618, 3920618RX, 3935530, 3935531, 3935538, 4000590, 10459026, 10459261, 10459306, 10459311, 10459333, 19010108, 19010111, 19010148, 19010182, 19010185, 19010193, 19010195, 19010199, 19010200, 19011192, 19011210, 19020307, 19020346, 19020376, 19020382, 19020383, 19020391, 76085195, 0986081030
  • Konkurrentreferens

    A1018, adr0047, adr271, ALT-1101, ALT-1101A, ALT1101, ALT1101A, ALT1102, ALT22000, ALT22003, ALT22004, ALT22014, ALT40021, BAO3160, BAO3276, CAL50622, CAL60606, CAL60607, CAL60608, CAL60609, CAL60612, CAL60613, CAL60628, F042300062, F042300063, F042300064, F042300203, F042A00062, F042A00063, F042A00064, F042A00203, GA11100, LRA02997, 1-2291-00DR, 1-2291-00DR-1, 20-1114, 48-5610, 48-7555, 646.003.050, 646.051.075, 946.027.035, 946.028.035, 7197N, 7197R, 7642, 8003, 8003N, 8003R, 8367N, 8367R, 12259N, 42704, 42704P, 111284, 209280, 209280A, 501620RI, 554404RI, 726991, 12090149
  • Bilmärken

    Caterpillar, Consolidated Diesel, Daewoo, JCB, mm., Samsung
  • Normaliserat artikelnummer

    0r8279, a1018, adr0047, adr271, alt1101, alt1101a, alt1102, alt22000, alt22003, alt22004, alt22014, alt40021, bao3160, bao3276, cal50622, cal60606, cal60607, cal60608, cal60609, cal60612, cal60613, cal60628, cu3923624, f032112160, f042300062, f042300063, f042300064, f042300203, f042a00062, f042a00063, f042a00064, f042a00203, f054034, f434805, ga11100, lra02997, mda3946, t1077977, ua1620ir, 21ea00040, 7197n, 7197r, 7642, 8003, 8003n, 8003r, 8367n, 8367r, 11087, 12259n, 42704, 42704p, 111284, 201114, 209280, 209280a, 219072, 219079, 485610, 487555, 501620ri, 554404ri, 726991, 860568, 1077977, 1117897, 1117900, 1229100dr, 1229100dr1, 1305787h91, 1307203h1, 1322156, 3251135, 3675174rx, 3675201rx, 3675226rx, 3675242rx, 3920617, 3920618, 3920618rx, 3935530, 3935531, 3935538, 4000590, 10459026, 10459261, 10459306, 10459311, 10459333, 12090149, 19010108, 19010111, 19010148, 19010182, 19010185, 19010193, 19010195, 19010199, 19010200, 19011192, 19011210, 19020307, 19020346, 19020376, 19020382, 19020383, 19020391, 76085195, 102203500, 102203510, 0120468054, 0120468147, 0350000390, 0350000391, 0350000392, 0350000402, 0350000460, 0350000461, 0350000462, 0350000471, 0350000480, 646003050, 646051075, 946027035, 946028035, 0986081030, 6008253120, 6008253150, 6008253151, 6008253160, 6008253161, 6008613111
  • Passar modeller

    Caterpillar Series: Loaders Model: 970 F Engine type: gen. 24V-70A; 21SI Year: 00.98-
    Caterpillar Series: Loaders Model: 972G Engine type: 3306
    Consolidated Diesel Model: 4B 3.9L Engine type: gen.24V-70A; 21 SI Year: 00.92-
    Consolidated Diesel Model: 6B 5.9L Engine type: gen.24V-70A; 21 SI Year: 00.92-
    Consolidated Diesel Model: 6C 8.3L Engine type: gen.24V-70A; 21 SI Year: 00.92-
    Consolidated Diesel Series: C Engine type: gen.24V-70A; 21 SI Year: 00.92-
    Cummins Model: K Series Model series: Engine Approved: Yes
    Doosan Series: Excavator Year: 00.89-
    International Harv. Model: CM-Serie Model series: 1455 A Size of motor: 6.6 Brand of engine: DT-402 Body: Tractor From date: 01-01-1979 To date: 01-12-1996 Fuel: Diesel Approved: Yes
    JCB Series: 718 Model: Dumper Engine type: Cummins
    John Deere Model: 800 Model series: 853G Size of motor: 8.3 Brand of engine: 6CTA From date: 01-01-1998 Approved: Yes
    John Deere Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    Komatsu Model: PC Model series: PC300HD Brand of engine: SA6D114E-1 Approved: Yes
    Komatsu Model: PC40MR-3 Model series: PC40MR-3 Model type: Excavators Brand of engine: 4D88E-6 Approved: Yes
    Komatsu Model: PC45MR-3 Model series: PC45MR-3 Model type: Excavators Brand of engine: 4D88E-6 Approved: Yes
    Komatsu Model: PC45MR-5 Model series: PC45MR-5 Model type: Excavators Brand of engine: 4D88E-6 Approved: Yes
    Komatsu Model: PC55MR-3 Model series: PC55MR-3 Model type: Excavators Brand of engine: 4D88E-6 Approved: Yes
    Komatsu Model: PC55MR-5 Model series: PC55MR-5 Model type: Excavators Brand of engine: 4D88E-6 Approved: Yes
    Komatsu Model: PC58UU-5 Model series: PC58UU-5 Model type: Excavators Brand of engine: 4D88E-6 Approved: Yes
    Komatsu Model: PC58UU-6 Model series: PC58UU-6 Model type: Excavators Brand of engine: 4D88E-6 Approved: Yes
    Komatsu Model: WA Model series: WA180 Brand of engine: S6D102E-1 Approved: Yes
    Komatsu Model: WA40/50 Model series: WA40/50 Model type: Wheel Loaders and Dozers Brand of engine: 4D88E-6 Approved: Yes
    Komatsu Series: Grävmaskin Model: PC 600 LC-6 Engine type: N 18
    New Holland Model: EC Model series: EC130 Brand of engine: 4BT3.9 From date: 01-01-2000 Approved: Yes
    New Holland Model: EC Model series: EC160 Brand of engine: 4BT3.9 From date: 01-01-2000 Approved: Yes
    New Holland Model: EC Model series: EC215 Brand of engine: 6BTA5.9 From date: 01-01-2000 Approved: Yes
    Samsung Series: Excavator Model: EC 140 Engine type: Cummins B3-9C Year: 01.98-
    Samsung Series: Excavator Model: EC 210 Engine type: Cummins B5-9C Year: 01.98-
    Samsung Series: Excavator Model: EC 240, 290 Engine type: Cummins M8-3C Year: 01.98-
    Samsung Series: Excavator Model: EC 360, 460 Engine type: Cummins M11-C Year: 01.98-
    Samsung Series: Excavator Model: SE 130, 170 Engine type: Cummins Year: 01.92-
    Samsung Series: Excavator Model: SE 210, 240, 280 Engine type: Cummins Year: 01.92-
    Samsung Series: Excavator Model: SE 350, 450 Engine type: Cummins Year: 01.92-
    Timberjack Model: 2618 Model series: 2618 From date: 01-01-1995 Approved: Yes
    Timberjack Model: 2628 Model series: 2628 From date: 01-01-1995 Approved: Yes
    Timberjack Model: 608 Model series: 608 From date: 01-01-1995 Approved: Yes
    Timberjack Model: 618 Model series: 618 From date: 01-01-1995 Approved: Yes
    Timberjack Model: 628 Model series: 628 From date: 01-01-1995 Approved: Yes
    Timberjack Model: 850 Model series: 850 From date: 01-01-1998 Approved: Yes
    Timberjack Model: 950 Model series: 950 From date: 01-01-1998 Approved: Yes
