Artikelnr: F032111569

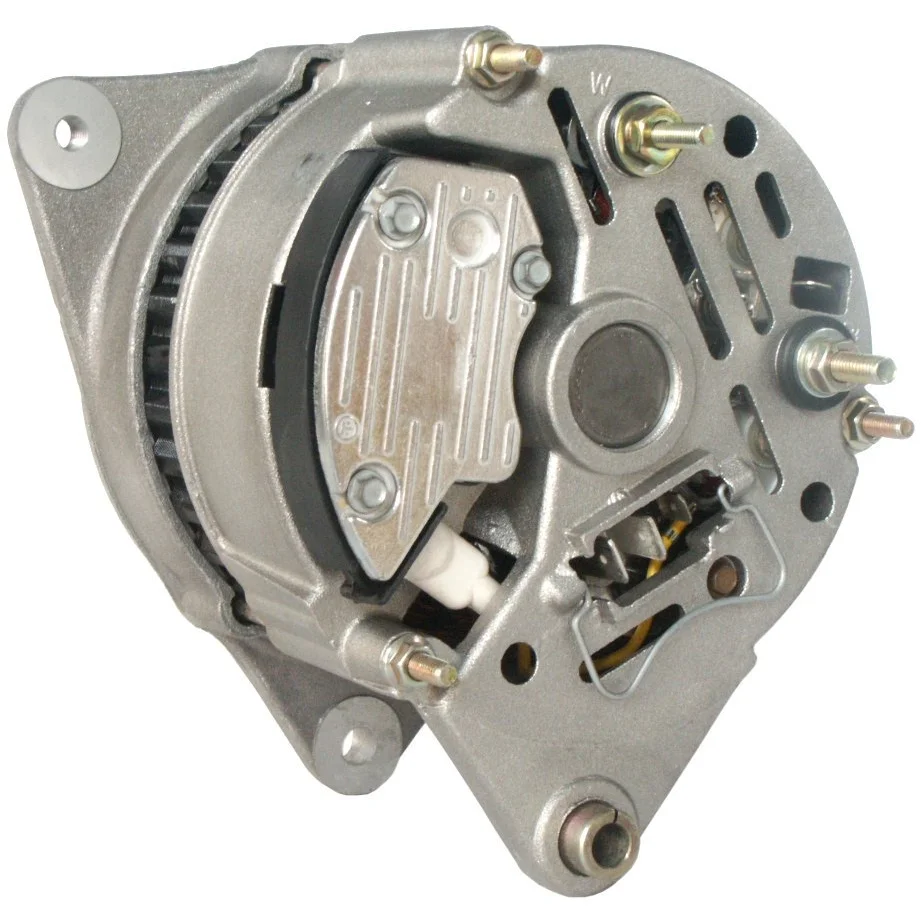

HC-Cargo Generator

Teknisk info:

Voltage: 28, Amp: 30, Rotation: CW, Mount. bracket dist.: 82.80

Beskrivning

Voltage: 28
Amp: 30
Terminal: W
Width/holder arm: 11.70
Mount. bracket dist.: 82.80
Bracket hole: 8.20
Belt. adj. brackethole pos.: 10
Belt. adj. bracket hole 1: M8
Radius: 86.00
Radius 2: 86.00
B+: M6
Position/B+ in min.: 14
D+ Size: Plug
Rotation: CW
Plug no.: PL22
W plug type: M5
Total length mm: 176.00
Pulley: w/o
Fan: EF
Regulator type: IR
Prod. info: BN
Servicing: DAF
Remarks: 55 A: HC-CARGO 116475

Filer

Specifikation

B+ M6
Mount. bracket dist. 82.80
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 10
Plug no. PL22
Bracket hole 8.20
Position/B+ in min. 14
Prod. info BN
Pulley w/o
Radius 86.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Remarks 55 A: HC-CARGO 116475
Rotation CW
Servicing DAF
Fan EF
Terminal W
Voltage 28
W plug type M5
Total length 176.00 mm
Width/holder arm 11.70
Amp 30

  • OEM
    AELB710, F032111569, 1050ir, 2871a007, 2871a651, 24299, 24406, 24413, 54022415, 54022578, 54022619, 54022711

  • Konkurrentreferens
    A4010, ALT25000, ALT25000AN, BAO3091, CAL25600, dra3553, lra00935, 8EL012584-281, 8el732875-001, 48-2922, 5023, 12428N, 119513, 210060, 210060A, 301050RI, 440131, 9990485, 12090138, 0986080850

  • Normaliserat artikelnummer
    a4010, aelb710, alt25000, alt25000an, bao3091, cal25600, dra3553, f032111569, lra00935, 8el012584281, 8el732875001, 1050ir, 2871a007, 2871a651, 5023, 12428n, 24299, 24406, 24413, 119513, 210060, 210060a, 301050ri, 440131, 482922, 9990485, 12090138, 54022415, 54022578, 54022619, 54022711, 0986080850

  • Passar modeller
    DAF Model: 45 Model series: 45.130 Size of motor: 5.9 Brand of engine: CN96 Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    DAF Model: 45 Model series: 45.130 Size of motor: 5.9 Brand of engine: CS97M Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    DAF Model: 45 Model series: 45.130 Size of motor: 5.9 Brand of engine: CT97 Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    DAF Model: 45 Model series: 45.160 Size of motor: 5.9 Brand of engine: CS119 Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
    DAF Model: 45 Model series: 45.160 Size of motor: 5.9 Brand of engine: CT119 Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 28
    Amp: 30
    Terminal: W
    Width/holder arm: 11.70
    Mount. bracket dist.: 82.80
    Bracket hole: 8.20
    Belt. adj. brackethole pos.: 10
    Belt. adj. bracket hole 1: M8
    Radius: 86.00
    Radius 2: 86.00
    B+: M6
    Position/B+ in min.: 14
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL22
    W plug type: M5
    Total length mm: 176.00
    Pulley: w/o
    Fan: EF
    Regulator type: IR
    Prod. info: BN
    Servicing: DAF
    Remarks: 55 A: HC-CARGO 116475

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 82.80
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 10
    Plug no. PL22
    Bracket hole 8.20
    Position/B+ in min. 14
    Prod. info BN
    Pulley w/o
    Radius 86.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Remarks 55 A: HC-CARGO 116475
    Rotation CW
    Servicing DAF
    Fan EF
    Terminal W
    Voltage 28
    W plug type M5
    Total length 176.00 mm
    Width/holder arm 11.70
    Amp 30
  • Fordonsmatchning

    • OEM
      AELB710, F032111569, 1050ir, 2871a007, 2871a651, 24299, 24406, 24413, 54022415, 54022578, 54022619, 54022711

    • Konkurrentreferens
      A4010, ALT25000, ALT25000AN, BAO3091, CAL25600, dra3553, lra00935, 8EL012584-281, 8el732875-001, 48-2922, 5023, 12428N, 119513, 210060, 210060A, 301050RI, 440131, 9990485, 12090138, 0986080850

    • Normaliserat artikelnummer
      a4010, aelb710, alt25000, alt25000an, bao3091, cal25600, dra3553, f032111569, lra00935, 8el012584281, 8el732875001, 1050ir, 2871a007, 2871a651, 5023, 12428n, 24299, 24406, 24413, 119513, 210060, 210060a, 301050ri, 440131, 482922, 9990485, 12090138, 54022415, 54022578, 54022619, 54022711, 0986080850

    • Passar modeller
      DAF Model: 45 Model series: 45.130 Size of motor: 5.9 Brand of engine: CN96 Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      DAF Model: 45 Model series: 45.130 Size of motor: 5.9 Brand of engine: CS97M Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      DAF Model: 45 Model series: 45.130 Size of motor: 5.9 Brand of engine: CT97 Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      DAF Model: 45 Model series: 45.160 Size of motor: 5.9 Brand of engine: CS119 Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
      DAF Model: 45 Model series: 45.160 Size of motor: 5.9 Brand of engine: CT119 Body: Platform / Chassis From date: 01-05-1991 To date: 01-12-2000 Fuel: Diesel Approved: Yes
