Artikelnr: F032110977

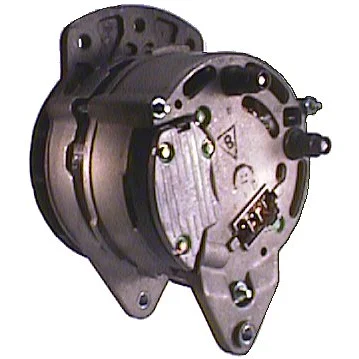

HC-Cargo Generator

Teknisk info:

Voltage: 28, Amp: 35, Rotation: CW, Mount. bracket dist.: 84.00

Beskrivning

Voltage: 28
Amp: 35
Terminal: W
Pulley dist.: 41.80
Width/holder arm: 11.00
Mount. bracket dist.: 84.00
Bracket hole: 8.20
Belt. adj. brackethole pos.: 55
Belt. adj. brackethole pos. 3: 5
Belt. adj. brackethole pos. 2: 60
Belt. adj. bracket hole 1: 8.30
Belt. adj. bracket hole 2: 8.30
Belt. adj. bracket hole 3: 8.30
Pulley dia.: 71.50
Grooves/pulley: 1
Radius: 87.50
Radius 2: 83.00
Radius 3: 82.00
Radius 4: 83.00
B+: M6
Position/B+ in min.: 10
D+ Size: Plug
Rotation: CW
Plug no.: PL22
W plug type: M5
Total length mm: 165.50
Pulley: P
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M6
Mount. bracket dist. 84.00
Belt. adj. bracket hole 1 8.30
Belt. adj. bracket hole 2 8.30
Belt. adj. bracket hole 3 8.30
Belt. adj. brackethole pos. 55
Belt. adj. brackethole pos. 2 60
Belt. adj. brackethole pos. 3 5
Plug no. PL22
Bracket hole 8.20
Position/B+ in min. 10
Prod. info BN
Pulley P
Pulley dia. 71.50
Pulley dist. 41.80
Radius 87.50
D+ Size Plug
Radius 2 83.00
Radius 3 82.00
Radius 4 83.00
Regulator type IR
Rotation CW
Grooves/pulley 1
Terminal W
Voltage 28
W plug type M5
Total length 165.50 mm
Width/holder arm 11.00
Amp 35

  • OEM
    F032110977, NAB501, nab901, 66021623, 66021623M

  • Konkurrentreferens
    A4037, BAO3212, 8el737673-001, 016.001.055, 5775, 12719N-OE, 301468RI, 66021174

  • Normaliserat artikelnummer
    a4037, bao3212, f032110977, nab501, nab901, 8el737673001, 5775, 12719noe, 301468ri, 016001055, 66021174, 66021623, 66021623m

  • Passar modeller
    Universal Model: Universal unit Model series: Universal unit Approved: Yes
  • Beskrivning
    Voltage: 28
    Amp: 35
    Terminal: W
    Pulley dist.: 41.80
    Width/holder arm: 11.00
    Mount. bracket dist.: 84.00
    Bracket hole: 8.20
    Belt. adj. brackethole pos.: 55
    Belt. adj. brackethole pos. 3: 5
    Belt. adj. brackethole pos. 2: 60
    Belt. adj. bracket hole 1: 8.30
    Belt. adj. bracket hole 2: 8.30
    Belt. adj. bracket hole 3: 8.30
    Pulley dia.: 71.50
    Grooves/pulley: 1
    Radius: 87.50
    Radius 2: 83.00
    Radius 3: 82.00
    Radius 4: 83.00
    B+: M6
    Position/B+ in min.: 10
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL22
    W plug type: M5
    Total length mm: 165.50
    Pulley: P
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 84.00
    Belt. adj. bracket hole 1 8.30
    Belt. adj. bracket hole 2 8.30
    Belt. adj. bracket hole 3 8.30
    Belt. adj. brackethole pos. 55
    Belt. adj. brackethole pos. 2 60
    Belt. adj. brackethole pos. 3 5
    Plug no. PL22
    Bracket hole 8.20
    Position/B+ in min. 10
    Prod. info BN
    Pulley P
    Pulley dia. 71.50
    Pulley dist. 41.80
    Radius 87.50
    D+ Size Plug
    Radius 2 83.00
    Radius 3 82.00
    Radius 4 83.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 1
    Terminal W
    Voltage 28
    W plug type M5
    Total length 165.50 mm
    Width/holder arm 11.00
    Amp 35
  • Fordonsmatchning

    • OEM
      F032110977, NAB501, nab901, 66021623, 66021623M

    • Konkurrentreferens
      A4037, BAO3212, 8el737673-001, 016.001.055, 5775, 12719N-OE, 301468RI, 66021174

    • Normaliserat artikelnummer
      a4037, bao3212, f032110977, nab501, nab901, 8el737673001, 5775, 12719noe, 301468ri, 016001055, 66021174, 66021623, 66021623m

    • Passar modeller
      Universal Model: Universal unit Model series: Universal unit Approved: Yes
