Artikelnr: F032110448

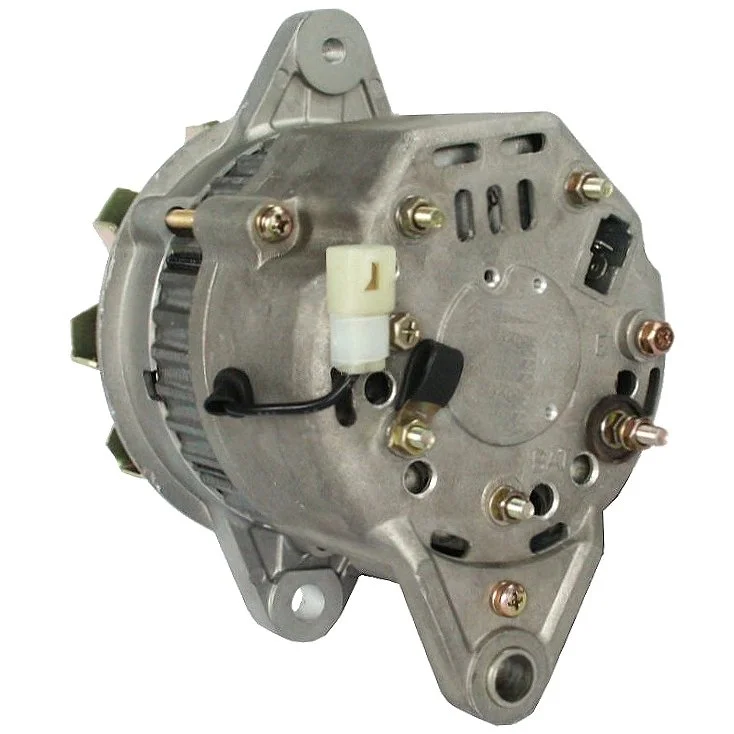

HC-Cargo Generator

Teknisk info:

Voltage: 28, Amp: 20, Rotation: CW, Mount. bracket dist.: 81.30

Beskrivning

Voltage: 28
Amp: 20
Terminal: W
Pulley dist.: 44.50
Width/holder arm: 13.50
Mount. bracket dist.: 81.30
Bracket hole: 10.40
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 85.00
Grooves/pulley: 1
Radius: 78.00
Radius 2: 78.00
B+: M5
Position/B+ in min.: 20
D+ Size: Plug
Rotation: CW
Plug no.: PL09
Total length mm: 165.00
Pulley: P
Regulator type: IR
Prod. info: BN
Servicing: Mitsubishi

Filer

Specifikation

B+ M5
Mount. bracket dist. 81.30
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL09
Bracket hole 10.40
Position/B+ in min. 20
Prod. info BN
Pulley P
Pulley dia. 85.00
Pulley dist. 44.50
Radius 78.00
D+ Size Plug
Radius 2 78.00
Regulator type IR
Rotation CW
Servicing Mitsubishi
Grooves/pulley 1
Terminal W
Voltage 28
Total length 165.00 mm
Width/holder arm 13.50
Amp 20

  • OEM
    A001T70783, a1t70783, F032110448, lr220-23, lr220-24, 5812003300, 5812003350

  • Konkurrentreferens
    A5154, A5156, ALT32095, CAL35602, dra3386, LRA02437, 1-2471-01HI, 8el730130-001, 48-0930, 526.101.204, 543.101.204, 5425, 12114, 12114N, 12309, 12309N, 40796RI, 75819, 119143, 12060501, 12060603

  • Normaliserat artikelnummer
    a001t70783, a1t70783, a5154, a5156, alt32095, cal35602, dra3386, f032110448, lr22023, lr22024, lra02437, 8el730130001, 5425, 12114, 12114n, 12309, 12309n, 40796ri, 75819, 119143, 480930, 1247101hi, 12060501, 12060603, 526101204, 543101204, 5812003300, 5812003350

  • Passar modeller
    Mitsubishi Model: FG Model series: FG20 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
    Mitsubishi Model: FG Model series: FG25 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
    Mitsubishi Model: FG Model series: FG30 Size of motor: 2.4 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
    Mitsubishi Model: Various Models Model series: Various Models Approved: Yes
    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
  • Beskrivning
    Voltage: 28
    Amp: 20
    Terminal: W
    Pulley dist.: 44.50
    Width/holder arm: 13.50
    Mount. bracket dist.: 81.30
    Bracket hole: 10.40
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 85.00
    Grooves/pulley: 1
    Radius: 78.00
    Radius 2: 78.00
    B+: M5
    Position/B+ in min.: 20
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL09
    Total length mm: 165.00
    Pulley: P
    Regulator type: IR
    Prod. info: BN
    Servicing: Mitsubishi

    Filer

  • Specifikation
    B+ M5
    Mount. bracket dist. 81.30
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL09
    Bracket hole 10.40
    Position/B+ in min. 20
    Prod. info BN
    Pulley P
    Pulley dia. 85.00
    Pulley dist. 44.50
    Radius 78.00
    D+ Size Plug
    Radius 2 78.00
    Regulator type IR
    Rotation CW
    Servicing Mitsubishi
    Grooves/pulley 1
    Terminal W
    Voltage 28
    Total length 165.00 mm
    Width/holder arm 13.50
    Amp 20
  • Fordonsmatchning

    • OEM
      A001T70783, a1t70783, F032110448, lr220-23, lr220-24, 5812003300, 5812003350

    • Konkurrentreferens
      A5154, A5156, ALT32095, CAL35602, dra3386, LRA02437, 1-2471-01HI, 8el730130-001, 48-0930, 526.101.204, 543.101.204, 5425, 12114, 12114N, 12309, 12309N, 40796RI, 75819, 119143, 12060501, 12060603

    • Normaliserat artikelnummer
      a001t70783, a1t70783, a5154, a5156, alt32095, cal35602, dra3386, f032110448, lr22023, lr22024, lra02437, 8el730130001, 5425, 12114, 12114n, 12309, 12309n, 40796ri, 75819, 119143, 480930, 1247101hi, 12060501, 12060603, 526101204, 543101204, 5812003300, 5812003350

    • Passar modeller
      Mitsubishi Model: FG Model series: FG20 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
      Mitsubishi Model: FG Model series: FG25 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
      Mitsubishi Model: FG Model series: FG30 Size of motor: 2.4 From date: 01-01-1980 To date: 01-12-1987 Approved: Yes
      Mitsubishi Model: Various Models Model series: Various Models Approved: Yes
      Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
