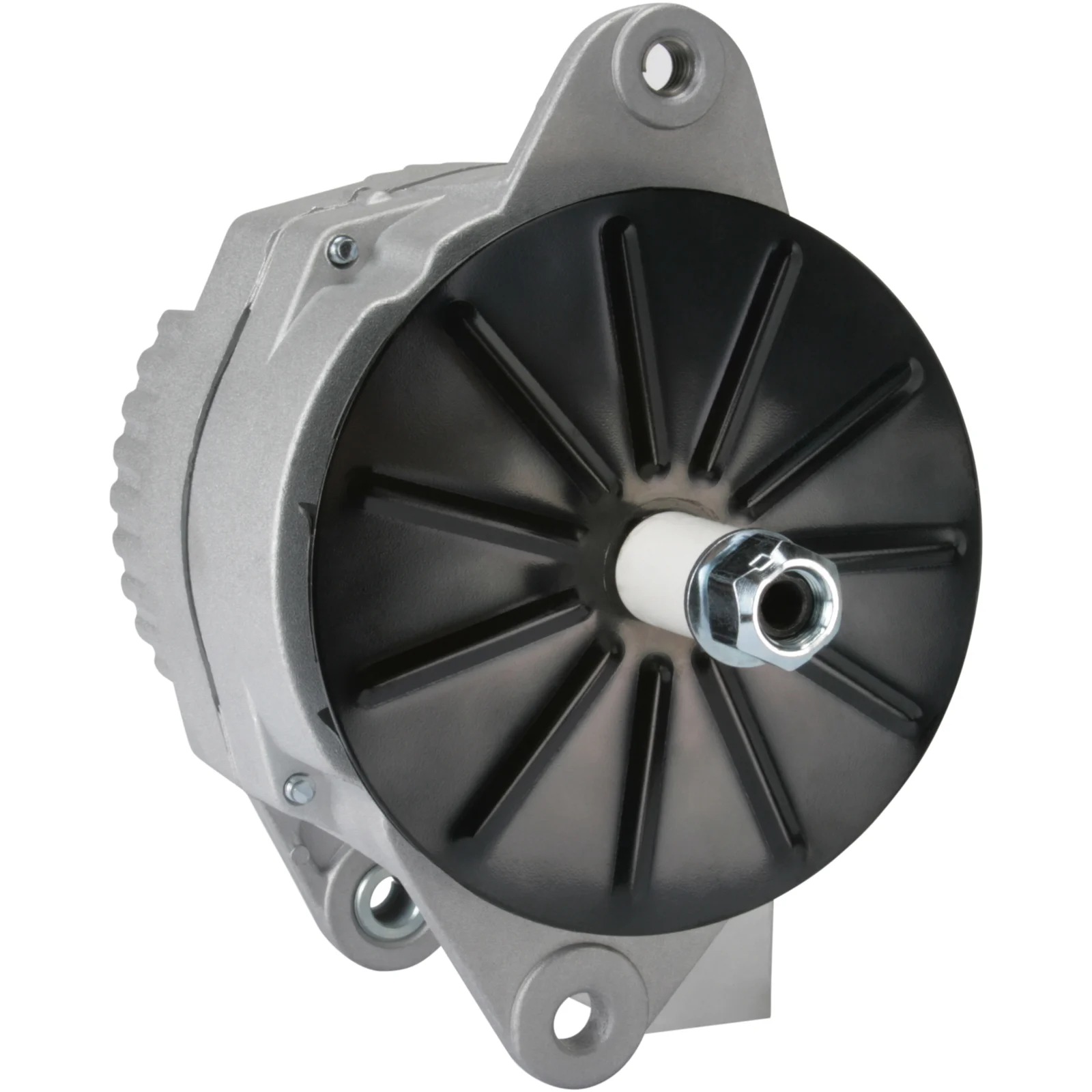

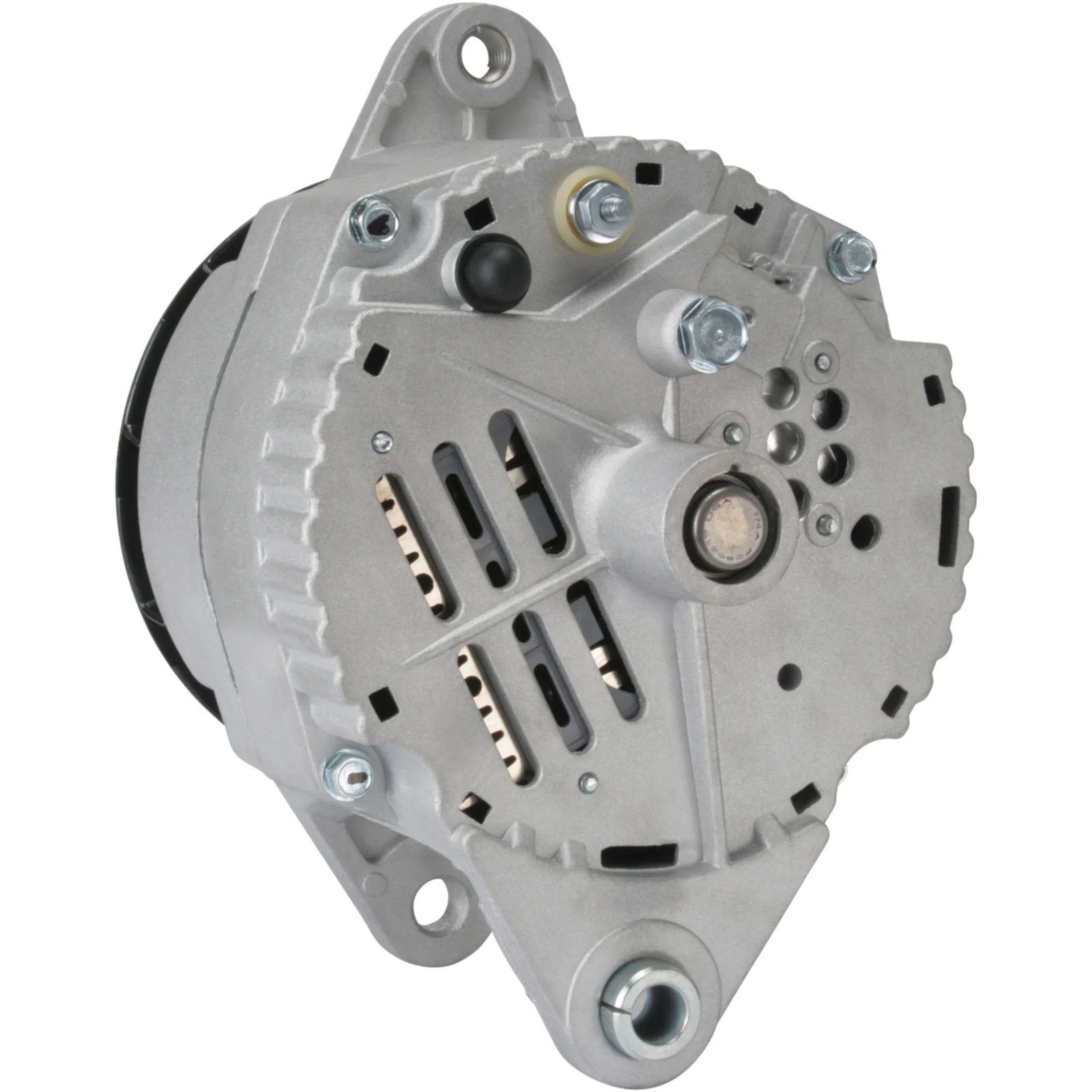

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032110300

HC-Cargo Generator

Teknisk info:

Voltage: 28, Amp: 65, Rotation: CW, Mount. bracket dist.: 103.00

Beskrivning

Voltage: 28
Amp: 65
Terminal: W
Width/holder arm: 12.00
Mount. bracket dist.: 103.00
Bracket hole: 12.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 1/2" UNC
Radius: 116.00
Radius 2: 117.50
B+: M6
Position/B+ in min.: 57
Rotation: CW
Total length mm: 226.50
One Wire hookup (Self exciting): Yes
Pulley: w/o
Regulator type: IR
Prod. info: BN
Servicing: International
Remarks: Replacing: 27SI. Shaft diameter: 22.00 mm. Fan: HC-CARGO 131854.

Filer

Specifikation

B+ M6
Mount. bracket dist. 103.00
Belt. adj. bracket hole 1 1/2" UNC
One Wire hookup (Self exciting) Yes
Belt. adj. brackethole pos. 60
Bracket hole 12.00
Position/B+ in min. 57
Prod. info BN
Pulley w/o
Radius 116.00
Radius 2 117.50
Regulator type IR
Remarks Replacing: 27SI. Shaft diameter: 22.00 mm. Fan: HC-CARGO 131854.
Rotation CW
Servicing International
Terminal W
Voltage 28
Total length 226.50 mm
Width/holder arm 12.00
Amp 65

  • OEM
    a49652, F032110300, L72955, 321-654, 214169, 683594C91, 1100077, 1100093, 1100211, 1100274, 1105474, 1105475, 1105476, 3603853rx, 10463160

  • Konkurrentreferens
    a-173, ADR0009, ALT40000, CAL60614, da07197, drz0115, 1-1776-00DR, 8el730145-001, 13-4059, 20-127, 20-127-1, 20-128, 29-1187, 48-3692, 90-01-3100, 500.119.654, 1049, 5501, 7197, 7197N, 7197R, 42704, 42704P, 50929RI, 75795, 32992077

  • Normaliserat artikelnummer
    a173, a49652, adr0009, alt40000, cal60614, da07197, drz0115, f032110300, l72955, 8el730145001, 1049, 5501, 7197, 7197n, 7197r, 20127, 20128, 42704, 42704p, 50929ri, 75795, 134059, 201271, 214169, 291187, 321654, 483692, 683594c91, 1100077, 1100093, 1100211, 1100274, 1105474, 1105475, 1105476, 1177600dr, 3603853rx, 10463160, 32992077, 90013100, 500119654

  • Passar modeller
    Case Model: Crawlers Model series: Various Models Approved: Yes
    Case Model: Loaders Model series: Various Models Approved: Yes
    Case Model: Various Models Model series: Various Models Approved: Yes
  • Beskrivning
    Voltage: 28
    Amp: 65
    Terminal: W
    Width/holder arm: 12.00
    Mount. bracket dist.: 103.00
    Bracket hole: 12.00
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 1/2" UNC
    Radius: 116.00
    Radius 2: 117.50
    B+: M6
    Position/B+ in min.: 57
    Rotation: CW
    Total length mm: 226.50
    One Wire hookup (Self exciting): Yes
    Pulley: w/o
    Regulator type: IR
    Prod. info: BN
    Servicing: International
    Remarks: Replacing: 27SI. Shaft diameter: 22.00 mm. Fan: HC-CARGO 131854.

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 103.00
    Belt. adj. bracket hole 1 1/2" UNC
    One Wire hookup (Self exciting) Yes
    Belt. adj. brackethole pos. 60
    Bracket hole 12.00
    Position/B+ in min. 57
    Prod. info BN
    Pulley w/o
    Radius 116.00
    Radius 2 117.50
    Regulator type IR
    Remarks Replacing: 27SI. Shaft diameter: 22.00 mm. Fan: HC-CARGO 131854.
    Rotation CW
    Servicing International
    Terminal W
    Voltage 28
    Total length 226.50 mm
    Width/holder arm 12.00
    Amp 65
  • Fordonsmatchning

    • OEM
      a49652, F032110300, L72955, 321-654, 214169, 683594C91, 1100077, 1100093, 1100211, 1100274, 1105474, 1105475, 1105476, 3603853rx, 10463160

    • Konkurrentreferens
      a-173, ADR0009, ALT40000, CAL60614, da07197, drz0115, 1-1776-00DR, 8el730145-001, 13-4059, 20-127, 20-127-1, 20-128, 29-1187, 48-3692, 90-01-3100, 500.119.654, 1049, 5501, 7197, 7197N, 7197R, 42704, 42704P, 50929RI, 75795, 32992077

    • Normaliserat artikelnummer
      a173, a49652, adr0009, alt40000, cal60614, da07197, drz0115, f032110300, l72955, 8el730145001, 1049, 5501, 7197, 7197n, 7197r, 20127, 20128, 42704, 42704p, 50929ri, 75795, 134059, 201271, 214169, 291187, 321654, 483692, 683594c91, 1100077, 1100093, 1100211, 1100274, 1105474, 1105475, 1105476, 1177600dr, 3603853rx, 10463160, 32992077, 90013100, 500119654

    • Passar modeller
      Case Model: Crawlers Model series: Various Models Approved: Yes
      Case Model: Loaders Model series: Various Models Approved: Yes
      Case Model: Various Models Model series: Various Models Approved: Yes
