HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116792

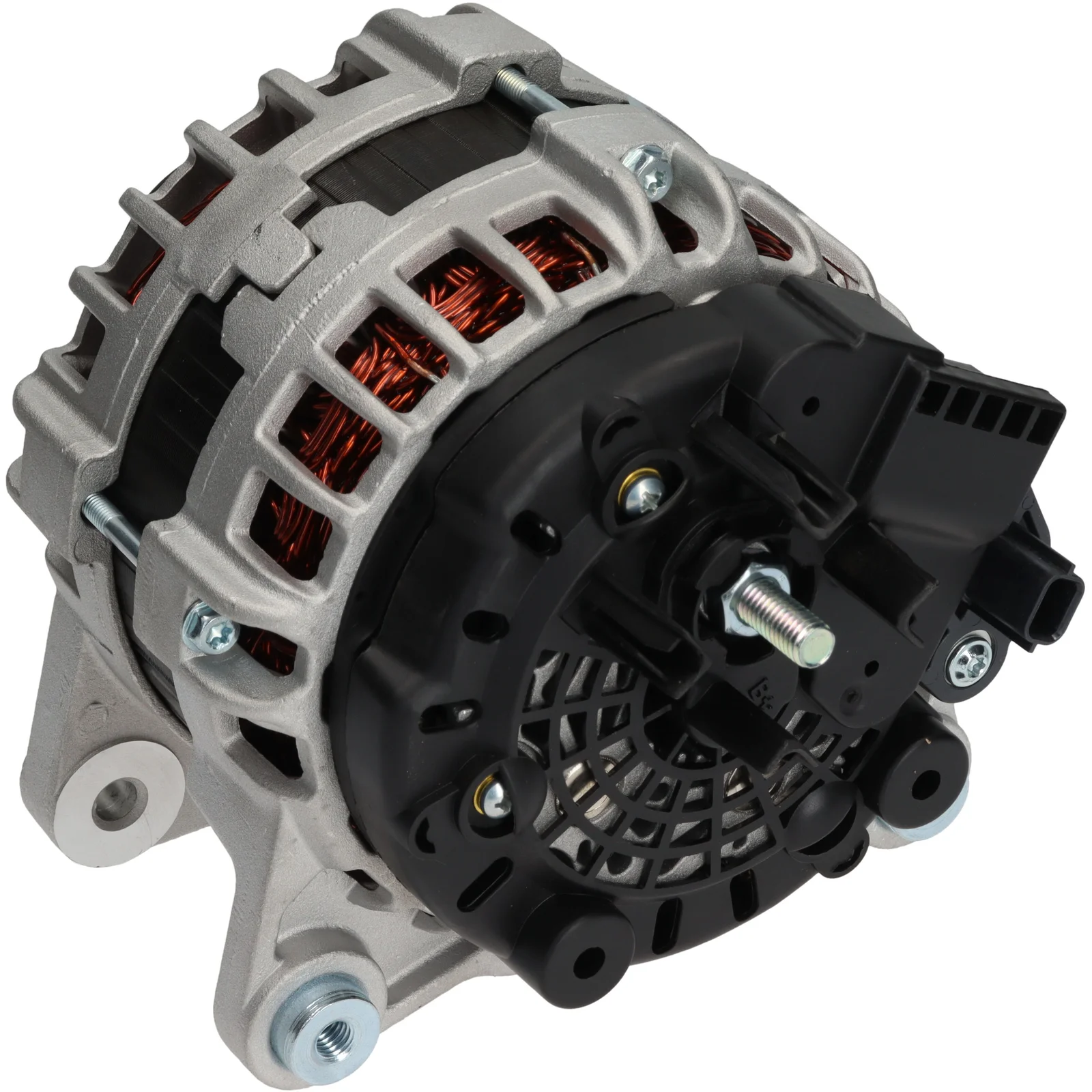

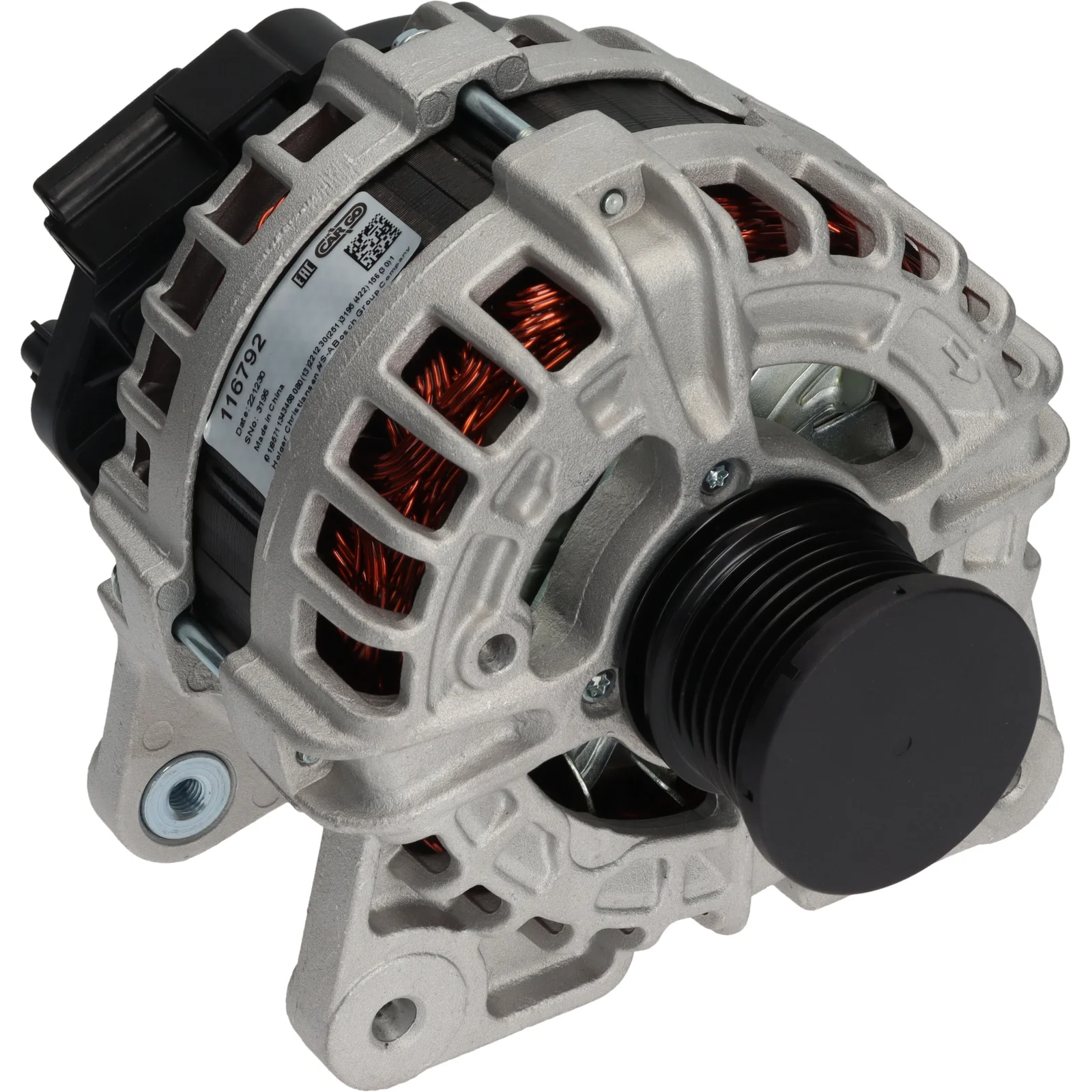

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 61.00

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 38.50
Width/holder arm: 14.50
Mount. bracket dist.: 61.00
Bracket hole: 8.00
Bracket hole 2: M8
Belt. adj. brackethole pos.: 15
Belt. adj. bracket hole 1: 8.00
Pulley dia.: 49.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+ Length mm: 16.50
B+: M8
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL131
Total length mm: 198.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.00
Belt. adj. brackethole pos. 15
Plug no. PL131
Bracket hole 8.00
Bracket hole 2 M8
Position/B+ in min. 50
Pulley SP/FW
Pulley dia. 49.00
Pulley dist. 38.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 198.00 mm
Width/holder arm 14.50
Amp 150
B+ Length 16.50 mm

  • OEM
    F000BL0889, F000BL0890, F032116792, 23100-4BB0D, 23100-4BB0DE, 231004BB0D, 231004BB0DRP

  • Konkurrentreferens
    A0591S, CAL10064, DRA1870, 443423, 444293

  • Normaliserat artikelnummer
    a0591s, cal10064, dra1870, f000bl0889, f000bl0890, f032116792, 231004bb0d, 231004bb0de, 231004bb0drp, 443423, 444293

  • Passar modeller
    Nissan Model: Qashqai Model series: Qashqai Model type: ALL MODE 4x4-i Size of motor: 2.0 Brand of engine: MR20DD Type description: J11, J11_ Body: SUV Fuel: Petrol Approved: Yes
    Nissan Model: Qashqai Model series: Qashqai SUV Model type: ALL MODE 4x4-i (J11R) Size of motor: 2.0 Brand of engine: MR20DD Type description: J11, J11_ Body: SUV From date: 01-10-2015 Fuel: Petrol Approved: Yes
    Nissan Model: Qashqai Model series: Qashqai SUV Size of motor: 2.0 Brand of engine: MR20DD Type description: J11, J11_ Body: SUV From date: 01-06-2014 Fuel: Petrol Approved: Yes
    Nissan Model: X-Trail Model series: X-Trail Model type: ALL MODE 4x4-i (NT32) Size of motor: 2.0 Brand of engine: MR20DD Type description: T32_, T32R, T32RR Body: SUV Fuel: Petrol Approved: Yes
    Nissan Model: X-Trail Model series: X-Trail Model type: Flexfuel (T32) Size of motor: 2.0 Brand of engine: MR20DD Type description: T32_, T32R, T32RR Body: SUV Fuel: Petrol/Ethanol Approved: Yes
    Nissan Model: X-Trail Model series: X-Trail Model type: Flexfuel ALL MODE 4x4-i Size of motor: 2.0 Brand of engine: MR20DD Type description: T32_, T32R, T32RR Body: SUV Fuel: Petrol/Ethanol Approved: Yes
    Nissan Model: X-Trail Model series: X-Trail Size of motor: 2.0 Brand of engine: MR20DD Type description: T32_, T32R, T32RR Body: SUV From date: 01-09-2014 Fuel: Petrol Approved: Yes
    Renault Model: Koleos Model series: Koleos Size of motor: 2.0 Brand of engine: M5R402 From date: 01-04-2016 Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 150
    Pulley dist.: 38.50
    Width/holder arm: 14.50
    Mount. bracket dist.: 61.00
    Bracket hole: 8.00
    Bracket hole 2: M8
    Belt. adj. brackethole pos.: 15
    Belt. adj. bracket hole 1: 8.00
    Pulley dia.: 49.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+ Length mm: 16.50
    B+: M8
    Position/B+ in min.: 50
    Rotation: CW
    Plug no.: PL131
    Total length mm: 198.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 61.00
    Belt. adj. bracket hole 1 8.00
    Belt. adj. brackethole pos. 15
    Plug no. PL131
    Bracket hole 8.00
    Bracket hole 2 M8
    Position/B+ in min. 50
    Pulley SP/FW
    Pulley dia. 49.00
    Pulley dist. 38.50
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 198.00 mm
    Width/holder arm 14.50
    Amp 150
    B+ Length 16.50 mm
  • Fordonsmatchning

    • OEM
      F000BL0889, F000BL0890, F032116792, 23100-4BB0D, 23100-4BB0DE, 231004BB0D, 231004BB0DRP

    • Konkurrentreferens
      A0591S, CAL10064, DRA1870, 443423, 444293

    • Normaliserat artikelnummer
      a0591s, cal10064, dra1870, f000bl0889, f000bl0890, f032116792, 231004bb0d, 231004bb0de, 231004bb0drp, 443423, 444293

    • Passar modeller
      Nissan Model: Qashqai Model series: Qashqai Model type: ALL MODE 4x4-i Size of motor: 2.0 Brand of engine: MR20DD Type description: J11, J11_ Body: SUV Fuel: Petrol Approved: Yes
      Nissan Model: Qashqai Model series: Qashqai SUV Model type: ALL MODE 4x4-i (J11R) Size of motor: 2.0 Brand of engine: MR20DD Type description: J11, J11_ Body: SUV From date: 01-10-2015 Fuel: Petrol Approved: Yes
      Nissan Model: Qashqai Model series: Qashqai SUV Size of motor: 2.0 Brand of engine: MR20DD Type description: J11, J11_ Body: SUV From date: 01-06-2014 Fuel: Petrol Approved: Yes
      Nissan Model: X-Trail Model series: X-Trail Model type: ALL MODE 4x4-i (NT32) Size of motor: 2.0 Brand of engine: MR20DD Type description: T32_, T32R, T32RR Body: SUV Fuel: Petrol Approved: Yes
      Nissan Model: X-Trail Model series: X-Trail Model type: Flexfuel (T32) Size of motor: 2.0 Brand of engine: MR20DD Type description: T32_, T32R, T32RR Body: SUV Fuel: Petrol/Ethanol Approved: Yes
      Nissan Model: X-Trail Model series: X-Trail Model type: Flexfuel ALL MODE 4x4-i Size of motor: 2.0 Brand of engine: MR20DD Type description: T32_, T32R, T32RR Body: SUV Fuel: Petrol/Ethanol Approved: Yes
      Nissan Model: X-Trail Model series: X-Trail Size of motor: 2.0 Brand of engine: MR20DD Type description: T32_, T32R, T32RR Body: SUV From date: 01-09-2014 Fuel: Petrol Approved: Yes
      Renault Model: Koleos Model series: Koleos Size of motor: 2.0 Brand of engine: M5R402 From date: 01-04-2016 Approved: Yes
