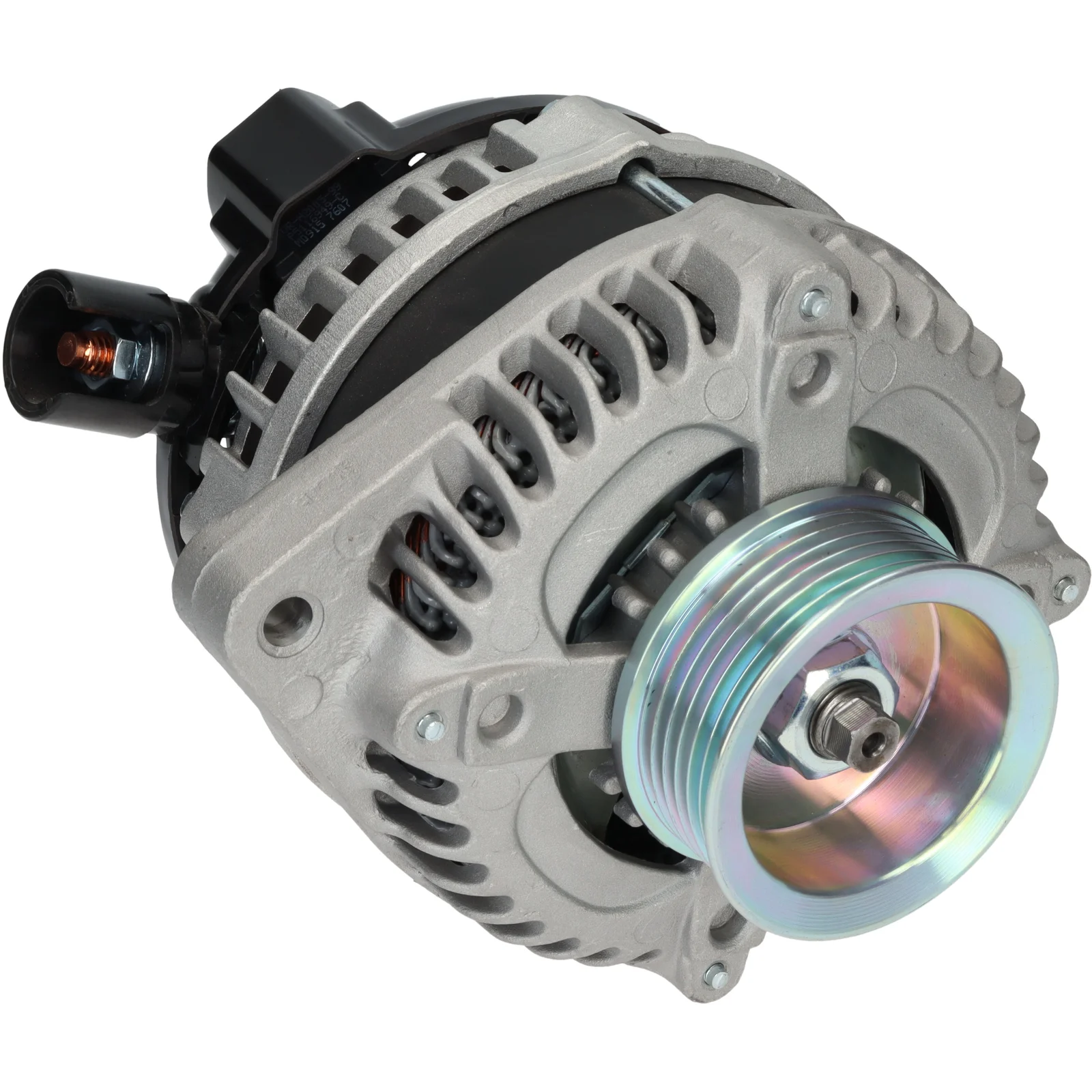

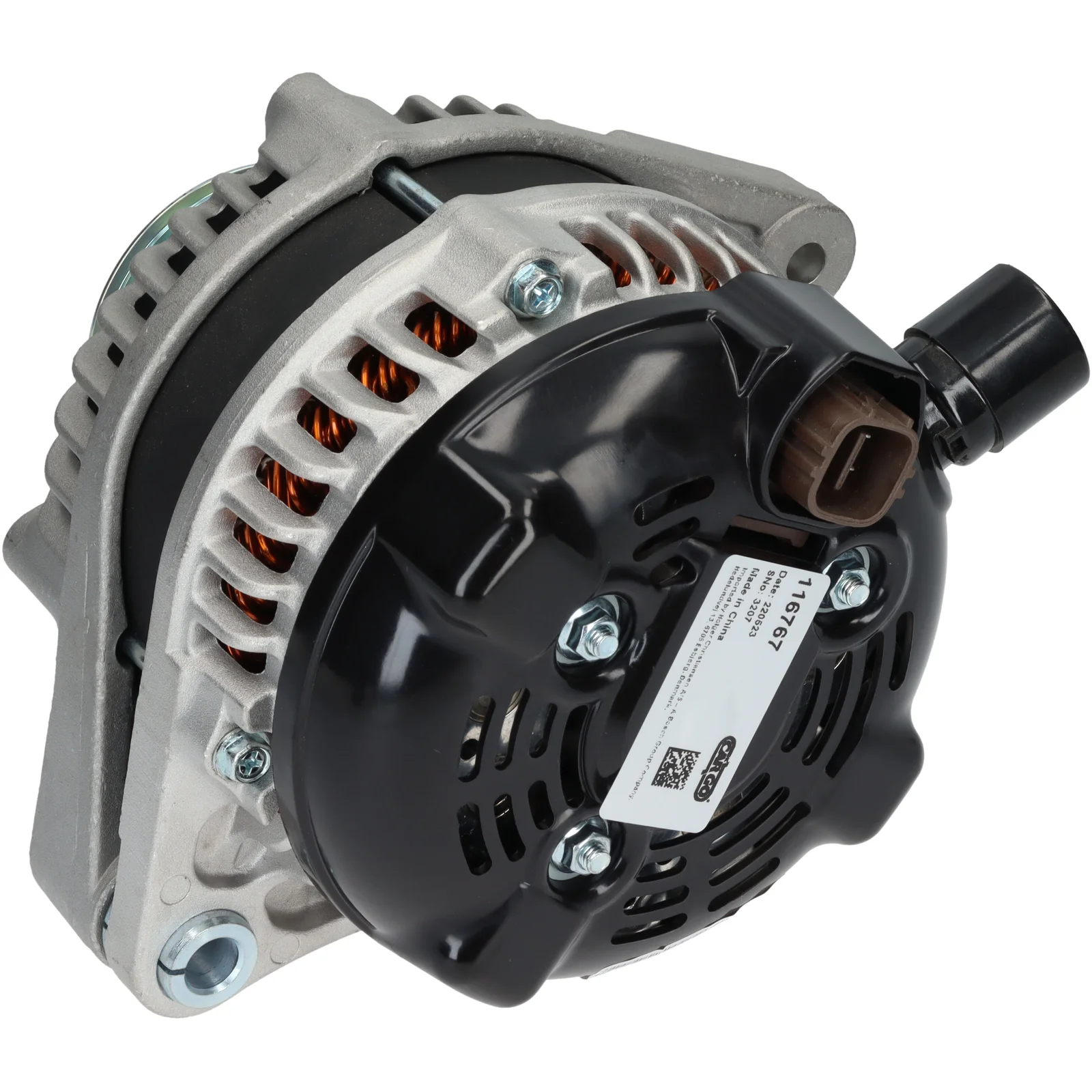

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116767

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 130, Rotation: CW, Pulley dia.: 65.00

Beskrivning

Voltage: 14
Amp: 130
Pulley dist.: 85.00
Width/holder arm: 47.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 56
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 65.00
Grooves/pulley: 6
Radius: 88.00
Radius 2: 84.00
B+: M8
Position/B+ in min.: 3
D+ Size: Plug
Rotation: CW
Plug no.: PL60
Total length mm: 162.00
Pulley: SP/FW
Fan: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 56
Plug no. PL60
Bracket hole 10.00
Position/B+ in min. 3
Pulley SP/FW
Pulley dia. 65.00
Pulley dist. 85.00
Radius 88.00
D+ Size Plug
Radius 2 84.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Voltage 14
Total length 162.00 mm
Width/holder arm 47.00
Amp 130

  • OEM
    F032116767, TN1042104690, 31100-RJA-A02, 104210-3100, 104210-4290, 104210-4300, 104210-4301, 104210-4690

  • Konkurrentreferens
    A6178, CAL40473, DRA1443, LRA04171, 28-7780, 125.572.130, 11151, 554059RI, 12061055

  • Normaliserat artikelnummer
    a6178, cal40473, dra1443, f032116767, lra04171, tn1042104690, 11151, 31100rjaa02, 287780, 554059ri, 12061055, 125572130, 1042103100, 1042104290, 1042104300, 1042104301, 1042104690

  • Passar modeller
    Acura Model: MDX Model series: MDX Model type: 4WD Type of engine: V6 Size of motor: 3.5 Brand of engine: J35A4 Type description: YD1 From date: 01-08-2000 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
    Acura Model: MDX Model series: MDX Model type: 4x4 Size of motor: 3.7 Brand of engine: J37A2 Type description: YD1 From date: 01-10-2006 Fuel: Gasoline Approved: Yes
    Acura Model: MDX Model series: MDX Model type: AWD Size of motor: 3.7 Type description: YD2 From date: 01-10-2006 Fuel: Gasoline Approved: Yes
    Honda Model: Lagreat Model series: Lagreat Type of engine: EXi Vtec Size of motor: 3.5 Brand of engine: J35A5 Body: MPV From date: 01-09-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Honda Model: Legend Model series: Legend Model type: 4WD Type of engine: V6 Size of motor: 3.5 Brand of engine: C35A8 Type description: KA9 From date: 01-05-2006 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Honda Model: Legend Model series: Legend Size of motor: 3.5 Brand of engine: C35A8 Type description: KA9 From date: 01-10-2004 To date: 01-06-2009 Fuel: Gasoline Approved: Yes
    Honda Model: MDX Model series: MDX Size of motor: 3.5 Brand of engine: J35A5 Type description: YD From date: 01-04-2003 To date: 01-04-2007 Fuel: Gasoline Approved: Yes
    Honda Model: Odyssey Model series: Odyssey Mini Passenger Van Model type: EXi Vtec Type of engine: ViTEC Size of motor: 3.5 Type description: RL3, RL4 Body: MPV From date: 01-09-2004 To date: 01-05-2010 Fuel: Gasoline Approved: Yes
    Honda Model: Odyssey Model series: Odyssey MPV Size of motor: 3.5 Brand of engine: J35A7 Type description: RL3, RL4 Body: MPV From date: 01-09-2004 To date: 01-12-2010 Fuel: Petrol Approved: Yes
    Honda Model: Odyssey Model series: Odyssey Size of motor: 3.5 Brand of engine: J35A8 Body: MPV From date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Honda Model: Pilot Model series: Pilot Size of motor: 3.5 Brand of engine: J35A9 From date: 01-01-2006 To date: 01-07-2008 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 14
    Amp: 130
    Pulley dist.: 85.00
    Width/holder arm: 47.00
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 56
    Belt. adj. bracket hole 1: 8.50
    Pulley dia.: 65.00
    Grooves/pulley: 6
    Radius: 88.00
    Radius 2: 84.00
    B+: M8
    Position/B+ in min.: 3
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL60
    Total length mm: 162.00
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 56
    Plug no. PL60
    Bracket hole 10.00
    Position/B+ in min. 3
    Pulley SP/FW
    Pulley dia. 65.00
    Pulley dist. 85.00
    Radius 88.00
    D+ Size Plug
    Radius 2 84.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Voltage 14
    Total length 162.00 mm
    Width/holder arm 47.00
    Amp 130
  • Fordonsmatchning

    • OEM
      F032116767, TN1042104690, 31100-RJA-A02, 104210-3100, 104210-4290, 104210-4300, 104210-4301, 104210-4690

    • Konkurrentreferens
      A6178, CAL40473, DRA1443, LRA04171, 28-7780, 125.572.130, 11151, 554059RI, 12061055

    • Normaliserat artikelnummer
      a6178, cal40473, dra1443, f032116767, lra04171, tn1042104690, 11151, 31100rjaa02, 287780, 554059ri, 12061055, 125572130, 1042103100, 1042104290, 1042104300, 1042104301, 1042104690

    • Passar modeller
      Acura Model: MDX Model series: MDX Model type: 4WD Type of engine: V6 Size of motor: 3.5 Brand of engine: J35A4 Type description: YD1 From date: 01-08-2000 To date: 01-12-2005 Fuel: Gasoline Approved: Yes
      Acura Model: MDX Model series: MDX Model type: 4x4 Size of motor: 3.7 Brand of engine: J37A2 Type description: YD1 From date: 01-10-2006 Fuel: Gasoline Approved: Yes
      Acura Model: MDX Model series: MDX Model type: AWD Size of motor: 3.7 Type description: YD2 From date: 01-10-2006 Fuel: Gasoline Approved: Yes
      Honda Model: Lagreat Model series: Lagreat Type of engine: EXi Vtec Size of motor: 3.5 Brand of engine: J35A5 Body: MPV From date: 01-09-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Honda Model: Legend Model series: Legend Model type: 4WD Type of engine: V6 Size of motor: 3.5 Brand of engine: C35A8 Type description: KA9 From date: 01-05-2006 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
      Honda Model: Legend Model series: Legend Size of motor: 3.5 Brand of engine: C35A8 Type description: KA9 From date: 01-10-2004 To date: 01-06-2009 Fuel: Gasoline Approved: Yes
      Honda Model: MDX Model series: MDX Size of motor: 3.5 Brand of engine: J35A5 Type description: YD From date: 01-04-2003 To date: 01-04-2007 Fuel: Gasoline Approved: Yes
      Honda Model: Odyssey Model series: Odyssey Mini Passenger Van Model type: EXi Vtec Type of engine: ViTEC Size of motor: 3.5 Type description: RL3, RL4 Body: MPV From date: 01-09-2004 To date: 01-05-2010 Fuel: Gasoline Approved: Yes
      Honda Model: Odyssey Model series: Odyssey MPV Size of motor: 3.5 Brand of engine: J35A7 Type description: RL3, RL4 Body: MPV From date: 01-09-2004 To date: 01-12-2010 Fuel: Petrol Approved: Yes
      Honda Model: Odyssey Model series: Odyssey Size of motor: 3.5 Brand of engine: J35A8 Body: MPV From date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Honda Model: Pilot Model series: Pilot Size of motor: 3.5 Brand of engine: J35A9 From date: 01-01-2006 To date: 01-07-2008 Fuel: Gasoline Approved: Yes
