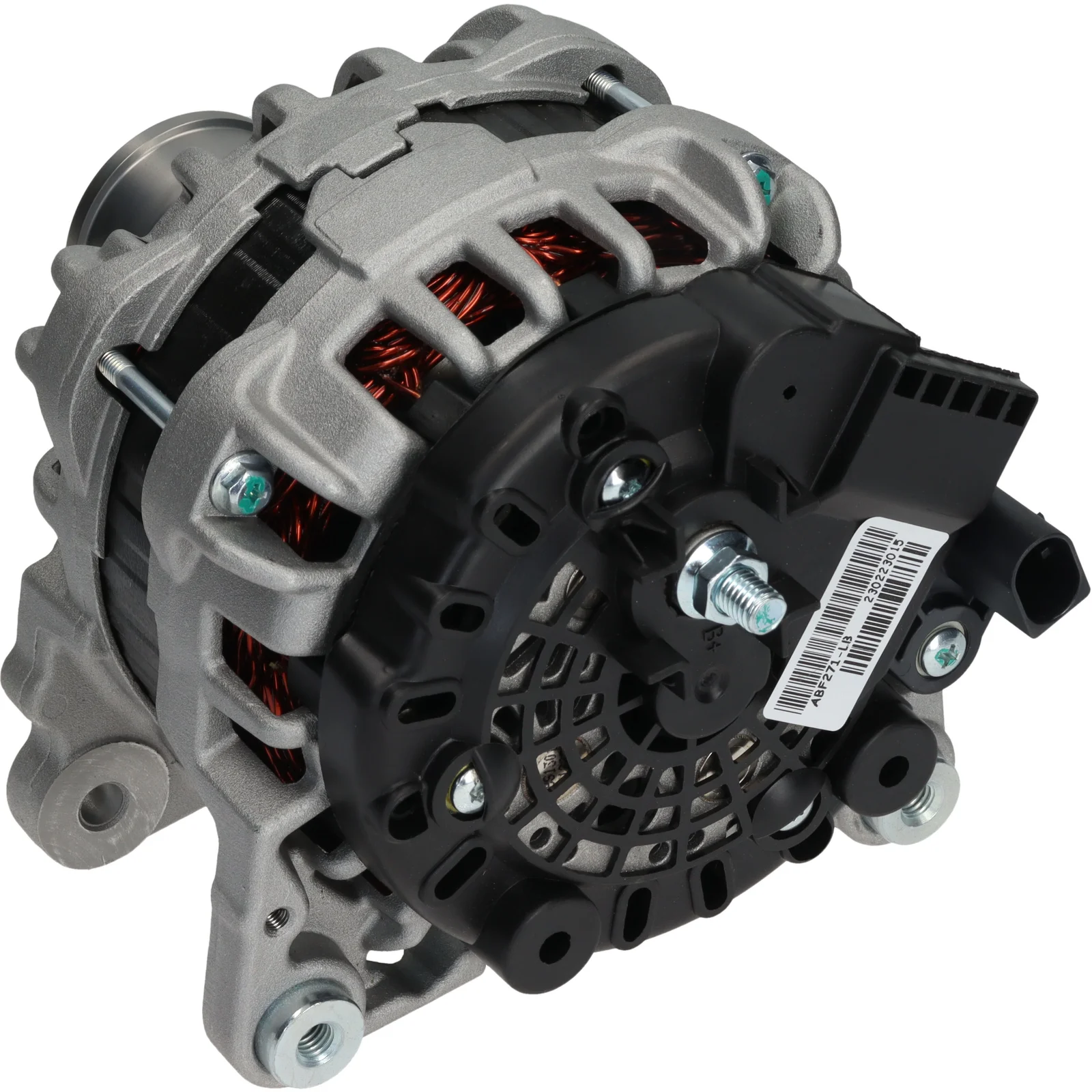

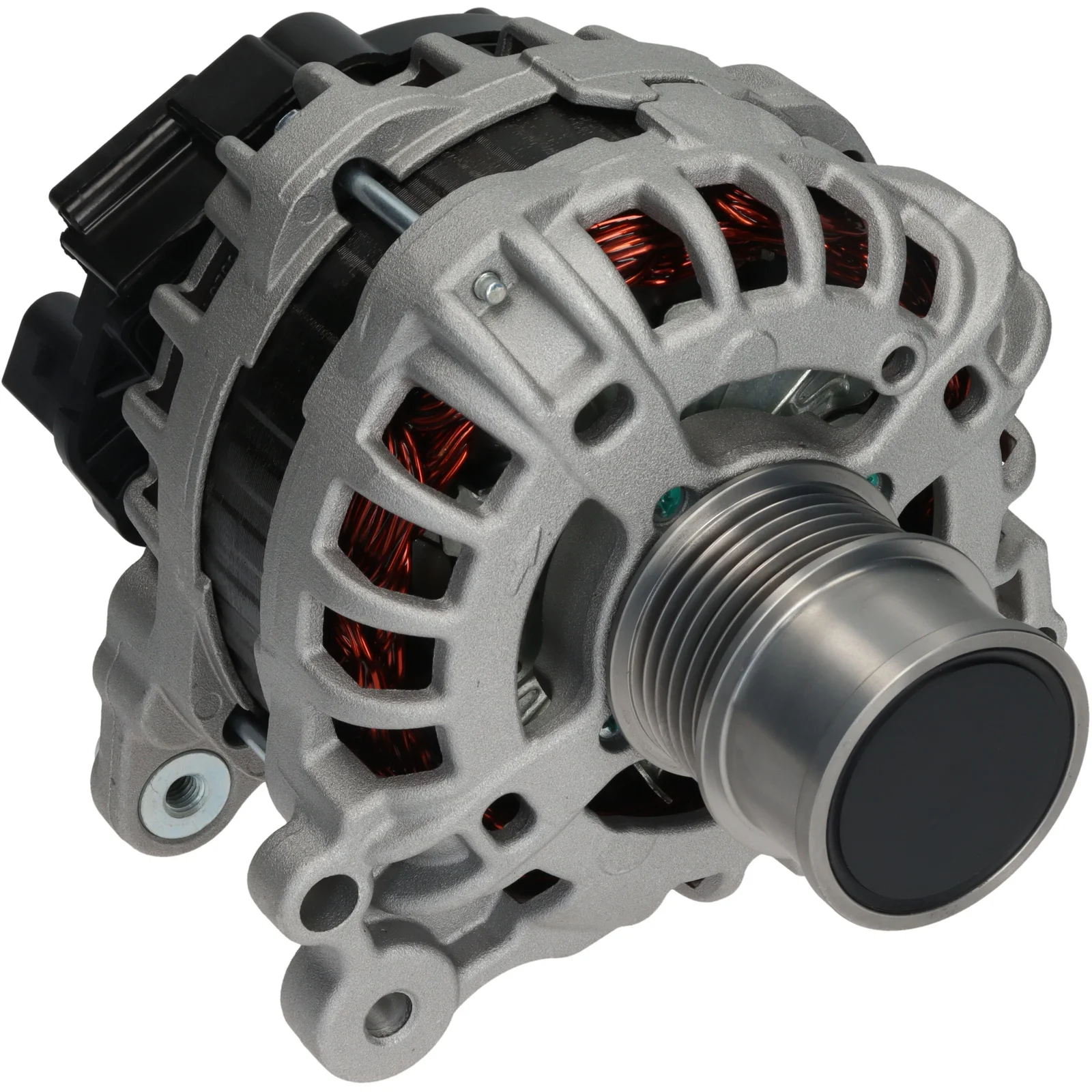

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116753

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 110, Rotation: CW, Mount. bracket dist.: 60.00

Beskrivning

Voltage: 14
Amp: 110
Pulley dist.: 30.00
Width/holder arm: 14.00
Mount. bracket dist.: 60.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 15
Belt. adj. bracket hole 1: M8
Pulley dia.: 52.30
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+ Length mm: 14.00
B+: M8
Position/B+ in min.: 55
Rotation: CW
Plug no.: PL181
Total length mm: 195.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 60.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 15
Plug no. PL181
Bracket hole 8.50
Position/B+ in min. 55
Pulley SP/FW
Pulley dia. 52.30
Pulley dist. 30.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 195.00 mm
Width/holder arm 14.00
Amp 110
B+ Length 14.00 mm

  • OEM
    F000BL0701, F000BL07A0, F032116753, 04E903023G

  • Konkurrentreferens
    305.963.110

  • Normaliserat artikelnummer
    f000bl0701, f000bl07a0, f032116753, 04e903023g, 305963110

  • Passar modeller
    Skoda Model: Octavia Model series: Octavia Model type: G-TEC Type of engine: TSI Size of motor: 1.4 Brand of engine: CPWA Type description: 5,00E+03 Body: Hatchback From date: 01-11-2013 Fuel: Gasoline Approved: Yes
    Skoda Model: Octavia Model series: Octavia Model type: G-TEC Type of engine: TSI Size of motor: 1.4 Brand of engine: CPWA Type description: 5,00E+05 Body: Estate From date: 01-11-2013 Fuel: Gasoline Approved: Yes Manufacture type: Combi
    Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZA Type description: 5,00E+03 Body: Hatchback From date: 01-11-2012 Fuel: Gasoline Approved: Yes
    Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZA Type description: 5,00E+05 Body: Estate From date: 01-11-2012 Fuel: Gasoline Approved: Yes Manufacture type: Combi
    Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZB Type description: 5,00E+03 Body: Hatchback From date: 01-11-2012 Fuel: Gasoline Approved: Yes
    Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 1.2 Brand of engine: CJZB Type description: 5,00E+05 Body: Estate From date: 01-11-2012 Fuel: Gasoline Approved: Yes Manufacture type: Combi
    Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 1.4 Brand of engine: CHPA Type description: 5,00E+03 Body: Hatchback From date: 01-11-2012 Fuel: Gasoline Approved: Yes
    Skoda Model: Octavia Model series: Octavia Type of engine: TSI Size of motor: 1.4 Brand of engine: CHPA Type description: 5,00E+05 Body: Estate From date: 01-11-2012 Fuel: Gasoline Approved: Yes Manufacture type: Combi
