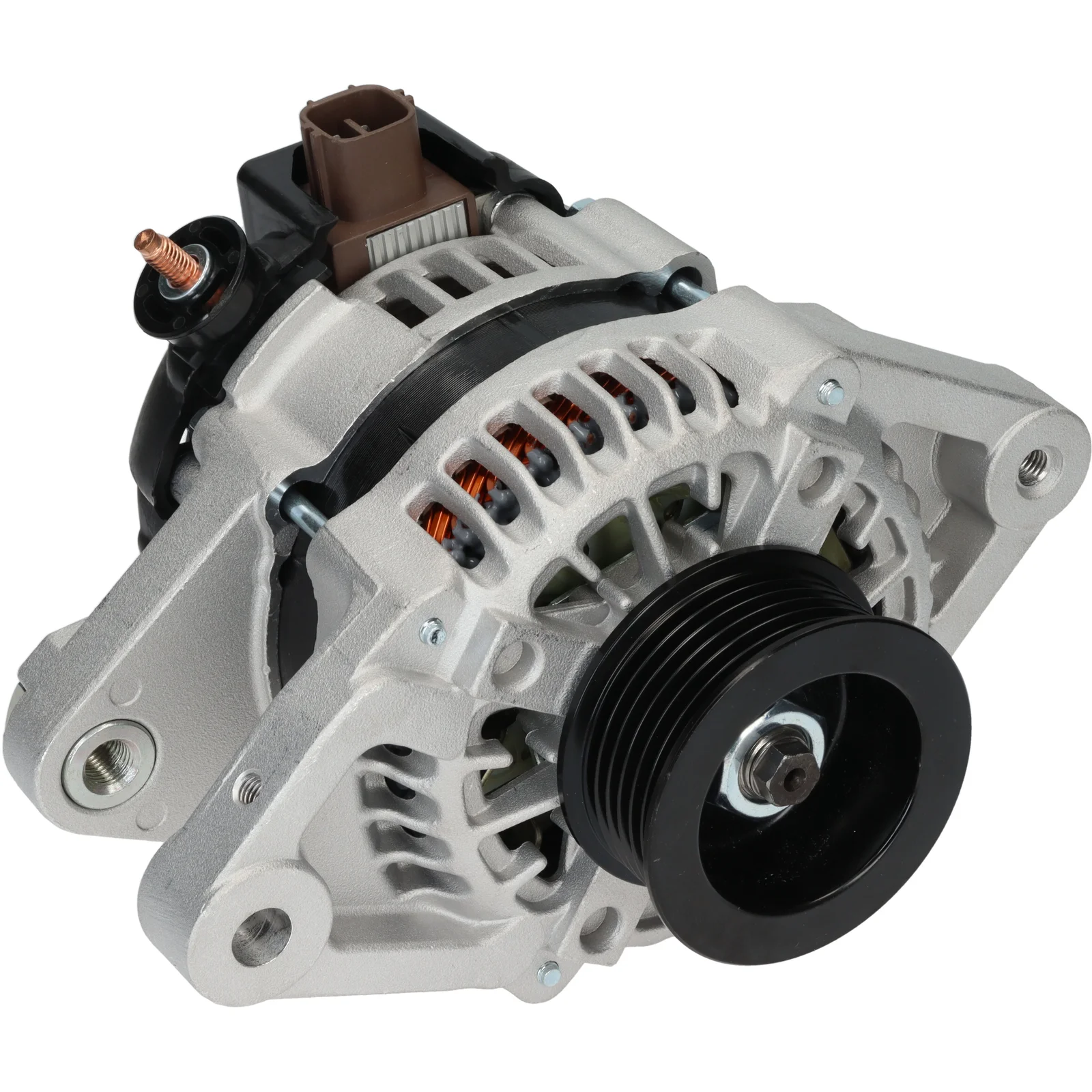

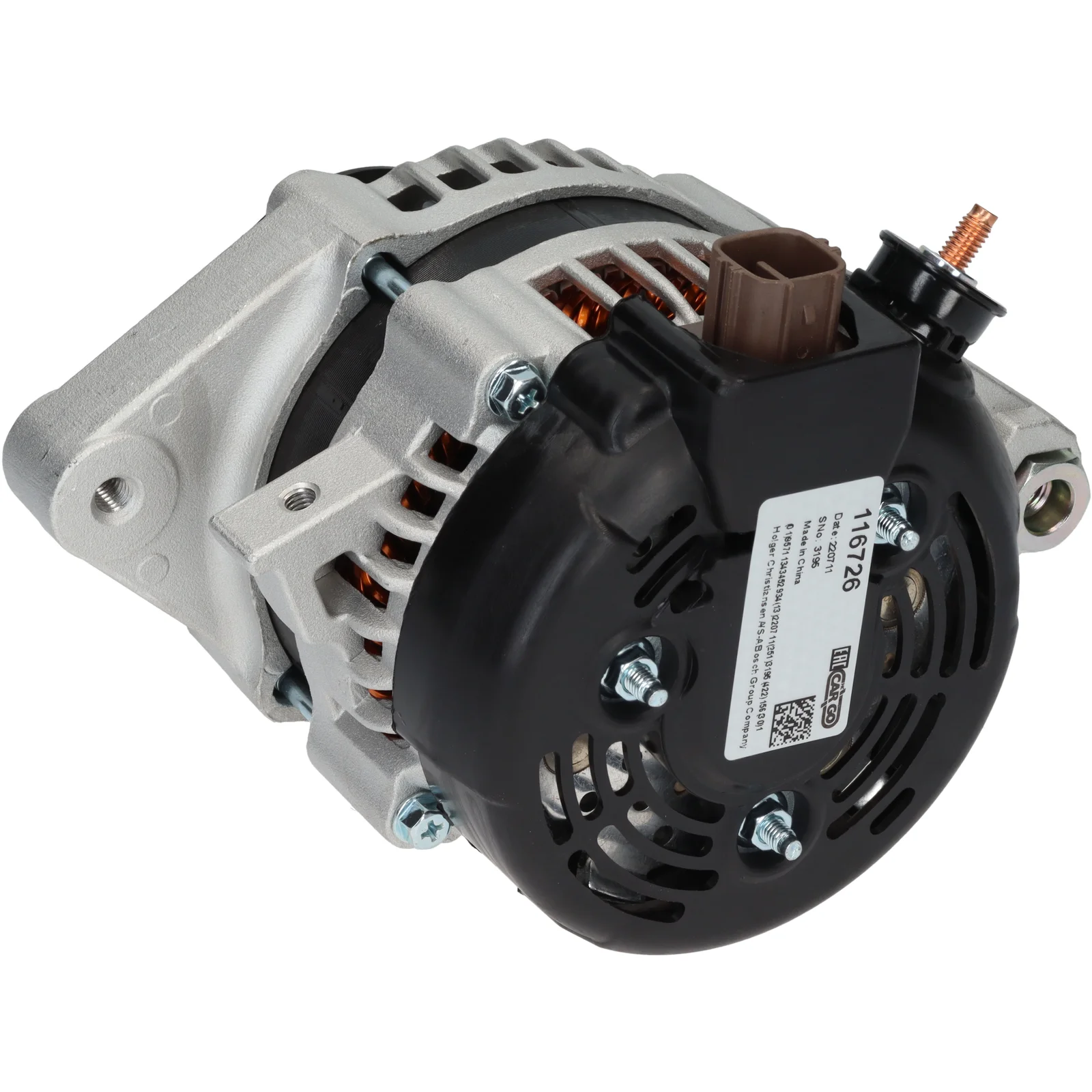

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116726

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 80, Rotation: CW, Mount. bracket dist.: 36.50

Beskrivning

Voltage: 14
Amp: 80
Pulley dist.: 29.00
Width/holder arm: 19.00
Mount. bracket dist.: 36.50
Bracket hole: 11.00
Belt. adj. brackethole pos.: 1
Belt. adj. bracket hole 1: M8
Pulley dia.: 60.00
Grooves/pulley: 6
Radius: 89.00
Radius 2: 81.00
B+: M6
Position/B+ in min.: 20
D+ Size: Plug
Rotation: CW
Plug no.: PL146
Total length mm: 164.00
Pulley: SP
Fan: IF
Regulator type: IR

Filer

Specifikation

B+ M6
Mount. bracket dist. 36.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 1
Plug no. PL146
Bracket hole 11.00
Position/B+ in min. 20
Pulley SP
Pulley dia. 60.00
Pulley dist. 29.00
Radius 89.00
D+ Size Plug
Radius 2 81.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Voltage 14
Total length 164.00 mm
Width/holder arm 19.00
Amp 80

  • OEM
    F032116726, 27060-0Q060, 27060-40010, 104210-816, 104210-9240

  • Konkurrentreferens
    A6066, A6066(DENSO), CAL40310, DAN1020, DRA0697, LRA03375, MAN7541, 28-5987, 195.940.080, 195.977.080, 235.334.802, 553473RI, 0986082120, 063377541010

  • Normaliserat artikelnummer
    a6066, a6066denso, cal40310, dan1020, dra0697, f032116726, lra03375, man7541, 270600q060, 285987, 553473ri, 104210816, 195940080, 195977080, 235334802, 0986082120, 1042109240, 2706040010, 063377541010

  • Passar modeller
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-08-2005 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P9_ Body: Hatchback From date: 01-11-2005 To date: 01-11-2010 Fuel: Petrol Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 80
    Pulley dist.: 29.00
    Width/holder arm: 19.00
    Mount. bracket dist.: 36.50
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 1
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 60.00
    Grooves/pulley: 6
    Radius: 89.00
    Radius 2: 81.00
    B+: M6
    Position/B+ in min.: 20
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL146
    Total length mm: 164.00
    Pulley: SP
    Fan: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 36.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 1
    Plug no. PL146
    Bracket hole 11.00
    Position/B+ in min. 20
    Pulley SP
    Pulley dia. 60.00
    Pulley dist. 29.00
    Radius 89.00
    D+ Size Plug
    Radius 2 81.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Voltage 14
    Total length 164.00 mm
    Width/holder arm 19.00
    Amp 80
  • Fordonsmatchning

    • OEM
      F032116726, 27060-0Q060, 27060-40010, 104210-816, 104210-9240

    • Konkurrentreferens
      A6066, A6066(DENSO), CAL40310, DAN1020, DRA0697, LRA03375, MAN7541, 28-5987, 195.940.080, 195.977.080, 235.334.802, 553473RI, 0986082120, 063377541010

    • Normaliserat artikelnummer
      a6066, a6066denso, cal40310, dan1020, dra0697, f032116726, lra03375, man7541, 270600q060, 285987, 553473ri, 104210816, 195940080, 195977080, 235334802, 0986082120, 1042109240, 2706040010, 063377541010

    • Passar modeller
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-08-2005 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P9_ Body: Hatchback From date: 01-11-2005 To date: 01-11-2010 Fuel: Petrol Approved: Yes
