HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116724

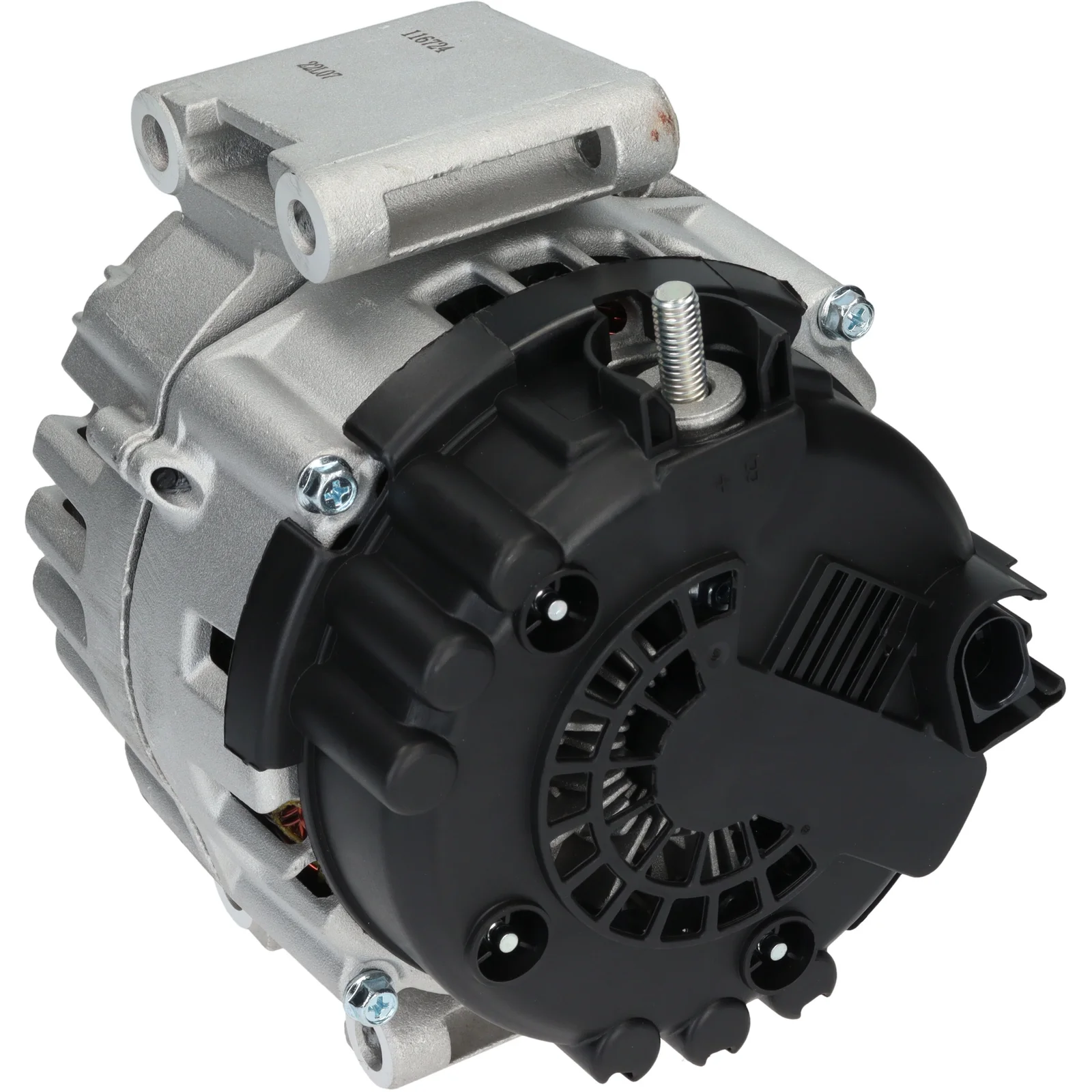

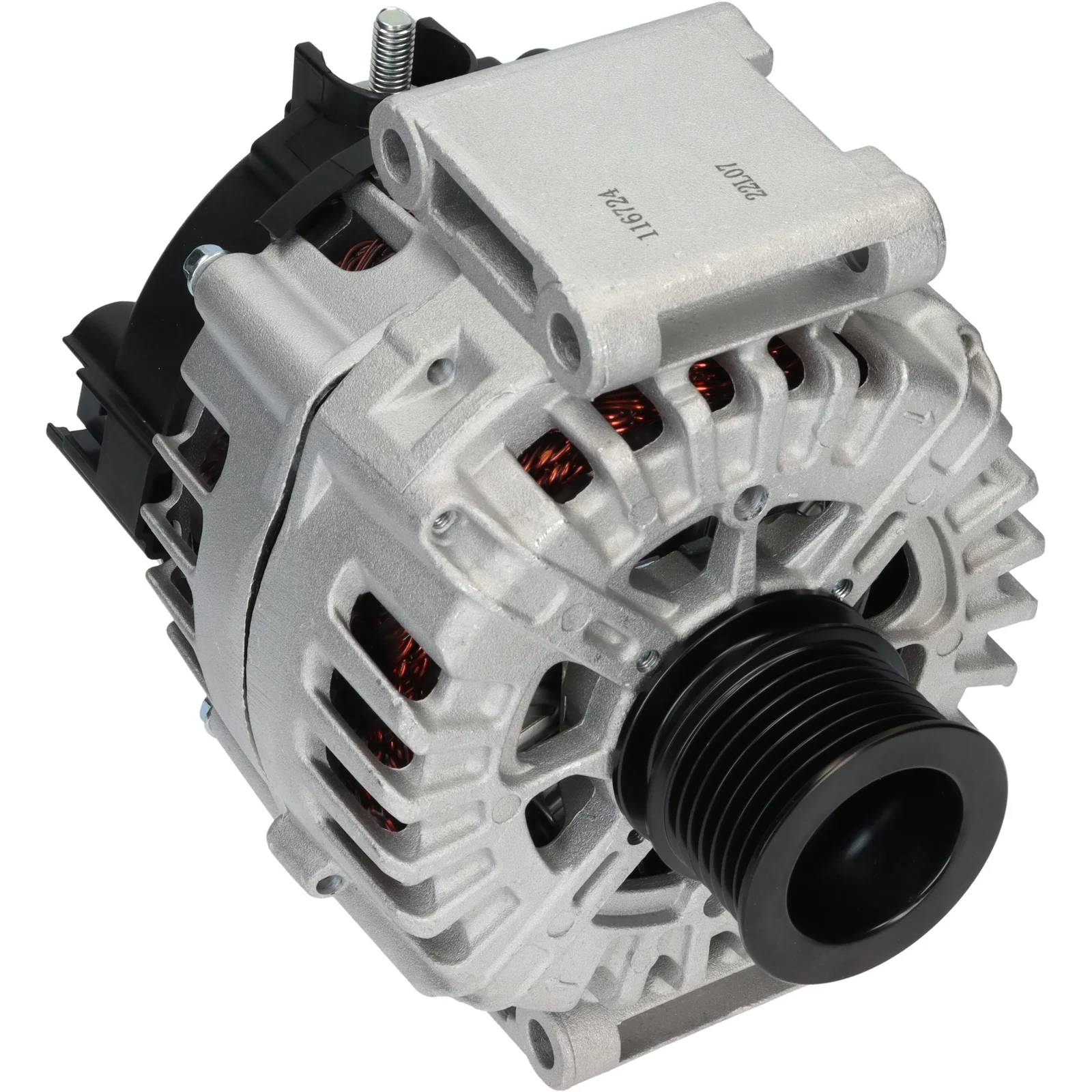

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 250, Rotation: CW, Mount. bracket dist.: 56.00

Beskrivning

Voltage: 14
Amp: 250
Pulley dist.: 31.70
Width/holder arm: 70.00
Mount. bracket dist.: 56.00
Bracket hole: 9.00
Belt. adj. bracket hole 1: 9.20
Belt. adj. bracket hole 2: 8.50
Pulley dia.: 50.00
Grooves/pulley: 7
Radius: 81.50
Radius 2: 81.50
B+: M8
Position/B+ in min.: 30
Rotation: CW
Plug no.: PL181
Total length mm: 187.00
Terminal type: COM
ID Code: 89
Communication: LIN
Pulley: SP
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.20
Belt. adj. bracket hole 2 8.50
Plug no. PL181
Bracket hole 9.00
Position/B+ in min. 30
Pulley SP
Pulley dia. 50.00
Pulley dist. 31.70
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 7
ID Code 89
Terminal type COM
Voltage 14
Total length 187.00 mm
Width/holder arm 70.00
Amp 250

  • OEM
    A0009060903, A0009065307, CG25S035, F032116724, 0009065307

  • Konkurrentreferens
    A3606S, CAL15A08, LRA04154, 28-7763, 555.948.250, 40341, 439891, 440638, 554678RIR, 12090837, 32439891

  • Normaliserat artikelnummer
    a0009060903, a0009065307, a3606s, cal15a08, cg25s035, f032116724, lra04154, 40341, 287763, 439891, 440638, 554678rir, 0009065307, 12090837, 32439891, 555948250

  • Passar modeller
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: A238 Body: Convertible From date: 01-06-2017 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: C238 Body: Coupe From date: 01-06-2017 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: W213 From date: 01-06-2017 To date: 01-05-2018 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: E 350 Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: S213 Body: Estate From date: 01-10-2016 Fuel: Diesel Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 350 Model series: E 350 Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: W213 From date: 01-01-2016 To date: 01-05-2018 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GL 350 Model type: BlueTEC 4-matic Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 From date: 01-07-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GL 3560 Model type: 4-matic Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 Body: Closed Off-Road Vehicle From date: 01-07-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLE 350 AMG Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: C292 Body: Coupe From date: 01-03-2015 To date: 01-10-2019 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLE 350 Model type: 4-matic Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 Body: Closed Off-Road Vehicle From date: 01-01-2017 To date: 01-04-2019 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLE 350 Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: W166 Body: Closed Off-Road Vehicle From date: 01-04-2015 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLE 350 Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: W166 From date: 01-04-2015 To date: 01-10-2018 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLE 350 Model type: de 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: C292 Body: Closed Off-Road Vehicle From date: 01-01-2017 To date: 01-10-2019 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: GLS 350 Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 From date: 01-11-2015 To date: 01-04-2019 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 350 Model series: ML 350 Model type: BlueTec 4-matic Size of motor: 3.0 Brand of engine: OM642.826 Type description: 166 From date: 01-06-2011 To date: 01-02-2015 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivning
    Voltage: 14
    Amp: 250
    Pulley dist.: 31.70
    Width/holder arm: 70.00
    Mount. bracket dist.: 56.00
    Bracket hole: 9.00
    Belt. adj. bracket hole 1: 9.20
    Belt. adj. bracket hole 2: 8.50
    Pulley dia.: 50.00
    Grooves/pulley: 7
    Radius: 81.50
    Radius 2: 81.50
    B+: M8
    Position/B+ in min.: 30
    Rotation: CW
    Plug no.: PL181
    Total length mm: 187.00
    Terminal type: COM
    ID Code: 89
    Communication: LIN
    Pulley: SP
    Fan: IF
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 9.20
    Belt. adj. bracket hole 2 8.50
    Plug no. PL181
    Bracket hole 9.00
    Position/B+ in min. 30
    Pulley SP
    Pulley dia. 50.00
    Pulley dist. 31.70
    Radius 81.50
    Radius 2 81.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 7
    ID Code 89
    Terminal type COM
    Voltage 14
    Total length 187.00 mm
    Width/holder arm 70.00
    Amp 250
  • Fordonsmatchning

    • OEM
      A0009060903, A0009065307, CG25S035, F032116724, 0009065307

    • Konkurrentreferens
      A3606S, CAL15A08, LRA04154, 28-7763, 555.948.250, 40341, 439891, 440638, 554678RIR, 12090837, 32439891

    • Normaliserat artikelnummer
      a0009060903, a0009065307, a3606s, cal15a08, cg25s035, f032116724, lra04154, 40341, 287763, 439891, 440638, 554678rir, 0009065307, 12090837, 32439891, 555948250

    • Passar modeller
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: A238 Body: Convertible From date: 01-06-2017 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: C238 Body: Coupe From date: 01-06-2017 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: S213 Body: Estate From date: 01-06-2017 Fuel: Diesel Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 350 Model series: E 350 Model type: 4-matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.873 Type description: W213 From date: 01-06-2017 To date: 01-05-2018 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: E 350 Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: S213 Body: Estate From date: 01-10-2016 Fuel: Diesel Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 350 Model series: E 350 Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.855 Type description: W213 From date: 01-01-2016 To date: 01-05-2018 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: GL 350 Model type: BlueTEC 4-matic Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 From date: 01-07-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: GL 3560 Model type: 4-matic Type of engine: CDI Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 Body: Closed Off-Road Vehicle From date: 01-07-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: GLE 350 AMG Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: C292 Body: Coupe From date: 01-03-2015 To date: 01-10-2019 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: GLE 350 Model type: 4-matic Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 Body: Closed Off-Road Vehicle From date: 01-01-2017 To date: 01-04-2019 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: GLE 350 Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: W166 Body: Closed Off-Road Vehicle From date: 01-04-2015 To date: 01-10-2018 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: GLE 350 Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: W166 From date: 01-04-2015 To date: 01-10-2018 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: GLE 350 Model type: de 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: C292 Body: Closed Off-Road Vehicle From date: 01-01-2017 To date: 01-10-2019 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: GLS 350 Model type: 4-Matic Type of engine: Diesel Size of motor: 3.0 Brand of engine: OM642.826 Type description: X166 From date: 01-11-2015 To date: 01-04-2019 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 350 Model series: ML 350 Model type: BlueTec 4-matic Size of motor: 3.0 Brand of engine: OM642.826 Type description: 166 From date: 01-06-2011 To date: 01-02-2015 Fuel: Diesel Approved: Yes
      1 / 4
