HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116716

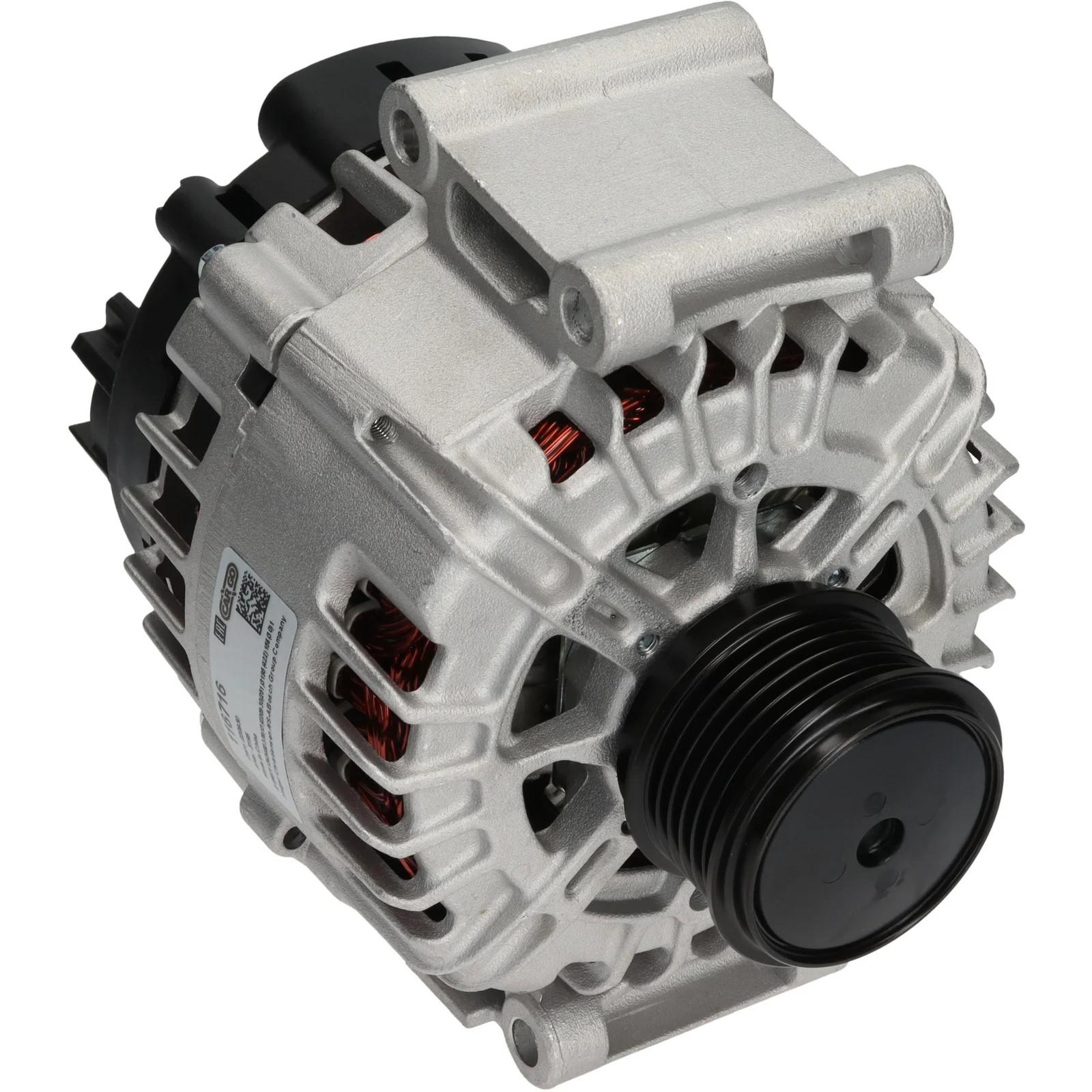

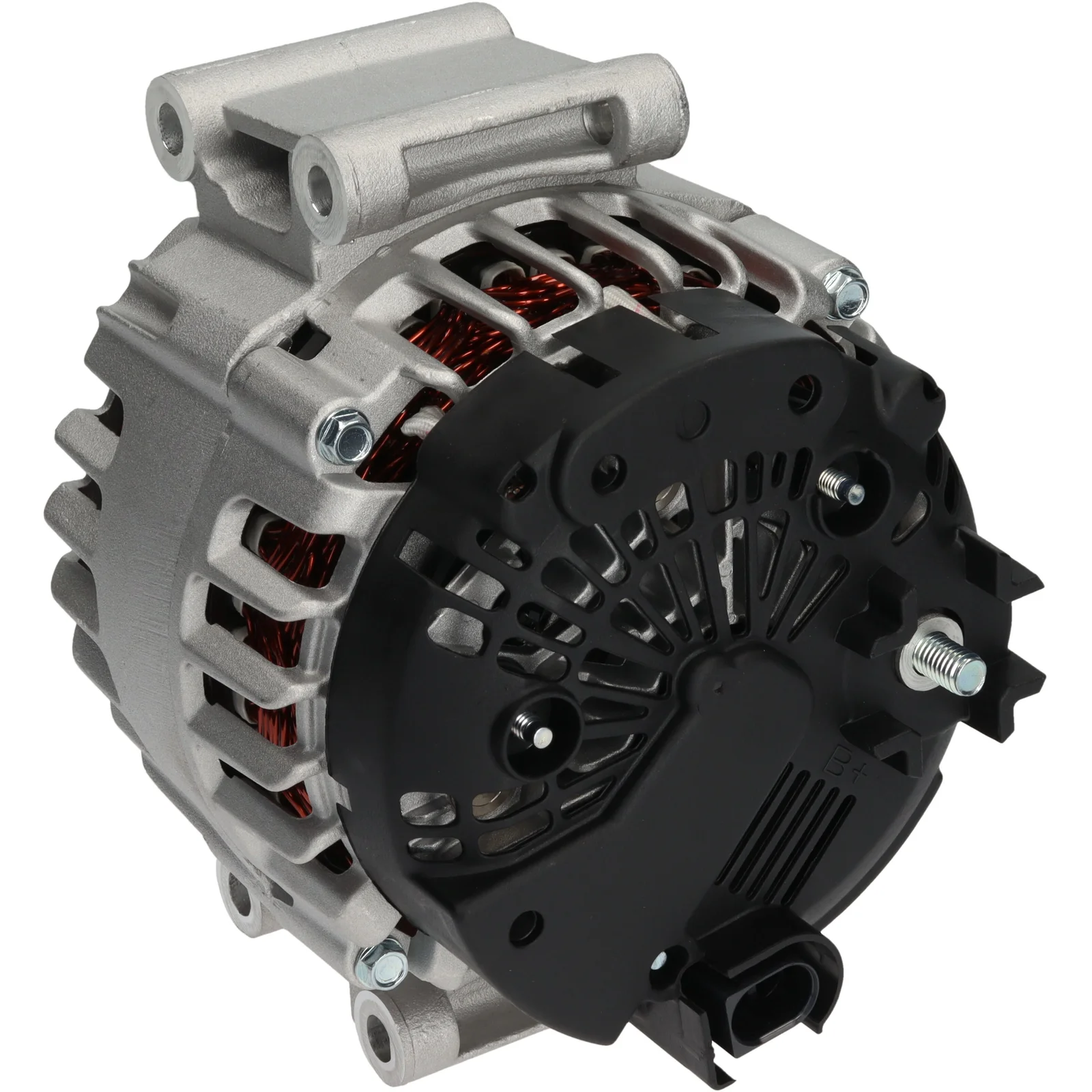

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 140, Rotation: CW, Mount. bracket dist.: 56.00

Beskrivning

Voltage: 14
Amp: 140
Pulley dist.: 29.50
Width/holder arm: 70.00
Mount. bracket dist.: 56.00
Bracket hole: 9.00
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 56.00
Grooves/pulley: 6
Radius: 81.50
Radius 2: 81.50
B+: M8
Position/B+ in min.: 45
Rotation: CW
Plug no.: PL181
Total length mm: 191.00
Terminal type: COM
ID Code: 25
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 8.50
Plug no. PL181
Bracket hole 9.00
Position/B+ in min. 45
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 29.50
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 25
Terminal type COM
Voltage 14
Total length 191.00 mm
Width/holder arm 70.00
Amp 140

  • OEM
    F032116716, TG14C056, 06J903023R

  • Konkurrentreferens
    CAL15486, 305.911.140, 439831, 440556, 553578RIV, 12090586

  • Normaliserat artikelnummer
    cal15486, f032116716, tg14c056, 06j903023r, 439831, 440556, 553578riv, 12090586, 305911140

  • Passar modeller
    Audi (FAW) Model: Q3 Model series: Q3 Model type: Quattro Type of engine: TSFi Size of motor: 2.0 Body: SUV From date: 01-04-2013 Fuel: Gasoline Approved: Yes
    Audi (FAW) Model: Q3 Model series: Q3 Model type: Quattro Type of engine: TSFi Size of motor: 2.0 Body: SUV From date: 01-04-2013 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    Audi (FAW) Model: Q3 Model series: Q3 Type of engine: TSFi Size of motor: 2.0 Body: SUV From date: 01-04-2013 Fuel: Gasoline Approved: Yes
    Audi Model: Q3 Model series: Q3 Model type: quattro Type of engine: TFSI Size of motor: 2.0 Brand of engine: CCTA Type description: 8UB, 8UG Body: SUV From date: 01-09-2014 To date: 01-10-2018 Fuel: Petrol Approved: Yes
    Audi Model: Q3 Model series: Q3 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CCZC From date: 01-06-2011 To date: 01-04-2015 Fuel: Gasoline Approved: Yes
    Audi Model: Q3 Model series: Q3 Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CPSA From date: 01-06-2011 To date: 01-04-2015 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CESA Type description: 8J3 Body: Coupe From date: 01-05-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CESA Type description: 8J9 Body: Convertible From date: 01-05-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CETA Type description: 8J3 Body: Coupe From date: 01-05-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Model type: Quattro Type of engine: TFSi Size of motor: 2.0 Brand of engine: CETA Type description: 8J9 Body: Convertible From date: 01-05-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Type of engine: TFSi Size of motor: 1.8 Brand of engine: CDAA Type description: 8J3 Body: Coupe From date: 01-06-2008 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Type of engine: TFSi Size of motor: 1.8 Brand of engine: CDAA Type description: 8J9 Body: Convertible From date: 01-06-2008 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Type of engine: TFSi Size of motor: 2.0 Brand of engine: CESA Type description: 8J3 Body: Coupe From date: 01-05-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    Audi Model: TT Model series: TT Type of engine: TFSi Size of motor: 2.0 Brand of engine: CESA Type description: 8J9 Body: Convertible From date: 01-05-2010 To date: 01-06-2014 Fuel: Gasoline Approved: Yes
    VW Model: CC Model series: CC Type of engine: TSi Size of motor: 1.8 Brand of engine: CDAA Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    VW Model: CC Model series: CC Type of engine: TSi Size of motor: 2.0 Brand of engine: CCZB Body: Coupe From date: 01-11-2011 To date: 01-12-2016 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Model type: 4motion Type of engine: TSi Size of motor: 2.0 Brand of engine: CCZB Type description: 365 Body: Estate From date: 01-01-2012 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.8 Brand of engine: CDAA Type description: 362 From date: 01-08-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TSI Size of motor: 1.8 Brand of engine: CDAA Type description: 365 Body: Estate From date: 01-01-2012 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Alltrack
    VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 1.8 Brand of engine: CDAA Type description: 365 Body: Estate From date: 01-08-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    VW Model: Passat Model series: Passat Type of engine: TSI Size of motor: 1.8 Brand of engine: CDAB Type description: 365 Body: Estate From date: 01-01-2012 To date: 01-12-2014 Fuel: Gasoline Approved: Yes Manufacture type: Alltrack
    VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 2.0 Brand of engine: CCZB Type description: 362 From date: 01-11-2010 To date: 01-12-2014 Fuel: Gasoline Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TSi Size of motor: 2.0 Brand of engine: CCZB Type description: 365 Body: Estate From date: 01-11-2010 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: Variant
    1 / 5
