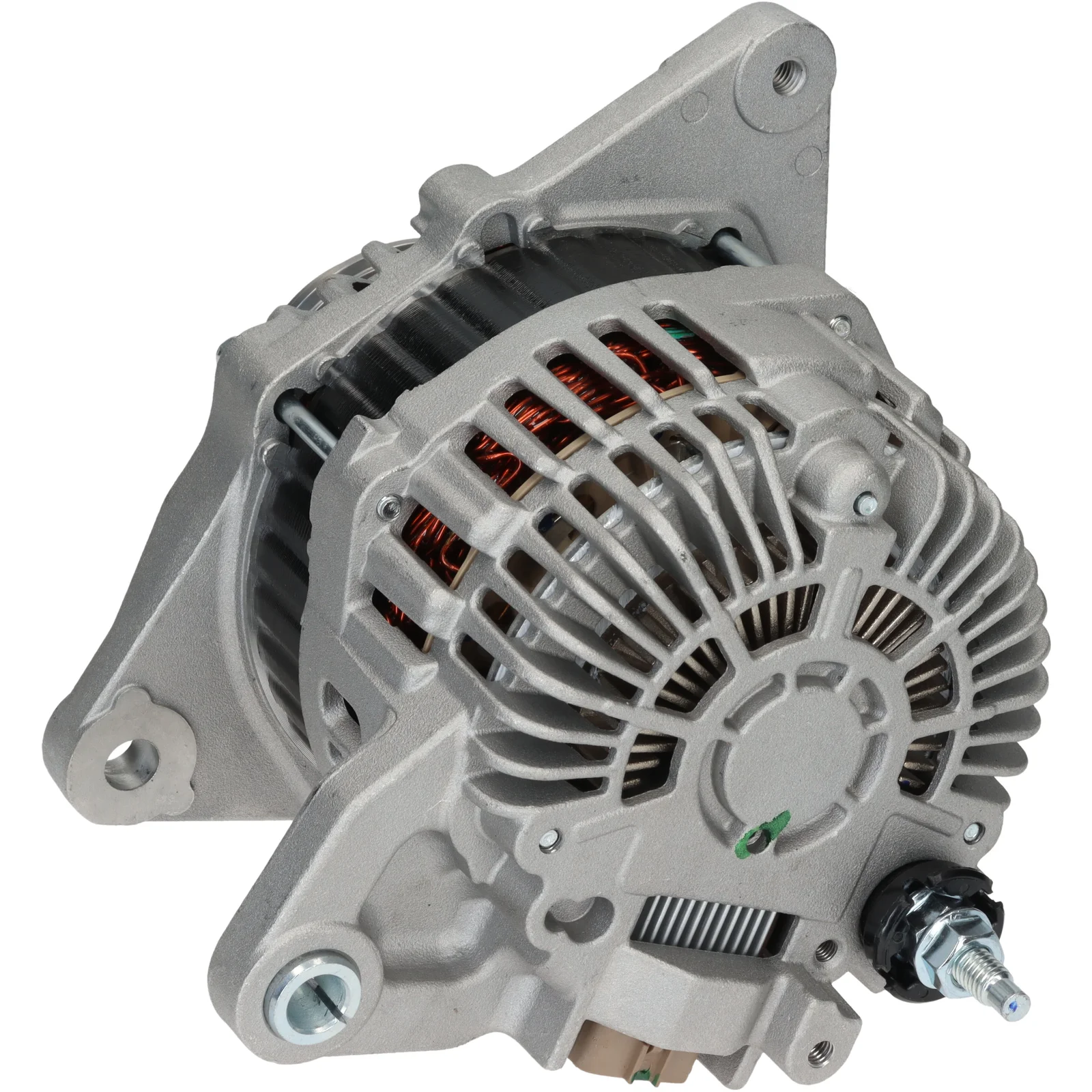

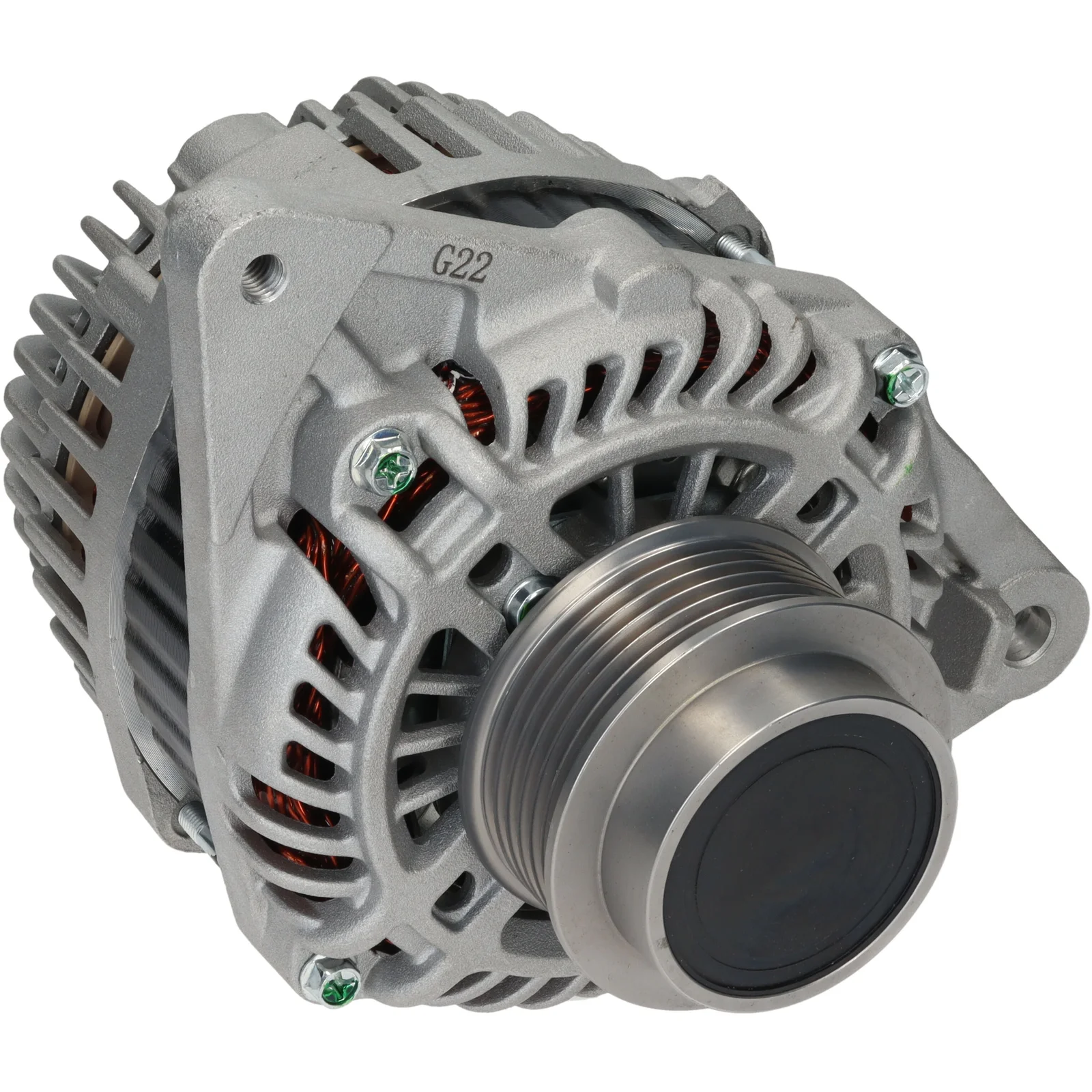

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116707

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 95, Rotation: CW, Mount. bracket dist.: 65.70

Beskrivning

Voltage: 14
Amp: 95
Pulley dist.: 39.00
Width/holder arm: 13.00
Mount. bracket dist.: 65.70
Bracket hole: 10.50
Belt. adj. brackethole pos.: 7
Belt. adj. bracket hole 1: M8
Pulley dia.: 65.20
Grooves/pulley: 6
Radius: 90.00
Radius 2: 96.50
B+: M8
Position/B+ in min.: 13
D+ Size: Plug
Rotation: CW
Plug no.: PL68
Total length mm: 201.00
Pulley: SP/FW
Fan: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 65.70
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 7
Plug no. PL68
Bracket hole 10.50
Position/B+ in min. 13
Pulley SP/FW
Pulley dia. 65.20
Pulley dist. 39.00
Radius 90.00
D+ Size Plug
Radius 2 96.50
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Voltage 14
Total length 201.00 mm
Width/holder arm 13.00
Amp 95

  • OEM
    A005TL0781, A005TL0781ZT, A5TL0781, A5TL0781ZT, F032116707, 1800A410, 6000605437

  • Konkurrentreferens
    CAL35431, LRA04378, 28-7987, 155.955.095, 40679

  • Normaliserat artikelnummer
    a005tl0781, a005tl0781zt, a5tl0781, a5tl0781zt, cal35431, f032116707, lra04378, 1800a410, 40679, 287987, 155955095, 6000605437

  • Passar modeller
    Fiat Model: Fullback Model series: Fullback Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4N15 Type description: KT_ Body: Pick Up From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 200 Model series: L 200 Model type: 4WD Type of engine: DI-D Size of motor: 2.5 Brand of engine: 4N15 Type description: KJ_, KK_, KL_ Body: Pick Up From date: 01-09-2015 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 200 Model series: L 200 Type of engine: Di-D Size of motor: 2.5 Brand of engine: 4N15 Type description: KJ_, KK_, KL_ Body: Pick Up From date: 01-09-2015 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L200 / Triton Model series: L200 / Triton Model type: DI-D 4WD Type of engine: DI-D Size of motor: 2.4 Brand of engine: 4N15 Type description: KJ_, KK_, KL_ Body: Pickup Fuel: Diesel Approved: Yes
    Mitsubishi Model: L200 / Triton Model series: L200 / Triton Model type: DI-D Type of engine: DI-D Size of motor: 2.4 Brand of engine: 4N15 Type description: KJ_, KK_, KL_ Body: Pickup Fuel: Diesel Approved: Yes
    Mitsubishi Model: L200 Model series: L200 Model type: 4WD Type of engine: DI-D Size of motor: 2.4 Brand of engine: 4N15 Type description: KJ_, KK_, KL_ Body: Pickup From date: 01-11-2014 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L200 Model series: L200 Platform/Chassis Model type: 4WD Type of engine: Diesel Size of motor: 2.4 Brand of engine: 4N15 Type description: MQ Body: Platform/Chassis From date: 01-01-2015 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L200 Model series: L200 Platform/Chassis Type of engine: Diesel Size of motor: 2.4 Brand of engine: 4N15 Type description: MQ Body: Platform/Chassis From date: 01-01-2015 Fuel: Diesel Approved: Yes
