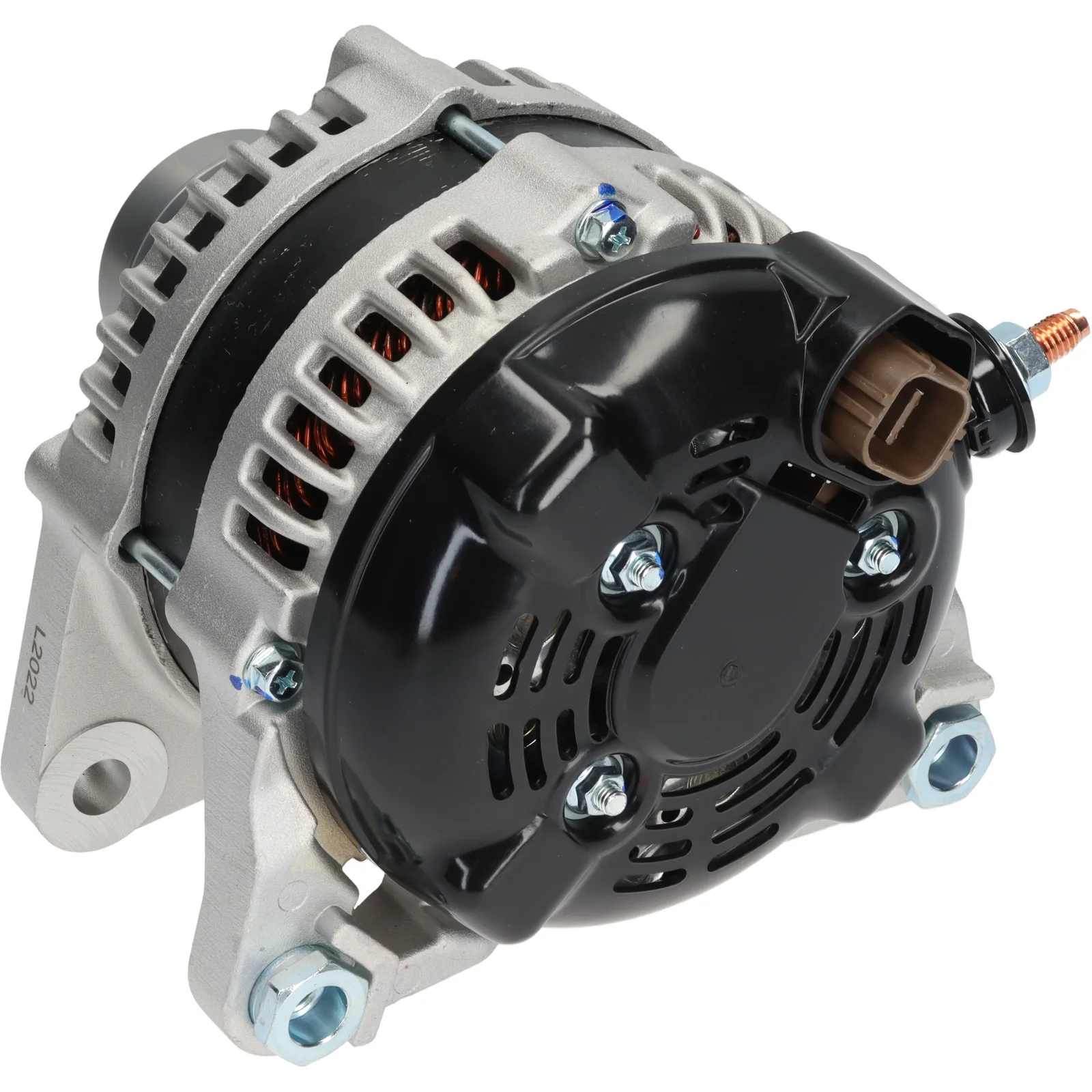

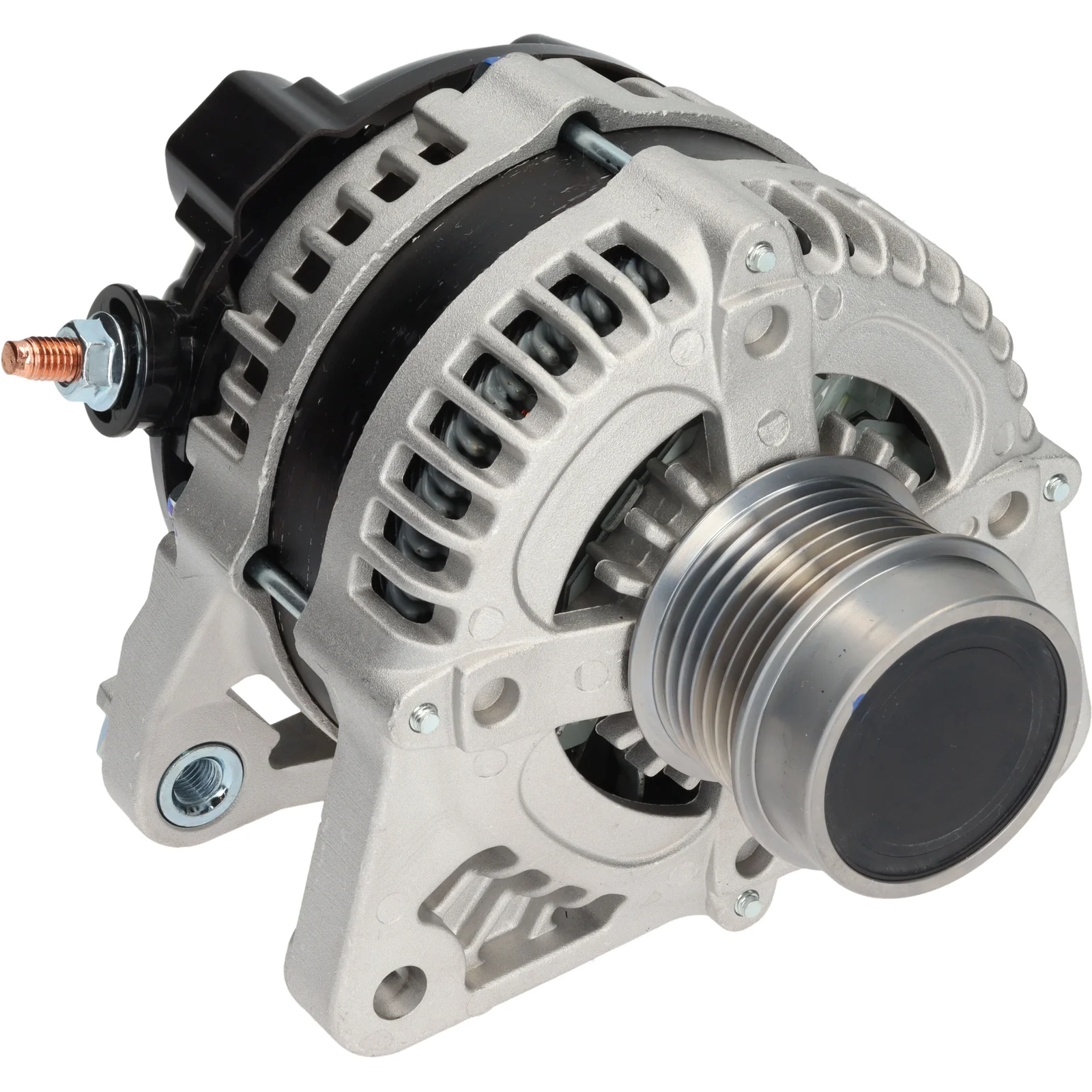

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116667

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 130, Rotation: CW, Mount. bracket dist.: 55.50

Beskrivning

Voltage: 14
Amp: 130
Pulley dist.: 33.00
Width/holder arm: 16.20
Mount. bracket dist.: 55.50
Bracket hole: 12.00
Belt. adj. brackethole pos.: 47
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 55.00
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 3
D+ Size: Plug
Rotation: CW
Plug no.: PL60
Total length mm: 180.00
Terminal type: L-IG-FR-C
Pulley: SP/FW
Fan: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 55.50
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 47
Plug no. PL60
Bracket hole 12.00
Position/B+ in min. 3
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 33.00
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type L-IG-FR-C
Voltage 14
Total length 180.00 mm
Width/holder arm 16.20
Amp 130

  • OEM
    F032116667, 31400-67J1, 31400-67J10, 31400-67J11, 31400-67J11-000, 104210-1180

  • Konkurrentreferens
    A6487S, A6488S, CAL40388, LRA04136, 28-7745, 28-7827, 185.536.140, 228.312.1502, 245.142.1402, 40328, 555346RI, 12061170

  • Normaliserat artikelnummer
    a6487s, a6488s, cal40388, f032116667, lra04136, 40328, 287745, 287827, 555346ri, 3140067j1, 3140067j10, 3140067j11, 3140067j11000, 12061170, 185536140, 1042101180, 2283121502, 2451421402

  • Passar modeller
    Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: DDiS Size of motor: 1.9 Brand of engine: F9QB From date: 01-03-2006 To date: 01-08-2008 Fuel: Diesel Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: DDiS Size of motor: 1.9 Brand of engine: F9QB Type description: JT From date: 01-10-2005 To date: 01-02-2015 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 130
    Pulley dist.: 33.00
    Width/holder arm: 16.20
    Mount. bracket dist.: 55.50
    Bracket hole: 12.00
    Belt. adj. brackethole pos.: 47
    Belt. adj. bracket hole 1: 10.50
    Pulley dia.: 55.00
    Grooves/pulley: 7
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 3
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL60
    Total length mm: 180.00
    Terminal type: L-IG-FR-C
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 55.50
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 47
    Plug no. PL60
    Bracket hole 12.00
    Position/B+ in min. 3
    Pulley SP/FW
    Pulley dia. 55.00
    Pulley dist. 33.00
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Terminal type L-IG-FR-C
    Voltage 14
    Total length 180.00 mm
    Width/holder arm 16.20
    Amp 130
  • Fordonsmatchning

    • OEM
      F032116667, 31400-67J1, 31400-67J10, 31400-67J11, 31400-67J11-000, 104210-1180

    • Konkurrentreferens
      A6487S, A6488S, CAL40388, LRA04136, 28-7745, 28-7827, 185.536.140, 228.312.1502, 245.142.1402, 40328, 555346RI, 12061170

    • Normaliserat artikelnummer
      a6487s, a6488s, cal40388, f032116667, lra04136, 40328, 287745, 287827, 555346ri, 3140067j1, 3140067j10, 3140067j11, 3140067j11000, 12061170, 185536140, 1042101180, 2283121502, 2451421402

    • Passar modeller
      Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: DDiS Size of motor: 1.9 Brand of engine: F9QB From date: 01-03-2006 To date: 01-08-2008 Fuel: Diesel Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: DDiS Size of motor: 1.9 Brand of engine: F9QB Type description: JT From date: 01-10-2005 To date: 01-02-2015 Fuel: Diesel Approved: Yes
